IntroductionTop

Cotton (Gossypium hirsutum L.) is an important crop globally for its diverse uses (Zhang et al., 2008). It is important for fiber, oil, biofuel production and also feedstock industry (De-Sousa et al., 2015). It is also called as white gold for its importance as cash and industrial crop (Iqbal et al., 2005). China, India, USA and Pakistan are major cotton producing countries. A large number of people throughout the world are involved in different aspects of cotton production, cotton products processing, and cotton products trade (Zhang et al., 2008). In Pakistan, cotton accounts for more than 50% of total foreign export earnings (Anonymous, 2017).

Cotton production is faced with a number of biotic and abiotic stresses. Among these production constraints, CLCuVD (cotton leaf curl virus disease) severely affects cotton production world-wide (Farooq et al., 2011; Hashmi et al., 2011). This disease is caused by a virus known as Cotton leaf curl virus (CLCuV). CLCuV belongs to genus Begomovirus and family Geminiviridae. It was noticed for the first time in Nigeria (Farquharson, 1912), and the first symptoms of CLCuVD were observed in Pakistan during 1967 (Hussain & Ali, 1975). In Pakistan, CLCuVD appeared in epidemic form after 1988 and heavy cotton production losses occurred in 1992 due to vast cotton cropped area affected by CLCuVD infestation. In 1992, world cotton production was also affected badly due to CLCuVD infestation. Cotton breeders started efforts to find CLCuVD resistant germplasm. Conventional breeding efforts were fruitful and soon CLCuVD resistant varieties of G. hirsutum were developed.

Rate of evolution in CLCuV genome is relatively high. In 2001, a new strain of this virus was noticed in Burewala, district Vehari, Punjab, Pakistan. This strain was named CLCuVB (Cotton leaf curl virus Burewala). All resistant genotypes of upland cotton became susceptible to this new viral strain (Mansoor et al., 2003). Nowadays, there is no report of any available upland cotton cultivar resistant to CLCuVB attack. It has direct social and economic concerns. In Pakistan, approx. 30% yield losses per year are caused due to CLCuVD (Briddon et al., 2000; Rahman et al., 2014; Hassan et al., 2016). In past, this disease was reported in Pakistan and India. But, it has spread to other important cotton growing areas of the world also such as southern China (Mao et al., 2008; Cai et al., 2010).

Plants affected by CLCuVD show a complex of symptoms including downward cupping of younger leaves, veins swelling and thickening, and leaf margins upward or downward curling. Frequently, there is emergence of outgrowths, resembling small leaves, on the lower side of leaves. These outgrowths are known as ‘enations’ (Akhtar et al., 2008). In severely affected plants, yield is adversely low and poor-quality fiber is produced (Akhtar et al., 2009). Fortunately, CLCuVD is not transmitted through seed, but has the capacity to survive in different hosts (Khan & Ahmad, 2005). Because its vector is whitefly (Bemisia tabaci Genn.), an approach to limit the infection is to control the population density of this insect. But, this is not a practically feasible solution (Holt et al., 1999). There may be chances of evolution of pesticide resistance in whiteflies and also environmental concerns about heavy use of pesticides (Palumbo et al., 2001). Search for resistant sources is the most desirable solution to handle a disease stress and it is an environment friendly option (Hogenboom, 1993).

Cuticular wax, an important constituent of plant cuticle, has been found to give resistance to plants against a number of biotic and abiotic stresses (Smith, 1999; Jeffree, 2006; Kosma et al., 2010; Bourdenx et al., 2011; Weidenbach et al., 2014). Cuticular wax is reported to inhibit attack of different pathogens on various plant species (Martin et al., 1957; Johnston & Sproston, 1965; Heather, 1967; Blakeman & Sztejnberg, 1973; Alcerito et al., 2002; Kosma et al., 2010; Yin et al., 2011; Weidenbach et al., 2014). Thinning of wax layer on leaves is found to promote susceptibility to stress conditions (Rawlinson et al., 1978; El-Otmani & Coggins, 1985a,b).

This research project was designed to investigate the role of cuticular wax content (WC) in resisting CLCu­VD infestation. The objectives of this study were to esti­ma­te, in different genotypes of cotton: a) WC (µg/cm2 of leaf area), b) rate of CLCuVD infestation, and c) relationship between WC and CLCuVD infestation.

Material and methodsTop

Plant material

Forty two genotypes of cotton were used in this study (Table 1). Twenty two genotypes originated from Pakistan and the rest were exotic, originated from diverse countries of the world. Plant material was sown at Ayub Agricultural Research Institute (AARI), Faisalabad during May 2015 and May 2016, following randomized complete block design (RCBD) with three replications. Standard agricultural practices (hoeing, weeding, fertilizers, insects/pests control, and irrigation) were followed for growing these genotypes. At sowing time, fertilizer di-ammonium phosphate (DAP) at the rate of 11.5 g/m2 was applied. Five irrigations were applied starting after 35 DAS (days after sowing) till 125 DAS. Data for sucking insect pests (jassids, white-flies and thrips) were scored at weekly intervals. Data were scored by counting number of insect pests from randomly selected 15 leaves from 15 plants of each plot. Leaves were selected as one leaf from upper portion of one plant, second leaf from middle portion of 2nd plant, and third leaf from lower portion of 3rd plant. This process was repeated, in the same sequence, till the 15th plant.

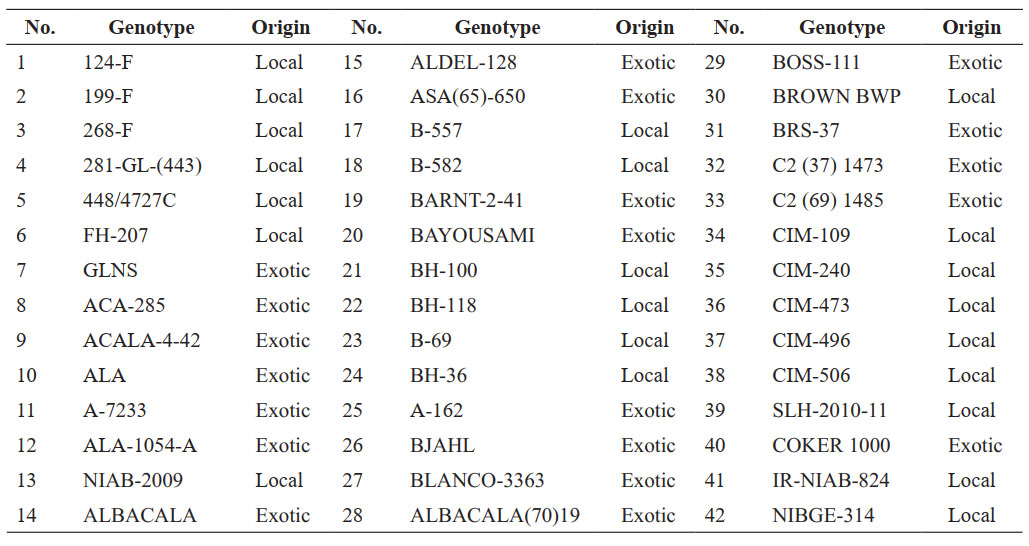

Table 1. List of genotypes used in the study.

For bollworm pests, data were scored from 5 randomly selected plants of each plot. To calculate % infestation, total number of bolls and squares/flowers; and infested bolls and squares/flowers were counted. During both 2015 and 2016 years, experimental area was sprayed six times for control of insect pests. Special care was taken to control whiteflies, the vector for CLCuV. Pyroproxifen 10% EC (20 mL in 10 L of water) was used and sprayed to control whiteflies, when its population crossed the threshold of 5 adults per cotton leaf. This ensured uniform whitefly population in the experimental field area and each cotton genotype was exposed to a uniform whitefly population pressure. Thus, each cotton genotype had equal chance of exposure to CLCuV infestation.

Extraction of cuticular wax and quantification of wax content

First of all, 25 days-old leaves from each variety of cotton were collected on September 20, 2015 and September 20, 2016 (on the same day when CLCuVD infestation scoring was done, coinciding with maximum CLCuVD infestation). Cuticular wax was extracted from these leaves following the method of Bondada et al. (1996). Leaves were immersed in pre-weighed petri plates having choloroform (10 mL) for 10-15 seconds. Afterwards, leaves were removed and after complete evaporation of chloroform, petri plates were weighed again. WC was calculated by subtracting the initial weight from final weight of petri plates and expressed as µg/cm2 of leaf area.

CLCuVD infestation scoring

All agricultural practices were uniformly applied to the experimental field area so that a constant level of whiteflies (vector) was present to spread the CLCuVD among the cotton genotypes. CLCuVD infestation (% disease index, %DI) was scored following the method described by Akhtar et al. (2010). This disease rating scale has been used in different plant species to calculate the % of disease incidence in different plant diseases (Akhtar et al., 2004, 2009, 2010; Saravanakumar et al., 2007; Anand et al., 2010).

Data recording for morphological and yield-related traits

During the two seasons (2015, 2016), data were also recorded, from every plant of each genotype picked separately at maturity stage, for seed cotton yield per plant (SCY, g/plant), number of bolls per plant (NB), and plant height (PHt, cm, measured with a scale).

Data analysis

Data were analyzed by statistical software CoStat v. 6.303 for descriptive statistics, Pearson’ correlation coefficients, and analysis of variance (ANOVA) estimates. Pearson’ correlation coefficients were estimated at probability p = 0.05. ANOVA was perfor­med according to RCBD with two factors (genotypes and years).

ResultsTop

ANOVA estimates

The mean squares from ANOVA referring to the effect of cotton genotype in %DI, WC, SCY, NB, and PHt for the combined dataset of 2015 and 2016 were significant (p = 0.05). This showed that the genotypes had significant differences with regard to studied traits (Table 2). For %DI, the differences in values across years and genotype × environment were not significant. These results suggested that the behavior of the genotypes was consistent with respect to CLCuVD resistance and susceptibility during 2015 and 2016. However, great variation for %DI was observed among genotypes and it was reflected in high coefficient of variation (171.1%) for %DI. This indicates that genotypes possess different genetic potential to tolerate CLCuVD. This was also the reason that standard deviation from %DI was higher than mean itself (Table 3). Some genotypes were immune against CLCuVD attack during both 2015 and 2016, so minimum values for %DI were zero during both years (Table 3). For WC, genotypes had significant (p = 0.001) differences. For each genotype, WC differed by year. Genotype × environment interactions for WC were also significant (p = 0.001). This indicates that WC for genotypes is greatly influenced by environmental conditions. A number of environmental factors (such as drought, temperature, pathogen attack) influence quantity of cuticular wax in plants (Jeffree, 2006; Kosma et al., 2010; Bourdenx et al., 2011; Mondal, 2011; Yeats & Rose, 2013; Schuster et al., 2016; Xue et al., 2017).

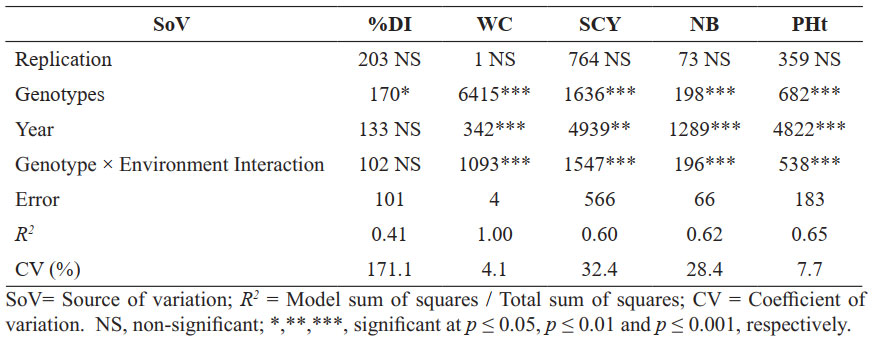

Table 2. Mean squares for traits (%DI, disease index; WC, wax content, µg/cm²; SCY, seed cotton yield/plant, g; NB, number of bolls/plant; PHt, plant height, cm) of cotton genotypes for combined dataset of 2015 and 2016.

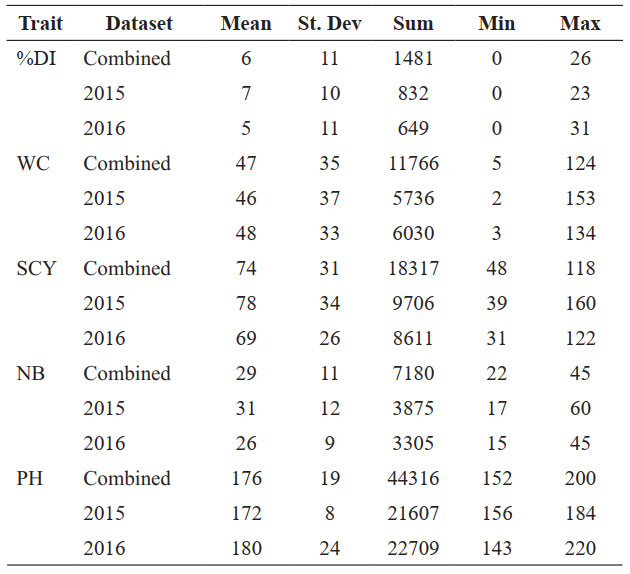

Table 3. Statistical parameters for the traits (%DI, disease index; WC, wax content, µg/cm²; SCY, seed cotton yield/plant, g; NB, number of bolls/plant; PHt, plant height, cm) of cotton genotypes.

CLCuVD infestation is mainly influenced by whitefly population in the area. As a result of timely application of insecticide for whitefly control, cotton genotypes were exposed to same whitefly population pressure during 2015 and 2016, so Year × Genotype interaction with %DI was non-significant. There was significant temperature difference during 2015 and 2016 cotton growing season at the experimental site region (Faisalabad, Pakistan). Temperature influenced WC, so Year × Genotype interaction with WC was highly significant. Difference in WC of each individual cotton genotype with temperature fluctuation was proportional to its inherent potential for WC, so each individual cotton genotype showed its susceptibility/tolerance to CLCuVD infestation according to its inherent potential of WC.

Descriptive statistical parameters of genotypes

Descriptive statistical parameters of genotypes showed that extensive variability was present among the genotypes for %DI, WC, SCY, NB, and PHt (Table 3).

Minimum and maximum %DI was found to be 0-23% and 0-31% during 2015 and 2016, respectively (Table 3). Genotypes 199-F and CIM-506 showed the highest %DI during 2015 and 2016, respectively. Minimum and maximum WC during 2015 was found to be 2 µg/cm2 and 153 µg/cm2, respectively. Minimum and maximum WC during 2016 was found to be 3 µg/cm2 and 134 µg/cm2, respectively (Table 3). Comparison of %DI and WC during 2015 and 2016 showed that there was opposite trend between %DI and WC. Genotypes with high WC showed less CLCuVD susceptibility in general. On the other hand, genotypes with less WC showed higher values of %DI.

Coefficients of correlation

There was a significant negative correlation bet­ween %DI and WC during 2015 (p = 0.001) and 2016 (p = 0.05) (Table 4). Similarly, %DI had a negative correlation with SCY, NB, and PHt during both years. WC showed positive correlation with SCY and NB. This correlation was highly significant in combined and 2015 dataset, but it was non-significant in 2016 dataset. WC had also a positive correlation with PHt, but it was non-significant.

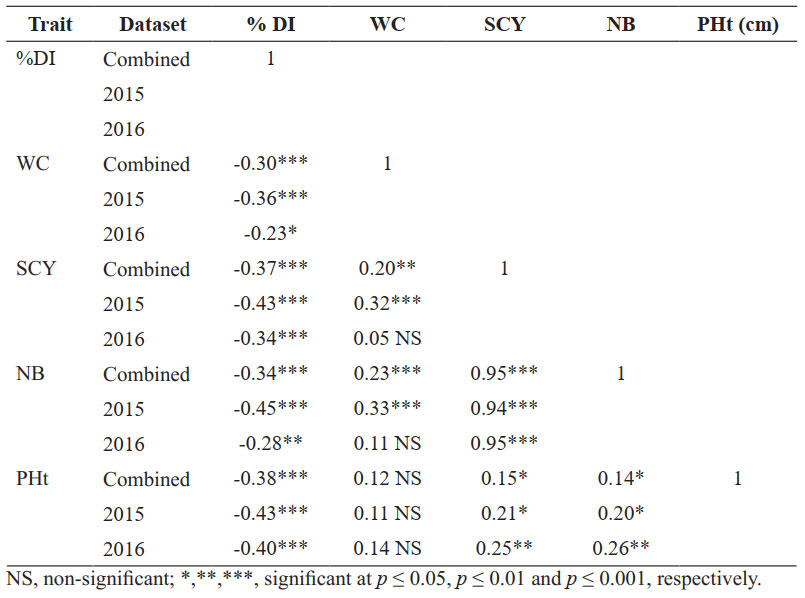

Table 4. Correlation coefcients among traits (%DI, disease index; WC, wax content, µg/cm²; SCY, seed cotton yield/plant, g; NB, number of bolls/plant; PHt, plant height, cm) of cotton genotypes.

Highly tolerant and less tolerant/susceptible cotton genotypes against CLCuVD infestation

Some cotton genotypes showed consistent behavior with regard to CLCuVD tolerance/susceptibility during 2015 and 2016 seasons (Table 5). Genotypes FH-207, GLNS, ACA-285, A-7233, B-557, BARNT-2-41, BAYOUSAMI, BH-100, A-162, BJAHL, BLAN­CO-3363, ALBACALA(70)19, CIM-473, and SLH-2010-11 were found to be immune/highly tolerant to CLCuVD infestation during both 2015 and 2016 years. It is important to note that the weight of WC in these cotton genotypes was = 40 µg/cm2. Among these genotypes, A-7233, B-557, A-162, BLANCO-3363, CIM-473, and SLH-2010-11 appeared immune and did not show any CLCuVD infestation during both 2015 and 2016 (Table 5). All these CLCuVD immune cotton genotypes possessed relatively higher WC. Among these genotypes, three genotypes (B-557, CIM-473, SLH-2010-11) were approved varieties grown in Pakistan. Three other varieties (A-7233, A-162, BLANCO-3363) were of exotic origin and part of cotton germplasm maintained at Cotton Research Station (CRS), Ayub Agricultural Research Institute (AARI), Faisalabad, Pakistan. BLANCO-3363 is a registered cotton variety in Texas, USA. From the other side, the genotypes 199-F, 448/4727C, NIAB-2009, BH-36, BROWN BWP, C2 (69) 1485, CIM-109, CIM-506, and NIBGE-314, having WC weight lower than 10 µg/cm2, showed higher susceptibility to CLCuVD. It indicated that a minimum threshold quantity of WC (40 µg/cm2) is required to offer resistance to CLCuVD infestation. It was the same for each year. In the absence of this threshold quantity of WC, a genotype was rendered susceptible to CLCuVD.

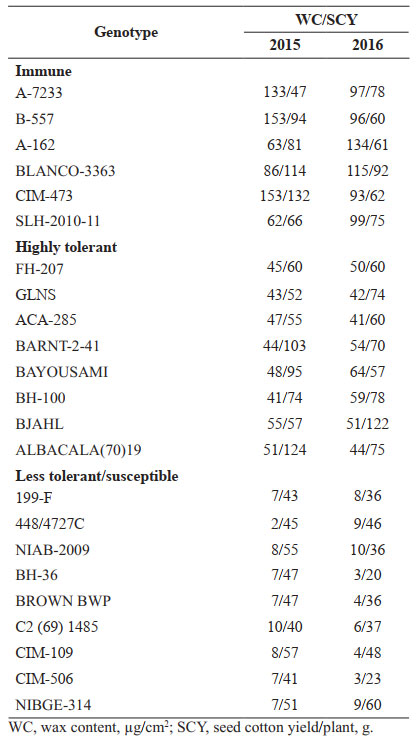

Table 5. List of immune/highly tolerant and less tolerant/ susceptible genotypes during 2015 and 2016.

DiscussionTop

Cuticle is the first layer of defense for protecting plants from environmental adversities. Cuticle consists of cutin/cutan matrix to which the cuticular waxes are either embedded (intra-cuticular waxes) or present on the outer layer of this matrix (epi-cuticular waxes) (Yeats & Rose, 2013). These cuticular waxes are reported to provide protection to plants against various biotic and abiotic stresses (Shepherd & Griffiths, 2006; Yeats & Rose, 2013; Schuster et al., 2016; Xue et al., 2017). In this study, a significant negative correlation was found between WC and %DI. This showed that cuticular wax had a role in confering resistance to cotton plants against CLCuVD infestation. This role may be manifested by the control of density in population of whiteflies, which are the vectors of the virus. The cotton genotypes with more WC were not favored by whiteflies for feeding and thus there was no transmission of CLCuVB to these genotypes, rendering these genotypes resistant to CLCuVD infestation. The findings of our research support a new indirect role of wax for giving tolerance against a viral disease in cotton. Previously, cuticular wax was reported to have a role for giving resistance to another insect, Hessian fly, attacks. Kosma et al., (2010) reported that resistant plants to Hessian fly attack produced more waxes and cutin than susceptible plants. In a similar manner, cuticular wax might checked feeding of whitefly and thus inhibited transmission of CLCuVB to the body of cotton plant. Otherwise, there might be some other mechanism such as cuticular wax components’ involvement in signal transduction and activation of defense mechanism against CLCuVB. Lipids, a major constituent of cuticular wax, are reported to mediate defenses against pathogen attack (Okazaki & Saito, 2014). In case of CLCuVB, this signaling role of cuticular wax will open new horizons of research endeavors. In the near future, efforts will be carried out to study the role and expression of these possible mechanisms.

In Pakistan, currently the most prevalent strain of virus, causing CLCuVD, is CLCuVB (Hassan et al., 2016). Six cotton genotypes (A-7233, B-557, A-162, BLANCO-3363, CIM-473, and SLH-2010-11), which did not show any signs of CLCuVD infestation during both 2015 and 2016, possess highest level of tolerance against CLCuVB. In this study, cotton genotypes with = 10 µg/cm2 WC were found less tolerant or susceptible to CLCuVB attack. It indicated that to resist CLCuVB, a cotton genotype must possess a minimum threshold quantity of WC, otherwise it would be rendered susceptible to CLCuVB attack. On the other hand, a cotton genotype with = 40 µg/cm2 WC was found tolerant to the attack of CLCuVB. It implied that a judicious quantity of cuticular wax provided required thickness of wax barrier which made hindrance in feeding of whitefly. Even though there was a uniform population of whiteflies in the experimental area, whiteflies could feed only on leaves of those cotton genotypes with less cuticular wax content and, thus, with thin layer of wax on their leaves. On the basis of these findings, it is suggested that the quantity of WC is critical for resistance to CLCuVB and may be used as a useful indicator for screen tolerance or susceptibility of cotton genotypes.
