IntroductionTop

Since sperm vitrification in straws was first described in human by Isachenko et al. (2005), it has been investigated in different animals including ram (Jiménez-Rabadán et al., 2015), goat (Daramola et al., 2016), fish (Zilli et al., 2018) and horse (Consuegra et al., 2018; Restrepo et al., 2019). This technique has also been developed in donkey sperm in absence of permeable cryoprotectants, showing promising results regarding in vitro parameters (Diaz-Jimenez et al., 2017, 2018b). In this sense, vitrification in straws would be an interesting alternative to conventional slow freezing in this species, whose results after ar­tificial insemination in jennies using frozen sperm are very poor, with pregnancy rates ranging from 0 to 36% (Rota et al., 2012; Oliveira et al., 2016). However, the relatively small volume employed (100 µL) seems to be a major disadvantage in comparison to conventional freezing (Slabbert et al., 2015). To solve this limitation, vitrification of large volumes of sperm (up to 0.5 mL) has been developed in human beings, showing similar (Slabbert et al., 2015) and higher (Isachenko et al., 2011) sperm motility parameters after warming when compared to conventional freezing. Nevertheless, to our knowledge, there is little information about its use in animals, and if so, no motile sperm was recovered after warming (Restrepo et al., 2019).

Temperature and time during thawing have shown to affect sperm motility, plasma membrane and acrosome integrity after conventional freezing (Athurupana et al., 2015); and they seem to be also key factors for sperm vitrification success (Mansilla et al., 2016). A few studies comparing warming temperatures after vitrification could be found in the literature: Mansilla et al. (2016) reported optimum results in vitrification of human sperm in 0.25 mL straws after warming at 42ºC in comparison to lower temperatures; however, heterogeneous results were obtained after sperm vitrification following the spheres method. In this sense, high warming temperatures (up to 60ºC) seemed to be more adequate for mouflon (Pradiee et al., 2016) and ibex (Pradiee et al., 2015) than for dog (Caturla-Sánchez et al., 2018) sperm, in which slower warming rates (37ºC) showed better sperm quality after vitrification. To the best of our knowledge, there are no previous studies comparing different temperatures and times for warming after vitrification in donkey sperm. Therefore, the aim of this study was to vitrify donkey sperm in 0.5 mL straws using different temperatures and rates for warming in comparison to conventional freezing regarding sperm motility parameters, plasma membrane and acrosome integrity.

Material and methodsTop

Semen collection and processing

Samples were obtained from five healthy, fertile, Andalusian donkeys from 3 to 8 years of age. All the experiments were performed in accordance with the Ethical Committee for Animal Experimentation of the University of Cordoba (project no. 31/08/2017/105) and the Spanish law for animal welfare and experimentation (BOE, 2013). Ejaculates (three per donkey, n=15) were collected using a Missouri artificial vagina and asse­ssed before freezing or vitrification for sperm volume, concentration, motility and plasma membrane integrity as previously described (Diaz-Jimenez et al., 2018a). After that, gel-free semen samples were diluted 1:1 (v/v) with a commercial milk fraction-based extender (INRA-96, IMV Technol., L’Aigle, France), centrifuged at 400 × g for 7 min at 22°C in a corning-adapted centri­fuge (Eppendorf, model 5702 RH, Eppendorf AG, Hamburg, Germany) and resuspended to achieve a final concentration of 200 × 106 total sperm/mL. A skimmed milk-egg-yolk based extender for equine sperm was used (Gent, Minitüb, Tiefenbach, Germany) (i) containing glycerol (De Oliveira et al., 2017) for conventional slow freezing (control, C); or (ii) without glycerol, but adding instead sucrose (S) to reach a final concentration of 0.1 M (437 mOsm/kg) for sperm vitrification (Diaz-Jimenez et al., 2018b).

Conventional freezing and vitrification pro­cedures

Conventional freezing and thawing were performed following a previous protocol for donkey sperm cryopreservation (Diaz-Jimenez et al., 2018a). Briefly, extended semen was slowly cooled to 5ºC for 2 hours into an Equitainer (Hamilton Research, Inc. Ipswich, MA, USA), and loaded in 0.5 mL plastic French straws. Thereafter, straws were placed in racks 2.5 cm above the surface of liquid nitrogen (LN2) for 5 min and then stored in tanks. Thawing was performed by immersion in a 37ºC water bath for 30s. For the vitrification tech­nique, sperm extended in S was cooled at 5ºC during 1 hour (Diaz-Jimenez et al., 2017) and loaded into 0.5 mL straws (CBS™, Cryo Bio System, Paris, France). Straws were hermetically sealed at both sides and directly plunged into LN2 for vitrification (Isachenko et al., 2011; Slabbert et al., 2015). Vitrified samples were stored in LN2 tank until use. For warming, straws were immersed in a water bath at different temperatures and times according to the following protocols: (W1) 37ºC for 30s, (W2) 43ºC for 20s and (W3) 70ºC for 8s and immediately maintained at 37ºC for 52s. After thawing or warming, all samples were extended with INRA-96 to a final concentration of 25 × 106 sperm/mL for sperm evaluation.

Computer-assisted sperm motility analysis (CASA)

Sperm motility was objectively evaluated by the Sperm Class Analyzer (SCA v5.4, Microptic S.L., Barcelona, Spain). For each evaluation, two 5 µL drops and three random microscopic fields per drop were evaluated. A minimum of 200 spermatozoa were analysed. The trajectory of each spermatozoa was determined by the software and the following parameters of sperm motion were measured: total (TM, percentage of spermatozoa with a mean average path velocity >10 µm/s) and progressive motility (PM, percentage of motile spermatozoa with >75% of the straightness coefficient); curvilinear (VCL, µm/s), straight line (VSL, µm/s) and average path velocities (VAP, µm/s); linear coefficient (LIN, VSL/VCL×100); straightness coefficient (STR, VSL/VAP×100); wobble coefficient (WOB, VAP/VCL×100); amplitude of la­teral head displacement (ALH, µm) and beat cross frequency (BCF, Hz).

Assessment of sperm plasma membrane integrity

Plasma membrane integrity (PMI, %) was assessed using the double stain propidium iodide (PI) with acridine orange (AO) from the VitalTest stain (Halotech DNA SL, Madrid, Spain) as previously described (Diaz-Jimenez et al., 2018a). Briefly, a 10 µL aliquot of diluted semen was mixed with 1 µL PI and 1 µL AO and evaluated under epifluorescence microscopy (Olympus BX40, Tokyo, Japan) using a U-ND25-2 filter (a 460–490 nm excitation filter). At least 200 sperm were counted and those with green emission (viable spermatozoa) were recorded.

Assessment of acrosome integrity

The sperm acrosomes were evaluated using the peanut agglutinin (PNA) conjugated with fluorescein isothiocyanate (FITC) and PI staining, as described by Dorado et al. (2014). In brief, 10 µL of diluted sample (25 × 106 sperm/mL) was spread on a slide and permeabilized with 70% ethanol for 30 s. A mixture of 10 µL PI and 20 µL FITC-PNA was spread over each smear after 5 min incubation at 38ºC, and the slides were incubated in a dark, moist chamber for 30 min at 4ºC. Slides were then evaluated under epifluorescence microscopy (Olympus BX40, Tokyo, Japan) using the 100x oil immersion objective and the U-ND25-2 filter (a 460–490 nm excitation filter). Sperm acrosomes were classified as intact (spermatozoa displaying in­tensively bright green fluorescence of the acrosomal cap) and damaged (spermatozoa displaying disrupted fluorescence, fluorescent band at the equatorial segment or no fluorescence, indicating damages to the outer acrosomal membrane). A total of 200 spermatozoa were evaluated, and the percentage of acrosome-intact sperm was recorded (AIS, %).

Statistical analysis

Statistical analysis was performed using the Statistical Analysis Software (SAS, v.9.0, SAS Institute Inc., Cary, NC, USA) and data was presented as mean ± standard deviation (SD). Results were compared between treatments using a general lineal model procedure (PROC GLM) followed by Duncan multiple comparison test as post-hoc test. Animals and ejaculates were considered as random factors. Significant differences were considered when p<0.05.

Results and discussionTop

Sperm parameters before cryopreservation had the following average values: gel-free volume = 61.1 ± 25.3 mL, sperm concentration = (354.5 ± 101.2) × 106 sperm/mL, TM = 89.5 ± 6.4%, PM = 61.0 ± 15.7% and PMI = 61.8 ± 12.7%. Conventional freezing showed significantly (p<0.001) higher results than vitrification for TM = 42.7 ± 19.6%, PM = 30.3 ± 16.7%, PMI = 49.1 ± 10.4% and AIS = 39.6 ± 14.5% despite the warming procedure employed (Fig. 1). No differences (p>0.05) were observed among warming temperatures after vitrification for TM (W1: 0.2 ± 0.4%, W2: 2.8 ± 4.3% and W3: 2.4 ± 2.1%) and PM (W1: 0.2 ± 0.4%, W2: 1.2 ± 1.8% and W3: 2.1 ± 1.9%). However, PMI was significantly higher in W3 (20.0 ± 11.0%) than W1 (5.5 ± 3.6%) and W2 (9.3 ± 8.4%) (p<0.05). The percentage of AIS resulted also in higher values in W3 (29.8 ± 4.5) than W1 (14.5 ± 3.7) (p<0.05).

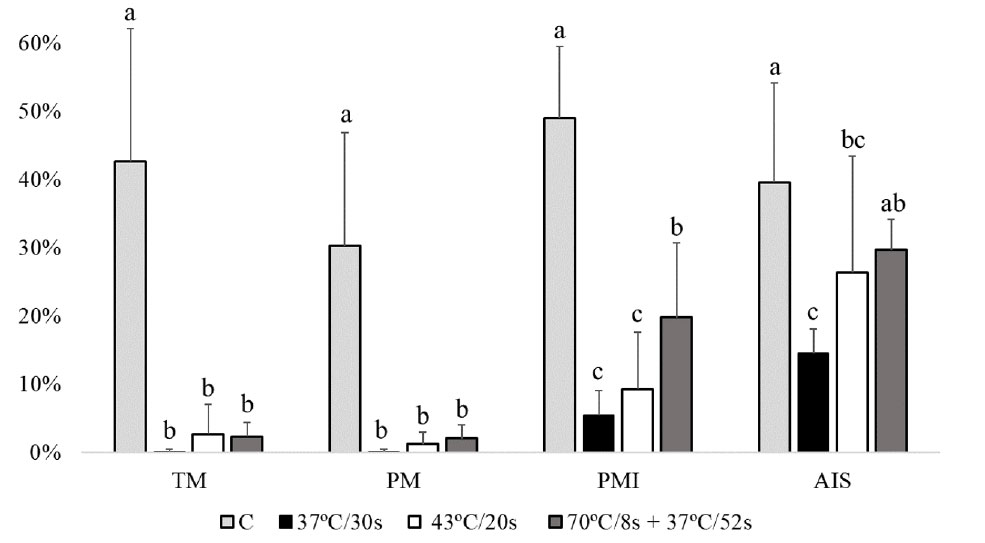

Figure 1. Percentages of total (TM) and progressive (PM) motility, plasma membrane integrity (PMI) and acrosome integrity (AIS) from donkey sperm after conventional slow freezing (C) compared to vitrification in 0.5 mL straws warmed following different protocols. Different superscripts (a, b, c) indicate significant differences between treatments (p<0.05). Values are expressed as mean ± SD.

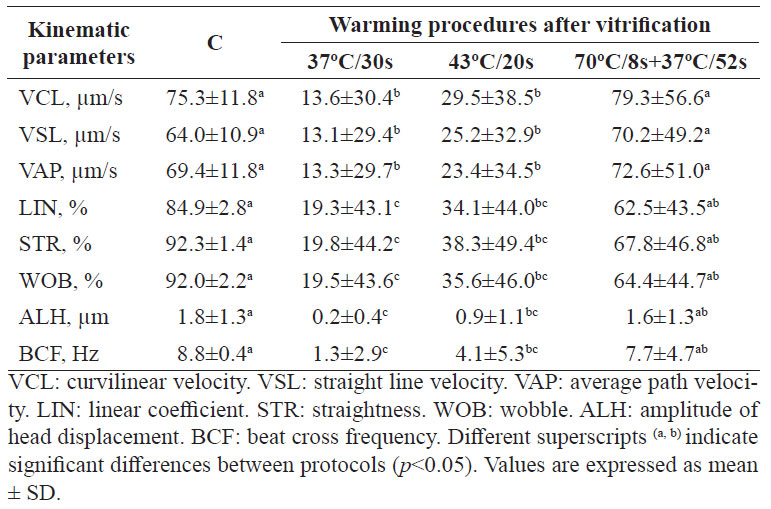

Parameters regarding velocity features showed no differences (p>0.05) between W3 and C for VCL VSL and VAP. Protocol W1 resulted in the lowest values for LIN, STR, WOB, ALH and BCF. Mean values of kinematic sperm parameters assessed are represented in Table 1.

Vitrification of sperm in large volumes has been mostly researched in human showing similar (Slabbert et al., 2015) or higher (Isachenko et al., 2011) sperm quality after warming when compared to conventional freezing. However, in the present study conventional freezing conserved motility, plasma membrane and acrosome integrity better than vitrification in 0.5 mL straws in donkey sperm. A possible explanation for this difference is the higher cryostability of the human sperm due to its structural composition (Isachenko et al., 2003). Cryostability of sperm cells has been negatively correlated with the size, probably due to higher water content and lower internal compaction of the bigger ones (Katkov et al., 2012). Human sperm head size is smaller in comparison to other mammalian species, including equine (Garner, 2006; Jiménez-Rabadán et al., 2015; Arraztoa et al., 2017). This characteristic probably makes human sperm less vulnerable to cryopreservation damage (Arraztoa et al., 2017), which allows successful vitrification in hi­gher volumes. Additionally, differences between these species exist also in plasma membrane composition of the sperm (cholesterol and phospholipid types) and they are also determinants of sperm cryostability. Besides, sucrose concentration employed in the present study was selected from preliminary tests in donkey sperm vitrification in spheres (30 µL), in which 0.1 M sucrose conserved sperm parameters better than the extender commonly used for human sperm vitrification: 0.25 M sucrose prepared in distilled water plus serum albumin (Isachenko et al., 2008; Sanchez et al., 2012 a,b). In this sense, the extender requirements for guaranteeing vitrification of donkey sperm packed in 0.5 mL straws may be different in comparison to spheres method. Therefore, further studies testing higher non-permeable cryoprotectant concentration; other sugars, such as trehalose (El-Badry et al., 2017; Schulz et al., 2017); as well as other substances supplementation, such as cyclodextrins (Madison et al., 2013; Partyka et al., 2016; Lone, 2018) would be interesting to improve results after sperm vitrification in 0.5 mL straws in this species.

In addition, human sperm vitrification has been traditionally performed after sperm selection of motile and viable cells; whereas sperm selection techniques prior to freezing in stallions has shown no improvements on sperm motility after thawing (Hidalgo et al., 2017). In this regard, it is also important to point out that vitrification in 0.5 mL straws has obtained despair results regarding species, even among studies in human sperm, as previously described by Katkov et al. (2012). Conventional freezing has shown better results than sperm vitrification in other domestic animals as dog (Caturla-Sánchez et al., 2018), and ram (Pradiee et al., 2016); but the spheres method was used in both.

In order to maximize the possibilities of sperm vitrification success in large volumes in donkeys, different warming protocols were compared. Unex­pectedly, no differences in motility percentages bet­ween warming rates were found; although higher temperatures during shorter periods of time (W3, 70ºC/8s + 37ºC/52s), showed significantly higher membrane integrity and velocity features than lower temperatures during longer periods of warming (W1 and W2). Moreover, W3 warming protocol outcomes similar sperm velocity parameters (VSL, VCL and VAP) after vitrification than those obtained after conventional freezing. In this regard, hyperactivation of sperm cells might be suspected; however, it has been generally defined as a change in the pattern of sperm motility (Hinrichs & Loux, 2012), which has been set in stallion sperm as (i) VCL>180 µm/s and mean ALH>12 µm (Rathi et al., 2001) or (ii) VCL between 225 and 350 µm/s and ALH between 8 and 13 µm (Hinrichs & Loux, 2012). In this sense, none of the kinematic sperm parameters assessed in this study had those characteristics, so sperm hyperactivation after vitrification could be dismissed. On the other hand, sperm velocity parameters ascertained by CASA assessments have been previously correlated with in vivo fertility in mammals (Gomendio & Roldan, 2008). Unfortunately, fertility has not been assessed in this study.

Additionally, the better sperm quality found in the present study using high warming rates (W3), is in agreement to those results previously reported by Pradiee et al. (2016), in which rapid warming prevented damage after vitrification in spheres in mouflon sperm (60ºC better than 37ºC). Similarly, Athurupana et al. (2015) found higher motility and membrane integrity sperm values using 70ºC/8s + 39ºC/52s in comparison to 39ºC/60s in conventional freezing of boar sperm. On the contrary, a recent work comparing warming procedures after dog sperm vitrification in spheres (Caturla-Sánchez et al., 2018), showed better sperm quality after warming at 37ºC rather than 65ºC. In the present study, almost no motile sperm were recovered using the conventional thawing protocol for 0.5 mL French straws (W1, 37ºC/30s), which may be explained because the warming rate for sperm vitrification in large volumes must be raised in comparison to conventional freezing. In this sense, W2 (43ºC/20s) was expected to outcome good sperm quality after vitrification because similar warming protocols were successfully employed in donkey (Diaz-Jimenez et al., 2017, 2018b) and human (Mansilla et al., 2016) sperm vitrification using 0.25 mL straws. Nevertheless, volume and package were modified in this report in comparison to the previous ones, so the vitrification procedure was completely different. The ratio between volume and surface occupied by the semen samples in 0.5 mL straws was different in comparison to 0.25 mL straws, reducing thereby the cooling rates achieved in this study. According to this, the ultra-rapid cooling rates required for successful ‘kinetic vitrification’ of equine sperm may not occur (Hidalgo et al., 2018), which could explain the poor sperm quality obtained after warming.

Sperm motility after vitrification yielded substan­ti­ally lower percentages in comparison to conventional freezing, being therefore deficient for its use in routine artificial insemination practices. However, percentage of sperm viability using the W3 warming protocol was higher than other warming rates tested, reaching values around 20%. In this regard, selection of sperm cells after warming might be performed (Ortiz et al., 2015) and possibly be used for advanced reproduction techniques such as “intracytoplasmic sperm injection” (ICSI) (Gonzalez-Castro & Carnevale, 2019).

In conclusion, high warming rates seem to be better for donkey sperm vitrification in large volumes; but this methodology is still not an alternative to conventional sperm freezing.
