IntroductionTop
A weak water management system causes the highest water loss during irrigation (Al-Amoud, 2010), having a significant influence on the limited resources of water and on agriculture (Al-Shayaa et al., 2012). Therefore, drip irrigation methods have been adopted because it is believed to be the most efficient and worthwhile source for stabilizing the use of water when compared to other methods. In surface drip irrigation (DI), water loss can be decreased because of less water evaporation and deep percolation (Al-Amoud, 2010). Despite these advantages, several disadvantages have been observed in the application of the DI system owing to its traditional methodology including the risk of destruction, direct exposure of the drip lines to the sun, and the occurrence of salinity. Thus, subsurface drip irrigation (SDI) has been suggested as a more useful method because it used less water than that of DI due to decrease the level of evaporation from the soil surface (Ayars et al., 1995; Çolak et al., 2018). SDI can be used to manage the amount of added water without causing any severe effects on the environment as a result of flow removal and deep penetration (Zin El-Abedin et al., 2015). Overall, this method is able to enhance the production of crops by reducing water waste (Dukes & Scholberg, 2005; Enciso et al., 2005; Soussa, 2010). SDI is a more efficient irrigation tool than the DI system because it provides water to the root zone (Irmak et al., 2016). However, the efficiency of this system can be disturbed depending on the distance between the emitters and the lined depth of the drip lines (Enciso et al., 2005).
Some precautionary measures should be followed when applying an SDI system. Bryla et al. (2003) suggested that for an efficient installment of an SDI system, the drip line depth under the soil surface is the most important factor that must be considered during the design process. There are several studies on SDI carried out in different crops. Patel & Rajput (2009) studied the effect of the buried depth of the drip lines and the different irrigation levels on the production of onions under an SDI system in sandy loamy soil. The best result was achieved at a buried drip line depth of 10 cm. Çolak et al. (2017) showed that SDI received slightly less water than the DI due to reduced evaporation losses in eggplant. Al-Ghobari & Dewidar (2018) reported that soil water contents in SDI were greater than those in DI during growth stages of the tomato.
In the field of agriculture, apart from the SDI system, which plays a vital role in the reduction of water usage, several other techniques have been explored to enhance water absorption, such as mulching at the soil surface (Hapeman & Durham, 2003). These techniques have been widely used to hinder the water evaporation rate from the soil surface and improve crop growth environments, thereby increasing crop yields (Dukes & Scholberg, 2005; Zhang et al., 2009; Bu et al., 2013; Li R et al., 2013; Li S et al., 2013; Haque et al., 2018). In last years, the crop straw is one technique for mulching of the soil surface that can reduce evaporation loss from the soil surface, improve physicochemical properties of soil, and enhance biological activity (Blanco-Canqui & Lal, 2007; Jordán et al., 2010; Sharma et al., 2011; Jiménez et al., 2017). Li R et al. (2013) and Li S et al. (2013) found that straw mulching has saved about 35% of all water sources during maize growth period. Presently, plastic film mulching is a well-evolved technique for agriculture in arid, semiarid and sub-humid areas, especially where irrigation is not available (Dong et al., 2009). Plastic film mulching has been shown to improve thermal conditions and increase topsoil water storage (Wang et al., 2015; Liang et al., 2018) promoting crop growth and water use efficiency (Fan et al., 2016; Wu et al., 2017). Ma et al. (2018) showed that plastic film mulching increased soil moisture in topsoils (0-20 cm) and yields of spring maize and potato in Northwestern China. A combination of SDI and plastic film mulching has been the best method to produce vegetables (Coelho et al., 2009) and melons (Baghani et al., 2010).
Under an arid climate, the application of an SDI system with mulching can potentially minimize the evaporation rate. Therefore, the aims of the present study were to: (1) explore the reduction of evaporation using different soil surface mulching, e.g. black plastic film (BPF) and palm tree waste (PTW), in combination with SDI; (2) analyze the status of the volumetric soil water content (θv) under an SDI, being a functional unit in the variation of drip line depth and soil surface mulching.
Material and methodsTop
Field conditions
The experiment was conducted at the Agricultural Research and Experimental Farm in Dirab, Riyadh, Saudi Arabia (lat. 24.4195° N, long. 46.65° E, and 552 m above sea level elevation) from June to September 2018. Monthly averages of climatic data during experimental period are described in Table 1. The average air temperatures recorded were between 34.6 and 37.4°C, whereas the means of relative humidity recorded were between 10.1% and 13.7%. The recorded intermediate maximum wind speeds fall approximately between 6.6 and 5.6 m s-1, and the recorded mean solar radiations fall between 23.2 and 24.8MJ m-2 day-1. Finally, there was no rainfall during the experimental months.

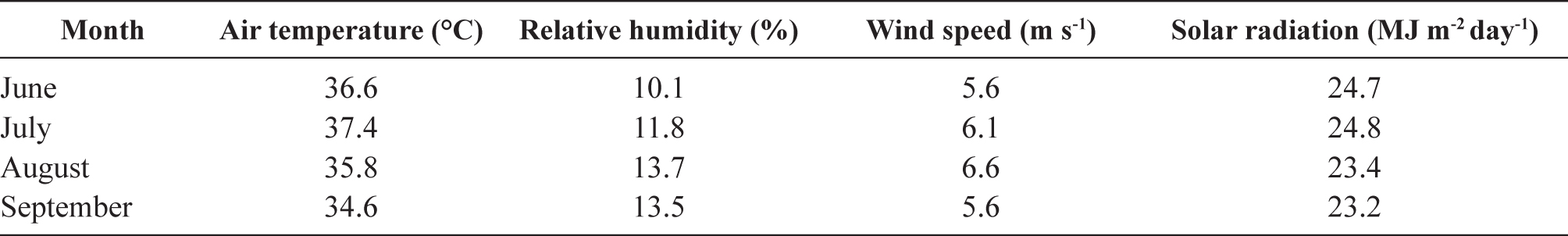

Table 1. Climatic parameters (average) during the experimental months in 2018
To investigate the physical and chemical properties of the soil, three samples were collected from different depths in various plots. Table 2 presents the values of the soil texture, field capacity (FC), wilting point, soil bulk density, and initial water content at different soil depth levels from the experimental locations. Finally, the chemical properties of the soil samples from different experimental sites are given in Table 3. The chemical properties of the irrigation water were analyzed by knowing an electrical conductivity value of 2.5 mS cm-1, pH of 7.48, and total dissolved solids of 2880 mg L-1. Both the soil and water present in the experimental samples were of reasonable quality to conduct the present study.

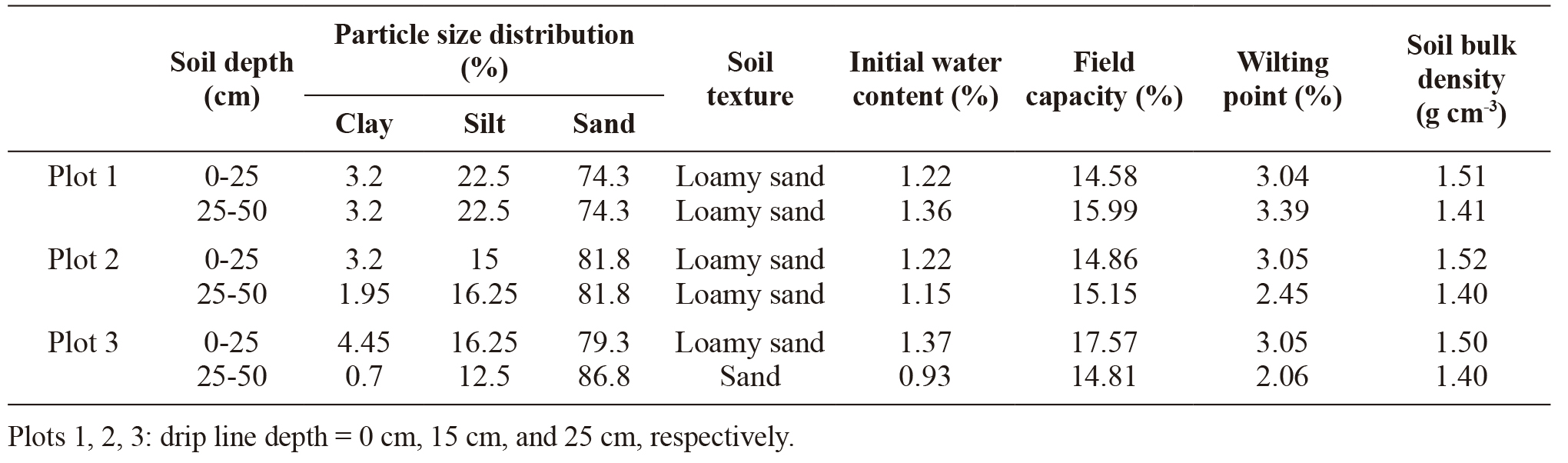

Table 2. Physical properties of three soil samples from the experimental site

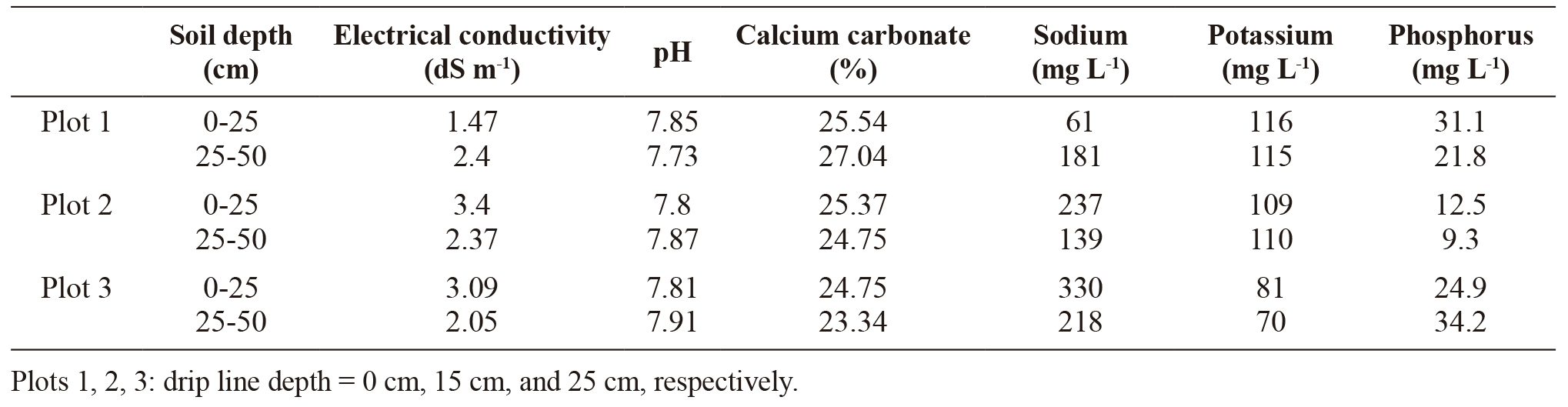

Table 3. Chemical properties of soil samples from experimental site
Experimental design

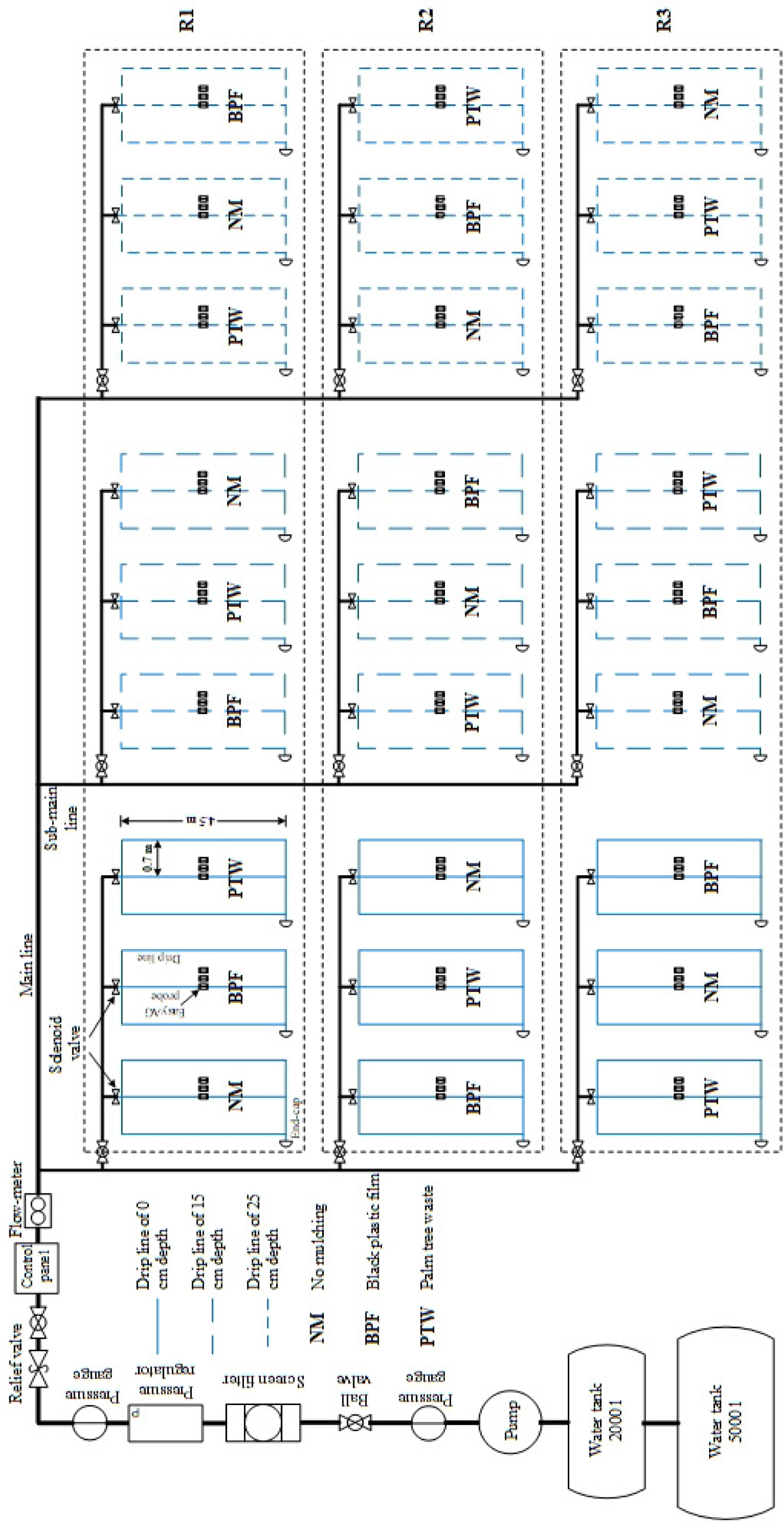

The field experiments were designed and executed as follows: the irrigation system was fixed by incorporating a tanks, pump unit, pressure gauges, ball valve, filtration system, pressure regulator, air relief valve, control panel, flow-meter, solenoid valve, main lines, sub-main lines, drip lines, connectors, and line end-caps (Fig. 1). This system was made using a main PVC pipe with an inside diameter of 75 mm that had direct contact with the main water source. A second PVC pipe with an inner diameter of 21 mm was used to transfer the water to the drip lines. The drip lines had an inner diameter of 16 mm and a thickness of 1 mm. The drip lines were buried manually in SDI. Two fiberglass tanks were used to pour water into the network. The first tank had a capacity of 2000 L and the second tank had a capacity of 5000 L. Two drip line depths from the soil surface (DL) of 15 and 25 cm and DI were applied in three blocks. Each block was divided into three plots to randomly allocate the three soil surface mulching treatments (NM = no mulching, BPF mulching, and PTW mulching), in a randomized complete block design (RCBD) with three replications. Each plot had three experimental units. Each one had three drip lines of 4.5 m long, 70 cm spacing. The distance between emitters was 30 cm. The in-line emitter discharge was 4 L h1 at operating pressure of 150 kPa.
|
|
Applied irrigation water
A water irrigation schedule was created to supply a reasonable amount of water via proper management. The basic aim was to intensify the effectiveness of the irrigation by providing enough water that could increase the θv to an adequate level.
The irrigation time was changeable owing to the planned irrigation treatment. The sensors were used to monitor the θv before and after irrigation. Scheduling consisted of applying the right amount of water at the right time. Its purpose was to maximize the irrigation efficiency by applying the appropriate amount of water needed to replenish the soil water to the desired level. In the present study, because there were no crops planted, the applied water was controlled based on the FC of the soil. The water depth was calculated for each soil depth from 10 to 50 cm and cumulated. The depth of water added to reach the soil FC (Dw) was calculated using Eq. (1):
where Dw is in mm, n is the number of sensors, Di is the soil depth at the ith sensor, FCi is field capacity of the soil at the ith sensor and θvi is soil water content at the ith sensor.
Measurement of soil water content
For constant monitoring of the water content in the soil, EasyAG probes (Sentek Sensor Technologies, Stepney, Australia) were installed, which provide a θv profile for irrigation and management applications. These probes include several sensors that measure the soil water at multiple depths. The probes create a high-frequency electrical field around each sensor that extends through the assessment tube into the soil. The electrical capacitance from the probe provided a θv. This was converted from a scaled frequency reading (Eq. 2) using a calibration equation (Eq. 3), which was based on field data:
where, FA, FS, and FW are frequency readings in the air, soil, and water, respectively, and A, B, and C are constants (Table 4). The θv can be directly obtained from the constants A, B, and C from Eq. (4):

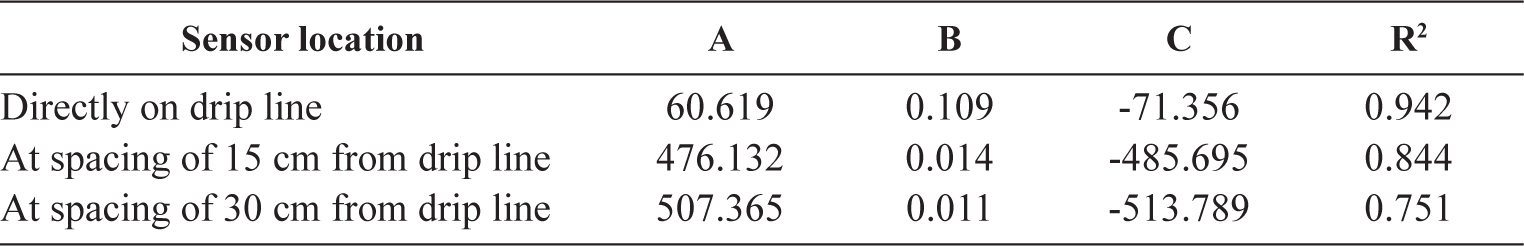

Table 4. Constants of Equation (3) for three sensors after calibration

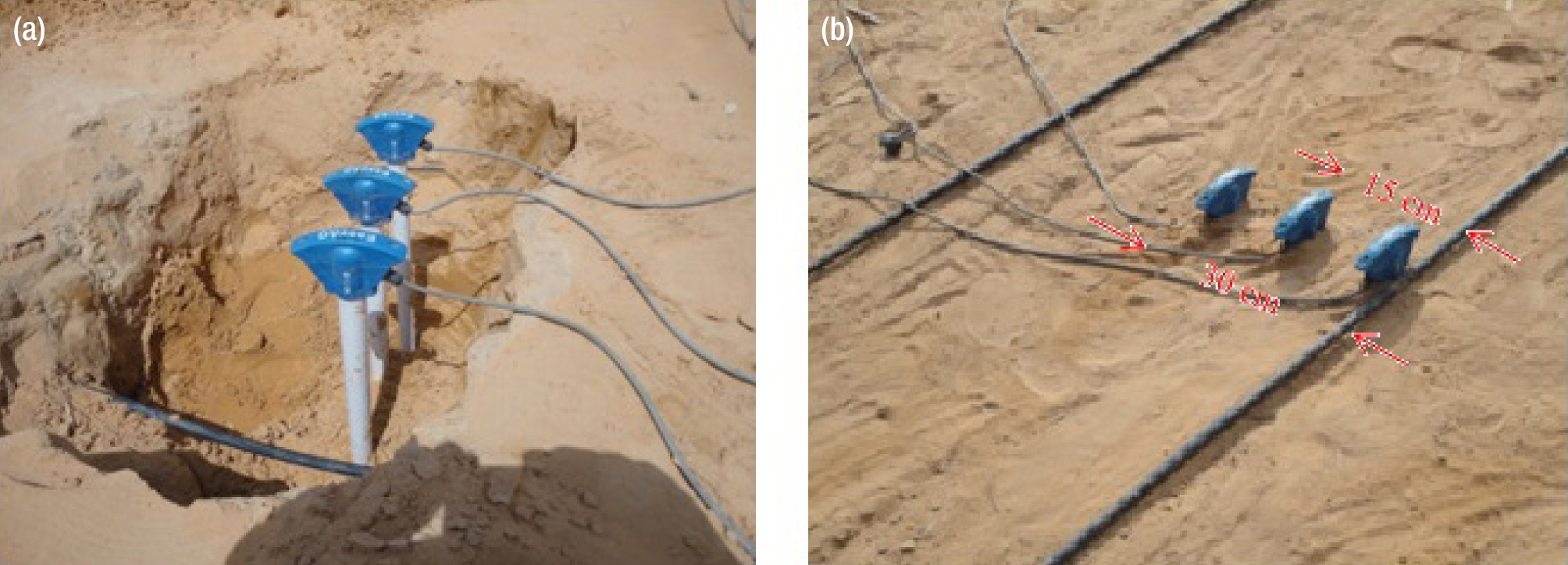

Each plot had three probes planted to record the values of θv at soil depths of 10, 20, 30, 40, and 50 cm. The first probe was placed directly at the emitter, the second was at 15 cm spacing from the drip line (S), and the third was at S of 30 cm, as shown in Fig. 2. The SURFER 13 software program was used to display θv distribution in soil profiles by contour maps using the Kriging method. A total of 15 data points were used to develop θv lines for each treatment. The contour maps were derived considering that there was symmetry around the emitter for both left and right sides.
|
|
Statistical analysis
An analysis of variance following a RCBD was conducted on the average θv using the SAS statistical package to determine the effects of treatment (DL and mulching type, M) on the measured parameters. The treatment means were separated through a least significant difference (LSD) test with a level of statistical significance of 0.05.
Results and discussionTop
Applied water

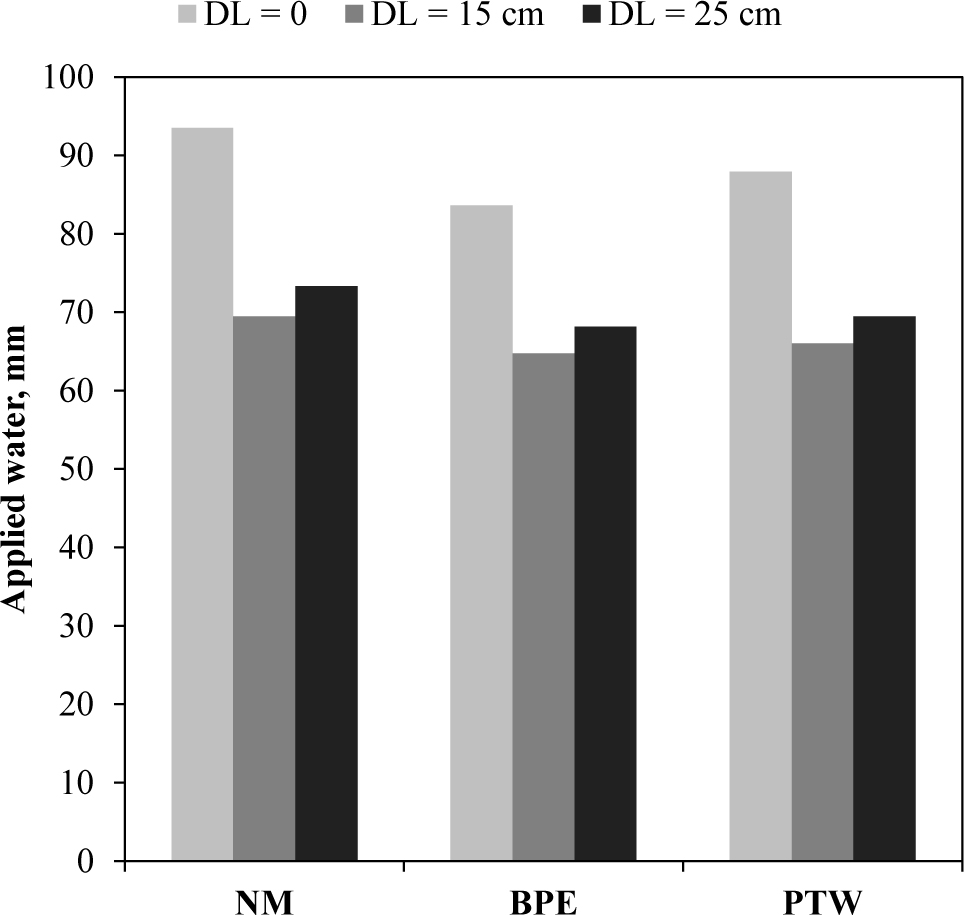

Fig. 3 shows that 89.45% and 94.04% of water in NM treatment were applied in the BPF and PTW treatments, respectively, at the DI (DL = 0 cm). The BPF and PTW treatments at DL of 15 cm are 6.79% and 4.94% water savings, respectively, whereas approximately 69 mm of water was applied in the NM treatment. At DL of 25 cm, the quantity of water applied in the NM treatment was ~ 73 mm; 7.02% and 5.26% water savings were achieved in the BPF and PTW treatments, respectively. As shown in Fig. 3, under any type of mulching, the amount of water was higher when the DI was used (i.e., DL = 0 cm) because of higher evaporation rates from the soil surface (Al-Ghobari & El-Marazky, 2012; Çolak et al., 2018). SDI (i.e., DL of 15 cm and 25 cm) under any type of mulching was saved along with the applied water. The amounts of applied water at DL of 15 cm were 5.26%, 5.03%, 4.94%, respectively, lower than those at DL of 25 cm for NM, BPF, and PTW mulching. Therefore, a BPF or PTW mulching combined with SDI retains the moisture and decreases the required water amount to prevent water evaporation from the soil surface (Gan et al., 2013). However, it is better to use PTW mulch, because it does not require any additional costs, at DL of 15 cm.
|
|
Effect of mulching type on soil water content

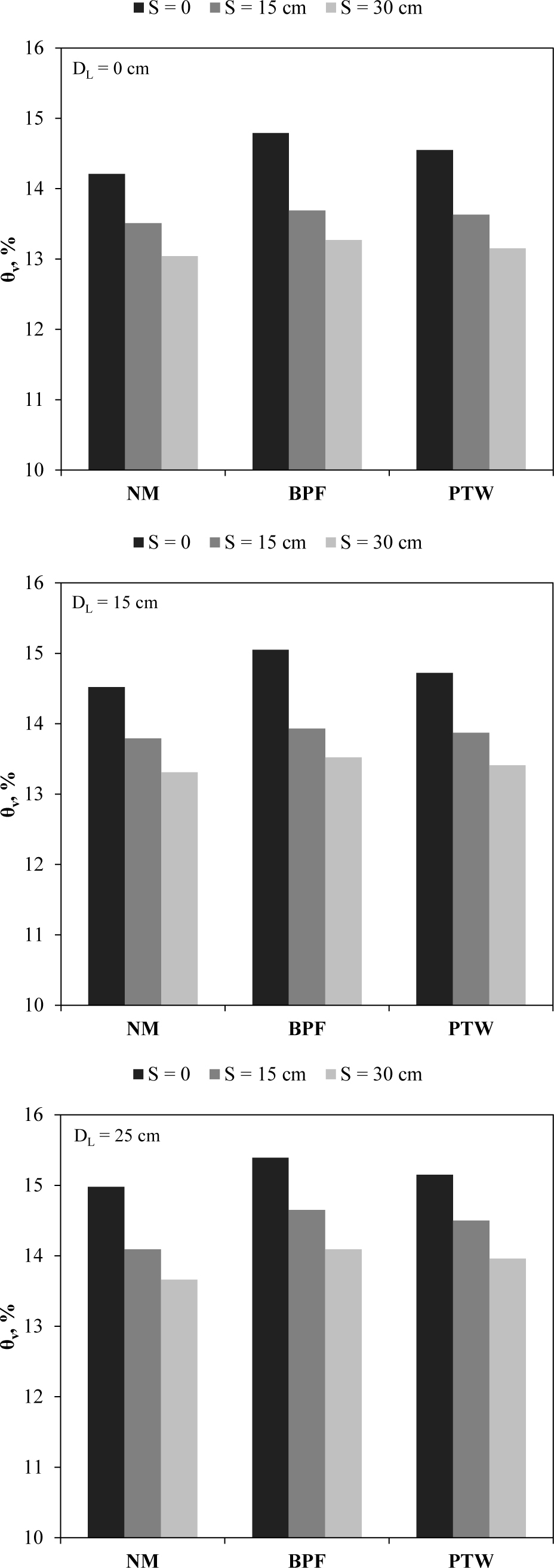

Figure 4 shows the average θv values in the soil depths for DI, DL of 15 cm and DL of 25 cm under NM, BPF, and PTW treatments. The BPF treatment had higher θv values than that of the NM and PTW treatments in both the DI and SDI systems. For the DI with BPF mulching, the θv values were approximately 14.79%, 13.69%, and 13.27% directly at the emitter (S of 0 cm), S of 15 cm, and S of 30 cm, respectively (Fig. 4). The θv values for the PTW treatment were 14.55%, 13.63%, and 13.15%, at S of 0 cm, S of 15 cm, and S of 30 cm, respectively. The θv values for the BPF treatment were 4.08%, 1.33%, and 1.76% higher than that of the NM treatment at S of 0 cm, S of 15 cm, and S of 30 cm, respectively. The θv values for the PTW treatment were 2.39%, 0.89%, and 0.84% higher than that of the NM for S of 0 cm, S of 15 cm, and S of 30 cm, respectively.
|
|
For DL of 15 cm, the θv values for the BPF treatment were also higher than those of the NM and PTW treatments (Fig. 4). The θv values at S of 0 cm were approximately 15.05% and 14.72% for the BPF and PTW treatments, respectively (i.e., the θv values were 3.65% and 1.38% higher, respectively, than that of the NM treatment). The θv values for the BPF and PTW treatments were 1.02% and 0.58% higher, respectively, at S of 15 cm than that of the NM treatment, whereas the θv values increased by 1.58% and 0.75%, respectively, at S of 30 cm. For DL of 25 cm, the θv values at S of 0 cm were 2.74% and 1.13% higher for the BPF and PTW treatments, respectively, than that of the NM treatment (Fig. 4). Additionally, the θv values increased by 3.97% and 2.91%, respectively, at S of 15 cm, and the θv values increased by 3.15% and 2.20%, respectively, at S of 30 cm.
The comparison of θv values average across the experimental treatments is summarized in Table 5. The M had very significant (p < 0.01) effects on the average θv values when measured at S of 0 cm and S of 15 cm and significant (p < 0.05) effect at S of 30 cm, irrespective of the DL treatments. The BPF treatment provided a higher average θv value than that of the NM treatment, with a significant increase of 3.50%, 2.18%, and 2.25% at S of 0 cm, S of 15 cm and S of 30 cm, respectively. This was because that BPF mulching stopped the movement of water vapor from the soil surface to the air (Dong et al., 2018). When the PTW covered the soil, the increase in θv was significant (1.65% and 1.45%, respectively) at S of 0 cm and S of 15 cm and insignificant at S of 30 cm, comparing with NM treatment, consistent with the results of Liu et al. (2018). This was because the rate of water vapor flux through covered PTW was slow compared to the rate of water loss from wet soil surface (Li R et al., 2013; Li S et al., 2013). BPF treatment showed significant increases (1.82%) in θv compared to PTW at S of 0 cm, but significant difference were not observed at S of 15 cm and S of 30 cm. Thus M, which had an effect in the covered soil, retained higher moisture levels, leading to better root growth than that of the uncovered soil. Although it is cost-effective to purchase BPF, this type of mulching system can be replaced by PTW, which is available to farms at no extra cost.

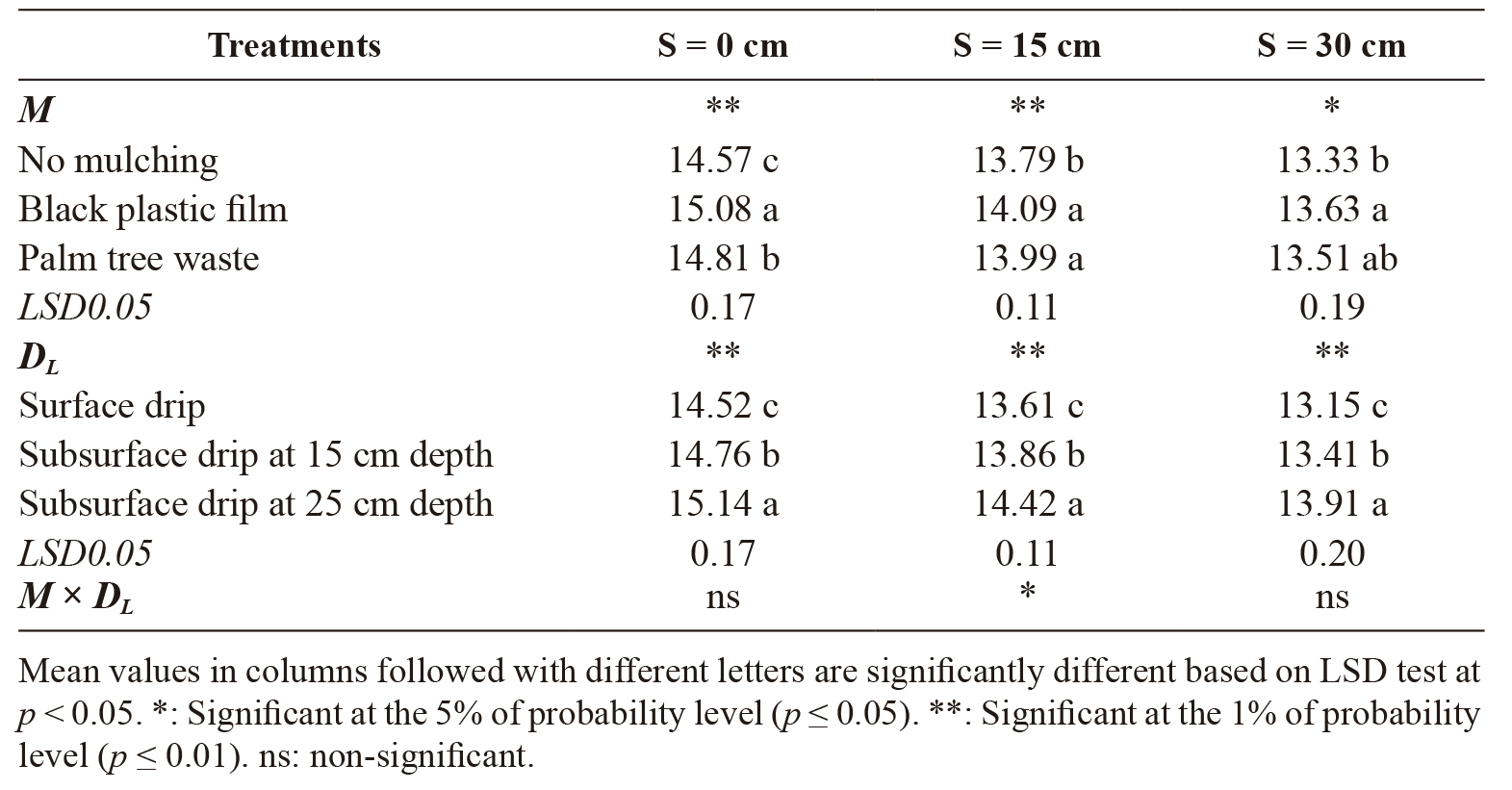

Table 5. Results of variance analysis of θv values under mulching type (M), drip line depth from the soil surface (DL) at different spacing from the drip line (S).
Effect of depth of drip line on soil water content
Figure 4 shows that the DL of 25 cm for the NM treatment had the highest average θv value (14.98%) at S of 0 cm, which was 5.42% and 3.17% higher than that at DI and DL of 15 cm, respectively. The θv values at S of 15 cm for the NM treatment were approximately 13.79% and 14.09% for DL of 15 cm and 25 cm, respectively, i.e., the θv values were 2.07% and 4.29% higher, respectively, than that of the DI system. The θv values at S of 30 cm for DI were 2.03% and 4.54% lower than that of the DL of 15 cm and 25 cm, respectively. This result is consistent with Mokh et al. (2014), who explained that the DL in SDI system influenced θv values during the two cropping periods of potato, and increasing the DL lead to increased θv values.
For BPF and PTW treatments, Fig. 4 shows that the θv values for the DI system were lower than those of the SDI system. A DL of 25 cm with the BPF treatment produced the highest θv value of 15.39% at S of 0 cm compared to the DI and DL of 15 cm, which was 4.06% and 2.26% higher, respectively, whereas at S of 15 cm θv values increased by 7.01% and 5.17%, and at S of 30 cm values increased by 6.18% and 4.22%. The θv values in the PTW treatment under different DL showed a similar trend, being 4.12%, 6.38%, and 6.16% higher for DL of 25 cm than those of DI at S of 0 cm, S of 15 cm, and S of 30 cm, respectively. The θv values for DL of 15 cm were 2.84%, 4.34%, and 3.94% lower than those of DL of 25 cm at S of 0 cm, S of 15 cm, and S of 30 cm, respectively.
Irrespective of M treatments, Table 5 shows that DL had a significant (p < 0.01) effects on the average θv values at different S, being DL of 25 cm the treatment showing the highest value, unlike in the DI. Significant differences between DL treatments were observed at S of 0 cm, S of 15 cm and S of 30 cm, the average θv value at DL of 25 cm were 4.27%, 5.95%, and 5.78% higher than those of the DI, while 2.57%, 4.04%, and 3.73% higher than those of the DL of 15 cm, respectively. The θv values’ variance between DL of 15 cm and DL of 25 cm treatments are only small. So, the DL should be at 15 cm to reduce the cost of drilling. The deepening of the drip line away from the sun results in increasing θv value due to a lack of moisture loss (Solomon, 1993).
Soil water distribution

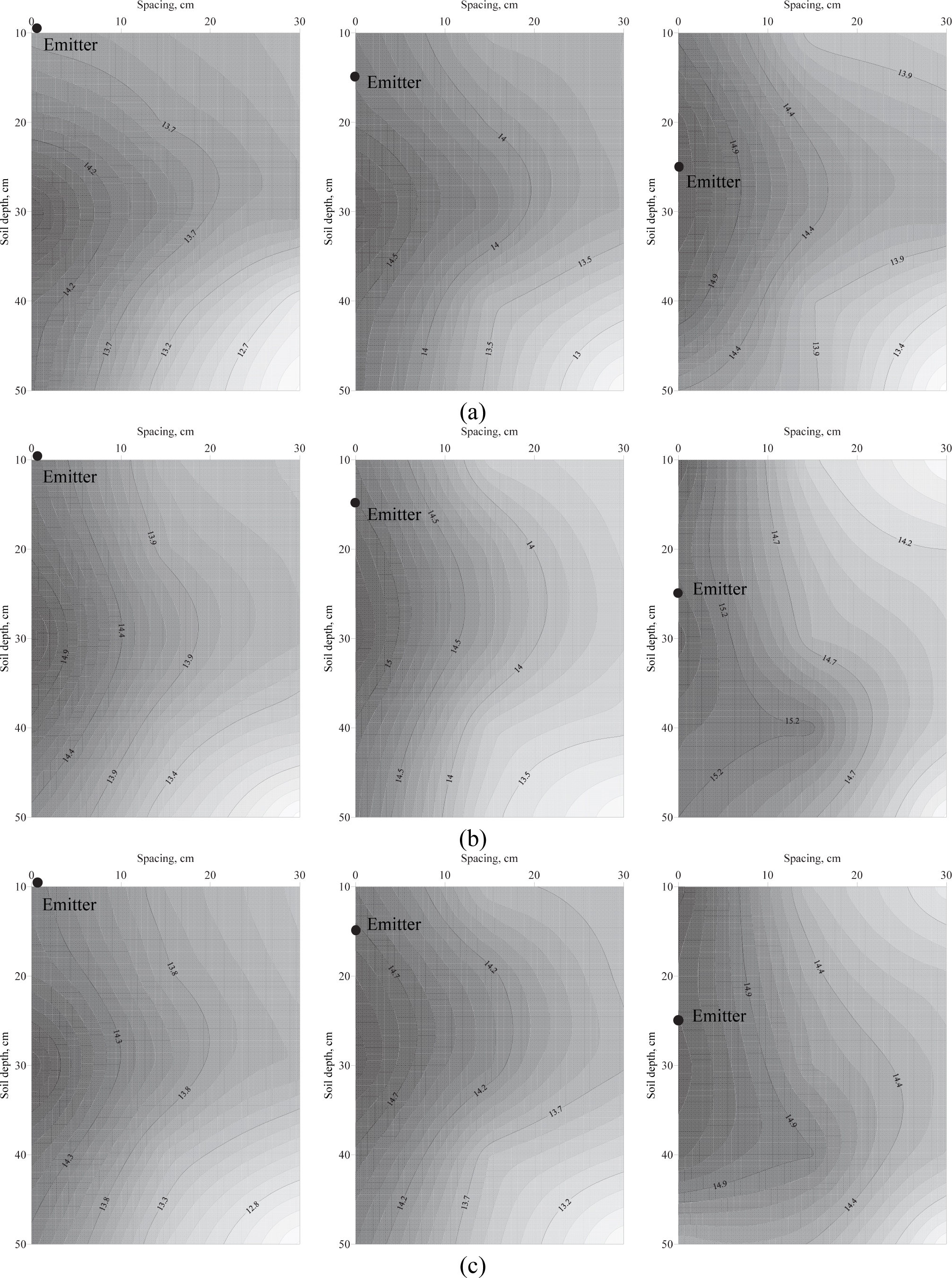

Figure 5 show that the θv distribution was affected by M and DL under different S. The best uniformity of θv distribution contour lines throughout the soil profile was obtained under SDI (DL of 15 cm and DL of 25 cm). However, the distribution of the θv for different M treatments indicated that the DL of 15 cm and DL of 25 cm had more uniform bulb distribution at S of 0 cm. In contrast, the θv distribution in S of 15 cm and S of 30 cm was similar and more uniform than that obtained with the DI. The θv bulb’s spread decrease as S increases horizontally under any M and any DL. Similarly, Assouline (2002), Grabow et al. (2006), Badr (2007), Shirahatti et al. (2007), and Nasrabad et al. (2013) showed that the θv value decreased horizontally as the S increased. In sandy soil, the emitters need to be closer together because the water does not move as far horizontally (Arbat et al., 2010). Moreover, in an SDI system, the vertical movement of the θv level was found to be higher than the horizontal movement (Bajracharya & Sharma, 2005; Al-Ghobari & El-Marazky, 2012; Douh et al., 2013).
|
|
Table 5 shows that binary interactions between the M and DL had (p < 0.05) significant effect on the θv values at S of 15 cm only. BPF and PTW mulching at 0-20 cm soil layer increased θv values by 0.96% and 1.25%, respectively, more than that of NM in DI (Fig. 5). The corresponding values of θv were increased by 3.05% and 2.91% for DL of 15 cm while 5.56% and 5.41% for DL of 25 cm. This agrees with Wang et al. (2009) and Liu et al. (2014). Ma et al. (2018) found that plastic film mulching increased the θv significantly (12.9%) for the 0-20 cm soil layer, compared with traditional approach. Using mulching (e.g., BPF and PTW) holds water evaporation and encourages water movement to the topsoil layers promoting θv during initial stage of crop growth (Gan et al., 2013). With SDI, the surface soil layer is not completely wetted (i.e. lower moisture) as in the case of DI. Therefore, with SDI the upper soil layers remain relatively dry, thereby reducing the direct soil evaporation as compared to DI (Solomon, 1993). At the 0-40 cm soil layer, being the normal root depth for most crops, the average θv value in S of 15 cm was 13.87% for the DL of 15 cm and 14.13% for the DL of 25 cm under NM treatment (Fig. 5a). This observation agrees with the results reported by Badr & Abuarab (2011), who suggested that a DL of 30 cm is deemed the active root zone in vegetable crops, and the improved activity was attributed to the enhanced capacity to restore water, particularly for sandy soils. In contrast, a DL of greater than 10 cm is advisable to prevent the wetting of the soil surface during irrigation in loamy soil (Rodríguez-Sinobas et al., 2012). The corresponding values were 14.02% and 14.63% under BPF treatment (Fig. 5b), while 13.97% and 14.54% under PTW treatment (Fig. 5c). The increased moisture retention capacity of BPF and PTW treatments could be attributed to less non-productive water losses from the soil, which play a vital role in the management and growth of crop (Zhao et al., 2014; Dong et al., 2018; Li et al., 2018). Because of vapors, the water was further trapped within the mulch, resulting in fog, which again dropped into the upper soil layer, as reported by Ashrafuzzaman et al. (2011). The θv distribution contours show a saturation bulb under the emitters that moves downward as the DL increases (Fig. 5). Clearly, the θv distribution became more controllable moving downward when applying BPF and PTW at DL of 25 cm than at DL of 15 cm. This is consistent with Thorburn et al. (2003), who showed that the DL controlled the amount of water reaching the surface and the upward spread of the θv toward the soil surface. The shape of the bulb also changed from a near-circle to an ellipse when the BPF and PTW mulching were used. BPF mulching at DL of 25 cm largely allowed the downward movement of θv (Fig. 5b). Fig. 5c shows similar results but with less θv moved downward when the PTW mulching was applied at DL of 25 cm. It is better to use DL at 15 cm and PTW mulching, that is less expensive to install, giving slightly less θv values than those of BPF mulching at DL of 25 cm.
In summary, the present study illustrated the influence of the DL under different M in a SDI system for the θv distribution in a soil profile. The inclusion of BPF or PTW mulching on the soil surface was found to enhance the water retention capacity of the soil. The SDI system reduced the required water amount when the drip line was mulched with BPF by a small value compared to when the drip line was mulched with PTW. Therefore, it is recommended that the methodology of an SDI system would provide a useful method for treating soil through the installation of a DL at 15 cm and by mulching the soil with PTW where no additional cost is required. Such treatment will provide an active zone of soil to the roots of vegetables crops. Therefore, we believe that the soil treatment strategy outlined in the present study could restore high levels of water resources in the loamy land of Saudi Arabian farms at a significantly low cost.
