IntroductionTop
It is reported that the super rice planting area has risen to 9.067 million ha, accounts for approximately one-third of total crop planting area in China and the average rice yield climbs to 11250 kg/ha per harvesting (Yuan, 2017). However, the currently used combine harvesters in China were designed according to rice with a yield ≤ 9000 kg/ha, and field experiment results indicated that those combine harvesters have poor cleaning performance when harvesting high yield rice (Li & Li, 2015). Thus, it is necessary to upgrade the cleaning section of the combine harvester to adapt it to high moisture and high yield conditions. Relevant research on cleaning structural improvement has been carried out: using Particle Image Velocimetry (PIV) system to analyze the airflow distribution in the cleaning system (Kenney et al., 2005); connecting the aerofoil and centrifugal blades together and expecting to suit for the threshed outputs distribution (Tang et al., 2007). The trajectories of the threshed soybean grains in the classifier chamber were recorded by a high-speed camera to investigate the effect of grain movement on cleaning performance (Adewumi et al., 2008). A conical centrifugal fan was designed to adjust threshed output initial distribution on the sieve surface, and the cleaning performance was improved significantly in the transversal axis-flow combine harvester (Chen et al., 2009). To make clear airflow turbulent flow characteristics and its passage through the grains, the cleaning airflow velocity was measured by PIV and Laser Doppler Velocimetry (Ueka et al., 2012). A high power centrifugal fan with six blades was utilized in TC5060 axial-flow combine harvesters (New Holland), and field experiment results indicated that the cleaning system could spread the threshed outputs promptly, and the cleaning performance was improved with a stronger airflow power (Wu, 2014). On the other hand, two single-duct centrifugal fans were utilized in YANMAR YH880 series combine harvesters. Some multi-duct fans also has been used in some flagship combine harvesters, such as Gleaner S8 combine harvester.
From these experiments, it can be learnt that the development of the harvesting machinery mainly follows the structural design, field test validation and structure optimization. Apparently, such a method is seriously affected by the harvesting seasons, the development cycle is generally long and seriously hinders the rapid progress in industry technology. With the development of the computation science, the agriculture machinery development cycles has been shortened significantly (Zhao et al., 2018; An et al., 2020), as the airflow velocity measurements only provide limited information and would have to be repeated for every new configuration of the cleaning section, computational fluid dynamics (CFD) simulations has been widely used for cleaning system structural optimization in the past years (Dilin et al., 1998; Muggli et al., 2002; Kenney et al., 2005; Kergourlay et al., 2006; Gebrehiwot et al, 2010a; Casarsa & Giannattasio, 2011; Xu et al., 2015). However, most of this structural optimization use CFD simulation without taking cleaning loads into consideration. In this paper, a proper cleaning system for a rice combine harvester with a feed rate of 7 kg/s was developed by considering effect of cleaning loads on airflow distribution.
Material and methodsTop
Fan geometric models under consideration
The total airflow rate V (m3/s) generated by a fan is an important performance criterion. The total airflow volume rate V is determined by the amount of material other than grain (MOG) in the threshed output and can be calculated by the following equation (Chinese Academy of Agricultural Mechanization Sciences, 2007):
where β is the ratio of the MOG in the total threshed outputs (typically 10%-15%), Q is the feed rate (Grain + MOG) in kg/s, ρ is the airflow density (1.225 kg/m) and μ is 0.2-0.3.
For a combine harvester with a feed rate of 7 kg/s, the requested airflow rates inside the cleaning shoe can be calculated by Eq. (1) with β=14%, ρ=1.225, μ=0.25. This indicates that under these assumptions, an airflow rate of 3.0 m3/s is required for good cleaning performance. To analyze the effect of the flow channel shape of the upper outlet on the inner flow field distribution, three models with different φ, R5, L and H were developed based on an existing single-duct fan (Li & Li, 2015). Apart from compression stroke φ, horizontal dimension L, and vertical dimension H, all three fans have the same number of blades and internal diameter. For Fan I: φ=89°, L=27.1 mm, H=205.8 mm, and R5=208.7 mm; for Fan II: φ=97°, L=27.1 mm, H=205.8 mm, and R5=232.5 mm; Fan III: φ=121°, L=129.8 mm, H=164.5 mm, and R5=232.5 mm. The geometry of the designed fan is shown in Fig. 1.

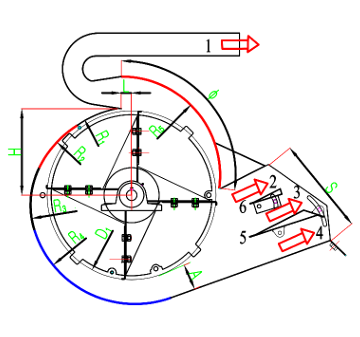

Figure 1. Schematic diagram of the multi-duct fan: 1, 2, 3 and 4, ducts 1, 2, 3 and 4, respectively; 5 and 6, guide plates I, and II, respectively.
CFD simulation and results validation
A literature review has indicated that the resistance value of a cleaning load at fan outlets can be calculated from the deduced fluidized grain resistance model and the airflow resistance model (Molenda et al., 2005; Gebrehiwot, 2010; Liang et al., 2020). Perforated plates with different circular hole layouts were designed and placed on fan outlets to represent cleaning loads. The perforated plates were set as porous media, and the porous coefficients for different working loads were acquired by wind tunnel setup experiments (Gebrehiwot et al., 2010b). ICEM-CFD 15 software (ANSYS Inc, Canonsburg, PA, USA) was utilized as the grid generation tool, and the grid numbers for different parts in the fan models are listed in Table 1. It is indicated that steady calculations for fan rotation can cause significant calculation errors (Xu et al., 2015), and compared with the multiple reference frame (MRF) and the mixing plane model, the sliding mesh method assumes that the flow field is unsteady, and the flow field variation in both time and space, specifically in the circumferential direction, is fully considered in the transient sliding mesh methodology (Dieter et al., 2005). Therefore, in this work the blade-volute interaction was modeled by the sliding mesh technique (Seo et al., 2003). In the calculation, the blade domain was defined as a moving zone, while the volute and inlets were defined as stationary zones. The operating pressure was set to 101,325 Pa. The rotational speed of the fan blades was 1300 rpm, the boundary condition for the inlets was set as a pressure inlet of 0 Pa, while the lower outlet was set as a pressure outlet of 0 Pa, and the time step was 2.56×10-4 s (Sakya et al., 1993; Semion et al., 2003; Gao et al., 2018). Apart from Newton’s equation and Naiver-Stokes equations, the realizable k-ε turbulence model was used in the CFD simulation to calculate the mean flow characteristics for turbulent flow conditions and describe the turbulent properties inside the fan. Meanwhile, in selecting the least squares cell-based gradient as the gradient discretization method, the second-order upwind scheme was adopted as the momentum equation, the second-order upwind scheme was adopted to calculate the turbulent dissipation rate, the second-order upwind scheme was adopted as the turbulent kinetics, and the first-order implicit scheme was used to calculate the transient formulation (Zhang et al., 2018). The major concern with multi-duct fans is the required air distribution for different ducts. Apart from the evenly distributed airflow velocity at the ducts, a good fan should also be able to push the airflow passing the fan ducts with a reasonable air flow ratio, which means that the total pressure-volume curve for the best fan should have a steep slope. A fan outlet airflow velocity measurement system were developed to validate the simulation results, as shown in Fig. 2.
With the selected fan, a cleaning test bed was developed, and the cleaning experiment was conducted in the cleaning test bed. Meanwhile, the corresponding airflow velocities were measured by the VS110 anemometer in the cleaning section. The measurement point distribution is shown in Fig. 3, and the distance of each measurement point was 180 mm.
Finally, field experiments were conducted in Wujiang, Suzhou city, China. The combined harvester advance velocity was 1-1.2 m/s to guarantee a feed rate of 7 kg/s (Grain + MOG). The method used to evaluate the overall harvesting performance can be found in our previous publication (Liang et al., 2019). The properties of the harvested rice were as follows: the average spike length was 14-16 mm; the average yield, 11150.6 kg/ha; thousand seed mass, 27~31g; average straw moisture content, 72.3%; average grain moisture content, 25.1%; average MOG/Grain ratio, 2.24.

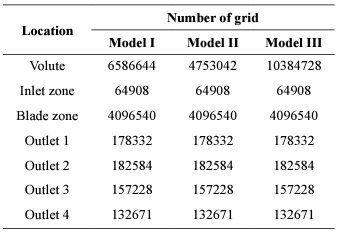

Table 1. Grid number for different parts in different fan models
Results and discussionTop
CFD simulation result validation by airflow velocity measurement
The equivalent cleaning resistance is 0.16-3.52 for the upper outlet and 0.95-6.10 for the lower outlet in the case of a cleaning system with feeding rates of 0-4 kg/s based on the deduced fluidized grain resistance model and the airflow resistance model (Molenda et al., 2005; Gebrehiwot, 2010; Liang et al., 2020). A comparison of the simulated and measured airflow velocities with resistances of 0 and 2.19 at the ducts is shown in Fig. 4. In Fig. 4, the range of the root mean square errors (RMSEs) of the measured and simulated airflow velocity was distributed from 0.12 to 0.46 m/s. It is indicated in Fig. 4 that the distance between the measurement results and the simulated airflow velocities was ≤ 15% at the four ducts, and the error was much greater at certain points near the duct sides. Such an error of magnitude is considered good, as the airflow anemometer can only obtain airflow velocity values in one dimension at each measurement point, and it is difficult to determine the airflow direction inside the cleaning shoe with the airflow anemometer. This is one of the sources of the measurement error. On the other hand, there are some errors in the manufacturing process; for example, the fan volute was based on the Archimedes spiral, and the volute was composed of four arcs with radii R1, R2, R3 and R4 The compression stroke may not be as accurate in the manufacturing process as in the CFD simulation, resulting in a calculation error. Compared with the simulation results reported by Gebrehiwot et al. (2010a), in which the distance between the measured and the simulated value is within ± 25%, errors ≤ 15% can be considered acceptable.
In Fig. 4a, as there is a larger resistance during airflow transport from duct 4 to the tail sieve, the airflow velocity was generally ≤ 12 m/s at duct 4 of Fan I, and the airflow always diffused to places with a lower resistance after leaving the fan ducts. The airflow from duct 4 may not be sufficient for the tail sieve after continuous attenuation. In this case, the short straw in the tail sieve section would enter the tail auger, thus negatively affecting the cleaning efficiency. Fig. 4b shows that the airflow velocity from duct 4 of Fan II was in a range of 15-17 m/s, and the airflow velocity was distributed in the range of 10-13 m/s from duct 1. The airflow velocity distribution was generally more balanced at all the ducts of Fan II. Fig. 4c shows that for Fan III, the airflow velocity from duct 4 experiences a large fluctuation in the center of the duct in the traverse direction, which is not beneficial to cleaning. Figs. 4d,e,f indicate that the airflow velocity decreased as the cleaning load at the duct increased. In conclusion, Fan II can be expected to achieve good cleaning performance.

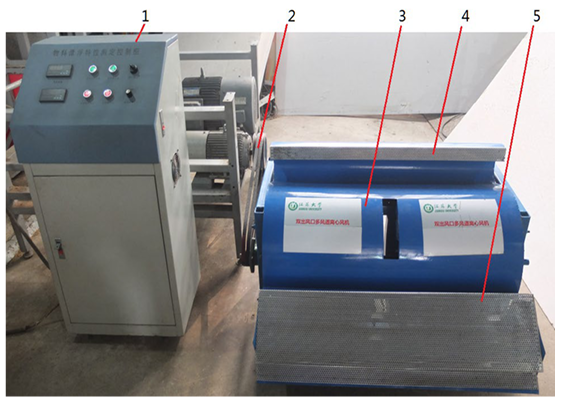

Figure 2. 1, control cabinet; 2, motor; 3, fan; 4, perforated plates at upper duct; 5, perforated plates at lower duct.

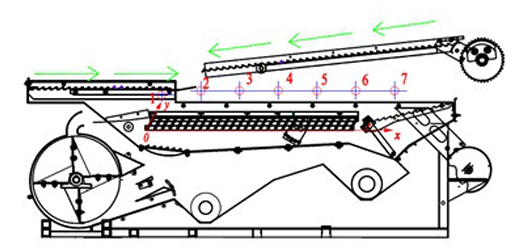

Figure 3. Airflow velocity measurement distribution in the cleaning test-bench.

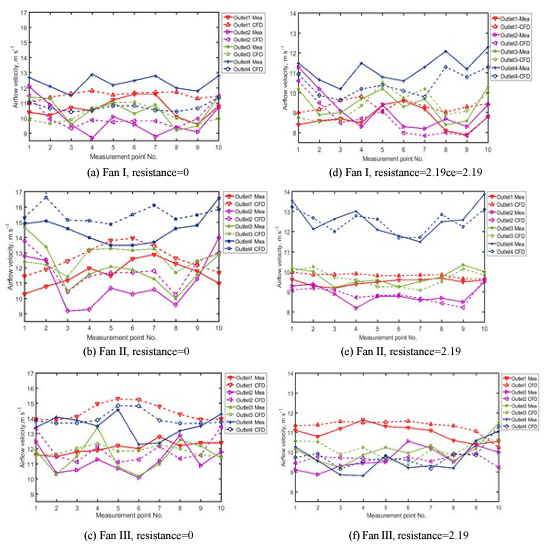

Figure 4.Measured and simulated airflow velocity at ducts with the corresponding guide plate I angle 29°, guide plate II angle 27°and fan speed 1300 rpm.
Variation of airflow inside the fans under different cleaning load
Fan I. Fig. 5a shows that the airflow inside the fan volute is sucked into the volute casing along the fan axis direction, and the inhaled air flows along the circumferential direction gradually during the fan blade rotation. The airflow velocity increases in the blade radial direction, and the maximum value is reached at the outer circle of the fan blades. As the fan blades rotate from the volute tongue (point A) to point B, the cross-sectional area gradually decreases, the partial kinetic energy of the fan blade is converted into airflow kinetic energy, the airflow velocity increases gradually, and part of the airflow is diverted into the upper duct in this process. As the fan blade keeps moving to point B, the airflow velocity increases dramatically as the cross-section decreases. After the blades pass through point B and the cross-section increases gradually, the radial resistance from the volute casing weakens, and the airflow velocity increases further. The air flows along the volute casing line and is guided to the end of the spiral casing line. The airflow is routed into the three ducts in the lower outlet by guide plates. There are some eddy currents present in the lower edge of duct 2 and duct 3, which result in some energy loss. As the load increases (higher resistance values), the eddy scope and the airflow velocity inside the fan gradually decrease, resulting in a reduced airflow velocity at each duct.
Fig. 6a indicates that the cleaning load has a significant effect on the airflow velocity distribution at ducts 2 and 3. The minimum value is only 5.3 m/s, resulting in a relatively small airflow velocity in the middle sieve section, where the MOG could not be effectively separated from the grains. The airflow velocity at duct 4 is also lower under different cleaning loads, and the MOG can enter the tailing auger and affect cleaning efficiency. The airflow velocity is uniform at the ducts and also affects the cleaning performance. From the velocity distribution contour plots at the Fan I ducts, there is an even distribution of airflow velocity magnitude in the width direction of duct 2 and duct 3, while the airflow velocity at duct 1 and duct 4 experiences a notable fluctuation in the width direction.
Fan II. A velocity vector plot inside the fan under different cleaning loads for Fan II is shown in Fig. 5b and indicates that the velocity has increased for the airflow from duct 1 of Fan II compared with duct 1 of Fan I. The airflow flow is smooth, and the airflow velocity is ideal at the ducts. There is also no eddy at the ducts, which is helpful for obtaining good cleaning performance. The variation of airflow status in the ducts under different cleaning loads for Fan II shown in Fig. 6b indicates that there is a slight difference in terms of airflow volume for ducts 1, 2, and 3, and the greatest airflow volume occurs at duct 4. The cleaning load has little influence on the airflow velocity of duct 1. The averaged airflow velocity is ≥7 m/s at duct 1 under different cleaning loads, which is beneficial for pre-cleaning, and the airflow velocity at duct 4 is ≥ 9 m/s, which is favorable for forming a blowing airflow in the tail sieve. The airflow contour plots indicate that the airflow from duct 1 is more evenly distributed, which is good for grain stratification.
Fan III. The internal airflow velocity plot of Fan III shown in Fig. 5c indicates that the internal airflow velocity is higher, and the airflow volume at duct 4 declined notably as the working load increased. As the airflow from duct 4 mainly covers the middle and rear parts of the cleaning sieve, a small airflow volume leads to a larger portion of short straw falling into the grain auger. Meanwhile, the probability of short straws entering the tail auger increases. Fig. 6c shows the variation of airf low volume rates in ducts under different cleaning loads for Fan II. The airflow velocity and the airflow volume rates at the ducts decrease with increasing cleaning load, and the airflow volume rate decrease when ducts with an equivalent resistance of 0-2.9 are larger than ducts with an equivalent resistance of 2.9-6.67. The cleaning load has the greatest effect on the airflow velocity at ducts 3 and 4, and the minimum airflow velocity is only approximately 3 m/s, which is close to the suspension velocity of short straws, and the short straw will enter the tailing auger and affect cleaning efficiency. From the velocity contour plots at the ducts of Fan III, we can see that there is an even distribution of airflow velocity at ducts with a zero cleaning load. With increasing cleaning load, the airflow velocity value along the duct width is not even, and the airflow velocity on the left side of the duct is higher than that on the right side, which is not conducive to forming a reasonable airflow field in the cleaning shoe. Therefore, Fan III is not suitable for high cleaning load conditions.

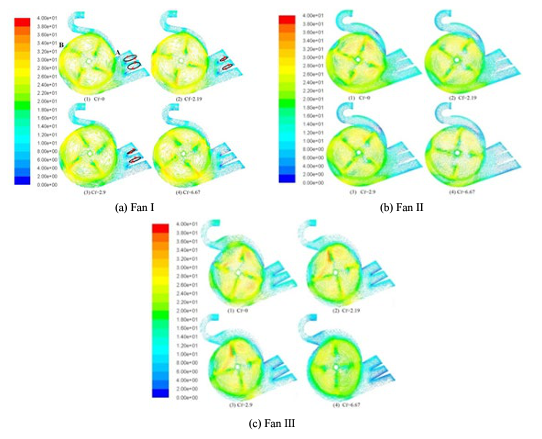

Figure 5. Velocity vector plot under different cleaning load inside the fan

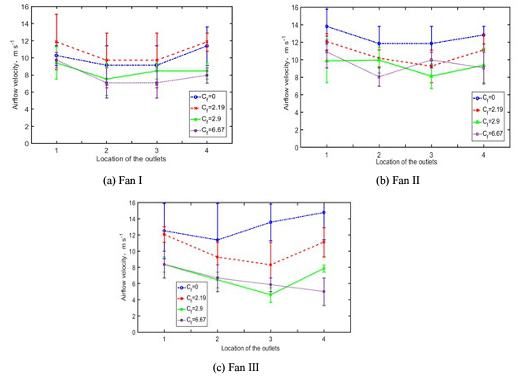

Figure 6. Variation of airflow velocity at the fan ducts
Comparison of airflow volume at ducts under different cleaning loads
The airflow volume rates in the ducts of the different fans are shown in Fig. 7 for the different equivalent cleaning loads. Fig. 7d shows that Fan II generates the largest airflow volume rate, while Fan I is the smallest for an equivalent cleaning load of 6.67. Compared to Fan II, the airflow volume in duct 4 of Fan I and Fan III is relatively small, which is not good for forming an upward airflow at the tail sieve to separate the short straw instantly. Therefore, Fan I and Fan III are not suitable for high cleaning load occasions. However, the airflow volume rate in duct 3 of Fan II is smaller at higher cleaning load conditions, which is not conducive to rapid grain dispersion and penetration in the sieve middle section, and the probability of straws entering the grain auger is increased. To obtain a better cleaning performance under high cleaning load conditions, the fan speed should be increased to upgrade the airflow velocity from duct 1; thus, the initial grain dropping points can be located in the airflow covering area from duct 2, and the sieve opening can be reduced moderately. Meanwhile, a backward airflow is formed, and short straws are removed quickly under acceleration of the airflow from duct 4. From the airflow volume rates in the different ducts with equivalent cleaning loads in the 0-2.9 range, Figs. 7a,b,c show that the airflow volume rate increases gradually as the cleaning load decreases. Moreover, Fan II shows the largest increase in the airflow volume rate. In addition, the airflow distribution in ducts 1, 2 and 3 of Fan II is more balanced.

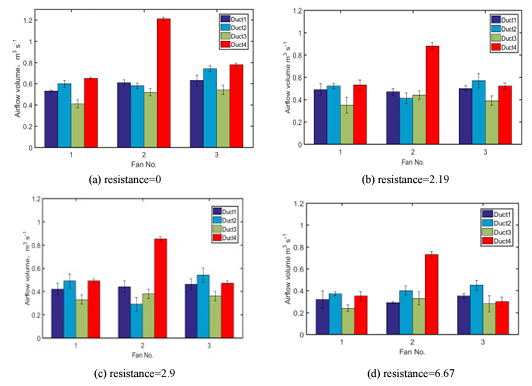

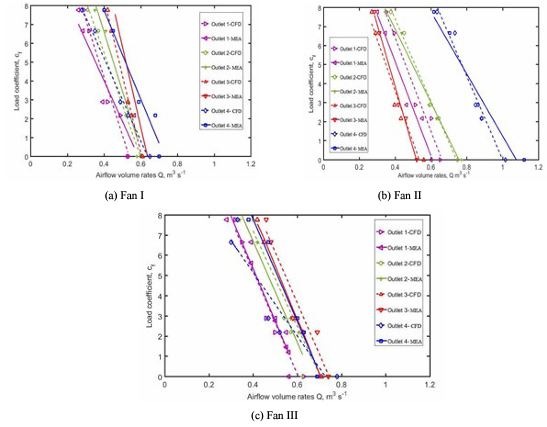

Figure 7. Variation of the airflow volume at fan ducts with a guide plate I angle of 29°, guide plate II angle of 27°, fan revolution speed of 1300 rpm different cleaning loads
Effect of volute casing structure on pressure characteristics
From the general fan pressure characteristic curves of the three fans through the CFD simulation shown in Fig. 8, Fan I fulfills the requirement for a steep pressure characteristic at each duct. However, the total airflow rate is only 2.2 m3/s, which is lower than the target rate of 3.0 m3/s. The total airflow volume rate for Fan III is only 2.61 m3/s. Moreover, although there is a good pressure performance exhibited in ducts 1, 2 and 3, the airflow volume rate at duct 4 decreases greatly with increasing loading. The total airflow volume rate generated by Fan II is 2.92 m3/s, which is very close to the target value. Moreover, Fan II exhibits good pressure characteristics at different cleaning loads for all 4 ducts. In conclusion, Fan II is the most suitable for implementation in the cleaning part of the combine harvester.
Comparison of total pressure at ducts for different loads
Pressure contour plots of fans at different loads are shown in Fig. 9. With the increase of the cleaning loads at the ducts of Fan II, the total pressure increased accordingly; this is beneficial to grain dispersion and upgrades the cleaning efficiency. However, for the other two fans, the response of the total pressure to the increasing loads was more variable, especially for Fan III. As the cleaning load increased, the total pressure in duct 1 and duct 4 decreased. This is not desirable because the pressure cannot disperse the higher amount of threshed outputs responsible for the increased load. Therefore, Fan III is not suitable for higher load conditions.
Variation of airflow distribution at each duct of Fan II
Previous research has indicated that fan speed greatly affects cleaning performance. A higher fan speed typically leads to a lower grain impurity ratio, but a fan speed that is too high results in an increase in grain sieve losses. It has also been shown that the guide plate angle has an effect on the cleaning performance by redistributing the airflow over the sieves. To obtain more insight into the variation in airflow distribution at each duct of Fan II under different fan speeds, guide plate angle combinations were performed using CFD simulations. In this paper, the four ducts were subjected to an equivalent working load of 6.67 to simulate the most extreme working conditions.
(1) Effect of fan speed. The upper and lower outlets of the fan with four ducts play different roles. Therefore, the effect of fan speed on the airflow volume rate should be quantified for the different ducts. In Fig. 10, the variation in airflow volume rate as a function of the fan speed is illustrated for the four ducts subjected to an equivalent working load of 6.67. When the fan speed was increased from 1100 rpm to 1500 rpm, the generated total airflow volume rate rose from 1.3 m3/s to 1.8 m3/s. Fan speed had the largest effect on the airflow volume rate through duct 4, where the corresponding airflow volume rate increased from 0.49 to 0.73 m3/s, compared to an increase from 0.288 to 0.40 m3/s for duct 1.
The simulated velocity vectors inside the fan illustrated in Fig. 11 indicate that the internal airflow velocity increased gradually as the fan speed increased. With the increase in fan speed, the airflow velocity at the end of the spiral casing line also increased. This is because the kinetic energy of the gas molecules increased significantly as the airflow rotates in the volute. The airflow is guided towards the end of the spiral casing line, and the accelerated airflow is ejected from duct 4, resulting in a significant increase in the airflow velocity at duct 4. Moreover, the increase in airflow speed through the upper duct with The simulated velocity vectors inside the fan illustrated in Fig. 11 indicate that the internal airflow velocity increased gradually as the fan speed increased. With the increase in fan speed, the airflow velocity at the end of the spiral casing line also increased. This is because the kinetic energy of the gas molecules increased significantly as the airflow rotates in the volute. The airflow is guided towards the end of the spiral casing line, and the accelerated airflow is ejected from duct 4, resulting in a significant increase in the airflow velocity at duct 4. Moreover, the increase in airflow speed through the upper duct with
(2) Effects of guide plate angle

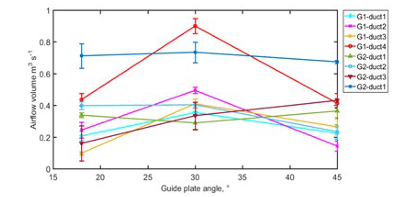

a) Guide plate I. The variation in airflow volume rate through each duct as a function of the guide plate angle is illustrated in Fig. 12. When the guide plate I angle was increased from 18° to 45°, the total airflow volume rate was reduced from 2.18 to 1.34 m3/s. The airflow volume at duct 3 decreased with an increase in the guide plate I angle from 30° to 45°, resulting in a relatively low airflow velocity in the middle section of the sieve. This is not beneficial for the penetration of the threshed mixture and might lead to a larger grain impurity ratio in the grain tank. The airflow volume at duct 1 and duct 2 shows a trend of first increasing and then decreasing with an increase in the guide plate I angle. The airflow volume at duct 4 reached its maximum value when the guide plate I angle was 30°. The velocity vector inside the fan under different guide plate I angles is shown in Fig. 13.

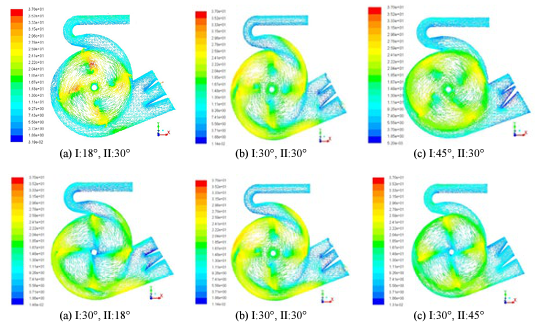

Figs. 13a,b,c show that the airflow velocity inside the fan decreased as the guide plate I angle increased. Duct 2 received the smallest airflow velocity in the case of a guide plate I angle of 30°. The guide plate I angle had a paramount influence on the airflow velocity at duct 3, and the corresponding airflow velocity decreased with increasing guide plate I angle. Therefore, it is better to keep guide plate I at a small angle in combine harvesters.
b) Guide plate II. The effect of the guide plate II angle is also visualized in Fig. 12. As the angle of guide plate II is increased from 18° to 45°, the generated total airflow volume rises from 1.6 to 1.76 m3/s and then basically remained the same. The guide plate II angle had a marginal effect on the airflow volume rates at ducts 1 and 4 but a large effect on the airflow volume rate at ducts 2 and 3. The volume rate at duct 2 stays more or less constant when the guide plate II angle was increased from 18° to 30° but decreased from 0.40 m/s to 0.23 m/s as the guide plate II angle is further increased from 30° to 45°. The volume rate at duct 3 increased from 0.16 to 0.43 m3/s as the guide plate II angle was increased from 18° to 45°. The variation in airflow velocity inside the fan with different guide plate II angles is shown in Figs. 13e,f,g, where with the increase in the guide plate II angle, the airflow velocity inside the fan rose at first and then decreased. At the same time, the airflow from duct 1 was distributed in a layered status, and the airflow velocity was distributed in the range of 7-10 m/s, thus providing a better pre-cleaning function. The averaged airflow velocity at ducts 2 and 3 was the smallest when the guide plate II angle was 30°. However, in the case of guide plate II with a small angle, the airflow at duct 2 experienced an uneven distribution, and it was easy to produce a cyclone in the cleaning shoe; this is not beneficial for the threshed outputs to obtain a continuous airflow effect. Changing the guide plate II angle had no effect on the airflow velocity at duct 4.
In conclusion, the cleaning system can achieve good cleaning performance with the following parameters: fan speed: 1100-1300 rpm, guide plate I angle ≤ 18° and guide plate II angle 30-45°.
Figure 8. Performance curves for different fans. MEA: measurement value

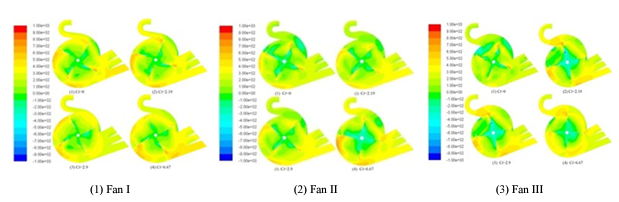

Figure 9. Total pressure contours of different fans under different cleaning loads.

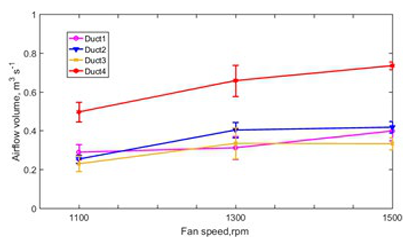

Figure 10. Airflow volume for Fan II with different speeds with an equivalent working load of 6.67

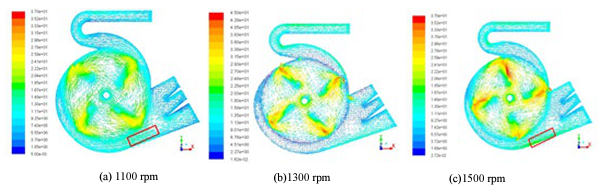

Figure 11. Velocity vector inside the fan under different fan revolution speed with an equivalent working load of 6.67

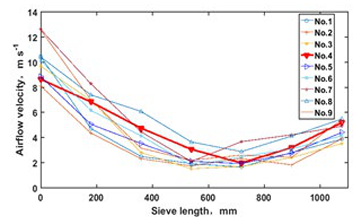

Cleaning performance and the corresponding airflow velocity variations

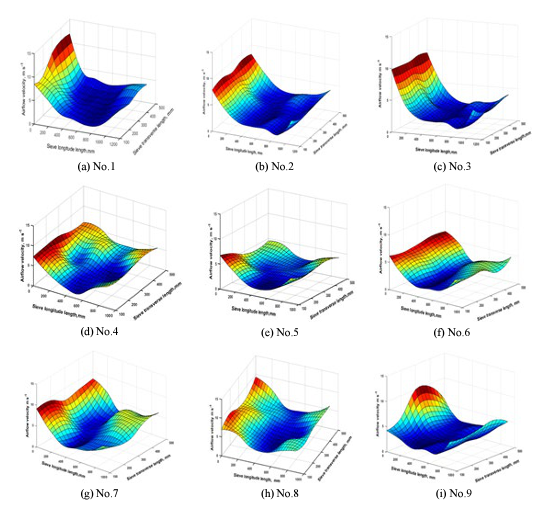

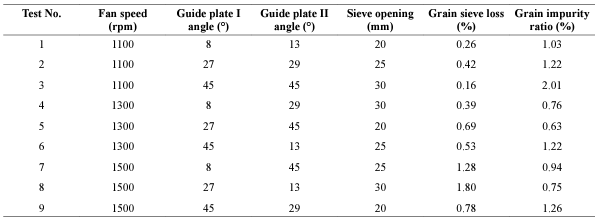

The cleaning experiment results with a feed rate of 2.5 kg/s under different working parameters indicated in Table 2, which shows that the developed cleaning device had a good cleaning performance compared with the conventional single duct cleaning device (Li & Li, 2015). The airflow velocity variation under different conditions with a feeding rate of 2.5 kg/s is shown in Fig. 14.
― Under test 1 in Fig. 14a, the maximum airflow velocity from the fan upper duct could reach 12.25 m/s. However, the airflow velocity was not uniform in its width direction; the distance between the maximum and the minimum value was 4 m/s, and the airflow velocity was much higher at the middle than at the edges. As the averaged airflow velocity was ~ 10.5 m/s, the light impurities could be blown out instantly, and the cleaning load could be reduced significantly. Then, the airflow velocity was reduced gradually along the sieve length and recovered to some extent at the tail sieve. However, the airflow velocity was slower, in a range of 360-720 mm, and the grain impurity ratio increased.
― Under test 2 in Fig. 14b, the airflow velocity from the upper duct was more uniform in the transverse direction of the fan, and the corresponding airflow velocity was distributed from 7.24 to 8.7 m/s, almost equal to the suspension speed of the rice grain. Although light impurities could be separated instantly, the airflow was not sufficient to keep the grains in the fluidized status in the cleaning shoe, which could lead to threshed output accumulation in the sieve front section. The airflow velocity was generally low, at 540-900 mm of the sieve length direction, and the straw entered the grain tank, resulting in a high grain impurity ratio.
― Under test 3 in Fig. 14c, the airflow velocity at the fan upper duct was more even in the transverse direction, and the averaged airflow velocity was distributed at ~ 9.7 m/s. The airflow velocity decreased in the 0-180 mm sieve length direction, the grain falling into the sieve could be dispersed rapidly, and the cleaning efficiency increased correspondingly.
― Under test 4 in Fig 14d, the airflow velocity dis-tribution was more reasonable. The airflow velocity increased to 4-5 m/s at a sieve length of 360 mm, which is beneficial to grain dispersion and penetration. Most of the short straws were transported to the tail sieve, and the straw had a small probability of entering the grain auger; the grain impurity ratio was lower. At the tail sieve, the airflow velocity rapidly rose, and the corresponding air-flow velocity could reach 5.77 m/s. The short straw could be thrown out of the cleaning shoe instantly, but this also increased the possibility of the grain being blown out.
― Under test 5 in Fig. 14e, the airflow velocity was ~ 8.5 m/s at the fan upper duct, which approached the suspension velocity of the grain. Then, the airflow velocity gradually decreased along the sieve length, and the airflow velocity lateral distribution was not uniform in the cleaning shoe. The airflow velocity reached the lowest value at the sieve length of 540-720 mm, and the short straw entered the grain tank and impaired the grain impurity ratio, although the airflow velocity overall distribution was ideal.
― Under test 6 in Fig 14f, the airflow velocity at the fan upper duct was more uniform in the transverse direction, and the averaged airflow velocity was ~ 10 m/s. The short straw can be blown to a far position under the coupling action of the strong airflow from the upper duct and vibrating sieve, as the airflow velocity was larger in the sieve front section. The decreasing airflow velocity in the middle section of the sieve and the recovery in the tail sieve were good for improving cleaning performance.
― Under test 7 in Fig 14g, the airflow velocity was more uneven along the sieve width direction, and the airflow velocity fluctuated greatly. Uneven airflow velocity lead to a partial accumulation of threshed outputs on the sieve surface, resulting in airflow turbulence in the cleaning shoe. In addition, the airflow velocity in the front sieve (0-180 mm) was distributed in the range of 8-12 m/s, the grain entering the cleaning shoe at a larger initial velocity under this condition, and the accelerated grains were thrown out, resulting in larger grain sieve loss.
― Under test 8 in Fig. 14h, the airflow velocity was higher in the cleaning shoe than in the other groups, but the airflow velocity experienced considerable lateral fluctuation. The higher airflow velocity at the fan upper duct and tail sieve lead to larger grain sieve loss.
― Under test 9 in Fig 14i, the airflow velocity had an even distribution on the sieve transverse direction in the front sieve, and the averaged airflow velocity was ~ 12.5 m/s. The airflow velocity experienced a drastic decline in the range of 0-180 mm in the sieve length direction, and grains settled into the grain auger promptly. After that, the airflow velocity decreased significantly, and short straw entered the grain auger. Airflow velocity was stable within the range of 720-900 mm in sieve length. The accelerated grains were blown out under the action of strong airflow at the tail sieve, resulting in larger grain sieve loss.
From the above analysis, it can be seen that there was significant airflow velocity fluctuation inside the cleaning shoe, but there was a similar distribution mode along the sieve, that is, the airflow velocity arrived at its largest value at the upper duct, and the airflow velocity at the middle of the sieve (500-900 mm) was the lowest. The airflow velocity recovered to some extent in the tail sieve (900-1080 mm). The airflow velocity in the cleaning shoe is shown in Fig. 15. From the test-rig experiment results, test 4 and test 6 exhibited the best cleaning performance; thus, the desired airflow distribution range is that 8-9 m/s at the upper duct, 4-6 m/s at the middle section, and 3-4 m/s at the tail section was the ideal airflow velocity distribution. This result verif ies that the airflow velocity had a significant relation with cleaning performance.
