Animals and husbandry

We used common Spanish agouti-coated domestic meat-oriented rabbits belonging to a strain kept at the Teaching Farm at the Higher Technical School of Agricultural Engineering of the University of Seville (Spain). The genetic characterization (Emam et al., 2016a,b) and productive performance (González-Redondo, 2016) of this nucleus have been previously described. Overall, the rabbits were phenotypically similar to the recently recognized autochthonous rustic breed “Antiguo Pardo Español” (Cañón, 2015).

 The rabbits were individually housed in polyvalent wire-mesh cages measuring 90 × 40 × 30 cm (length, width and height), located in a conventional closed facility with natural ventilation (geographic coordinates: 37° 21' 36.3" N and 5° 56' 23.9" W; 11 m a.s.l.). The animals were subjected to a natural photoperiod.

 The rabbits were fed a commercially-produced balanced diet (15.0% crude protein and 15.5% crude fiber) and water ad libitum.

The rabbits were not subjected to any socialization before the experiment, and were only exposed once a day to the person who filled the feeders and supervised the experimental stock. This was the same person that performed the trial in the experimental period.

 Collecting the temperature data

 A total of 40 weaning rabbits, with an age of 28 days old, were analyzed during a 38-day fattening period in two different seasons: summer (April 14^th to May 22^nd, 2015; n = 23 rabbits) and winter (January 19^th to February 23^rd, 2016; n = 17 rabbits). An average of 24 records per rabbit was taken, amounting to a total of 456 records. The stress levels of the animals were assessed with eye, outer ear, inner ear and nose temperature measurements. Temperature samples were collected twice a week (each day will be called “record collection day”) and twice each day: the first was taken at 11:00 h when the animal was undisturbed (U) in its own cage from the previous day and the second was taken with the rabbit was held in arms (H), ten minutes after the first temperature was taken. The rabbits were held in arms for about one minute. Temperature images of the undisturbed rabbits were taken with the cages open, without touching the animals and at a distance of 100 cm from their bodies. The whole procedure for the entire experimental stock took about 2½ hours each day and was always carried out by the same person. The temperature images were taken with a FLIR i7 camera, following the instructions given by Bartolomé et al. (2013). To calibrate the camera results, room temperature and relative humidity were recorded with a digital thermos-hygrometer (Extech® 44550) every time an infrared body temperature sample was taken, so each infrared temperature had a corresponding humidity and room temperature.

 The experiment was carried out in accordance with the Spanish legislation (RD 53/2013; BOE, 2013) and the Directive 2010/63/EU on the protection of animals used for scientific purposes (OJ, 2010).

 Room and infrared temperatures

 In order to evaluate the environmental conditions and it relationship with the infrared temperature the following data were recorded:

 —TEMP, U: Room temperature (ºC) taken at the precise moment when the infrared temperatures were taken in undisturbed rabbits.

 —TEMP, H: Room temperature (ºC) taken at the precise moment when the infrared temperatures were taken in handled rabbits.

 —RH, U: Relative humidity (%) taken at the precise moment when the infrared temperatures were taken in undisturbed rabbits.

 —RH, H: Relative humidity (%) taken at the precise moment when the infrared temperatures were taken in handled rabbits.

 —Eye, U: Infrared eye temperature (ºC) with the rabbit undisturbed.

 —Eye, H: Infrared eye temperature (ºC) with the rabbit handled

 —Inner ear, U: Infrared inner ear temperature (ºC) with the rabbit undisturbed

 —Inner ear, H: Infrared inner ear temperature (ºC) with the rabbit handled.

—Outer ear, U: Infrared outer ear temperature (ºC) with the rabbit undisturbed.

 —Outer ear, H: Infrared outer ear temperature (ºC) with the rabbit handled.

 —Nose, U: Infrared nose temperature (ºC) with the rabbit undisturbed.

 —Nose, H: Infrared nose temperature (ºC) with the rabbit handled

 —Inner ear VAR = Inner ear, H - Inner ear, U.

 —Outer ear VAR = Outer ear, H - Outer ear, U.

 —Nose VAR = Nose, H - Nose, U.

 —DIF Eye-TEMP = Eye, U – TEMP, U.

 —DIF Inner ear-TEMP = Inner ear, U - TEMP, U.

 —DIF Outer ear-TEMP = Outer ear, U - TEMP, U.

 —DIF Nose-TEMP = Nose, U - TEMP, U.



Statistical analyses

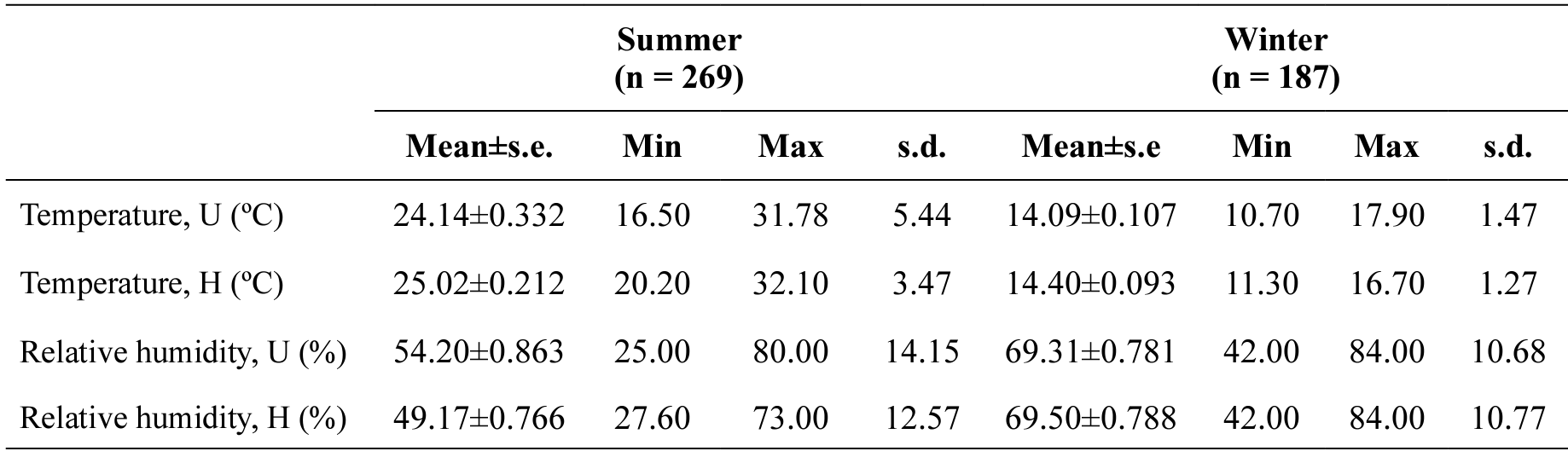

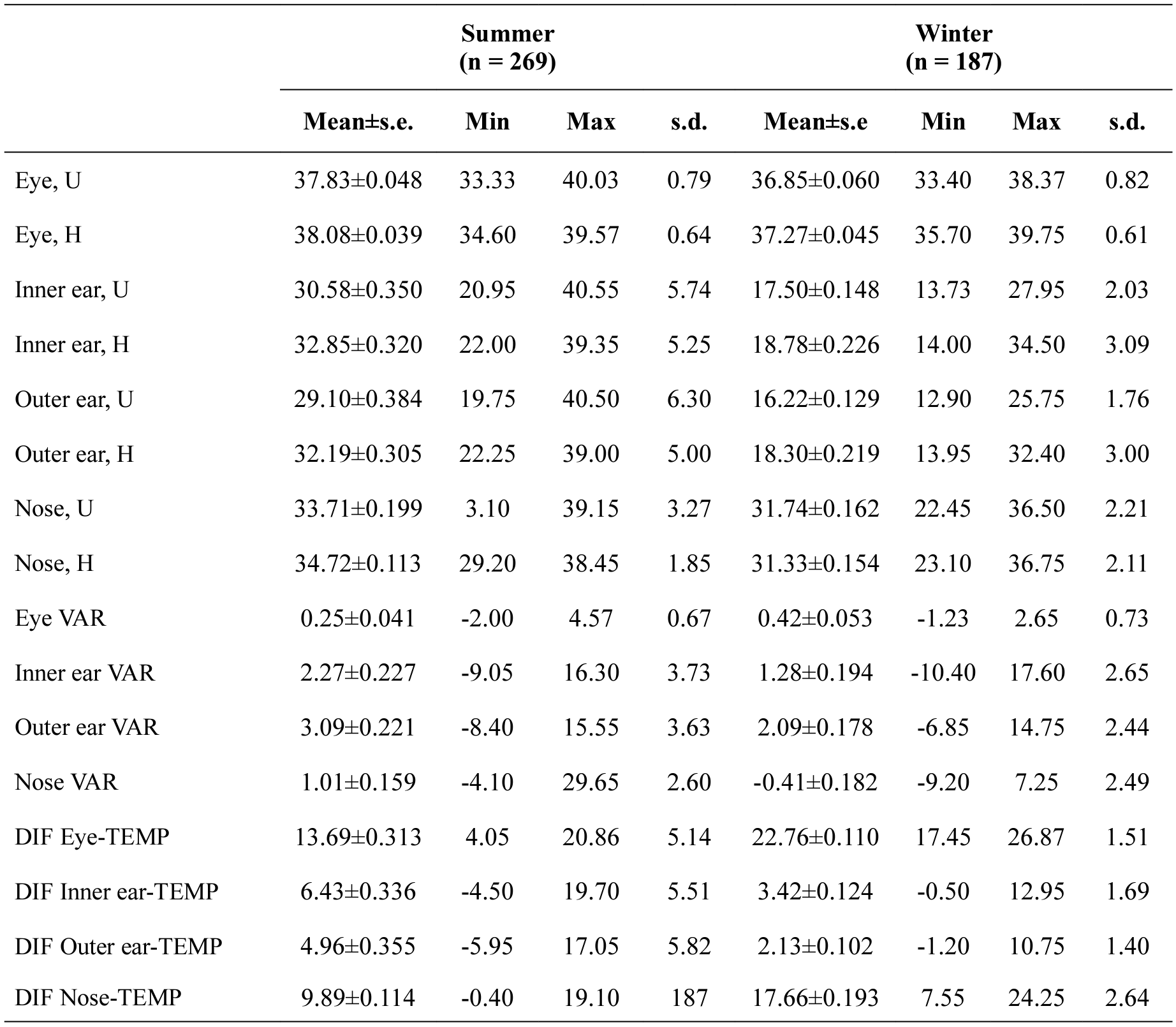

The descriptive statistics for each trait are shown in Tables 1 and 2. The evolution of the differential temperatures (ºC) for eye, inner ear, outer ear and nose during summer and winter are represented in Fig. 1. A General Linear Model was used to study the potential risk factors (sex, day and each rabbit for each season; winter and summer) that could most influence body temperature during the experimental periods in U and H rabbits (Table 3). This was followed by a Duncan post-hoc test to study the differences between the first and the last days studied and between the same day in summer and winter (Table 4). Finally, to study the correlation between all the traits studied in summer and in winter in undisturbed and handled rabbits, Pearson correlations were carried out (Table 5). All the procedures were analyzed using the Statistica 8.0 package for Windows.

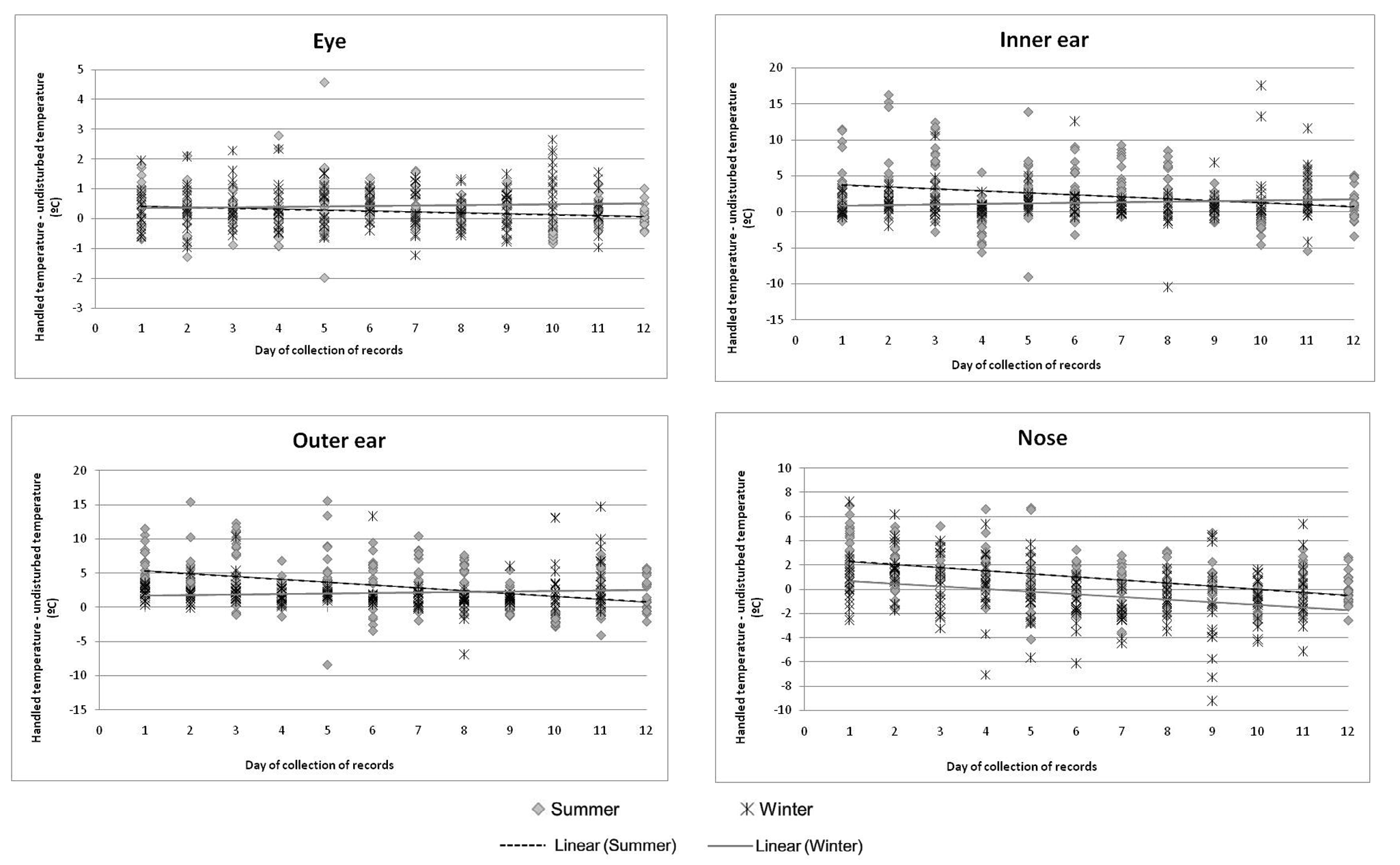

Figure 1. Evolution of the variation in temperatures (ºC) between Infrared Temperature in handled rabbits and in undisturbed rabbits for eye, inner ear, outer ear and nose during summer and winter (12 days of sampling per season).

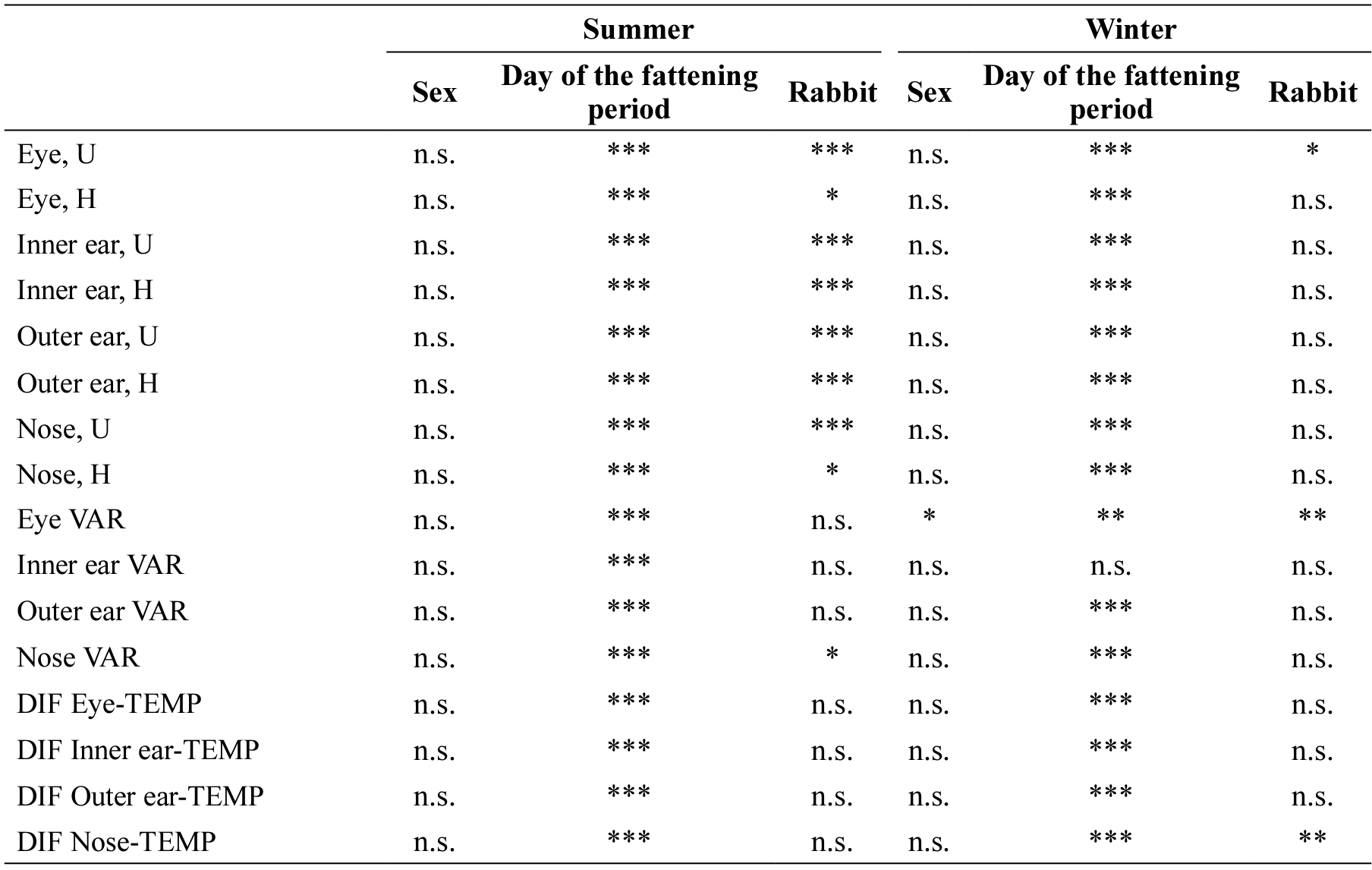

Table 3. General Lineal Model analysis of the environmental effects that could influence body temperature (ºC) most during the experimental periods (summer 2015 and winter 2016) in undisturbed (U) and handled (H) rabbits.



DiscussionTop

 When the animal is faced with an alarm, acute stress is activated, which is characterized as a short response over time (Dickens & Romero, 2013). Body temperature also increases, which is particularly problematic in species with deficient heat tolerance, such as rabbits. This increase in temperature occurs when the sympathetic autonomic nervous system is stimulated, releasing the neurotransmitters adrenaline and noradrenaline (catecholamines) in the adrenergic synapses, in order to obtain energy to face the emergency (Duval et al., 2010). In the case of the rabbit, between 1 and 2 seconds after a stressful effect begins (Manteca, 1998) a primitive escape reaction occurs, releasing catecholamines (Kuchel, 1991) into the bloodstream, which makes the body temperature rise for a short time, since its function is to favor hepatic glycogenesis (Greco & Stabenfeldt, 1997). It is a short-term response, since catecholamines have a half-life of just a few minutes in the blood (Peaston & Weinkove, 2004). This circumstance allows the animals to deal with the fear situation effectively (Lattin & Romero, 2014). Infrared thermography can detect this acute response to stress, replacing traditional systems of measuring plasma catecholamines as responses of the autonomic nervous system to assess the animals’ welfare (Stewart et al., 2005).

 The increase in temperature through stress has been evaluated by using infrared thermography in different anatomical parts in various studies, in the eye in horses (Valera et al., 2012), in cows (Stewart et al., 2007), and in dogs (Travain et al., 2015), as well as in the skin of pigs (Warriss et al., 2006). Olivas & Villagrá (2013) showed that rectal temperature can also be used to assess fear or acute stress in rabbits. The results of the present study show an increase in infrared temperature (measured in eye, inner ear and outer ear both in winter and summer) between the initial state without previous handling and after handling the animal and holding it. These anatomical parts are therefore key points of interest for measuring stress in this species, since stress can lead to hyperthermia. Higher temperatures induced by stress occurred in the eye, inner ear and outer ear. In the same context, De Lima et al. (2013), in a study on heat stress in rabbits, found that the highest temperatures were detected by infrared thermography in the eye, followed by inner ear, outer ear and nose.

 The greatest temperature variations between the initial conditions without handling and after handling occurred in the measurements of the inner ear, so this point of interest should be the reference for assessing stress in rabbits by temperature measured with thermography, as stated in Ludwig et al. (2007). In the case of the nose, different infrared temperature data were obtained in winter and summer. This could be due to the humidity in the nose, which can differ according to the room temperature in the different seasons. This humidity can therefore alter the real value of the infrared temperature measured (Luzi et al., 2007).

 Contrary to our findings in this work, the studies carried out by Ludwig et al. (2007) on measuring stress by thermography in rabbits show that there is a decrease in the temperature of the eye and outer ear following a stressful event, and that corticosterone also increases in the bloodstream. This occurs by activation of the hypothalamic-pituitary-adrenal axis, which occurs 2-10 minutes post stress (Nelson, 2000). However, this does not happen, or only happens slightly, in the first phase of stress (alarm), in which the stimulation of the autonomic nervous system occurs (Nelson, 2000). When there is a short, albeit stressful handling, the rabbits’ reaction is very intense, producing an increase in corticosterone from 60 seconds after the start of handling (Gascón & Verde, 1987).

 The degree of hyperthermia induced by stress recorded by us in the eye was not significantly affected by room temperature, as verified in Long et al. (1990). This also happened with the variation in humidity, although in this case, the difference was greater in winter. However, in the inner and outer ear, the room temperature was correlated with the increase in the infrared temperature variation between measurements taken before and after handling. The difference in the temperature values for each anatomical point studied is due to their different vascularization and to the influence of the ambient temperature. The outer ears, like the nose, are used by rabbits to dissipate heat (Fayez et al., 1994). To regulate heat better, rabbits have larger ears in warmer geographic areas (Ferreira et al., 2015). Rabbits with larger ears have lower respiratory rates with high ambient temperatures (Zeferino et al., 2011). In the present trial, the maximum temperature induced by stress occurred in the eye, with 39.57 ºC in summer and 39.75 ºC in the outer ear in winter; as a result, hyperthermia by induction of stress was not pathological for the rabbits tested, as shown in Ardiaca et al. (2010). Above that temperature, cell membranes begin to be destroyed by denaturing proteins (Bowler & Manning, 1994).

 The state of fear or stress in the animals in this trial could be due to the fact that they were not manipulated early, as indicated in Price (2002), but rather directly after weaning. In fact, handling during lactation reduces rab-bits’ fear of humans (Bilkó & Altbäcker, 2000). Csatádi et al. (2005) also show that early handling in rabbit offspring significantly reduces the stress caused by human presen-ce. Olivas & Villagrá (2013) reported that manipulation per se does not cause hyperthermia, but that it is caused by the stressors of the study. Cabezas et al. (2007) confirmed that in captivity, wild rabbits show fear episodes and flight reactions due to human presence and handling.

 The temperature of the undisturbed rabbit’s anatomical parts tested was correlated with the room temperature, as found by Cervera & Fernández-Carmona (1998), but not with the relative humidity. The room temperature where the animals are kept is a key condition for the regulation of a rabbit’s internal temperature (Sanmiguel & Díaz, 2011). In summer, there was a decrease in the tempera-ture difference of the monitored anatomical parts during the fattening period, between the first and last days of the experiment; it could therefore be said that there was a pro-cess of gradual adjustment to human handling, which did not happen in winter. The greater differences between the temperature of the handled and unhandled rabbits occu-rring in summer at the beginning of the fattening period versus the smaller differences at the end could be due to the thermal stress suffered by the rabbits in warm environ-ments, as their age and body weight increase throughout the fattening time. In other words, the animals in the first stages of fattening do not suffer heat stress and, conse-quently, the differences between the temperature when they are handled and the initial unhandled temperature are relatively large. However, in the final stage of fattening, heat stress is produced in the rabbits and, consequently, the initial temperature is higher, with a naturally smaller difference between the temperature of the handled animal and the initial temperature. This fact has been observed in rabbits (Daader et al., 2018) and in other species (So-leimani et al., 2008; Collier et al., 2019): as the animals are older and gain weight, they become more sensitive to thermal stress, and their body temperature rises. As a consequence, for rabbit production, this implies that on farms, it is heat stress that needs to be controlled more strictly as the fattening period progresses, and that hand-ling does not increase thermal stress in rabbits.

 The room temperature in which the animals are kept is the key factor in the rabbits’ ability to regulate their temperature (Cervera & Fernández-Carmona, 1998), and they thermoregulate more efficiently in lower temperatures (Lebas et al., 1997). Starting at 24 ºC, weaned rabbits during the fattening period begin to have breathing pro-blems, with fatigue, increased heart rate, lack of appetite and decreased basal metabolism (Samoggia, 1987). Al-though our room temperatures were slightly higher, none of these effects were observed in the current trial, perhaps due to this breed’s adaptation to the warm Spanish climate (Cañón, 2015) and due to the rabbits’ phenotypic plastici-ty (Dalmau et al., 2015).

 Energy is required for the flight reaction, which justi-fies the increase in temperature (Duval et al., 2010), and this need is greater in winter than in summer (Samoggia, 1987). The animals’ ability to generate energy for flight after handling, demonstrated through variations in body temperature, was much greater in winter than in summer. Before the response to stress, the lower metabolic activity in summer (Okab et al., 2008) and the greater need for energy for winter flight would account for this difference in body temperature we observed between the first day (weaning) and the last day (end of the fattening period) in each of the seasons. The difference in temperature due to stress induction is due to the fact that individuals in the populations differ naturally in their physiological responses and, therefore, each animal’s capacity to cope with stressful and adverse situations is different (Monclús et al., 2006; Cabezas et al., 2007; Broom, 2011).

 Taking into account the large number of infrared temperature measurements recorded (456), it is safe to conclude that eye temperature is a good reference point to record body temperature in fattening rabbits by infrared thermography, since the range of temperature values recorded was the narrowest of all those taken, between 33.33 and 40.03 ºC. However, no studies have correlated rectal temperature with eye temperature by thermography in rabbits, and further trials would therefore be needed to confirm this conclusion.

 The highest temperature ranges in undisturbed rabbits occurred in the outer ear measurements, as reported by Gonzalez et al. (1971) and Zeferino et al. (2011), since this external body part is involved in heat transfer to the room, and is affected by both vasoconstriction and vasodilatation, depending on a lower or higher room temperature, respectively (Cervera & Fernández-Carmona, 1998).

 The range of differences between the infrared temperature averages for the outer ear and room temperature in undisturbed rabbits, considering both summer and winter, was 3.5, compared to 4.5 ºC found by Gonzalez et al. (1971). However, if only infrared temperature values in summer are considered, the difference is 5.0 ºC in our trial against 3.8 ºC in Gonzalez et al. (1971) and 2.9 ºC in Yamasaki-Maza et al. (2017). These differences may be due to factors such as differences in rabbit breeds and the tools used to measure temperature (Gonzalez et al., 1971). Yamasaki-Maza et al. (2017) used a clinical, digital non-contact infrared thermometer with temperature range of 32-43 ºC (±0.3 ºC accuracy) on New Zealand, Chinchilla and Azteca rabbits, while Gonzalez et al. (1971) used copper-constantan thermocouples attached with plastic discs to small shaved areas of skin behind the ears of New Zealand White rabbits.

 There were no differences between sexes in temperature values in handled and undisturbed rabbits. The fact that these differences did not occur is due to the fact that during the study, the rabbits had not yet reached puberty (Lebas et al., 1997) being between 28 and 66 days old, with a fattening period of 38 days. Monclús et al. (2006) detected differences between sexes when rabbits were subjected to stress due to differences in the metabolism of glucocorticoids between males and females. Touma et al. (2003) also showed that there were differences in corticosterone metabolism between male and female rats. Another reason why there were no differences in temperatures between males and females after handling could be the fact that the stress that occurred was acute, caused by a short reaction, and influenced by an increase in catecholamines instead of glucocorticoids.

 In conclusion, rabbits that have not been handled by humans during the lactation period do not become accustomed to handling in the fattening phase and stress occurs, as evidenced by the body temperature variations. Infrared thermography is a good technique for assessing by temperature records the acute stress of fattening rabbits as a result of handling, and the inner ear and the eye are the most reliable points to measure it.

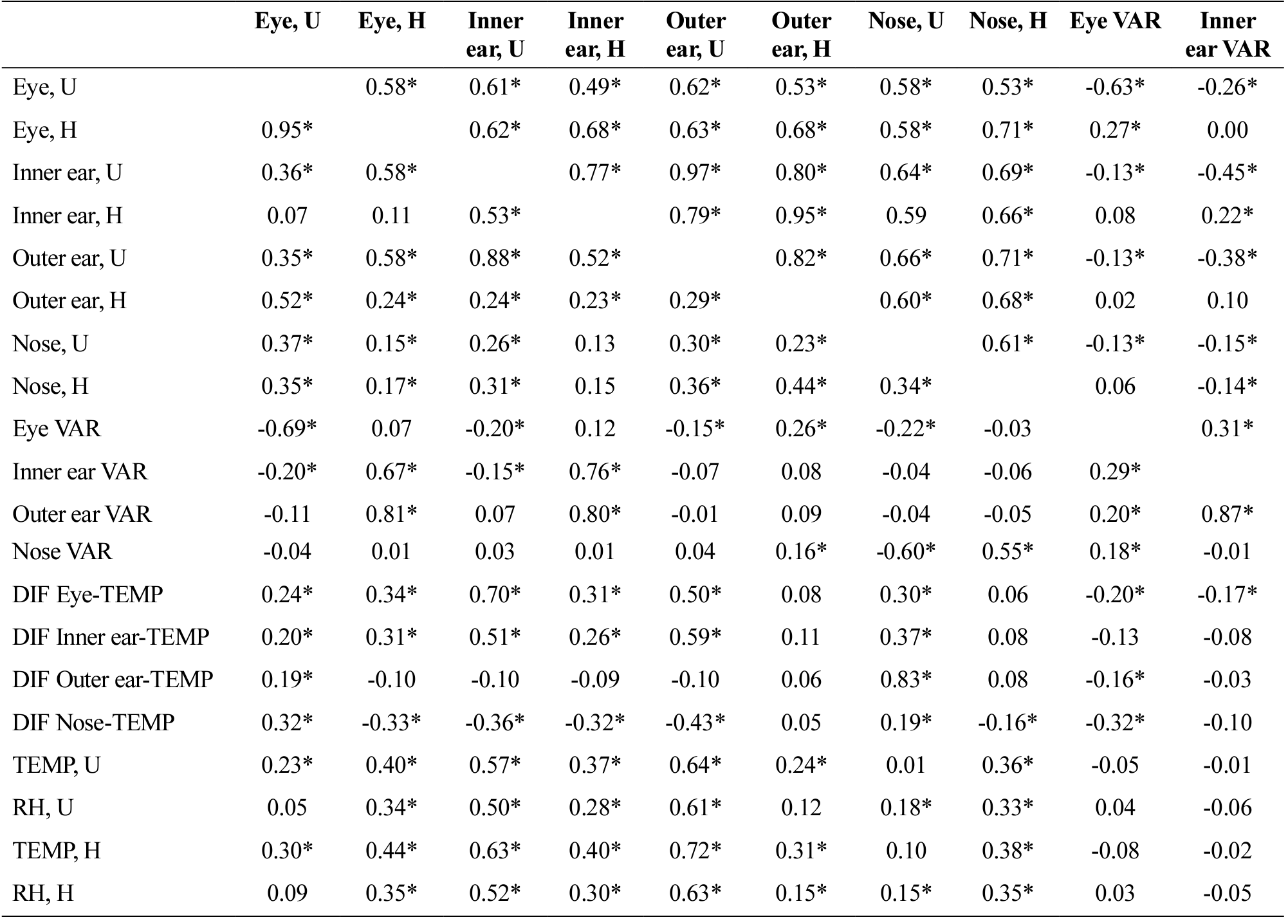

Table 5. Pearson correlation among all the traits studied (temperature in ºC and relative humidity in %) in summer 2015 (abo-ve the diagonal) and in winter 2016 (below the diagonal) in undisturbed (U) and handled (H) rabbits.

VAR: temperature in handled rabbits – temperature in undisturbed rabbits. TEMP: room temperature. RH: relative humidity. DIF Eye-TEMP = Eye, U – TEMP, U. DIF Inner ear-TEMP = Inner ear, U – TEMP, U. DIF Outer ear-TEMP = Outer ear, U – TEMP, U. DIF Nose-TEMP = Nose, U – TEMP, U. *: p<0.05

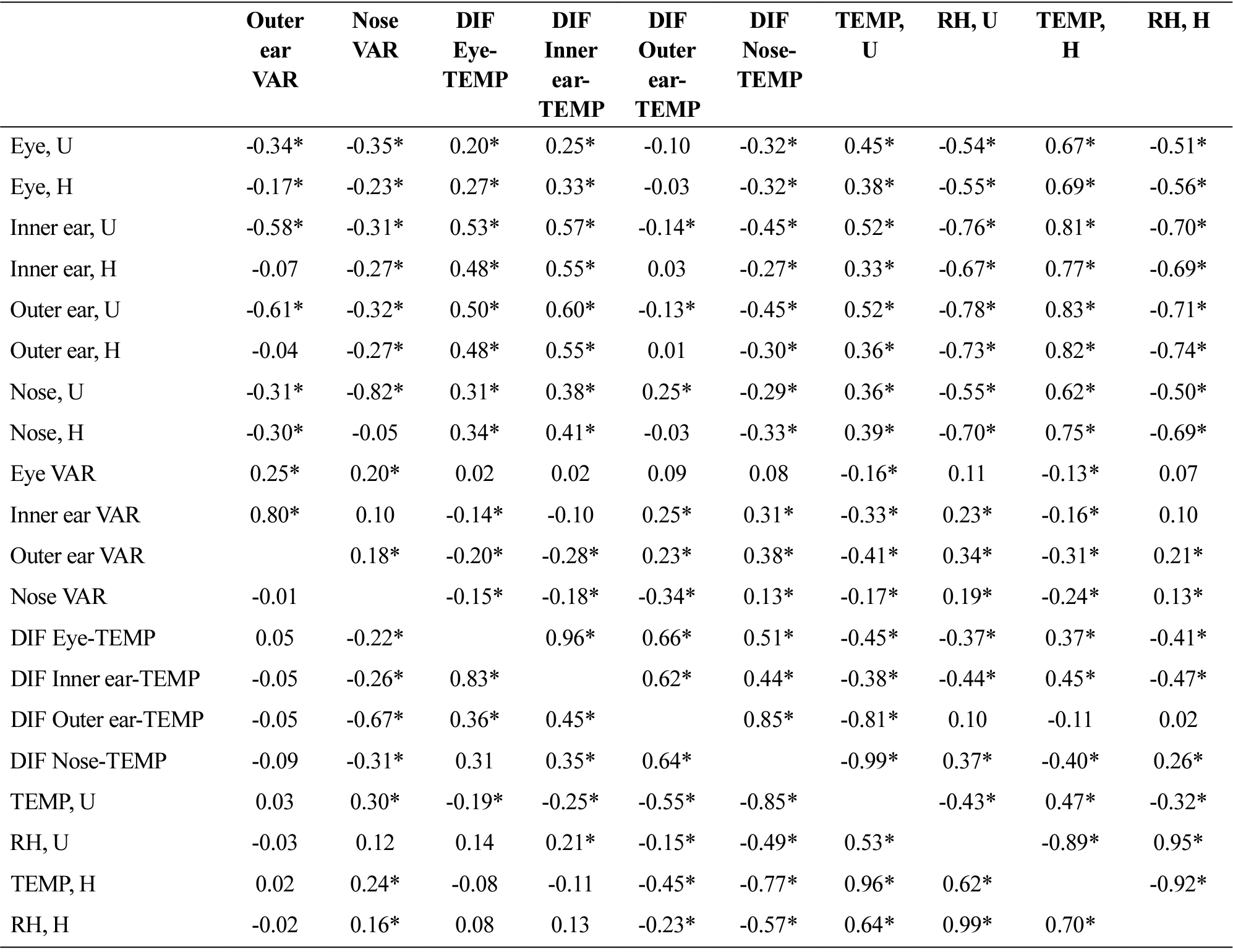

Table 5. Continued

VAR: temperature in handled rabbits – temperature in undisturbed rabbits. TEMP: room temperature. RH: relative humidity. DIF Eye-TEMP = Eye, U – TEMP, U. DIF Inner ear-TEMP = Inner ear, U – TEMP, U. DIF Outer ear-TEMP = Outer ear, U – TEMP, U. DIF Nose-TEMP = Nose, U – TEMP, U. *: p<0.05
