RESEARCH ARTICLE



Effect of cover crops in olive groves on Cicadomorpha communities



Antonio J. Carpio (Carpio, AJ)

University of Córdoba, Campus de Rabanales, Dept. of Zoology. 14071 Córdoba, Spain.

Instituto de Investigación en Recursos Cinegéticos, IREC (UCLM-CSIC-JCCM). Ronda Toledo 12, 13071 Ciudad Real, Spain.

Marta Solana (Solana, M)

University of Córdoba, Campus de Rabanales, Dept. of Zoology. 14071 Córdoba, Spain.

Francisco S. Tortosa (Tortosa, FS)

University of Córdoba, Campus de Rabanales, Dept. of Zoology. 14071 Córdoba, Spain.

Jesús Castro (Castro, J)

 University of Vigo, Dept. of Ecology and Animal Biology. 36310 Vigo, Spain



Abstract

Aim of study: To identify the environmental variables that affect the Cicadomorpha communities and the role played by cover crops in olive groves by comparing olive orchards with cover crop to those with bare ground.

Area of study: Córdoba, Spain.

Material and methods: Two study plots, one with cover crop and the other with bare ground, were delimited in three areas of olives orchards. Three passive samplings (May, June and July) were performed in each study plot to estimate the abundance and the species richness of potential Cicadomorphas vectors of Xylella fastidiosa. In each sampling, eight yellow sticky traps (22 × 35 cm) were randomly distributed in each study plot (n = 144 traps).

Main results: The Cicadomorpha communities were mainly affected by landscape variables (such as the total surface and the distance to remnants of natural vegetation) and environmental variables (such as the temperature, moisture or ETo), whereas cover crops played a secondary role in the abundance of the Cicadomorpha.

Research highlights: The results of the study suggest that Cicadomorpha richness and abundance depend on the structural complexity provided by cover crops (positive effect) and live hedges (negative effect), which may be owing to the higher food abundance and shelter when cover crops are present, whereas higher insect predation may occur close to hedges, probably owing to insectivorous song birds.

Additional key words:  Auchenorrhyncha; bare ground; ground cover; xylem-fluid feeder insects; sharpshooters.

Abbreviations used:  AESs (Agri-Environmental Schemes), AICc (corrected Akaike information criterion), dbRDA (distance-based redundancy analysis), DistLM (distance-based linear model), ETo (potential evapotranspiration expressed in mm per day-1), GPS (global positioning system), PERMANOVA (permutational multivariate analysis of variance), PW (previous week), SIMPER (similarity percentages); SW (sampling week).

Authors’ contributions: AJC, JC and FST conceived and designed the experiment. AJC and MS performed the experiment. JC identif ied the specimens. AJC, MS and JC analysed the data. AJC, FST and JC wrote the paper. All authors read and approved the final manuscript.

Citation: Carpio, AJ; Solana, M; Tortosa, FS; Castro, J (2020). Effect of cover crops in olive groves on Cicadomorpha communities. Spanish Journal of Agricultural Research, Volume 18, Issue 2, e0303. https://doi.org/10.5424/sjar/2020182-15991

Received:  5 Nov 2019. Accepted: 12 Jun 2020

Copyright © 2020 INIA. This is an open access article distributed under the terms of the Creative Commons Attribution 4.0 International (CC-by 4.0) License.

Funding agencies/institutions Project/Grant
University of Córdoba
Institute for Sustainable Agriculture of the Spanish National Research Council (CSIC)

BES-2013-06370

Competing interests: The authors have declared that no competing interests exist.

Correspondence should be addressed to Jesús Castro: jcastro@uvigo.es




CONTENTS

Abstract

Introduction

Material and methods

Results

Discussion

Acknowledgements

References

IntroductionTop

The policies of the European Union (EU) have, over the last thirty years, progressively evolved in an attempt to halt the dramatic loss of biodiversity associated with agricultural expansion and intensification (Pe'er et al., 2014). In this respect, the Common Agricultural Policy (CAP) has encouraged the development and promotion of Agri-Environmental Schemes, AESs, (Kleijn & Sutherland, 2003). These AESs include soil conservation practices in olive groves (Olea europaea L.), such as using herbaceous ground cover under mower control, in order to promote biodiversity and prevent erosion during the rainy season (Rodríguez-Entrena & Arriaza, 2013; Gómez et al., 2014). One example of AES is cover crop, which consists of an inter-tree herbaceous vegetation strip, although it can also be extended as a continuous covering throughout the crop, which may be natural and spontaneous or cultivated vegetation (Simoes et al., 2014; Guerrero-Casado et al., 2015). Previous studies have shown the positive effect of the diversity of vegetation and landscape complexity on the abundance and diversity of arthropods in olive orchards, where cover crops strongly enhance their communities (Schaffers et al., 2008; Castro et al., 2017) and which also include pest control insect species (Kruess, 2003; Paredes et al., 2013).

 Despite its economic importance for agriculture (Dellapé et al., 2013) there is little information about the relations between ecological and environment factors affecting Cicadomorpha communities in crops (Cotes et al., 2011; Dellapé et al., 2013; Markó et al., 2013). Among the available bibliography some studies can be found in woody crops (Mazzoni, 2005; Bleicher et al., 2006; Cotes et al., 2011) and others carried out in grasslands (Morris, 1981; Gibson et al., 1992). However, Hemiptera (group that Cicadomorpha belong), together with Coleoptera, have been described as potential bio-indicators of disturbances in olive crops during post-blooming period (Cotes et al., 2011). Nickel & Hildebrandt (2003) employed Auchenorrhyncha communities as disturbances indicators in grasslands according to the following reasons: i) its high species and individual abundances in grasslands, ii) they form an important component of grassland fauna, iii) Auchenorrhyncha have specific life strategies and occupy specific spatial and temporal niches, iv) its communities have immediate responses changes to management, and v) sampling can be done quickly.

 In addition, Cicadomorpha can also have negative effects on crops, acting as pests or vectors of diseases to be xylem-feeder (Frazier, 1965; Novotny & Wilson, 1977; Weintraub & Beanland, 2006; Weintraub, 2007). For example, the leafhopper Scaphoideus titanus Ball (Hemiptera: Cicadellidae) act as vector of flavescence dorée, a serious disease for European vine plants (Chuche & Thiéry, 2014). Other plant disease transmitted by the leafhoppers Recilia dorsalis Motschulsky (Hemiptera: Cicadellidae) is the rice stripe mosaic virus (RSMV). The rice is the most cultivated cereal around the world, in consequence, the RSMV have important economic repercussions (Yang et al., 2017). Cicadomorpha can act as potential vectors of Xylella fastidiosa (Wells et al., 1987), a bacterium that cause the death of many woody crops, such as olive trees, almonds (Prunus dulcis Mill) or vineyards (Vitis vinifera L), in Central and Southern Europe (EFSA Panel on Plant Health et al., 2019) and in America since the 18th century (Purcell & Finlay, 1979; Purcell, 1997; Hopkins & Purcell, 2002; Almeida & Nunney 2015). This bacterium is xylem-inhabiting and is transmitted by the Hemiptera species, the xylem-fluid feeder species (Janse & Obradovic, 2010). Vectors of the bacterium are present throughout the Mediterranean basin and the threat as a result of its introduction into Europe is consequently significant (EFSA, 2015).

 Cover crops may favour the presence of Cicadomorpha (containing Cicadellidae, Cercopidae, Cicadidae and Aphrophoridae families), as occurs with other taxonomic groups (Evans, 1947). Unfortunately, there is neither data on the biology of many Cicadomorpha species nor knowledge regarding the different species’ habitat preferences. In the particular case of leafhoppers (Cicadellidae family) its populations are mainly influenced by composition and physical structure of vegetation (Waloff, 1980; Biedermann et al., 2005). Some researchers have showed that the Cicadellidae species richness and abundance are sometimes correlated with plant diversity, height and spatial complexity (Denno, 1994; Achtziger, 1997). However, the vegetation structure is closely related with soil moisture, nutrient status and soil pH (Biedermann et al., 2005). Abiotic factors as temperature have also influence on Cicadomorpha populations, being its abundances increased with summer temperatures in argentine orange orchards (Dellapé et al., 2013). Furthermore, as other arthropod taxa, anthropogenic activities especially in agrosystems can affect to Cicadomorpha populations. An example is the application of biocides treatments to prevent X. fastidiosa vectors. Its effectiveness is remain unknown and it is, therefore, relevant to attain a broader knowledge of the role played by cover crops or by patches of remnant natural vegetation (for example, in borders, hedges or streams) (Redak et al., 2004) in the abundance and richness of the Cicadomorpha species. In summary, leafhopper communities are affected (directly or indirectly) by soil and vegetation parameters affected, in turn, by management (Biedermann et al., 2005).

The aim of this study was to identify the environmental variables that affect the Cicadomorpha communities and the role played by cover crops in olive groves by comparing olive orchards with cover crop to those with bare ground.



Material and methodsTop

Study area

The study area comprised three areas of olives orchards located in Cordoba province, Southern Spain. Two study plots, one with ground cover and the other with bare ground (mean ± SD plot size 5.9 ± 1.6 ha), were delimited in each of the three areas (Fig. 1). All the olive orchards selected for this study had undergone the same type of insecticide treatments (comprising patching treatments using 40% dimethoate (C5H12NO3PS2) plus hydrolyzed protein), none of which were organic. The elimination of the vegetation cover in plots with bare ground was performed by conventional tillage (consisting of three to four passes, 0.15 m deep, with a rotary tiller (5.5 h.p.) per year, starting after the first rain in late September or early October to control weeds in the streets of the olive groves (Gómez et al., 2009). In addition, for removal of vegetation under the canopy, glyphosate was applied (Piton, 0.36 kg a.e. (acid equivalent) L−1, Dow AgroSciences, Indianapolis, Indiana) at 2.1 kg a.e. ha−1 (in both study areas).

 The cover crop composition in plot with cover crop in study area 1 was mainly integrated by: Asteraceae (species as Conyza canadensis (L.) Cronq. or Leontodon longirostris (Finch & P.D. Sell)), Poaceae (species as Bromus rubens L. or Poa annua L.), Rubiaceae (Galium murale (L.) All.), and Fabaceae (Trifolium sp.); instudy area 2 was composed by: Asteraceae (species as Chrysanthemum coronarium L), Brassicaceae (species as Diplotaxis catholica (L.) DC.), and Poaceae (species as Bromus rubens L.); while in study area 3 was mainly composed by: Malvaceae (species as Lavatera cretica L. or Malva hispanica L.), Poaceae (Hordeum murinum L. or Poa annua L.), and Urticaceae (Urtica dioica L.). The climate in the region is characterised by warm dry summers and mild winters, which are typical of the Mediterranean climate (annual average ± SD temperature 17.6ºC ± 7.2ºC between the years 2010 and 2017). Study area 1 corresponded with an average maximum temperature of 26.2ºC, an average minimum temperature of 10.3ºC (the maximum temperature being 42.8ºC and the minimum being 5.1ºC) and a precipitation of 376.6 L in the study year. The average maximum temperature in study area 2 was 25.3ºC, while the average minimum temperature was 11.2ºC (the maximum temperature being 38.8ºC and the minimum being 8.8ºC) and the precipitation was 581.2 L. In study area 3, the average maximum temperature was 25.8ºC, the average minimum temperature was 11.1ºC (reaching a maximum temperature of 41.1ºC and a minimum temperature of 6.4ºC) and the precipitation recorded during the climatic year was 334.6 L. The study was performed in a region in which the predominant orchard is populated by traditional olive trees that are between 20 and 100 years old, although there are also areas where the cultivation of other species, such as crop plants or vines, takes place. The cultivated olives were of medium size (3–4 m tall) and their density varied between 100 and 200 trees ha-1.

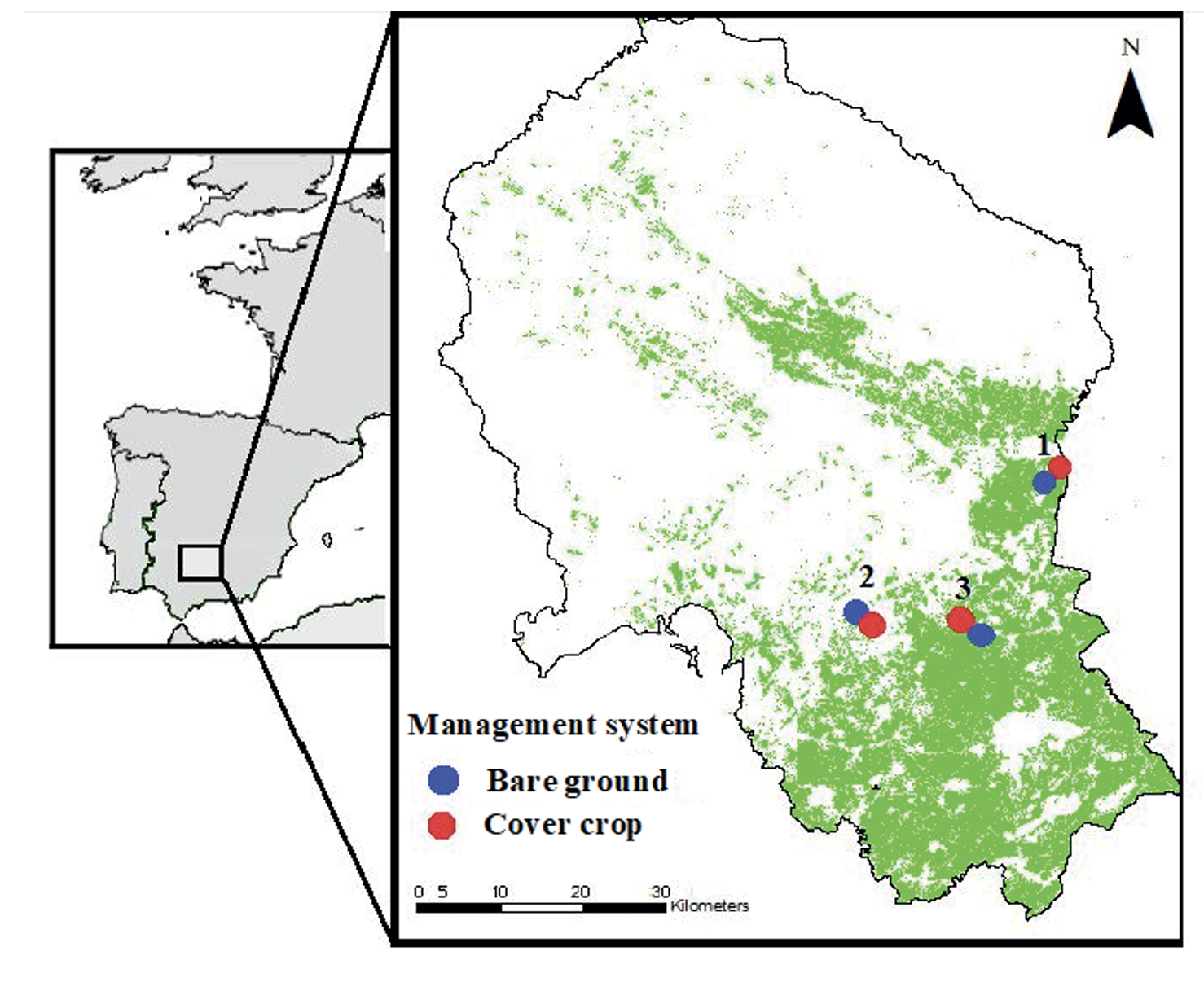

Figure 1. Study plots (coloured points) and distribution of olive groves (green areas) in Córdoba province (Andalusia, Spain).



Experimental design and arthropod sampling

 Three passive samplings were performed in each study plot (n = 6) to estimate the abundance and the species richness of Cicadomorpha. The distance between the study plots in each study area was 2.2±1.3 km, and the average distance between the three study areas was 30.2±7.3 km. Sampling was performed in the year 2017, during spring, the period in which this insect group is most active (La Spina et al., 2005). The three samplings were performed in the first weeks of May, June and July. In each sampling, eight yellow sticky traps (22 × 35 cm) (Pedigo & Buntin, 1993; Weintraub & Orenstein, 2004; Weintraub & Beanland, 2006) were randomly distributed in each study plot (n = 144 traps). The traps were placed in olive trees at a height of 1.5-2 m and in a vertical position (Prischmann et al., 2007). The position of each trap was georeferenced by means of GPS in order to calculate the average distance between them and the vegetation. The traps were deployed for a one-week period, after which the captured insects were unglued from the traps by employing ethyl acetate 99.8% and were then transferred to plastic bottles containing 90% of ethanol until identification. Specimens belonging to Cicadomorpha suborder (leafhoppers, froghoppers, treehoppers and cicadas) were identified to species level following the methods described by Della Giustina (1989) and Le Quesne (1965, 1969).

 Collection of environmental variables

Owing to the strong effect of environmental conditions on insect activity, the environmental conditions were recorded in each study area (1, 2 and 3) during the previous and the sampling week (PW and SW respectively) (Hay et al., 1996). The environmental data were obtained from agroclimatic stations located close to the three study areas, which were the agroclimatic stations of El Carpio, Córdoba and Baena for study areas 1, 2 and 3, respectively (distance between agroclimatic stations and study areas: 27.4, 25.6 and 18.4 km, respectively). The environmental variables obtained were: maximum, minimum and average temperature, maximum, minimum and average air moisture, precipitation, solar radiation and potential evapotranspiration (ETo, expressed in mm day-1). Averages per week were calculated for each environmental variable.

 Landscape variables

 According to Körösi et al. (2012) and Fereres (2017), the surrounding vegetation may enhance the presence and abundance of Cicadomorpha (Cicadellidae and Cercopidae) and we, therefore, recorded the distance between each sticky trap and vegetation. The GPS position of the traps was used to calculate the distance to the closest natural vegetation element (including boundaries, hedges and streams). Linear meters of natural vegetation were calculated in a buffer of 500 meters around every plot.

 Data analysis

 The total and average abundance of each Cicadomorpha species collected were calculated for all the study plots. A Spearman matrix was performed in order to exclude environmental variables with collinearity among them (Acevedo et al., 2005). Two variables were considered to be correlated when r > 0.8.

 Two generalised linear mixed models (GLMMs) were performed to determine the relationships between environmental variables (type of ground cover treatment, environmental and vegetation variables) with regard to two response variables: Cicadomorpha abundance (Model 1) and Cicadomorpha species richness (Model 2). In these analyses, the study area (3 levels) was considered as a random factor, while ground cover treatment (2 levels: cover crop/bare ground) and date (3 levels: May, June and July) were included as fixed factors. The distance from traps to natural vegetation, the linear meters of natural vegetation and the environmental variables (average temperature, average air moisture and precipitation from the PW and average temperature, average air moisture and ETo of the SW) were included in the model as covariates. A Poisson function and log–link function were used in both models. The best model was selected by employing the forward-stepwise procedure of selecting the model with the lowest corrected Akaike information criterion (AICc) value. These analyses were carried out using the InfoStat software programme (Di Rienzo et al., 2011).

 Dissimilarity and differences in species composition among types of soil management (cover crops and bare ground) were tested using the permutational multivariate analysis of variance (PERMANOVA) (Anderson, 2001). PERMANOVA was employed in order to check significant differences between Cicadomorpha communities according to olive management. This analysis was performed by employing the farming system (2 levels: cover crop and bare ground) as a fixed factor and the environmental variables selected by the previous models (Model 1 and 2) as covariables. Type I Sum of Squares was used, and 9999 permutations were performed with the objective of increasing the power and precision of the analysis (Hope, 1968; Anderson et al., 2008). We also conducted a similarity percentages analysis (SIMPER; Clarke, 1993) so as to determinate which Cicadomorpha species explain the differences in the community composition observed in olive plots with cover vs. bare ground.

 The distance-based linear model (DistLM) is analogous to linear multiple regression and was employed to identify the relationship between environmental variables (climate and vegetation) and the biological Bray–Curtis dissimilarity matrix (Anderson et al., 2008). Two DistLM were employed to identify the relationship between samples and environmental conditionals. The first DistLM was performed with a forward procedure, 9999 permutations and R2 as criteria. The sequential test obtained in this analysis made it possible to select those environmental variables that had a significant effect on variability (p<0.05). These variables were included in the second DistLM and were also performed with 9999 permutations. AICc was employed as a selection criterion (owing to the low ratio of samples/environmental variables), while “best” was employed as the selection procedure (Anderson et al., 2008). Finally, a distance-based redundancy analysis (dbRDA) was employed to visualise the DistLM results as principal components (McArdle & Anderson, 2001).

ResultsTop



 Descriptive results

 A total of 1409 specimens were collected, belonging to 2 families of Cicadomorpha (Cicadellidae and Cercopidae), 3 subfamilies, 10 genders and 11 species (Table 1). However, 30 of the Cicadomorpha could not be identified to the species level owing to damage to the specimens and were, therefore, excluded from the statistical analysis. A total of 979 specimens from 10 species were captured in olive groves with cover crops, while, 400 specimens belonging to 7 species were captured in olive groves with bare ground (Table 1). An average of 9.89 insects was collected per trap. With regard to the sampling period, the greatest number of specimens was collected in June (the second sampling; 1200 individuals); followed by the May and July samplings (102 and 89 specimens, respectively).

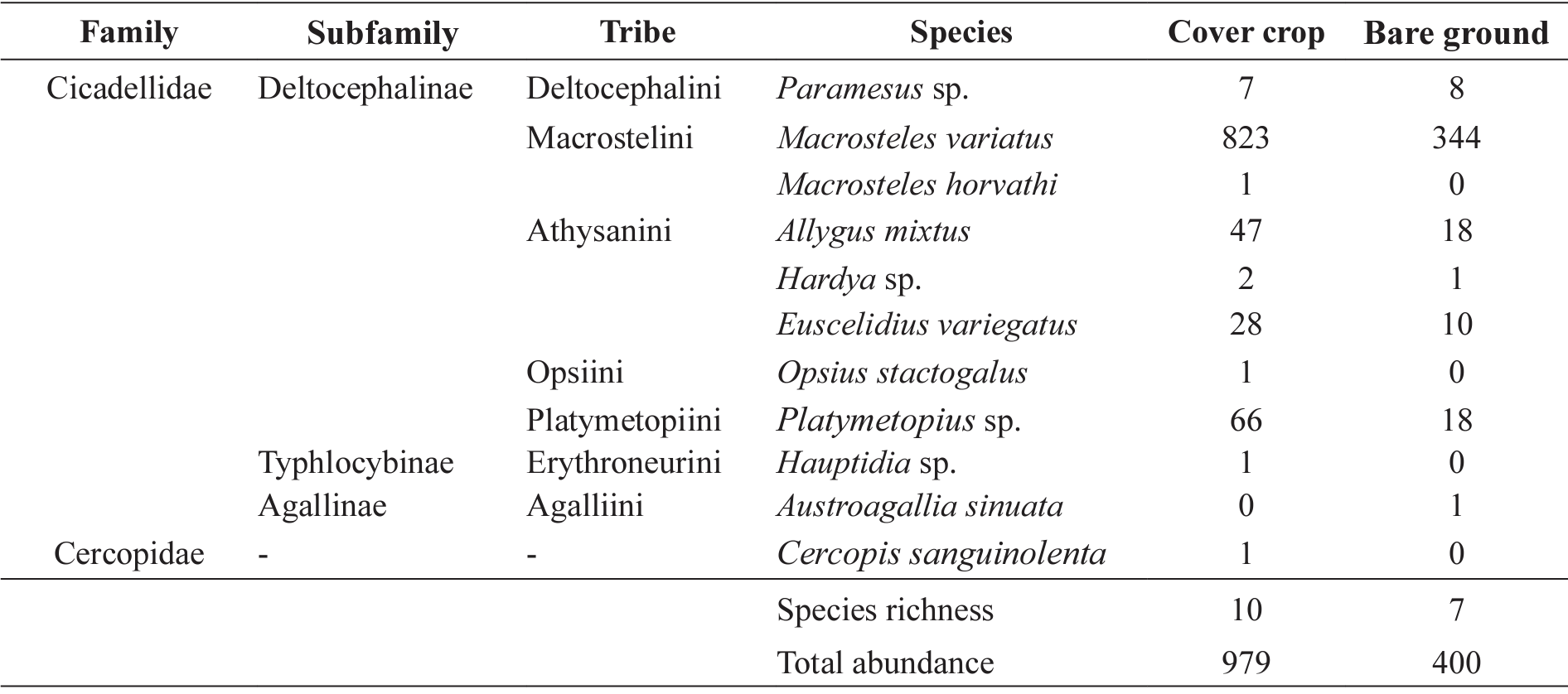

Table 1. Total abundance of Cicadomorpha (Suborder) collected in olives groves with cover crops and bare ground.

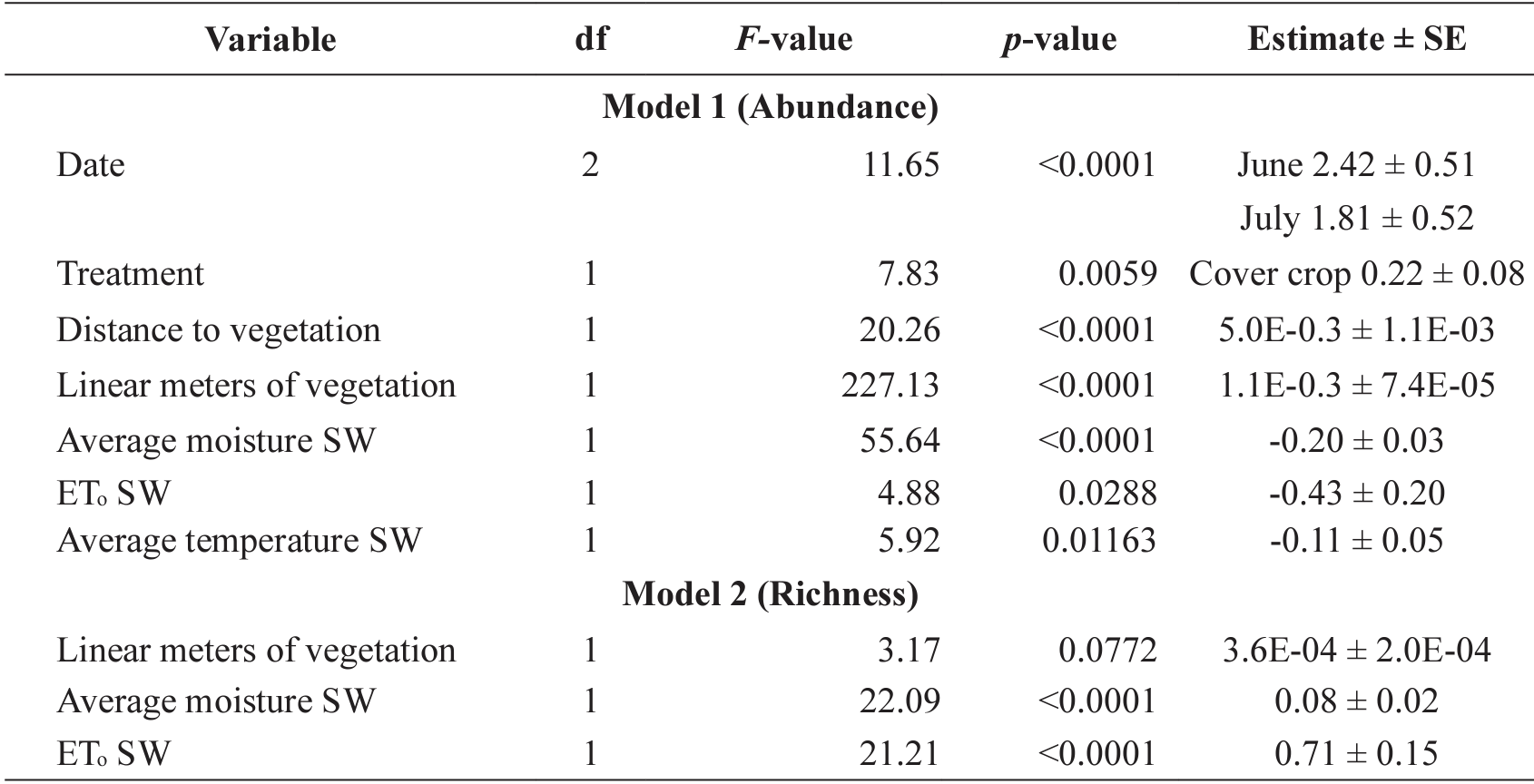

Table 2. p-values and coefficients of variables included in the mixed linear model to explain the abundance (Model 1) and species richness of Cicadomorpha (Model 2). The coefficients for the level of fixed factors were calculated according to the reference value of ‘May’ for the variable ‘date’ and ‘bare ground’ for the variable ‘treatment’.

ETo: potential evapotranspiration expressed in mm per day-1. SW: sampling week.





 Environmental factors affecting the abundance and species richness of Cicadomorpha

 Model 1 showed significant effects of the sampling date, ground cover treatment, distance to vegetation, linear metres of vegetation, ETo, average temperature and moisture of the SW on the abundance of cicadellids and cercopids (Table 2). The distance to the vegetation and the linear meters of vegetation had positive correlation on the abundance (that is, a lower abundance of insects closer to natural vegetation remnants), whereas the moisture, the ETo and the average temperature had negative effects on abundance (Table 2), while average temperature, average moisture and precipitation of the PW showed no effect. With regard to the ground cover treatment, plots with cover crops had a significantly higher abundance of Cicadomorpha than did the olive groves with bare ground. Furthermore, and with regard to the sampling date, the highest abundance of specimens was recorded during the month of June, followed by May and July. Model 2, related the Cicadomorpha richness to the environmental variables, found a significant effect of the average moisture and ETo of the SW. As in the case of abundance, the PW variables did not show any relationship. The linear meters of vegetation did not have a significant relationship with the species richness, although it was retained by the best model (Table 2). In accordance with the results obtained in Models 1 and 2, the environmental variables distance to vegetation, linear meters of vegetation, average moisture (SW), ETo and average temperature (SW) were employed as covariates in the PERMANOVA analysis.



 Differences in Cicadomorpha communities

 The PERMANOVA supports the presence of the effects of treatment and sampling date on Cicadomorpha communities obtained in the GLMM models. The interaction between both factors also had a significant effect on the communities’ composition. All the environmental variables indicated by Models 1 and 2 were significant for Cicadomorpha, with the exception of the ET for the sampling week. The pair-wise results of the interaction between soil management systems and sampling date indicated significant differences in the Cicadomorpha communities recorded in May and June, but not for July (Table 3). The dissimilarity in Cicadomorpha species composition between cover crop and bare ground treatments were 37%, 51% and 33% for May, June and July, respectively, and only the differences observed in May and July were significant (Table 3), suggesting seasonal changes in Cicadomorpha communities.

According to the SIMPER results, the average dissimilarity in Cicadomorpha species between both olive managements was 88.1% and 4 species were responsible for 94% of this dissimilarity. The species that contribute most to dissimilarity of communities between cover crop and bare ground were Macrosteles variatus (Fallén, 1806), Platymetopius sp., Allygus mixtus (Fabricius, 1794 and Euscelidius variegatus (Kirschbaum, 1858), which contribute to dissimilarity with a 46.32%, 16.42%, 16.17 and 9.45% respectively.

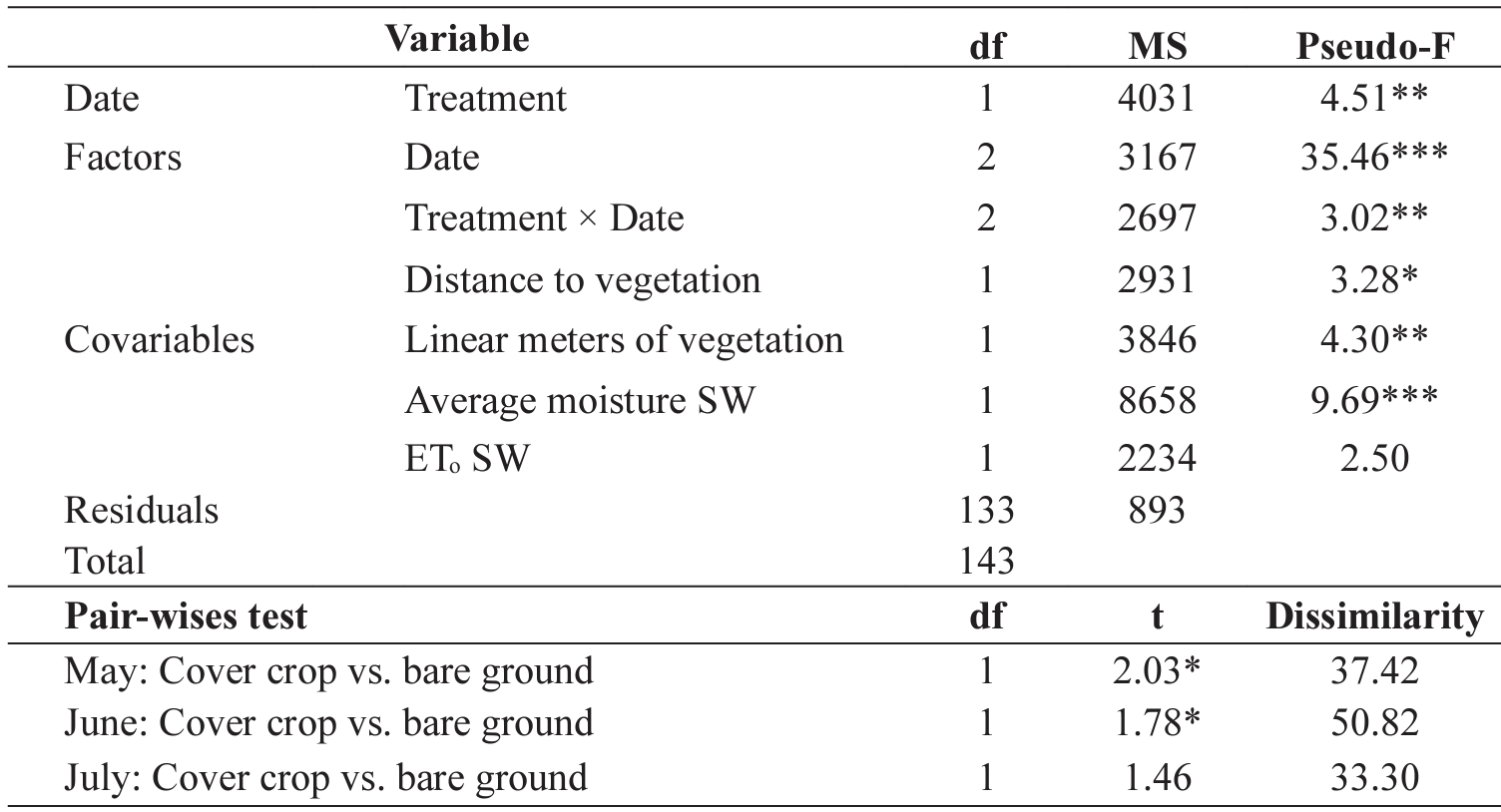

Table 3. PERMANOVA analysis of Cicadomorpha communities based on olive management sys-tems and sampling date, including covariables selected by generalized linear mixed models (GzL-MMs) and result of pair-wise test.

* p < 0.05; ** p ≤ 0.01; *** p ≤ 0.001. SW = sampling week.

 Environmental factors affecting the Cicadomorpha communities

 The sequential test performed by means of the first DistLM indicated that eight environmental variables had a significant effect on the structure and composition of Cicadomorpha communities and that they should be included as possible candidates with which to build a model (moisture average SW, ETo SW, moisture average PW, solar irradiation PW, linear meters of vegetation, ETo PW, temperature average PW and precipitation SW) (Table 4).

 The second DistLM, which was performed with the eight environmental variables mentioned above, indicated that the best model excluded just one of these environmental variables: precipitation SW (probably owing to its low occurrence in Mediterranean hot-dry summers). The model composed of the seven remaining variables had an AICc value of 983.3 and its first two axes explained 86.5% of the fitted variation and 38.4% of the total variation, respectively (Fig. 2).

 With regard to the environmental variables, it is possible to see a negative relationship between the first axis and the average amount of moisture in the sampling week (Fig. 2a). Some environmental variables, such as linear meters of vegetation, average temperature PW and ETo SW, meanwhile, had a positive relationship with the first axis. The second RDA axis was related to solar irradiation PW (positive relationship) and ETo PW (negative relationship), as shown in Fig. 2a.

 The superimposition of the vector representing the relationship between the Cicadomorpha species and the dbRDA axes is owing to the strong relation between M. variatus and the first axis (Fig. 2b). The vectors that represent the species A. mixtus, Platymetopius spp and E. variegatus (Fig. 2b) have a similar direction and position to the vector of average moisture PW, linear meters of vegetation and the average of temperature PW (Fig. 2a),thus underlining possible relations between these variables and species.

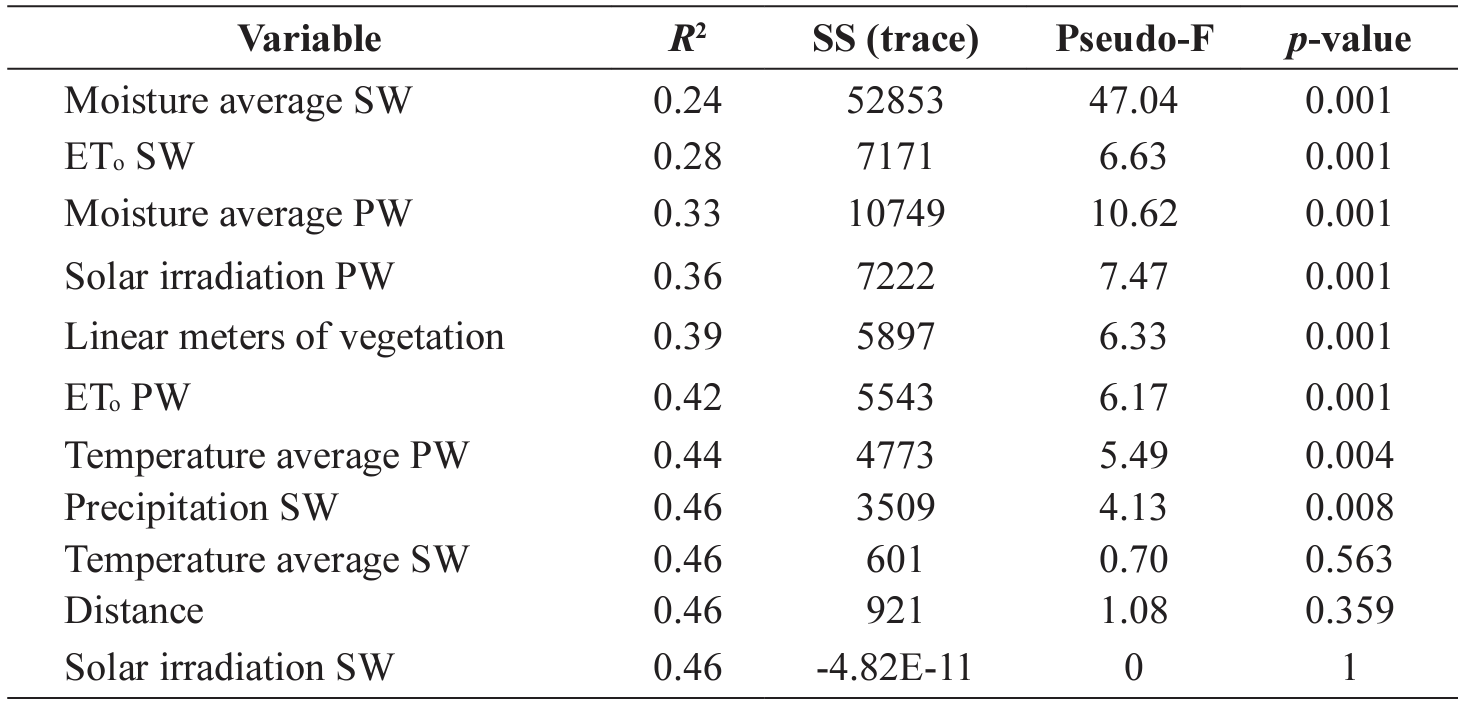

Table 4. Results of sequential test of distance-based linear model (DistLM) for selection of environmental variables that could be included in the best model.

PW: previous week. SW: sampling week.

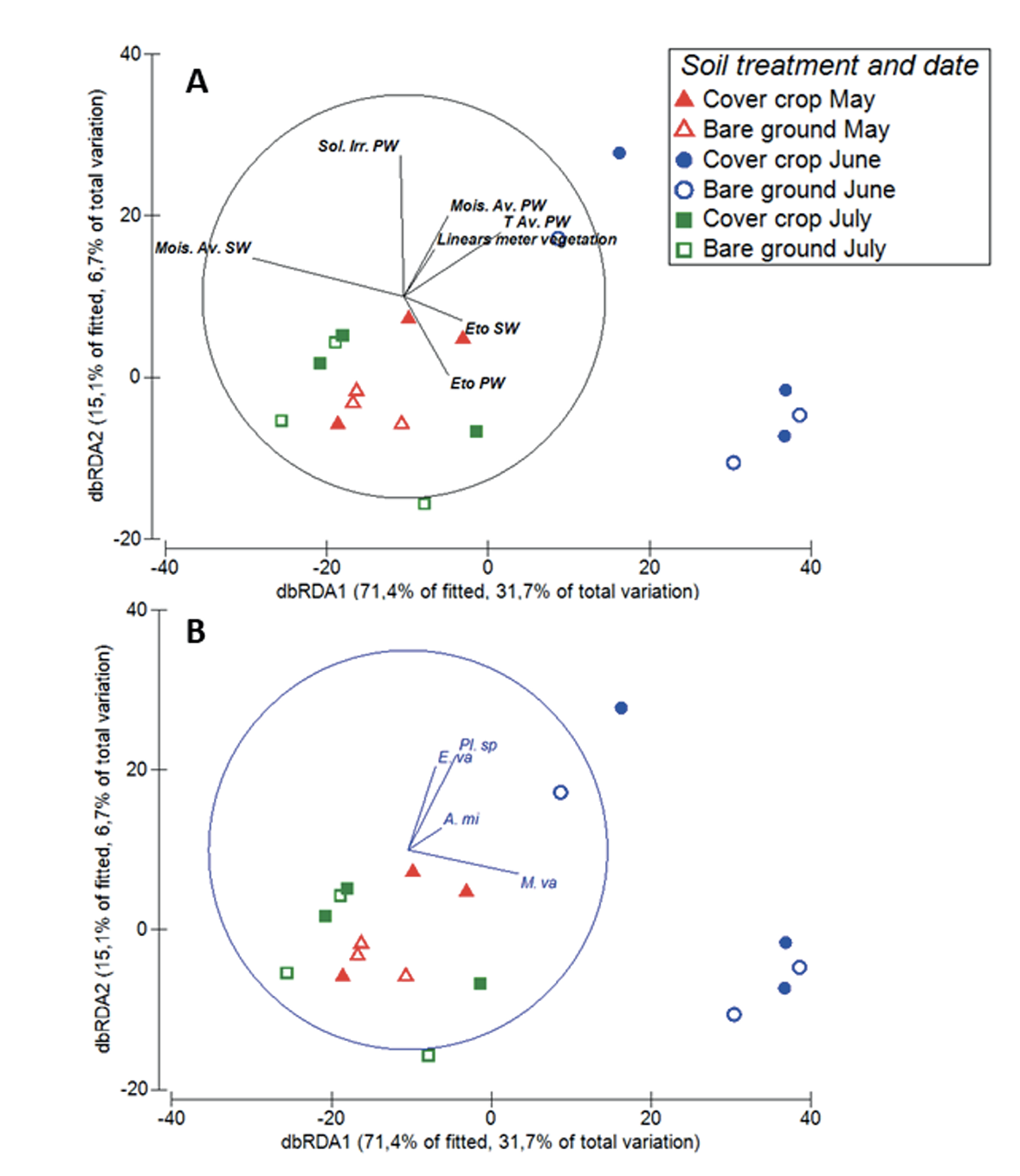

Figure 2. Distance-based redundancy analysis (dbRDA) of community responses to soil treatment and sampling date showing (a) vector overlays of predictor variables and (b) vector overlays of species responses. Sol. Irr. PW, solar irradiation previous week; Mois. Av. PW, moisture average previous week; Mois. Av. SW, moisture average sampling week; T AV.PW, temperature average previous week. Pl. sp, Platymetopius sp.; E. va, Euscelidius variegatus; A. mi, Allygus mixtus; M. va, Macrosteles variatus; P. sp, Paramesus sp.





DiscussionTop

 Of the 1379 specimens identified, only one is characterised as being a xylem-feeder (one specimen of Cercopis sanguinolenta, Kirschbaum, 1868) being phloem-sap feeding insects the remaining species. Olive groves with cover crops had the highest abundance of Cicadomorpha (phloem-fluid feeding), but this was not the case for species richness. Environmental variables, structural complexity (e.g. hedge or ditches), along with the presence of a cover crop increased the abundance of Cicadomorpha. Interestingly, the distance to vegetation showed a positive relation with the abundance (i.e.a lower abundance close to hedges with remnants of natural vegetation).

 Effect of cover crop and hedges and environmental factors on the abundance and species richness

 The relationship between plants and arthropod communities is complex. Bengtsson et al. (2005) found that organic farms (on which a large number of weed communities are still present) have a higher abundance of arthropod predators, while non-predatory insects and pests did not increase. Predatory and parasitic arthropod communities are often dependent upon the food that is available during different insect stages. Many predators and parasitic arthropods feed on non-prey foods, such as pollen, during their adult phase (Coll & Guershon, 2002), which provide some additional nutrients to those obtained from their host (Zhong-Xian et al., 2014). In our study plots, we found that the frequency of occurrence of Cicadomorpha was positively influenced by the presence of vegetation cover, which agree with previous studies carried out in agricultural landscapes (McClure, 1982; Altieri et al., 1985; Masters, 1998; Körösi et al., 2012; Helbing et al., 2017). Shelter such as bushes or shrubs have been identified as key habitat resources that lead to an increase in the abundance of Cicadomorpha (Redak et al., 2004). On the contrary in this study we interestingly found lower Cicadomorpha abundance close to edges and shrubs. Our results showed that the main factor to negatively affect the abundance of the Cicadomorpha species is the presence of remnants of natural vegetation. Traps located close to the edges captured fewer specimens than those placed in central areas of the olive orchards. The lower abundance of Cicadomorpha close to hedges may be the result of a higher abundance of predation on insects. Castro-Caro et al. (2015) found that the abundance of insectivorous songbirds in olive orchards was highly correlated with the percentage of hedge cover in a short radius (up to 50 m) around the sampling spots. Another possible cause of the low abundance of Cicadomorpha could be that the sticky traps were not located out in the vegetation cover, where the abundance of the cicadomorpha is high during spring (Morente & Fereres, 2017).

 All Cicadomorpha species captured (except one specimen of Cercopis sanguinolenta) were phloem-sap feeding insects and it is, therefore, unlikely that they transmit the X. fastidiosa bacterium. Our results on the absence of X. fastidiosa vectors are noteworthy, since the use of herbicides to control X. fastidiosa vectors (which is currently mandatory in Apulia, where the olive infection is now f irmly established) is inadvisable, or at least when there is no empirical evidence of X. fastidiosa vectors. Moreover, previous studies have shown that olive groves with bare ground can reduce the diversity of arthropods owing to the explosion of certain dominant groups, while arthropod diversity is positively affected by cover crops (Carpio et al., 2019).

 The sampling date also had an effect on the frequency of cicadellids, with a high frequency of occurrence in June owing to the phenology of M. variatus, the most abundant species collected in that month (88% of the specimens were recorded in June) as also found in German vineyards by Riedle-Bauer et al. (2006), who mainly captured this species in June-August. What is more, La Spina et al. (2005) found a higher abundance of another species of the same genera, Macrosteles quadripunctulatus (Kirschbaum, 1868), during the same period.

 With regard to the environmental variables, we found that average moisture SW, average temperature SW and ETo SW were negatively related to the abundance of Cicadomorpha.

 With respect to the insect-plant assemblages, our results coincide with those found previously as regards the abundance of both leafhopper species (Brown et al., 1992) and other groups of insects, showing the great influence of the composition and physical structure of vegetation at a local scale (Andrzejewska, 1965; Biedermann et al., 2005; Hollier et al., 2005). However, Altieri et al. (1985) found a higher abundance of leafhoppers in monospecific clover mulch when compared to those with a more diverse weed cover.

 The average moisture reduced the Cicadomorpha abundance; however, this environmental variable had beneficial effects to Cicadomorpha species richness. Our f indings showed only a positive relation of species richness with average moisture SW and ETo SW. However, the results did not show any positive relation between species richness and cover crop or habitat variables. This may be owing to the fact that moisture and ETo have a similar effect on species richness because ETo is related to environmental variables such as temperature and moisture. In Mediterranean agroecosystems, which have extremely high temperatures in summer, high values of moisture may reduce the limiting influence of temperature on the development of some species. What is more, higher moisture values allow the development of more plant species that can provide shelter and a food source for a greater number of Cicadomorpha species. Nickel & Achtziger (2005) described the key role of moisture for the recovery of leafhopper communities in meadows with extensive land use. However, the same authors did not find any relationship between the number of leafhopper species and plant communities, as occurred in the present study.

 Effect of the cover crop and hedges on Cicadomorpha community assemblage

 Our results show that abundance and distance to remnants of natural vegetation, along with the sampling date and cover crop and their interactions, influenced community assemblage. However, only one environmental variable, the average moisture in SW, affected the insect community sampled. Olives with cover had twice the number of specimens and three species more when compared to olive groves with bare ground. The main species of Cicadomorpha communities indicated by the SIMPER procedure (M.variatus, Platymetopius spp, A. mixtus and E. variegatus) were found in higher abundance in olive groves with cover crops than in those with bare ground (see Table 1). These results highlight the benefits of the presence of plant communities for Cicadomorpha, as described in previous studies (Murdoch et al., 1972; Denno & Roderick, 1991; Denno, 1994). The strong and fast response of Cicadomorpha communities to the management of grasslands (such as cutting, grazing and fertilizing) led Nickel & Hildebrandt (2003) to employ them as indicators of disturbance in grasslands. The same authors state that species’ life strategies are correlated with the level of perturbation in ecosystems, with generalist species being more abundant in disturbed ecosystems, and the specialist species in low disturbed ecosystems. This observation is supported by the influence of vegetal variables on Cicadomorpha communities. The influence of the sampling date on the composition of the Cicadomorpha community is mainly related to the peak of the M. variatus population recorded in June for olive orchards with both cover crops and bare ground. Of the other species, E. variegatus and Platymetopius sp. also underwent an increase in June when compared to May and July. Changes in Cicadomorpha communities on a small-time scale were also observed by Brown et al. (1992), although they observed a peak of populations in the period late July-early August. They attributed these changes in abundance and community composition to a successive process. However, the main change to take place in the Cicadomorpha community in June occurs in the case of the M. variatus and coincides with half the flowering period of U. dioica (from May to July), its nutritional plant (Taylor, 2009). U. dioica is a species that is associated with an anthropogenic environment, typical of urban riparian habitats that are highly disturbed, and is commonly found in olive crops (Maskell et al., 2006; Perrino et al., 2014

In conclusion, Cicadomorpha richness and abundance were affected by structural complexity provided by cover crops (positive effect) and live hedges (negative effect), which may be owing to the higher food abunda ce and shelter when cover crops are present, whereas higher insect predation may occur close to hedges, probably owing to insectivorous song birds. However, further research should be done considering different weather conditions (humid or dry years), different cover crop species and managements or different sampling dates.


AcknowledgementsTop

We would like to thank all the farmers who gave us permission to work on their land. We are also grateful to the estate keepers and owners, D. Carpio, J. C. Castro-Caro and P. Moreno, for their hospitality and assistance. A special thanks to Sally Newton for thoroughly reviewing this manuscript.

ReferencesTop

Acevedo P, Delibes-Mateos M, Escudero MA, Vicente J, Marco J, Gortázar C, 2005. Environmental constraints in the colonization sequence of roe deer (Capreolus capreolus Linnaeus. 1758) across the Iberian Mountains. Spain J Biogeogr 32: 1671-1680. https://doi.org/10.1111/j.1365-2699.2005.01310.x
Achtziger R, 1997. Organization patterns in a tritrophic plant- insect system: Hemipteran communities in hedges and forest margins. In: Vertical food web interactions - Evolutionary patterns and driving forces; Dettner K, Bauer G, Völkl W. (eds). pp: 277-297. Springer, Heidelberg. https://doi.org/10.1007/978-3-642-60725-7_16
Almeida RP, Nunney L, 2015. How do plant diseases caused by Xylella fastidiosa emerge? Plant Dis 99: 1457-1467. https://doi.org/10.1094/PDIS-02-15-0159-FE
Altieri MA, Wilson RC, Schmidt LL, 1985. The effects of living mulches and weed cover on the dynamics of foliage-and soil-arthropod communities in three crop systems. Crop Protect 4: 201-213. https://doi.org/10.1016/0261-2194(85)90018-3
Anderson MJ, 2001. A new method for non-parametric multivariate analysis of variance. Austral Ecol 26: 32-46. https://doi.org/10.1046/j.1442-9993.2001.01070.x
Anderson MJ, Gorley RN, Clarke KR, 2008. Permanova+ for Primer: Guide to Software and Statistical Methods. PRIMER-E, Plymouth, 214 pp.
Andrzejewska L, 1965. Stratification and its dynamics in meadow communities of Auchenorrhyncha (Homoptera). Ekol Polska 31: 687-715.
Bengtsson J, Ahnström J, Weibull AC, 2005. The effects of organic agriculture on biodiversity and abundance: a meta-analysis. J Appl Ecol 42: 261-269. https://doi.org/10.1111/j.1365-2664.2005.01005.x
Biedermann R, Achtziger, R, Nickel H, Stewart AJ, 2005. Conservation of grassland leafhoppers: a brief review. J Insect Conserv 9: 229-243. https://doi.org/10.1007/s10841-005-0531-z
Bleicher K, Markó V, Orosz A, 2006. Species composition of Cicada (Auchenorrhyncha) communities in apple and pear orchards in Hungary. Acta Phytopathol Entomol Hung 41 (3-4): 341-355. https://doi.org/10.1556/APhyt.41.2006.3-4.16
Brown VK, Gibson CWD, Kathirithamby J, 1992. Community organisation in leaf hoppers. Oikos 65: 97-106. https://doi.org/10.2307/3544891
Carpio AJ, Castro J, Tortosa FS, 2019. Arthropod biodiversity in olive groves under two soil management systems: presence versus absence of herbaceous cover crop. Agric Forest Entomol 21 (1): 58-68. https://doi.org/10.1111/afe.12303
Castro J, Tortosa FS, Jimenez J, Carpio AJ, 2017. Spring evaluation of three sampling methods to estimate family richness and abundance of arthropods in olive groves. Anim Biodiv Conserv 40: 193-210. https://doi.org/10.32800/abc.2017.40.0193
Castro-Caro JC, Barrio IC, Tortosa FS, 2015. Effects of hedges and herbaceous cover on passerine communities in Mediterranean olive groves. Acta Ornithol 50: 180-192. https://doi.org/10.3161/00016454AO2015.50.2.006
Clarke KR, 1993. Non‐parametric multivariate analyses of changes in community structure. Austral Ecol 18 (1): 117-143. https://doi.org/10.1111/j.1442-9993.1993.tb00438.x
Chuche J, Thiéry D, 2014. Biology and ecology of the flavescence dorée vector Scaphoideus titanus, a review. Agron Sustain Dev 34: 381-403. https://doi.org/10.1007/s13593-014-0208-7
Coll M, Guershon M, 2002. Omnivory in terrestrial arthropods: mixing plant and prey diets. Annu Rev Entomol 47 (1): 267-297. https://doi.org/10.1146/annurev.ento.47.091201.145209
Cotes B, Campos M, García PA, Pascual F, Ruano F, 2011. Testing the suitability of insect orders as indicators for olive farming systems. Agr Forest Entomol 13 (4): 357-364. https://doi.org/10.1111/j.1461-9563.2011.00526.x
Della Giustina W, 1989. Homoptères Cicadellidae, Vol. 3. Complements aux Ouvrages d′ Henri Ribaut. Faune de France, 73, INRA, Paris.
Dellapé G, Bouvet JP, Paradell SL, 2013. Diversity of Cicadomorpha (Hemiptera: Auchenorrhyncha) in citrus orchards in Northeastern Argentina. Fla Entomol 96 (3): 1125-1135. https://doi.org/10.1653/024.096.0353
Denno RF, 1994. Influence of habitat structure on the abundance and diversity of planthoppers. In: Planthoppers-Their ecology and management; Denno RF, Perfect TJ (Eds.). pp: 140-1600. Chapman & Hall, NY. https://doi.org/10.1007/978-1-4615-2395-6_4
Denno RF, Roderick GF, 1991. Influence of patch size, vegetation structure and host plant architecture on the diversity, abundance and life history styles of sap-feeding herbivores. In: Habitat structure: The physical arrangement of objects in space; Bell SS, McCoy ED, Muchinsky HR (Eds.). pp: 169-196. Chapman & Hall, NY. https://doi.org/10.1007/978-94-011-3076-9_9
Di Rienzo JA, Casanoves F, Balzarini MG, Gonzalez L, Tablada M, Robledo YC, 2011. InfoStat versión 2011. Grupo InfoStat. FCA. Universidad Nacional de Córdoba, Argentina. http://www.infostat.com.ar
EFSA, 2015. Scientific opinion of the risk to plant health posed by Xylella fastidiosa in the EU territory, with the identification and evaluation of risk reduction options. EFSA Journal 13: 3989. https://doi.org/10.2903/j.efsa.2015.3989
EFSA Panel on Plant Health, Bragard C, Dehnen‐Schmutz K, Di Serio F, Gonthier P, Jacques MA, et al., 2019. Update of the scientific opinion on the risks to plant health posed by Xylella fastidiosa in the EU territory. EFSA Journal 17 (5): e05665.
Evans JW, 1947. A natural classification of leafhoppers (Jassoidea, Homoptera). Trans R Entomol Soc Lon 98: 105-262. https://doi.org/10.1111/j.1365-2311.1947.tb01054.x
Fereres A, 2017. Estudios sobre los vectores transmisores de Xylella fastidiosa en olivar. XVIII Simp. Cient.-Téc. Expoliva, 10-12 May.
razier NW, 1965. Xylem viruses and their insect vectors. Proc. Int. Conf. on Virus and Vector on Perennial Hosts, Davis, CA, USA, 6-10 Sept, pp: 91-99.
Gibson CWD, Brown VK, Losito L, McGavin GC, 1992. The response of invertebrate assemblies to grazing. Ecography 15 (2): 166-176. https://doi.org/10.1111/j.1600-0587.1992.tb00020.x
Gómez JA, Rodríguez-Carretero MT, Lorite IJ, Fereres E, 2014. Modeling to evaluate and manage climate change effects on water use in Mediterranean olive orchards with respect to cover crops and tillage management. In: Practical applications of agricultural system models to optimize the use of limited water; Lajpat RA, Liwang M, Robert JL (Eds.). pp: 237-266. Am Soc of Agron, Madison, WI, USA. https://doi.org/10.2134/advagricsystmodel5.c10
Gómez JA, Sobrinho TA, Giráldez JV, Fereres E, 2009. Soil management effects on runoff, erosion and soil properties in an olive grove of Southern Spain. Soil Till Res 102 (1): 5-13. https://doi.org/10.1016/j.still.2008.05.005
Guerrero-Casado J, Carpio AJ, Prada LM, Tortosa FS, 2015. The role of rabbit density and the diversity of weeds in the development of cover crops in olive groves. Span J Agric Res 13: 1-4. https://doi.org/10.5424/sjar/2015133-7022
Hay SI, Tucker CJ, Rogers DJ, Packer MJ, 1996. Remotely sensed surrogates of meteorological data for the study of the distribution and abundance of arthropod vectors of disease. Ann Trop Med Parasitol 90: 1-19. https://doi.org/10.1080/00034983.1996.11813021
Helbing F, Fartmann T, Löffler F, Poniatowski D, 2017. Effects of local climate, landscape structure and habitat quality on leafhopper assemblages of acidic grasslands. Agric Ecosyst Environ 246: 94-101. https://doi.org/10.1016/j.agee.2017.05.024

Hollier JA, Maczey N, Masters GJ, Mortimer SR, 2005. Grassland leafhoppers (Hemiptera: Auchenorrhyncha) as indicators of habitat condition-a comparison of between-site and between-year differences in assemblage composition. J Insect Conserv 9: 299-307. https://doi.org/10.1007/s10841-005-8821-z

Hope ACA, 1968. A simplified Monte Carlo significance test procedure. J R Stat Soc Series B Stat Methodol 3: 582-598. https://doi.org/10.1111/j.2517-6161.1968.tb00759.x
Hopkins DL, Purcell AH, 2002. Xylella fastidiosa: cause of Pierce's disease of grapevine and other emergent diseases. Plant Dis 86 (10): 1056-1066. https://doi.org/10.1094/PDIS.2002.86.10.1056
Janse JD, Obradovic A, 2010. Xylella fastidiosa: its biology, diagnosis, control and risks. J Plant Pathol 92: S35-S48.
Kleijn D, Sutherland WJ, 2003. How effective are European agri-environment schemes in conserving and promoting biodiversity? J Appl Ecol 40: 947-969. https://doi.org/10.1111/j.1365-2664.2003.00868.x
Körösi Á, Batáry P, Orosz A, Rédei D, Baldi A, 2012. Effects of grazing, vegetation structure and landscape complexity on grassland leafhoppers (Hemiptera: Auchenorrhyncha) and true bugs (Hemiptera: Heteroptera) in Hungary. Insect Conserv Divers 5: 57-66. https://doi.org/10.1111/j.1752-4598.2011.00153.x
Kruess A, 2003. Effects of landscape structure and habitat type on a plant-herbivore-parasitoid community. Ecography 26: 283-290. https://doi.org/10.1034/j.1600-0587.2003.03402.x
La Spina M, De Mendoza AH, Toledo J, Albujer E, Gilabert J, Badia V, Fayos V, 2005. Prospección y estudio de la dinámica poblacional de cicadélidos (Hemiptera, Cicadellidae) en viñedos de las comarcas meridionales valencianas. Bol Sanid Veg Plagas 31: 397-406.
Le Quesne WJ, 1965. Handbooks for the identification of British insects. Hemiptera: Cicadomorpha (excluding Deltocephalinae and Typhlocybinae), vol. II, Part 2a. Roy Entomol Soc of London, UK, 66 pp.
Le Quesne, WJ, 1969. Handbooks for the identification of British insects. Hemiptera: Cicadomorpha (Deltocephalinae). Roy Entomol Soc of London, UK,
Markó V, Jenser G, Kondorosy E, Ábrahám L, Balázs K, 2013. Flowers for better pest control? The effects of apple orchard ground cover management on green apple aphids (Aphis spp.) (Hemiptera: Aphididae), their predators and the canopy insect community. Biocontrol Sci Techn 23 (2): 126-145. https://doi.org/10.1080/09583157.2012.743972
Maskell LC, Bullock JM, Smart SM, Thompson K, Hulme PE, 2006. The distribution and habitat associations of non-native plant species in urban riparian habitats. J Veg Sci 17: 499-508. https://doi.org/10.1111/j.1654-1103.2006.tb02471.x
Masters GJ, Brown VK, Clarke IP, Whittaker JB, Hollier JA, 1998. Direct and indirect effects of climate change on insect herbivores: Auchenorrhyncha (Homoptera). Ecol Entomol 23: 45-52. https://doi.org/10.1046/j.1365-2311.1998.00109.x
Mazzoni V, 2005. Contribution to the knowledge of the Auchenorrhyncha (Hemiptera Fulgoromorpha and Cicadomorpha) of Tuscany (Italy). Redia 88: 85-102.
McArdle BH, Anderson MJ, 2001. Fitting multivariate models to community data: a comment on distance-based redundancy analysis. Ecology 82: 290-297. https://doi.org/10.1890/0012-9658(2001)082[0290:FMMTCD]2.0.CO;2
McClure MS, 1982. Factors affecting colonization of an orchard by leafhopper (Homoptera: Cicadellidae) vectors of peach X-disease. Environ Entomol 11: 695-700. https://doi.org/10.1093/ee/11.3.695
Morente M, Fereres A, 2017. Vectores de Xylella fatidiosa. In: Enfermedades causadas por la bacteria Xylella fastidiosa; Marco-Noales E, López, MM. (eds). pp: 81-101. Cajamar Caja Rural.
Morris MG, 1981. Responses of grassland invertebrates to management by cutting. III. Adverse effects on Auchenorhyncha. J Appl Ecol 18: 107-123. https://doi.org/10.2307/2402481
Murdoch W, Evans FC, Peterson CH, 1972. Diversity and pattern in plants and insects. Ecology 53: 819-829. https://doi.org/10.2307/1934297
Nickel H, Hildebrandt J, 2003. Auchenorrhyncha communities as indicators of disturbance in grasslands (Insecta, Hemiptera)-a case study from the Elbe flood plains (northern Germany). Agric Ecosyst Environ 98: 183-199. https://doi.org/10.1016/S0167-8809(03)00080-X
Nickel H, Achtziger R, 2005. Do they ever come back? Responses of leafhopper communities to extensification of land use. J Insect Conserv 9: 319-333. https://doi.org/10.1007/s10841-005-8824-9
Novotny V, Wilson MR, 1977. Why are there no small species amongxylem-sucking insects? Evol Ecol 11: 419-437. https://doi.org/10.1023/A:1018432807165
Paredes D, Cayuela L, Campos M, 2013. Synergistic effects of ground cover and adjacent vegetation on natural enemies of olive insect pests. Agric Ecosyst Environ 173: 72-80. https://doi.org/10.1016/j.agee.2013.04.016
Pedigo LP, Buntin GD (Eds), 1993. Handbook of sampling methods for arthropods in agriculture. CRC Press. 416 pp.
Pe'er G, Dicks LV, Visconti P, Arlettaz R, Báldi A, Benton TG, Collins S, Dieterich M, Gregory RD, Harting F, et al, 2014. EU agricultural reform fails on biodiversity. Science 344: 1090-1092. https://doi.org/10.1126/science.1253425
Perrino EV, Ladisa G, Calabrese G, 2014. Flora and plant genetic resources of ancient olive groves of Apulia (Southern Italy). Genet Resour Crop Evol 61: 23-53. https://doi.org/10.1007/s10722-013-0013-1
Prischmann DA, James DG, Storm CP, Wright LC, Snyder WE, 2007. Identity, abundance, and phenology of Anagrus spp. (Hymenoptera: Mymaridae) and leafhoppers (Homoptera: Cicadellidae) associated with grape, blackberry, and wild rose in Washington State. Ann Entomol Soc Am 100: 41-52. https://doi.org/10.1603/0013-8746(2007)100[41:IAAPOA]2.0.CO;2
Purcell AH, 1997. Xylella fastidiosa, a regional problem or global threat? J Plant Pathol 79: 99-105.
Purcell AH, Finlay AH, 1979. Evidence for noncirculative transmission of Pierce's disease bacterium by sharpshooter leafhoppers. Phytopathology 69: 393-395. https://doi.org/10.1094/Phyto-69-393
Redak RA, Purcell AH, Lopes JR, Blua MJ, Mizell RF 3rd, Andersen PC, 2004. The biology of xylem fluid-feeding insect vectors of Xylella fastidiosa and their relation to disease epidemiology. Annu Rev Entomol 49: 243-270. https://doi.org/10.1146/annurev.ento.49.061802.123403
Riedle-Bauer M, Tiefenbrunner A, Tiefenbrunner W, 2006. Untersuchungen zur Zikadenfauna (Hemiptera, Aucchenorrhyncha) einiger Weingärten Ostösterreichs und ihrer nahen Umgebung. Linzer Biologische Beiträge 38: 1637-1654.
Rodríguez-Entrena M, Arriaza M, 2013. Adoption of conservation agriculture in olive groves: Evidences from southern Spain. Land Use Policy 34: 294-300. https://doi.org/10.1016/j.landusepol.2013.04.002
Schaffers AP, Raemakers IP, Sýkora KV, TerBraak CJ, 2008. Arthropod assemblages are best predicted by plant species composition. Ecology 89: 782-794. https://doi.org/10.1890/07-0361.1
Simoes MP, Belo AF, Pinto-Cruz C, Pinheiro AC, 2014. Natural vegetation management to conserve biodiversity and soil water in olive orchards. Span J Agric Res 12: 633-643. https://doi.org/10.5424/sjar/2014123-5255
Taylor K, 2009. Biological flora of the British Isles: Urtica dioica L. J Ecol 97: 1436-1458. https://doi.org/10.1111/j.1365-2745.2009.01575.x
Waloff N, 1980. Studies on grassland leafhoppers (Auchenorrhyncha, Homoptera) and their natural enemies. In Adv Ecol Res 11: 81-215. https://doi.org/10.1016/S0065-2504(08)60267-6
Weintraub PG, 2007. Insect vectors of phytoplasmas and their control-an update. Bull Insectol 60: 169-173.
Weintraub PG, Orenstein S, 2004. Potential leafhopper vectors of phytoplasma in carrots. Int J Trop Insect Sci 24 (3): 228-235. https://doi.org/10.1079/IJT200426
Weintraub PG, Beanland L, 2006. Insect vectors of phytoplasmas. Annu Rev Entomol 51: 91-111. https://doi.org/10.1146/annurev.ento.51.110104.151039
Wells JM, Raju BC, Hung HY, Weisburg WG, Mandelco-Paul L, Brenner DJ, 1987. Xylella fastidiosa gen. nov., sp. nov: gram-negative, xylem-limited, fastidious plant bacteria related to Xanthomonas spp. Int J Syst Evol Microbiol 37: 136-143. https://doi.org/10.1099/00207713-37-2-136
Yang X, Zhang T, Chen B, Zhou G, 2017. Transmission biology of rice stripe mosaic virus by an efficient insect vector Recilia dorsalis (Hemiptera: Cicadellidae). Front Microbiol 8: 2457. https://doi.org/10.3389/fmicb.2017.02457
Zhong-Xian L, Ping-Yang Z, Geoff MG, Xu-Song Z, Donna MY, Kong-Luen H, Ya-Jun Y, Hong-Xing X, 2014. Mechanisms for flowering plants to benefit arthropod natural enemies of insect pests: Prospects for enhanced use in agriculture. Insect Sci 21: 1-12. https://doi.org/10.1111/1744-7917.12000
