Results and discussionTop

Saffron yield and quality in relation to the production system

Flowering traits

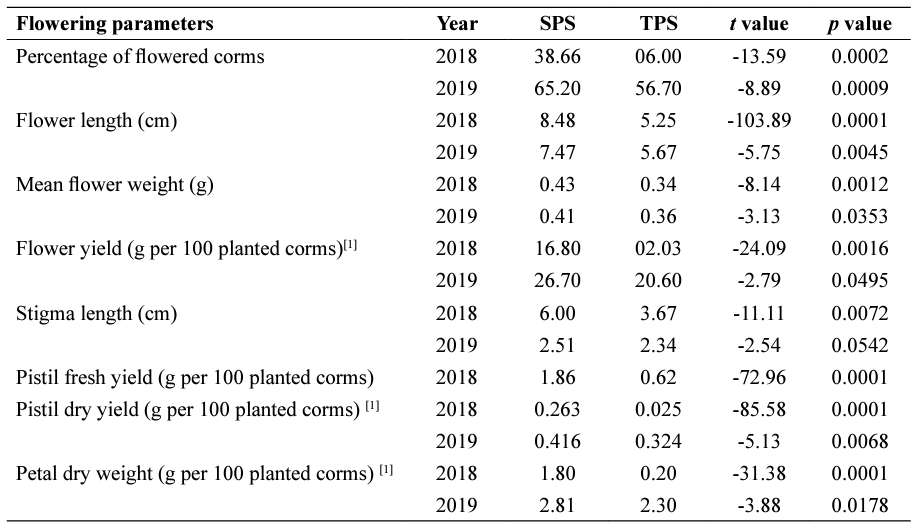

There were significant differences between all flowe-ring parameters of saffron planted in the two PS in both flowering seasons (Table 2). In the first flowering season, by fixing the planting density in the planting plots and trays, while only 6% of planted corms produced flower by TPS, the flowering percent for SPS was 38.6%. The considerable higher flowering percentage in SPS compa-red with TPS is due to optimal environmental conditions, especially proper temperature, during the flower emergence stage (Koocheki & Khajeh-Hosseini, 2020) and the absence of soil physical resistance against flower emergence (Behdani & Fallahi, 2015). It has been reported that about 70% of saffron flowering variation is determined with temperature parameters. A relative increase in air temperature the during flower emergence stage, will postpone blooming and will reduce the percentage of flowered corms (Askari-Khorasgani & Pessarakli, 2019; Rezvani Moghaddam, 2020). In the present study, air temperature on some days was not optimal for saffron flower emergence, which resulted in lower flowering in TPS. In addition, soil structure of the experimental plots in the first year of study was not suitable enough for flower emergence (Table 1). These two factors probably caused a severe difference in the flowering percentage of corms between the two PS.

The flowering percentages for the second growing season were 65% and 56% for SPS and TPS, respectively (Table 2). Considerable increase in flowering of TPS in the second flowering season compared with the first f lowering season is probably related to the better soil properties used as corms substrate in the second growing season, where the soil was lighter with higher organic carbon and slightly less electrical conductivity (Table 1). In support of this hypothesis, Fallahi et al. (2018b) concluded that saffron flowers emerged more easily when corm planting was done in a soil with a lighter texture and higher organic matter content. The results of Cardone et al. (2020) also revealed that saffron corm planting in a loam and sandy-loam soil, not very calcareous, with a sub-alkaline and neutral pH, low electrical conductivity with a content of organic matter between 5.46 and 8.67 g kg-1, is more favorable to improve its growth and yield. In addition to soil properties, the mean air temperature during the flowering stage was around 1.2 oC lower in the second flowering season, which is considered as a motivation factor in f lower emergence (Behdani & Fallahi, 2015).

Higher flowering of saffron under the controlled environment can be caused by lack of heat stress during f lower initiation stage (around mid-summer), proper temperature to stimulate flower emergence (in mid-fall), and removal of soil physical resistance against flower emergence through the soil (Molina et al., 2004; Fallahi et al., 2018a). Considering that in the present research, in both PS, the plants at the flower initiation stage were grown under open field conditions, higher flowering under SPS mainly arises from the last two reasons. Assuming that almost all corms can produce flower when both flowering stages (flower initiation and flower emergence) be passed under a well-controlled environment (Behdani & Fallahi, 2015), we found that about 10-30% of the increase in flowered corms in SPS is related to providing optimal environmental conditions during flower emergence stage. Accordingly, it is possible to gain a higher flowering percentage, if mother corms get out from the soil during the real dormancy period and then kept under appropriate climatic parameters up to the end of the both flowering phases (Mollafilabi, 2014). As reported by Molina et al. (2010), 1.5 flowers per corm were produced, when corms were kept in 25 oC for 105 days to pass their flower initiation stage (formation of flower primordial) and then were transferred to a growth chamber with appropriate temperature (17oC). Compared with Molina et al. (2010), the flowering capacity of corms under SPS was lower (0.38 and 0.65 flowers per corm in the first and the second f lowering seasons, respectively). One reason for this dif ference is the lower weight of the corms (7-9 g with 2.62 cm horizontal diameter), which were used in the present study. However, the more important reason is that in their experiment both flowering stages were carried out under favorable controlled conditions.

Molina et al. (2010) stated that it is possible to gain 600-700 kg ha-1 spice during 8-9 harvests from September to May under greenhouse conditions, when all f lowering stages were passed under an optimum controlled environment. Mollafilabi (2014) also reported that 1.38 flowers per corm (average weight of 15.5 g) were produced when saffron corms were kept under controlled conditions for 90 days during the flower initiation stage and then transferred to the flowering room during f lower emergence stage. Poggi et al. (2010) kept saffron corms under the controlled climate during both flowering stages and then harvested 1.08 and 3.01 flowers per corm, when the weight of planted corms was 10 and 20 g, respectively. Maggio et al. (2006) planted corms with a diameter of 3 cm in greenhouse (ambient temperature in the dark conditions under black mulching during incubation and natural sunlight during flowering) and growth chamber (25 and 17 ºC during flower initiation and f lower emergence stages, respectively and artificial light during flowering). Their results revealed that the number of flowers per corm was 4.5 and 4.7 for the greenhouse and growth chamber, respectively, when perlite was used as substrate. These values were 4.9 and 5.4, respectively, when vermiculite was used as corms substrate. They also observed that the mean greenhouse temperature (average minimum and maximum daily temperatures during the corm incubation period, from the 10th August to 1st of November, were 16 and 31°C, respectively) was very similar to the saffron requirements. This shows that in some areas high yields of saffron can be obtained under cold greenhouses, with no need to create facilities to control environmental factors.

In the first and the second flowering seasons, flower length (39 and 31%, respectively), flower weight (26 and 14%, respectively), and stigma length (63 and 7%) in SPS were higher than the ones produced under TPS (Table 2). This observation probably arises from the lack of physical resistance of the planting bed against the emergence of flowers in SPS. In a previous study on saffron, also the positive role of reduction in soil resistance against flower emergence has been proved (Aghhavani-Shajari et al., 2015). One probable reason for longer flowers under SPS is due to longer cataphylls (Fig. 3C), the organs that the f lowers within them reach to the top of the soil. The final outcome of improved reproductive growth of saffron under SPS was observed as increased fresh flowers (727 and 30% for the first and the second flowering seasons, respectively) and dry pistil yields (952 and 28% for the f irst and the second flowering seasons, respectively), in comparison with TPS, which mainly was resulted from an increase in the percentage of flowered corms (Table 2). Poggi et al. (2010) similarly reported that stigma production per corm under SPS conditions was twice higher than that obtained in the field. They also reported that alternated flowering and higher corm density (6-9 times) under controlled conditions remarkably increase the greenhouse production per square meter. In the study of Mollafilabi (2014), mean flower weight of saffron in the controlled environment was 0.53 g, which is around 22% higher than in our observations. Similarly, flower yield was around 4 times higher than of those obtained in our study. This differences on one hand is due to more corm weight used in their experiment (15.5 g vs 8 g in ours) and on the other hand again shows the vital role of flower initiation stage on flowering parameters, because in their study both stages of flowering passed out under appropriate condition in the controlled environment. Considering heat stresses occurred during the flower initiation stage (mid-summer) (Fig. 1), which was higher than the results of Molina et al. (2004, 2010) on the appropriate temperature for this stage (~25ºC), the appropriate results of saffron production in SPS, especially in areas with hot summers, certainly will gain when both stages of flowering passes out under controlled conditions.

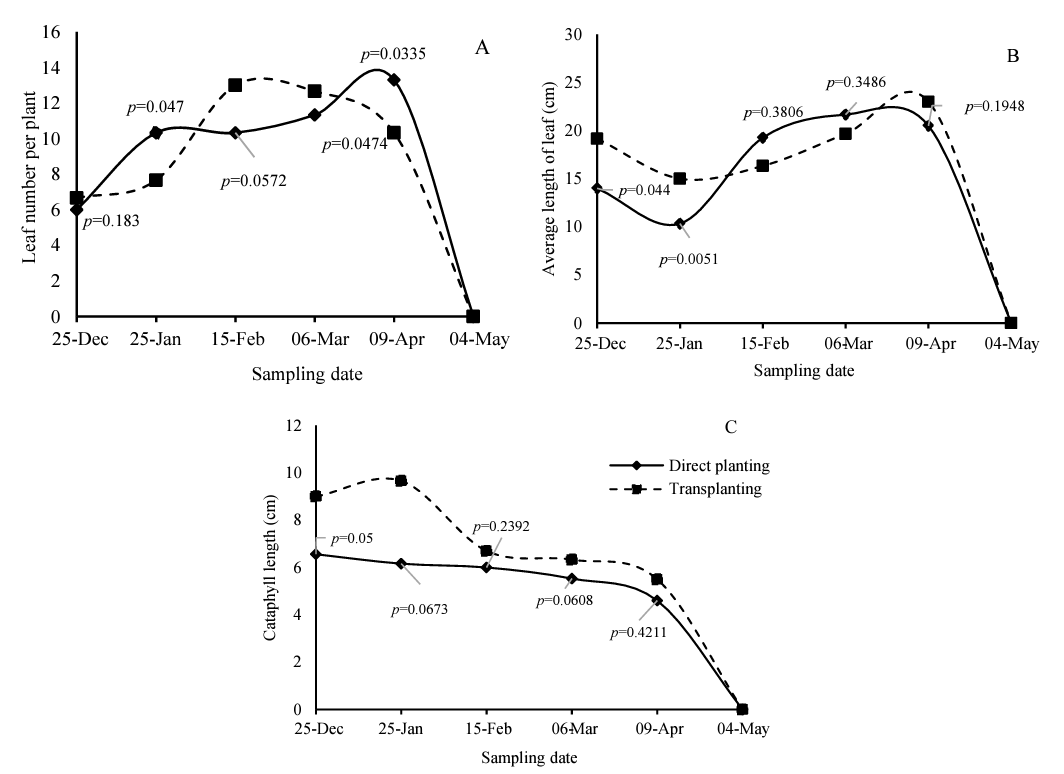

Figure 3.  Effect of production method of saffron on number of leaves (A), leaf length (B) and cataphyll length (C) during its vegetative growth stages. The green parts of leaf considered in measurements. Date of transplanting: 25th December 2018 (The first sampling was also done on this day). For each descriptor and sampling date, the value of p represents the significant differences between two planting methods based on t-test.

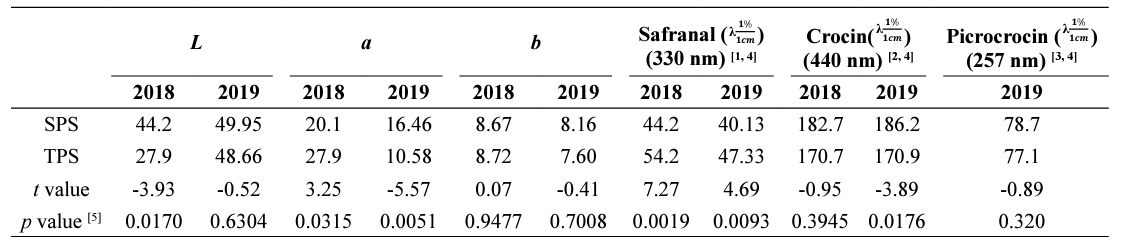

Table 3. Effect of production system on saffron stigma quality during flowering seasons of 2018 and 2019.

SSPS: soilless production system. TPS: traditional production system. [1] Absorbance of 1% aqueous saffron extract at 330 nm. [2] Absorbance of 1% aqueous saffron extract at 440 nm. [3] Absorbance of 1% aqueous saffron extract at 257 nm. [4] Based on ISO normative, stigmas produced in both production system belonged to II, I and I categories in terms of crocin, picrocrocin and safranal content, respectively (see more information in Cardone et al., 2020). [5] For each descriptor, the value of p represents the significant differences between the two planting systems.

Quality of stigma in relation to the production system

The production system had a significant effect on L and a color parameters, and also safranal and crocin content of stigma at least during one flowering season (Table 3). Stigmas obtained from SPS had higher L and crocin values while safranal content was significantly lower in comparison to TPS (Table 3). This means that stigma pro-duced under TPS was some darker in appearance but had a higher aroma. There is low information about the quality of saffron produced in SPS. In a primary research on saffron, it was reported that crocin and crocetin content were higher in stigma obtained by aeroponically grown corms, while picrocrocin was a little bit greater in soil culture (Souret & Weathers, 2000). In the study of García-Rodríguez et al. (2017) the corms were first kept in ultra-low oxygen cooling chambers for 40 and 70 days, then transferred to different incubation periods (0, 30, and 60 days) and finally were grown in hydroponics in a flowering room. Their re-sults showed that the cold storage and the incubation time provided a negative effect on the quality parameters inclu-ding safranal, crocin, and picrocrocin contents than control treatment (corm planting in the flowering room at 18 ºC without any ultra-low oxygen or incubation pre-treatment). In their study, there was no control field-grown treatment. However, safranal content of hydroponics samples was higher, while picrocrocin content was similar to those re-ported in other open field studies. Finally, they stated that some treatments were able to provide stigma of high qua-lity according to the ISO standard. Mollafilabi (2014) also found that saffron produced in stone wool and peat moss beds under the controlled environment, was graded as ex-cellent according to Iranian national standards for stigma quality. Poggi et al. (2010) compared the quality of stigma produced under greenhouse with others obtained in field and concluded that crocin, picrocrocin, and safranal con-tents of saffron produced in the chamber was better (values ~20% higher) according to ISO 3632-1 specification. In the present study, based on ISO normative, stigmas pro-duced in both production systems belonged to II, I, and I categories in terms of crocin, picrocrocin, and safranal contents, respectively (Table 3). Overall, it seems that saffron production under SPS can meet the indices defined in saffron quality standards, although more studies are required to judge accurately.

Saffron growth in relation to the production method

The aerial parts growth trend

Based on t-test results, there were significant differen-ces between DP and TP methods in terms of the number of leaves per plant in most sampling dates during saffron growing season. Production of new leaves in DP continued up to early April, while the maximum number of leaves in TP was obtained in mid-February (Fig. 3A). Transplanted plants had significantly more leaf length up to late January, but after that, there were no significant differences between the two planting methods (Fig. 3B). In a similar study on saffron, leaves of the transplanted plants were longer with higher leaf area but had a lower photosynthesis rate than the DP ones (Molina et al., 2010). In both DP and TP treat-ments, the highest values of leaf length were obtained in early April; then, simultaneously with the onset of leaf aging, showed a sharp decreasing trend (Fig. 3B). In sa-ffron, at the end of the growing season simultaneous with an increase in temperature and decrease in soil moisture, photoassimilates reallocate from the leaves to the new cormlets and the leaves start to senescence (Lopez-Corco-les et al., 2015). The change in sink-source relations and reallocation of photoassimilates during the last growing phase of saffron has also been reported by Behdani et al. (2016) and Fallahi & Mahmoodi (2018a). Similar to our findings, Gholami et al. (2017) in an open-field study found that saffron leaf length reached its highest value (from 7 to 40 cm) between 30 and 110 days after emergence, whi-le during the two last months of the growing season was constant. Reduction in leaf length during the first month of sampling (Fig. 3B) is due to the high production rate of new leaves during the early phase of vegetative growth (Behdani & Fallahi, 2015). Cataphyll length in TP was higher than in DP throughout the vegetative growth stage, although this difference was statistically significant only at the first sampling date (Fig. 3C). These white membranous structures cover and protect the true green leaves of saffron as such as the vegetative apex. Behdani & Fallahi (2015) reported that early irrigation causes cataphylls to manifest before blooming therefore, more water availability in the TP (when they were under controlled condition) may be the reason for longer cataphylls.

Saffron root growth in relation to the production method

The effect of the planting method was significant on the number of roots per plant for the first (transplanting day) and the second sampling dates. TP plants showed more roots than DP ones, and the latter showed the same amount of roots one month after transplanting. This index had similar amounts in the two production systems, after mid-February (Fig. 4A). In relative similarity with the f indings of Renau-Morata et al. (2012), the trend of new root production during vegetative growth was increasing up to February and then followed by a rapidly decreasing trend in both methods of planting (Fig. 4A). Accordingly, Fallahi & Mahmoodi (2018b) found that foliar nutrition is more effective than soil application of nutrients, when the growth of the root system starts to decrease. Average root length had a different trend between the two production methods. Corms that emerged under the controlled environment had longer roots (in transplanting day) but their enlargement stopped after transplanting, while root the length in corms that were planted directly in the soil increased up to the mid-February and then decreased (Fig. 4B). Therefore, the root was longer in the controlled environment but up to a short period after transplanting. Accordingly, it seems that transplanting caused a stress, which resulted in a reduction in root system growth. Souret & Weathers (2000) stated that root development of saffron under hydroponic conditions decreases if oxygen supply for the root system is low or if the root is exposed to light. Overall, root length —especially during February and March with significant differences— was higher in DP during most part of the vegetative growth stage (Fig. 4B).

Root number and length, calculated as total root length per plant, showed an increasing trend up to mid-February and then decreased for both DP and TP. Although total length of the root system was higher under the controlled environment compared with DP, the TP showed reduced values of the above-cited characteristics, especially during January and February, when these differences were different significantly (Fig. 4C). The number of contractile roots had a similar trend between the two methods of saffron planting, but with higher amounts in TP during the whole plant growing season. The differences between the two planting methods were significant during plant growing season and the highest values were gained during February (Fig. 4D). Souret & Weathers (2000) reported that saffron plants were grown hydroponically or aeroponically had shorter and thicker roots and more contractile roots than soil cultured plants. They stated that the unusual morphology of roots in their experiment was due to mechanical impedance associated with the NFT (nutrient film technique) channel in hydroponic and the wall of mist chamber in aeroponics culture systems. Moreover, they said that contractile roots production, which reduces corms growth, may be related to planting depth and light intensity. In another study, the high soil humidity, inappropriate planting date, and also untimely irrigation (delayed spring, summer, and early fall irrigations) were considered as the reasons for the increase in contractile roots development in saffron (Koocheki et al., 2016).

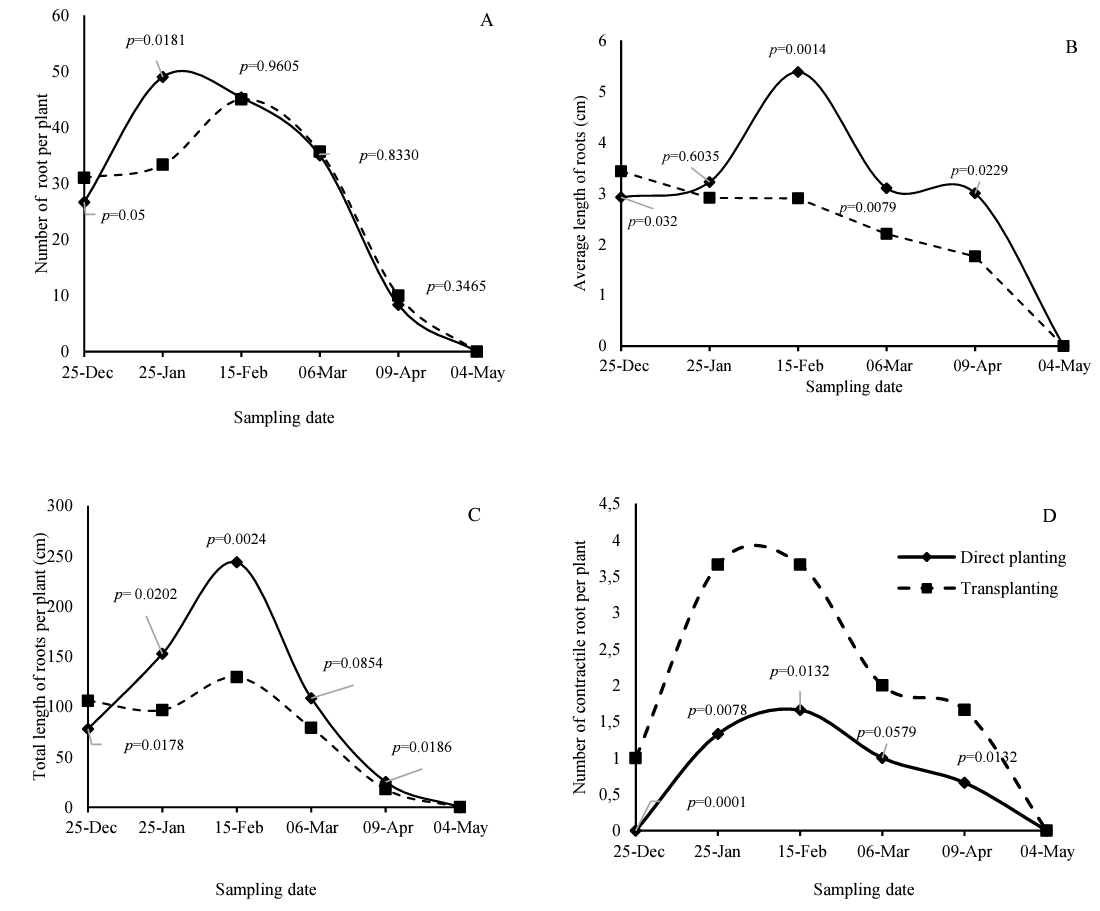

Figure 4.  Effect of production method of saffron on the number of roots (A), root length (B), total roots length (C) and number of contractile roots (D) during its vegetative growth stage. Date of transplanting: 25th December 2018 (The first sampling was also done on this day). For each descriptor and sampling date, the value of p represents the significant differences between two planting methods based on t-test.

Saffron corm growth in relation to the production method

Differences between the two planting methods in terms of mother corm weight were significant only in the f irst sampling date (25th December = transplanting day). After two months from the first irrigation time, 55.5 and 27.2% of mother corm reservoirs were depleted by both TP and DP, respectively (Fig. 5A). The main result of this event was an increase in flowering percent in SPS (Table 2), because flowers produce only by relying on planted corms reserves (Koocheki et al., 2019). Results of Renau-Morata et al. (2012) under field conditions also revealed that 20-30% of the mother corm reservoirs are used for the flowering and the emergence of the roots and leaves. However, after transplanting of those corms that were flowered under controlled condition (TP), there was no significant difference between them and the DP ones in terms of mother corm weight (Fig. 5A). Mother corm reservoirs were used to produce flowers, leaves, and roots (Behdani et al., 2016). Rapid breakdown of reservoirs of mother corms in soilless culture led to further growth of aerial (Figs. 3A, B, C) and underground (Figs. 4A, B, C, D) parts of saffron at the beginning of the growing season. This is a useful occurrence because a higher rate of vegetative growth after flowering will lead to further growth of replacement corms, provided that this condition was continued after transplanting.

Corm proliferation affected negatively by transplanting, so that, number of corms per plant in DP and TP were 3.83 and 2, respectively, one month after transplanting which were, respectively, 70% and 0%, higher than the date of transplanting. However, these significant differences disappeared in the next sampling dates during vegetative growth and reached to 4.83 and 4.33 replacement corms per plant for DP and TP, respectively, at the end of the growing season (Fig. 5B). The highest rate of corm proliferation for DP was during January, but for TP was with a one-month delay, during February (Fig. 5B), which indicates a stress imposition on the transplanted plants exactly after transplanting. This time delay in corm proliferation resulted in a less significant yield of replacement corms (Fig. 5C) and lower weight of main replacement corm (Fig. 5D) in TP compared with the DP, during the last two months of the growing season. Really, the active period for corm f illing in TP was one month shorter with a delay in corm proliferation. The yield of replacement corms per plant and the weight of the main replacement corm at the end of the growing season for DP were 66% and 94% higher than TP, respectively (Fig. 5C, D). Accordingly, transplanting of corms that flowered under the controlled environmental conditions could not produce replacement corms with the desired weight which can be used in the new flowering cycle under SPS. In our research, there was no specific nutritional management for transplanting treatment despite low availability of nutrients in the soil (Table 1). Therefore, it seems that we need an appropriate nutrition program both before and after the TP or we should try to find new strategies to reduce the negative effect of stress caused by transplanting. Similarly to Behdani et al. (2016), our results also revealed that the last two months of vegetative growth, when the production rate of new corms was very slow (Fig. 5B), is a critical period for replacement corms growth (Fig. 5C, D). In the study of Fallahi & Mahmoodi (2018a) also the highest rate of corm proliferation (mid-February up to mid-March) was observed before the highest rate of corm filling (End-March up to mid-May). Renau-Morata et al. (2012) found that in saffron when leaf and root development ends, the exponential growth stage of replacement corms starts. In another study on saffron, also the highest crop growth rate was obtained during the last two Corm proliferation affected negatively by transplanting, so that, number of corms per plant in DP and TP were 3.83 and 2, respectively, one month after transplanting which were, respectively, 70% and 0%, higher than the date of transplanting. However, these significant differences disappeared in the next sampling dates during vegetative growth and reached to 4.83 and 4.33 replacement corms per plant for DP and TP, respectively, at the end of the growing season (Fig. 5B). The highest rate of corm proliferation for DP was during January, but for TP was with a one-month delay, during February (Fig. 5B), which indicates a stress imposition on the transplanted plants exactly after transplanting. This time delay in corm proliferation resulted in a less significant yield of replacement corms (Fig. 5C) and lower weight of main replacement corm (Fig. 5D) in TP compared with the DP, during the last two months of the growing season. Really, the active period for corm f illing in TP was one month shorter with a delay in corm proliferation. The yield of replacement corms per plant and the weight of the main replacement corm at the end of the growing season for DP were 66% and 94% higher than TP, respectively (Fig. 5C, D). Accordingly, transplanting of corms that flowered under the controlled environmental conditions could not produce replacement corms with the desired weight which can be used in the new flowering cycle under SPS. In our research, there was no specific nutritional management for transplanting treatment despite low availability of nutrients in the soil (Table 1). Therefore, it seems that we need an appropriate nutrition program both before and after the TP or we should try to find new strategies to reduce the negative effect of stress caused by transplanting. Similarly to Behdani et al. (2016), our results also revealed that the last two months of vegetative growth, when the production rate of new corms was very slow (Fig. 5B), is a critical period for replacement corms growth (Fig. 5C, D). In the study of Fallahi & Mahmoodi (2018a) also the highest rate of corm proliferation (mid-February up to mid-March) was observed before the highest rate of corm filling (End-March up to mid-May). Renau-Morata et al. (2012) found that in saffron when leaf and root development ends, the exponential growth stage of replacement corms starts. In another study on saffron, also the highest crop growth rate was obtained during the last two

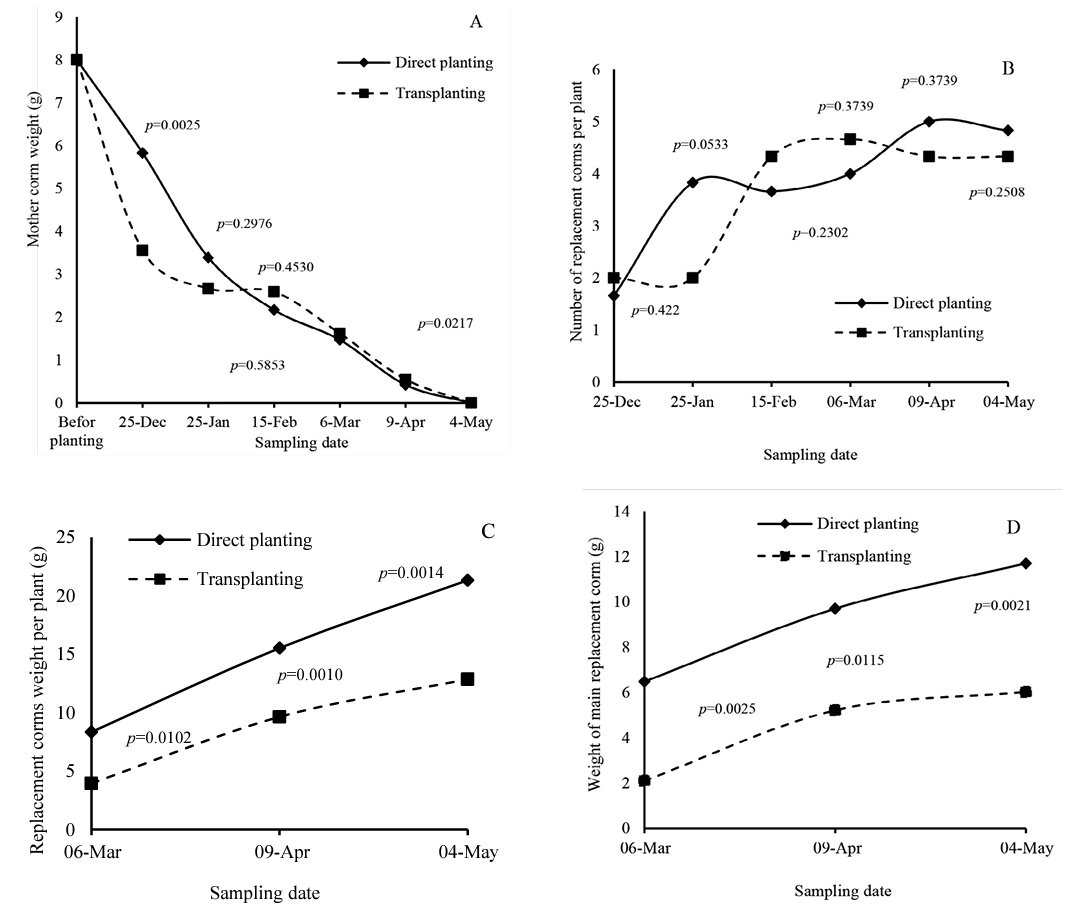

Figure 5.  Effect of the production method on the mother corm weight (A), number of replaced corms (B), weight of all replaced corms (C) and weight of main replaced corm (D) during saffron vegetative growth stage. Date of transplanting: 25th December. For each descriptor and sampling date, the value of p represents the significant differences between two planting methods based on t-test.

Final growth of replacement corms in relation to the production method

The planting method had a significant effect on most criteria related to the final growth status of replacement corms (Table 4). Replacement corm growth parameters in terms of number, weight, and percentage of large produced corms in DP were higher than TP method at the end of the first growing season (Table 4). In a similar study on saffron, Molina et al. (2010) concluded that the plant dry weight and number of replacement corms at the end of the vegetative growth stage in spring, were higher in the field-grown plants compared to TP ones. Moreover, the replacement corms in TP plants were so small, which was unlikely to produce flowers in the following season. The same authors also found that lower photosynthesis in transplanted plants may be the reason for that observation. In their study, although transplanting of plants from the growth chamber to the field resulted in a higher photosynthetic rate, it did not reach that of the DP plants. In addition, stomatal conductivity in the f ield-grown plants was considerably higher than in those that flowered in the controlled environment (Molina et al., 2010). Totally, at the end of the first growing season we found that without a proper strategy, transplanting of corms that flowered under controlled conditions cannot lead to a favorable outcome in terms of replacement corms growth. Therefore, we guessed that more favorable results would be achieved if the transplanted plants stay in the same field for another year. At the end of the se-cond growing season, although the mean replacement corm weight in TP increased by 15% compared with the end of the first growing season (Table 4), but the results were still not as desired. It should be noted that no new strategy like nutritional management was also applied during the second growing season. In addition, in the DP method the mean weight of replacement corms at the end of the second growing season reduced severely mainly due to increasing competition for resources resulted from a considerable increase in the number of replacement corms (72%) per plant in that year compared with the end of the first growing season (Table 4). These results are in a good agreement with those reported by Fallahi et al. (2018b) who revealed that the end of the first growing season is more suitable time for obtaining big replace-ment corms when large mother corms (6 g) are used for planting, while the end of the second flowering season is a more favorable time to obtain big replacement corms, when planted mother corms are small (<4 g).

Overall, although we found that saffron transplanting is possible; but more researches are needed on how it is possible to overcome the problem of this method. In a re-cent study on saffron transplanting, Fallahi et al. (2021a) for increasing the weight of replacement corms, used the inputs (such as water and fertilizers) in large quantities, compared to the conventional (traditional) saffron culti-vation. The results showed that at least one third of the re-placement corms yield in transplanting method was at the desired weight. The same authors also proposed that other items such as transplanting depth, soil organic matter con-tent, soil texture, transplanting as basin or in-furrow, etc. might probably affect the success of saffron transplan-ting. Maggio et al. (2006) found that a mixture of peat and perlite as substrate was more suitable for increasing saffron corm growth under cold glasshouse, compa-red with pure perlite. It should be noted that variation in nutrients, pH, and EC could strongly affect saffron growth in soilless systems than soil-based culture due to the buffering capacity of soils. Therefore, precise regula-tion of these factors in the planting bed of SPS is crucial for optimal plant growth (Askari-Khorasgani & Pessa-rakli, 2019). In another study on saffron, corms that were flowered in incubator were transferred to pots filled with perlite, in an open room. The hypothesis was that it is pos-sible to obtain replacement corms with the suitable weight, by improving the physical properties of the planting bed. However, the production of contractile roots, early drying of the aerial parts (in mid-March) and no full allocation of mother corm reservoirs to plant vegetative growth, led to the rejection of the hypothesis (Fallahi et al., 2021b). The same authors proposed that combined application of organic and mineral substrates and corm planting from the beginning in non-soil substrates (to remove the stress caused by transplanting) could probably lead to more favorable results.

In conclusion, the articulated plan of trials carried out provides information on the effects of production systems and methods for saffron production. The great interest for reducing the surface and to increasing the yield and the quality of the products suggested using soilless growing in some growth stage. The traditional production system in the open field could be integrated during the first growing cycle from the soilless cultivation of the corms and increase the production of propagation organs during the following years. Saffron had a much higher flowering capacity and stigma yield in SPS than in the TPS under field conditions. In the SPS, the value of the chromatic parameter L increased but the values registered for a chromatic parameter and for the safranal content decreased compared with TPS. The SPS supported much better growth of saffron plant, both for epigeous and hypogeous organs, but transplanting it in the open field reduced all these parameters compared with the direct planting method.

Table 4. Effect of production method of saffron on final growth status of replacement corms at the end of first (2019) and second (2020) growing seasons

DP: direct planting. TP: transplanting. For each descriptor and for each year, the value of p represents the significant differences between two planting methods based on t-test results.
