IntroductionTop

Material and methodsTop

Site characterization

A three-year field trial was conducted from 2017 to 2019 on a hop farm located in Pinela (41°40'33.6"N 6°44'32.7"W, 850 m a.s.l.), Bragança, NE Portugal. The region benefits from a Mediterranean-type climate, influenced by the Atlantic regime, with an average annual air temperature of 12.7 ºC and annual precipitation of 772.8 mm (IPMA, 2020). Meteorological data recorded during the experimental period at the weather station of Sta Apolónia farm in Bragança is presented in Fig. S1 [suppl].

The soil of the experimental field is a loamy textured, eutric Cambisol. Other physicochemical properties determined from composite soil samples (three samples composed by mixing the soil from 15 random points), collected just before the trial started, are presented in Table 1.

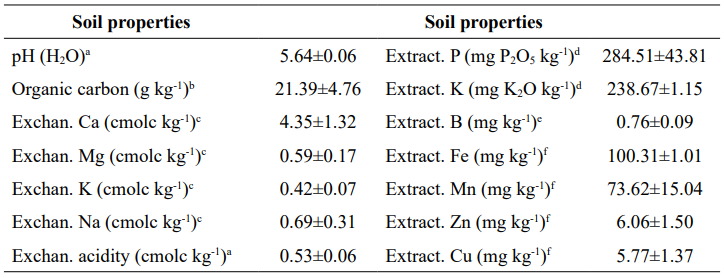

Table 1. Selected soil properties (average ± standard deviation) from soil samples collected between rows at 0-20 cm, just before the beginning of the experiment.

a Potentiometry. b Wet digestion (Walkley-Black). c Ammonium acetate, pH 7. d Ammonium lactate. e Hot water, azomethine-H.; f Ammonium acetate and EDTA.





Field experiments

The field trial was arranged as a completely randomized design with four cultivars (three in 2017) and four replicates (four plants per treatment). In 2017, the experiment included the bitter cultivar ‘Nugget’ and the aroma cultivars ‘Columbus’ and ‘Cascade’. In the next two years (2018 and 2019) the aroma cultivar ‘Comet’ was also included. All the cultivars were grown under similar agroecological conditions, on a standard 7 m high trellis system in a 'V' design. At planting, the rhizomes were placed at 3.0 m × 1.6 m between and within rows. Thereafter, a double tutor thread was placed in the position of each rhizome giving a planting density of 4,167 “plants” of three to four stems per hectare. The plots of ‘Columbus’, ‘Cascade’ and ‘Nugget’ were established in 2014 and the plots of ‘Comet’ in 2015. Sample collection began in 2017 for the first three cultivars and 2018 for ‘Comet’, when all were three years old, the age from which a hop plant can display its full productive potential.

Irrigation was performed through a surface irrigation system consisting of flooding the space between rows. The annual fertilization plan included the application of a compound NPK fertilizer (7:14:14) early in the spring and two side dress N applications performed during the growing season, the first with ⁓250 kg ha-1 of nitromagnesium (27% N as NH4NO3 + 3.5% MgO + 3.5% CaO) and the second with ⁓450 kg ha-1 of calcium nitrate (15.5% N as NO3 - + 27% CaO). Additionally, the farmer applied 20 t ha-1 of farmyard manure late in the winter.



Hop tissue sampling

Hop tissue sampling for analysis was made at harvest (August 28th to 31st 2017; August 27th to 31st 2018; and August 29th to 31st 2019). The aboveground biomass was cut at ground level and separated into two samples of leaves (bottom and top half), stems and cones. The leaf samples included blade and petiole. Tissue samples were weighed fresh to obtain data on total dry matter (DM) yield. From each plant part, a subsample was taken and weighed again fresh. Thereafter, the subsamples were oven dried at 70 ºC and weighed dry for determination of DM yield of the different plant parts. Additionally, subsamples of 20 dried cones from each replication were randomly selected for determination of dry mass of the individual cones. Then, the samples were ground and analysed for elemental composition.



Chemical analyses

The soil samples were oven dried at 40 °C and sieved in a mesh of 2 mm. Thereafter, the soil samples were analysed for pH (H2O) (soil: solution, 1:2.5), organic carbon (wet digestion, Walkley-Black method), exchangeable complex (ammonium acetate, pH 7.0), extractable P and K (Ammonium lactate) and extractable B (hot water and azomethine-H method) (Van Reeuwijk (2002). The availability of other micronutrients (Cu, Fe, Zn, and Mn) in the soil was determined by atomic absorption spectrometry after extraction with ammonium acetate and EDTA, according to Lakanen & Erviö (1971).

Elemental tissue analyses were performed by Kjeldahl (N), colorimetry (B and P), flame emission spectrometry (K) and atomic absorption spectrophotometry (Ca, Mg, Cu, Fe, Zn and Mn) methods after nitric digestion of the samples (Temminghoff & Houba, 2004). The nitrate concentration in hop cones was determined according with Clescerl et al. (1998), by UV-vis spectrophotometry in a water extract (dry cone:solution, 2.5:50). Bitter acids (alpha and beta) in hop cones were extracted with methanol and diethyl ether by HPLC, according to the Analytica EBC 7.7. method (EBC Analysis Committee, 1998).



Data analysis

Data was firstly tested for normality and homogeneity of variance using the Shapiro-Wilk and Bartlett’s test, respectively. Thereafter, data was subject to analysis of variance (one-way ANOVA). When significant differences were found (p < 0.05), the means were separated by Tukey HSD (α = 0.05). A stepwise discriminant analysis was applied to understand if the cone attributes, namely the concentration of nutrients, bitter acids and NO3 - , were different between hop cultivars. A similar analysis was also performed for nutrient concentrations in the bottom and top half leaves of the plants. The stepwise methods were used for this purpose and the de Wilks lambda method was chosen; the F value criteria were applied for the removal (F < 2.71) and inclusion (F > 3.84) of the variables in the discriminant functions. The cone attributes (concentration of nutrients, bitter acids and NO3 - ) and the concentrations of nutrients in the leaves were used as independent variables, with the cultivars (‘Nugget’, ‘Columbus’, ‘Cascade’, and ‘Comet’) as dependent variables. Self-validation and cross-validation methods were used to test the accuracy of the model. The statistical analyses were performed with the SPSS v. 25.0 programme.



Plant dry matter yield

The comparison of total DM yield between cultivars provided a very consistent result over the years (Fig. S2 [suppl]). The aroma cultivar ‘Comet’ gave the highest average values, followed in descending order by ‘Nugget’, ‘Columbus’ and ‘Cascade’. The order of the last three was the same in 2017, when ‘Comet’ was not included in the study. However, in 2018 significant differences between cultivars were not found. In the comparison of the three years, the lowest average values for total aboveground DM yield were recorded in 2017 in ‘Cascade’ (723 g plant-1) and the highest in 2018 in ‘Comet’ (1,634 g plant-1). DM yield of cones ranged between 326 (‘Nugget’) and 363 g plant-1 (‘Columbus’) in 2017, 445 (‘Cascade’) and 633 g plant-1 (‘Comet’) in 2018 and 323 (‘Cascade’) and 572 g plant-1 (‘Comet’) in 2019. Differences in cone DM yield were only significant in 2019, with ‘Cascade’ showing significantly lower values than the other cultivars. ‘Cascade’ and ‘Columbus’ also registered significant lower average values for leaf and stem total DM yield, in comparison to ‘Nugget’ in 2017 and 2019 and to ‘Comet’ in 2019.

In 2017, cone dry weight did not differ significantly between cultivars and the average values ranged from 0.26 (‘Nugget’) to 0.30 g cone-1 (‘Columbus’ and ‘Cascade’) (Fig. 1). However, in 2018 the differences between cultivars increased, with ‘Comet’ registering significantly higher values than ‘Cascade’ and ‘Nugget’ (Fig. S2 [suppl]). The average values in 2018 ranged between 0.29 (‘Nugget’) and 0.79 g cone-1 (‘Comet’). In 2019, average values varied between 0.16 and 0.28 g cone-1, with ‘Cascade’ and ‘Comet’ showing, respectively, significantly lower and higher values than the other cultivars.

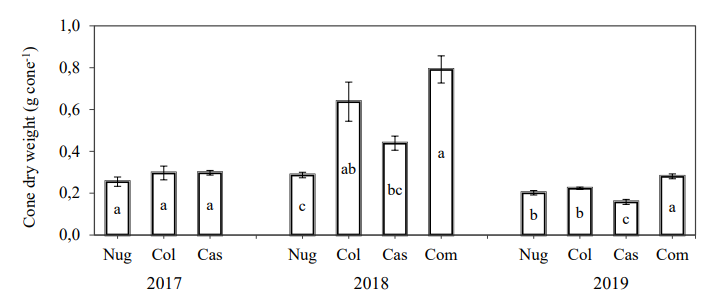

Figure 1.  Dry weight of individual cones in 2017, 2018 and 2019, as a function of cultivar (Nug, Nugget; Col, Columbus; Cas, Cascade; and Com, Comet). Within each year, means followed by the same letter are not statistically different by Tukey HSD test (α = 0.05). Error bars are the confidence intervals of the means (α = 0.05).





Tissue nutrient concentration

N concentrations in the bottom half leaves varied significantly between cultivars (Table 2). ‘Cascade’ showed consistently higher leaf N concentration than the other cultivars. When present, ‘Comet’ showed the lowest values. Regarding leaf P concentrations, ‘Cascade’ showed consistently the lowest average values, in some years with significant differences to the other cultivars. The leaf K levels were consistently higher in ‘Nugget’, with significant differences for some of the other treatments. ‘Cascade’ and ‘Comet’ showed the lowest values. Regarding Ca and Mg, significant differences between cultivars were found for the majority of samplings, but a consistent pattern was not observed. Some cultivars displayed a high average value in a given year that was not maintained in the other years and vice-versa. The concentration of micronutrients in the leaves also did not show a consistent trend in spite of significant differences between cultivars being found for some samplings. However, ‘Cascade’ showed consistently the lowest average values of B.

‘Cascade’ showed a tendency to display the highest average values of leaf N concentration when the results of the top half leaves were analysed (Table 2). ‘Cascade’ also showed the lowest average P levels in the top half leaves. The top leaves also showed the highest K values in ‘Nugget’ and the lowest values in the ‘Cascade’ and ‘Comet’ cultivars. In spite of significant differences between cultivars often being found, no consistent trends were observed in the levels of Ca, Mg, Fe, Mn, Cu and Zn from the top half leaves. The lowest average levels of B, however, were found in ‘Cascade’ as observed in the bottom leaves. In general terms, N and P levels were found to be higher in the top leaves and many other nutrients such as Ca, Mg and B were found to be higher in the bottom leaves.

The concentration of the nutrients in the stems (Table 3) followed the most important trends observed in the leaves (Table 2). ‘Cascade’ showed high and low levels of N and P respectively, and ‘Nugget’ showed high levels of K. However, for the majority of the nutrients their levels in stems were lower than the values found in the leaves.

The patterns observed in the concentration of most of the nutrients in the leaves, when the different cultivars were compared, were not reflected in general terms in the cones (Table 3). However, ‘Cascade’ showed consis[1]tently the lowest levels of P in the cones in comparison to the other cultivars as observed in the leaves. Several nutrients, such as N, Ca, Mg, Mn and B appeared to be less concentrated in the cones than in the leaves, whereas the concentration of P was higher in the cones than in the leaves. Several nutrients, and in particular K, showed a narrower range of variation between cultivars and years in the cones than in the leaves.

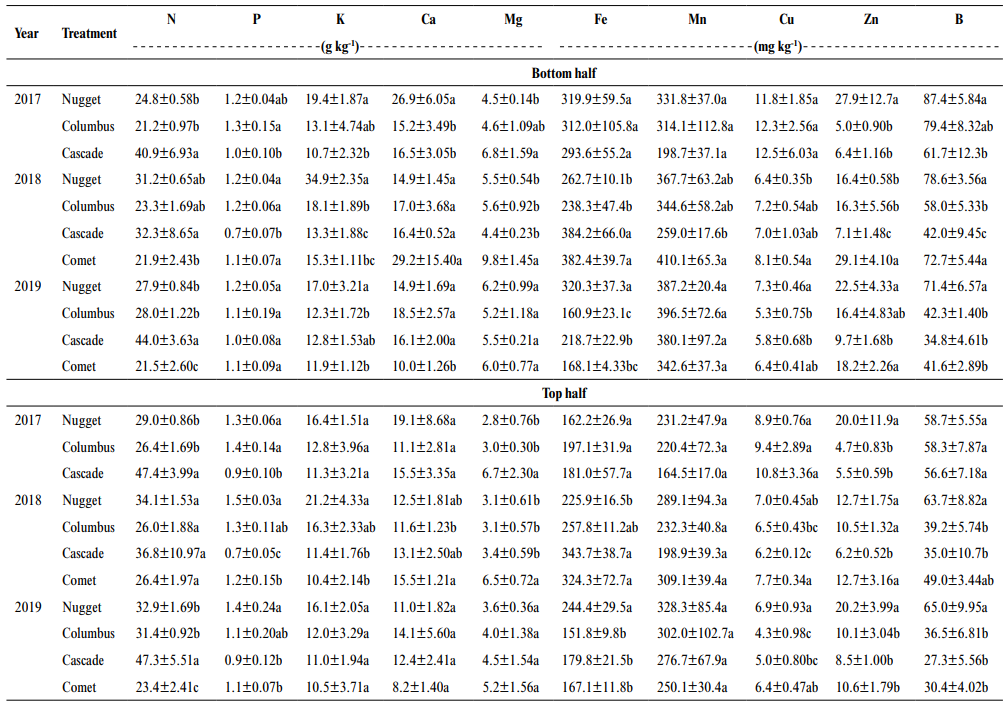

Table 2. Leaf nutrient concentration (average ± SD) in August, at harvest, from the bottom and top half of the plants as a function of cultivar. For each year, means followed by the same letter are not statistically different by Tukey HSD test (α = 0.05).

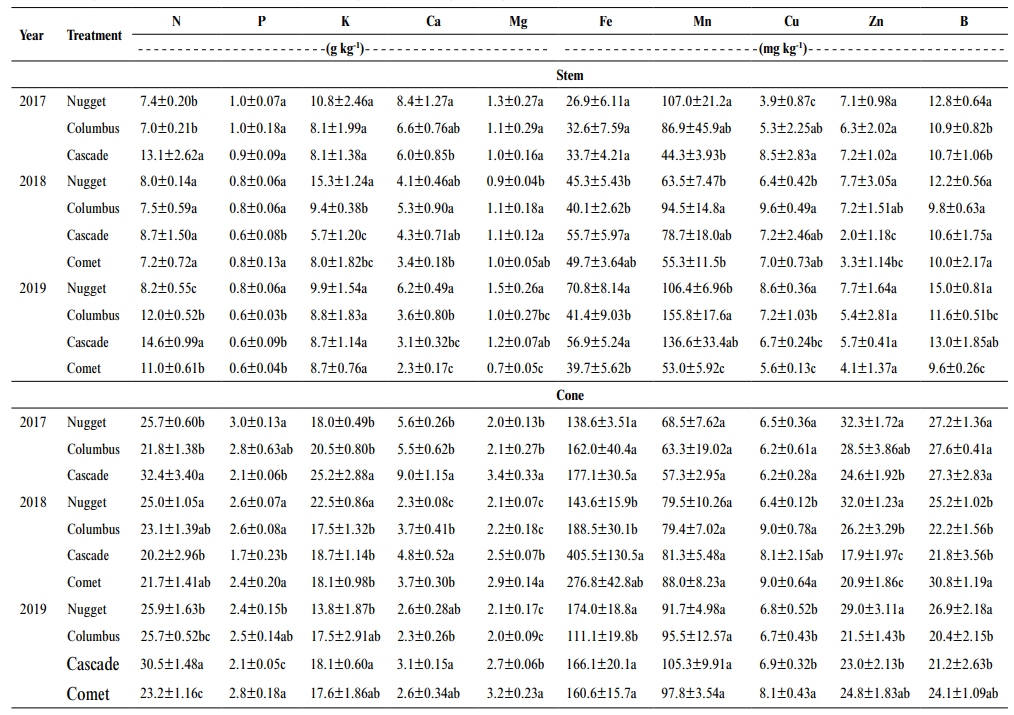

Table 3. Stem and cone nutrient concentration (average ± SD) in August, at harvest, as a function of cultivar. For each year, means followed by the same letter are not statistically different by Tukey HSD test (α = 0.05).





Bitter acid and nitrate concentration in hop cones

Significant differences between cultivars in α-acids were not found in 2018 and 2019 (Fig. 2). The highest average values were found in ‘Columbus’ and the lowest in ‘Cascade’. The average values of α-acids ranged between 8.72% (‘Cascade’) and 11.9% (‘Nugget’) in 2018 and between 4.46% (‘Cascade’) and 12.2% (‘Comet’) in 2019. The concentrations of β-acids in cones only differed significantly between cultivars in 2018 with ‘Cascade’ recording the highest concentrations. The average values of β-acids varied from 3.89% (‘Comet’) to 8.00% (‘Cascade’) in 2018, and from 3.87% (‘Comet’) to 4.59% (‘Cascade’) in 2019.

The concentrations of NO3 - in the cones ranged from 2.57 (‘Comet’) to 11.14 (‘Cascade’) g kg-1 in 2018 and from 9.19 (‘Comet’) to 14.56 (‘Cascade’) g kg-1 in 2019 (Fig. 3). ‘Comet’ and ‘Cascade’ consistently displayed, respectively, the lowest and highest average values, which differed significantly between both years.

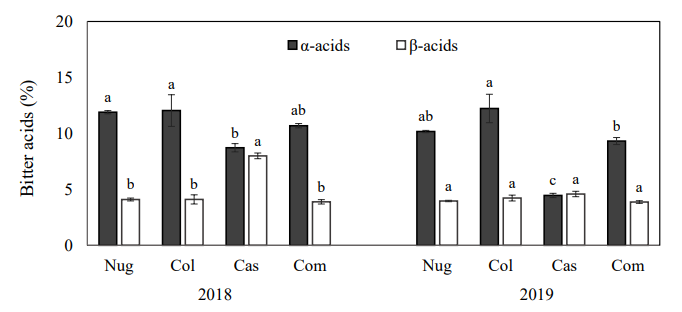

Figure 2.  Cone α- and β-acid concentration in 2018 and 2019, as a function of cultivar (Nug, Nugget; Col, Columbus; Cas, Cascade; and Com, Comet). Within each year, same letters above the histogram bars indicate not significant differences by Tukey HSD test (α = 0.05). Error bars are the confidence intervals of the means (α = 0.05).





Figure 3.  . Cone α- and β-acid concentration in 2018 and 2019, as a function of cultivar (Nug, Nugget; Col, Columbus; Cas, Cascade; and Com, Comet). Within each year, same letters above the histogram bars indicate not significant differences by Tukey HSD test (α = 0.05). Error bars are the confidence intervals of the means (α = 0.05).





Cone attributes in cultivar differentiation with stepwise discriminant analysis

According to the results produced by the stepwise discriminant analysis, using the cone attributes (concentration of nutrients, bitter acids and NO3 - ) as independent variables in the differentiation between cultivars (‘Nugget’, ‘Columbus’, ‘Cascade’, ‘Comet’), three discriminant functions were constructed and four variables were selected with the stronger discriminant capacity (Mg, P, NO3 - and Zn). The first function (F1) with an eigenvalue of 13.34 explained the greater differences between the cultivar groups, corresponding to 69.7% of variance explained, and the second (F2) and third (F3) functions explained 25.4% and 4.9% of the variance, respectively. The Wilks’ lambda indicated a high significance of the three functions (p < 0.001). The functions of the cultivar group centroid (Table 4) indicated that function F1 differentiated the ‘Comet’ cultivar from the others and in particularly from ‘Nugget’, F2 separated ‘Cascade’ and F3 separated ‘Nugget’ from the other cultivars. The standardized canonical discriminant function coefficients (Table 4) reveal the more important variables in the construction of the functions, with Mg being more significant in function F1, P and NO3 - more significant in function F2 and Zn more significant in function F3. The interpretation of these results seems to indicate that the ‘Comet’ group cultivar was differentiated by the highest concentration of Mg in the cones, ‘Cascade’ was differentiated by the lowest concentration of P along with the highest concentration of NO3 - in the cones, and ‘Nugget’ was differentiated by the highest concentration of Zn in the cones.

The self-validation classification results confirm that 96.9% of the original cases were classified correctly as ‘Nugget’, ‘Columbus’, ‘Cascade’ and ‘Comet’. The cross-validation classification was of 90.6% and the misidentified cases belonged to ‘Nugget’ (12.5% classified as ‘Columbus’) and to ‘Columbus’ (25% classified as ‘Nugget’). Therefore, the model based on the stepwise discriminant analysis was effective in the prediction of group membership. The classification of each cultivar group in the first two discriminant functions (F1 and F2), which explained most of the variance, showed that the centroids of ‘Comet’ and ‘Cascade’ were quite distant from each other and from ‘Nugget’ and ‘Columbus’, which were both close (Fig. 4).

Briefly, cone attributes such as the concentration of Mg, P, Zn and NO3 - , helped to differentiate between the cultivars under analysis.

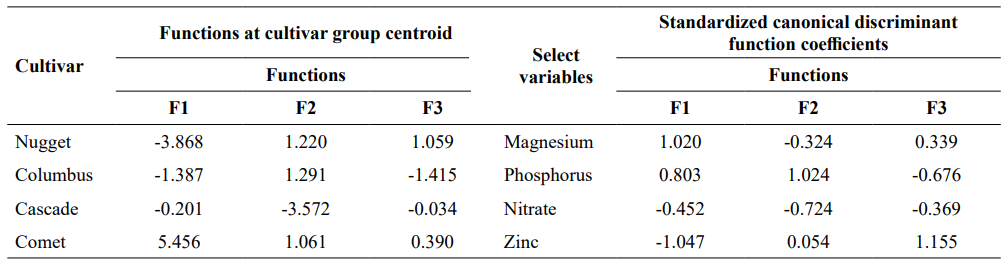

Table 4. Discriminant functions generated with the stepwise method applied to hop cone attributes (concentration of nutrients, bitter acids and NO3 - ) as discriminant variables between hop cultivars.

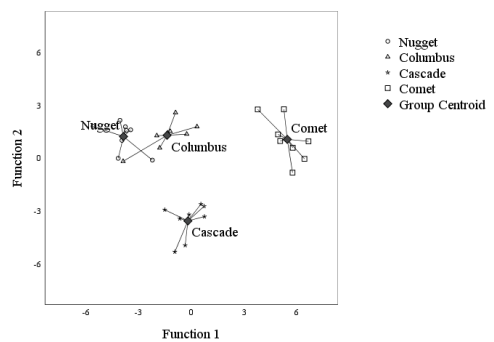

Figure 4.  Distribution and centroid of each cultivar group in relation to the first two canonical discriminant functions generated with the cone attributes as independent variables (concentration of nutrients, bitter acids and NO3 - ).





Leaf nutrient concentration in cultivar differentiation with stepwise discriminant analysis

The stepwise discriminant analysis was also performed for the nutrient concentrations in the leaves of the bottom or top halves of the plants as independent variables in the differentiation between cultivars. For both analyses (leaf bottom and top halves) three discriminant functions were constructed with the selected variables for each case (Fig. 5). Briefly, in relation to the results obtained for leaf nutrient concentration at the bottom half of the plant in the differentiation of cultivars, it can be noted that: i) Function 1 separated the ‘Cascade’ group cultivar by the highest N and lowest P concentrations in relation to the remaining groups and particularly to the ‘Comet’ group; ii) Function 2 separated the ‘Nugget’ group cultivar by the lowest concentration of Mg and highest concentration of B in relation to the remaining groups, and in particularly to the ‘Comet’ group; iii) Function 3 separated the ‘Columbus’ group cultivar by the lowest concentration of Zn and Mg, particularly from the ‘Comet’ group cultivar.

Regarding the results obtained for leaf nutrient concentration in the top half leaves, it can be noted that: i) Function 1 separated the ‘Cascade’ group cultivar by the lowest concentrations of P and Zn in relation to the remaining groups and particularly to the ‘Nugget’ group; ii) Function 2 separated the ‘Comet’ group cultivar by the highest Mg and lowest N concentrations in relation to the ‘Nugget’ and ‘Cascade’ groups; iii) Function 3 separated the ‘Columbus’ group cultivar by the lowest concentration of Zn and Mg particularly from the ‘Comet’ group cultivar.

The cumulative variance explained by the first two canonical discriminant functions (F1 and F2) was of 94.2% (F1 with 71.3%) for the bottom half leaf analysis and of 95.8% (F1 with 56.3%) for the top half leaf analysis. In both cases, in relation to the classification in functions F1 and F2, the centroid of the ‘Cascade’ group appeared as the most separated from the others, and the group separation was clearer from the top half leaf analysis (Fig. 5). The self-validation classification results confirmed that 88.6% of the original cases were classified correctly in the bottom half leaf analysis and 90.9% in the top half leaf analysis. The cross-validation classification was 81.8% for the bottom half leaf analysis and 90.9% for top half leaf analysis. With the exception of the ‘Comet’ group, all the others presented misidentified cases in the top half leaf analysis.

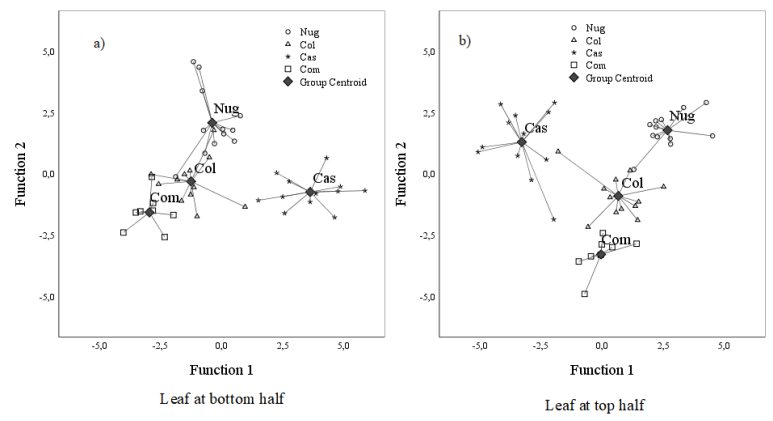

Figure 5.  Distribution and centroid of each cultivar group (Nug, Nugget; Col, Columbus; Cas, Cascade; and Com, Comet) in relation to: a) the first two canonical discriminant functions generated in leaf bottom half analysis; b) the first two canonical discriminant functions generated in leaf top half analysis.



The productivity of the tested cultivars stressed the good adaptation of ‘Comet’, which consistently recorded the highest average values of total DM yield. The average DM yield of ‘Columbus’ was slightly above that of ‘Nugget’, but without significant differences. ‘Cascade’ exhibited the lowest values of total DM yield. Cone yield only differed significantly between cultivars in the last year (2019). ‘Comet’ registered the highest values in 2018 (633.5 g plant-1, 2,640 kg ha-1) and in 2019 (572.4 g plant-1, 2,385 kg ha-1), while the lowest average values were registered in the same period by ‘Columbus’ in 2018 (479.9 g plant-1, 2,000 kg ha-1) and ‘Cascade’ in 2019 (323.3 g plant-1, 1,347 kg ha-1). The reference values reported from Hopslist (2020) for cone yield indicate ‘Comet’ (1,900–2,240 kg ha-1) and ‘Nugget’ (1,700–2,200 kg ha-1) as having similar yield potential and ‘Columbus’ (2,000–2,500 kg ha-1) and ‘Cascade’ (2,017–2,465 kg ha-1) with slightly higher values. This is not in agreement with the present results, though the ranges of variation are similar.

Under Mediterranean conditions, Rossini et al. (2016) tested several hop cultivars including ‘Cascade’ and ‘Columbus’ and found that ‘Cascade’ was one of the highest yielding cultivars while ‘Columbus’ displayed a lower performance. Ruggeri et al. (2018) also found ‘Cascade’ to be the highest yielding of the cultivars tested in a two-year experiment and reported an average yield of 470 g of cones per plant (248.87 and 691.20 g plant -1 in the first and second years, respectively). Mongelli et al. (2016), in an experiment to test the adaptation of several hop cultivars in northern Italy, also observed higher yields for ‘Cascade’ (952 kg ha-1, dry weight) in comparison to ‘Nugget’ (292 kg ha-1, dry weight). These results seem to disagree with those presented in this work, in spite of ‘Cascade’ showing good vegetative development during the growing seasons. Cone yield, in turn, was similar to that of the other cultivars and only in the last year was it significantly lower than that of ‘Columbus’ and ‘Comet’, but similar to that of ‘Nugget’.

The year influenced the productivity of all cultivars. The highest average values of total biomass were found in 2018. Highest average cone yields were also achieved in the year 2018 for ‘Nugget’, ‘Cascade’ and ‘Comet’ and in 2019 for ‘Columbus’. The meteorological data for the year 2018 showed higher precipitation levels between March and July. 2019 showed lower average monthly temperatures in June and July and higher precipitation in August and September. The higher precipitation levels in the middle of the growing season in 2018 may have contributed to increasing biomass production. Rossini et al. (2016, 2020) also stated that in central Italy the growth and yield of hop cultivars were affected significantly by the weather conditions, particularly by reduced precipitation and high temperatures. Marceddu et al. (2020) reported a high variability of hop yield according to crop management in the region of Palermo in Italy.

The dry weight of individual cones differed significantly among cultivars in 2018 and 2019 and ‘Comet’ exhibited once again the highest average values in both years (0.79 g cone-1 in 2018 and 0.28 g cone-1 in 2019). ‘Nugget’ displayed the lowest average value in 2018 (0.29 g cone-1) and ‘Cascade’ in 2019 (0.16 g cone-1). Between the years, the average weight of individual cones was higher in 2018 for ‘Columbus’, ‘Cascade’ and ‘Comet’ cultivars. ‘Nugget’ displayed higher average cone DM yield in 2018, though the values were lower than those of the other cultivars. Čeh et al. (2012) analysed the relationship between cone mass and length of the Slovenian cultivar Savinjski Golding and the weather conditions. They observed a significant effect of weather on cone traits which seems to be in accordance with the results presented in this study. The DM of 100 cones of the Slovenian cultivar Savinjski Golding varied between 10 and 16 g (Čeh et al., 2012), which is less than the values found in this study (0.16 to 0.79 g cone-1). These results seem to be a positive indication of the good hop growing conditions in the north of Portugal.

Concerning tissue nutrient concentration, the most consistent trends between cultivars were observed in the leaves and to a lesser extent in the stems. ‘Cascade’ showed high levels of N but low levels of P, K and B in plant tissues. ‘Comet’, which was the highest yielding cultivar, displayed lower values of N and K in leaf tissues, probably due a dilution effect (Jarrel & Beverly, 1981). ‘Nugget’ consistently presented the highest levels of K in the leaves. In general, the nutrient concentration in the cones did not follow the same trend reported for leaves. At this point, the results do not seem to suggest that the differences in the productivity between cultivars can be explained by the differences in tissue nutrient concentration.

The concentration of bitter acids in the cones differed significantly between cultivars. ‘Columbus’ exhibited the highest levels of α-acids, ranging between 12.04 % and 12.23%, which are slightly below the general reference range of 14-18% (Hopslist, 2020), but higher than those reported by Mozzon et al. (2020) for ‘Columbus’ (7.41%) grown in central Italy, also on a high trellis system. The average values of α-acids of ‘Nugget’ (10.17–11.90%) and ‘Comet’ (9.32–10.69%) were similar to those found in Hopslist (2020), as well as those of ‘Cascade’ (4.46– 8.72%), in spite of being lower than those of ‘Nugget’ and ‘Comet’. Mozzon et al. (2020) reported similar α-acid levels for ‘Nugget’ (10.61%) and ‘Cascade’ (4.47%). Forteschi et al. (2019) also obtained α-acid levels between 5.00 and 9.05% for ‘Cascade’ grown in Sardinia (Italy) on a low trellis system. Pearson & Smith (2018) reported α-acid levels slightly higher for ‘Comet’ (11.2%) in the first-year of growth in Florida (USA), on a high trellis system.

Regarding β-acids, the values obtained for ‘Nugget’, ‘Columbus’ and ‘Cascade’ were similar to those reported by Mozzon et al. (2020) and Forteschi et al. (2019) for ‘Cascade’. The ratios obtained for β-acids were also generally in agreement with the reference values of the Hopslist (2020). The average values for α- and β-acids varied with the year, with the values of ‘Cascade’ being the most affected. The values of 2019 were particularly low. ‘Cascade’ seems to have good adaptation to high temperatures (Eriksen et al., 2020). Probably, the lower temperatures and the higher precipitation than usual, at the middle and end of the growing season of 2019, may have contributed to these negative results. Despite the less favourable effect that the year may have had, all the cultivars displayed bitter acid contents close to the reference values.

The results of stepwise discriminant analysis performed with the cone attributes as discriminant variables presented a solution which differentiated mostly between ‘Comet’ and ‘Cascade’ and both these from the other cultivars (‘Nugget’ and ‘Columbus’). ‘Comet’ seemed to display higher Mg concentration in the cones while ‘Cascade’ presented lower P concentration and higher NO3 - concentration than the other cultivars. The accumulation pattern of NO3 - in the cones was markedly different between ‘Comet’ and ‘Cascade’, which consistently exhibited the lower and higher average levels, respectively. Mg is involved in N metabolism and seems to be able to reverse ammonium toxicity (Guo et al., 2016). ‘Comet’ presented higher Mg concentrations which may be related to the lower levels of NO3 - . ‘Cascade’ and ‘Columbus’ displayed respectively the lowest and highest values of α-acids, which is in accordance with the reference levels.

The variables that seem to differentiate better between these cultivars were the concentration in cones of P (higher in ‘Columbus’) and NO3 - (higher in ‘Cascade’). The higher concentration of NO3 - in the cones of ‘Cascade’, may mean that fewer amino acids were being synthetized via NO3 - reduction (Lal, 2018). Consequently, the bitter acid biosynthesis was affected since branched-chain amino acids derived compounds are the essential building blocks for the biosynthesis of hop bitter acids (Xu et al., 2013). On the other hand, the reduction of NO3 - to amino acids is an energy consuming process. Thus, it involves P as the main nutrient in energy metabolism and also in the phosphorylation and dephosphorylation of the nitrate reductase enzyme (Kathpalia & Bhatla, 2018; Lal, 2018). Moreover, P compounds are required in bitter acid biosynthesis (Champagne & Boutry, 2017). Hence, the lowest levels of P in ‘Cascade’ may be related to a lower bitter acid biosynthesis, in contrast to ‘Columbus’ which has higher levels of P and bitter acids. Cultivars may differ in nutrient uptake, which is probably related to the rate of production of important compounds such as bitter acids, which are very stable in each cultivar.

The results of stepwise discriminant analysis performed with the leaf nutrient concentration as discriminant variables presented a solution which differentiated mainly ‘Cascade’ from the other cultivars. It also highlighted the lowest concentration of P in ‘Cascade’ leaves and the highest concentration of Mg in ‘Comet’ leaves. The higher uptake and accumulation of Mg by ‘Comet’ may be related to higher biomass production. ‘Comet’ stood out for its high biomass production compared with the other cultivars and interestingly presented the lowest concentrations of N and K in the leaves. These are macronutrients used in high amounts in plant growth (Hawkesford et al., 2012). Perhaps the higher uptake levels of Mg improved the efficient use of N and K in biomass production. Mg has a relevant role in photosynthesis and N and C metabolism, and it is probably more important in hop growth than is usually considered (Guo et al., 2016). The nutrient accumulation criteria in cone and leaf tissues seem to be a differentiating factor between cultivars with influence on bitter acid biosynthesis and biomass production.

In summary, ‘Comet’ was the most productive cultivar, displaying the highest total DM yield and cone production. ‘Comet’ was followed by ‘Nugget’ and ‘Columbus’, with similar values, with ‘Cascade’ giving the poorest performance. The concentration of α- and β-acids in the cones, which is a very important quality parameter, was within or close to the range established as normal in Hopslist (2020) for all cultivars. However, ‘Cascade’ showed high sensitivity to the year effect, which greatly influenced the average bitter acid yield. Cultivars greatly differed in leaf N, P, K and B concentrations. Cone attributes (concentration of nutrients, bitter acids and NO3 - ) and leaf nutrient concentrations were differentiating factors between cultivars. The results showed that the differences in the concentration of nutrients in the leaves and cones may be related to biomass and bitter acid production. ‘Cascade’ was the least similar of the cultivars and was differentiated by the lowest concentrations of P in the leaves and cones and the highest NO3 - concentrations in the cones. ‘Columbus’, in turn, was differentiated by the highest leaf and cone P concentrations, while ‘Comet’ by the highest Mg concentrations in the leaves and cones.
