INTRODUCTION
⌅There are approximately 170,000 ha of intensively farmed greenhouses in the Mediterranean Basin (Pardossi et al., 2004); the largest concentration of approximately 32,000 ha is in the province of Almería in southeast Spain (Cajamar, 2019). The different management techniques used in this intensive production system can affect the physical, chemical, and microbiological characteristics of soils. One of the major impacts of crop production on soil properties is how organic matter (OM) addition affects soil organic matter (SOM) (Scotti et al., 2015). Many aspects of how OM management influences crop production, in intensive agriculture, are well understood (De Ponti et al., 2012), particularly nutritional aspects (Ewulo et al., 2008). However, the effects of OM management on soil microbial community structure and function, as well as its relation to nutrient availability and plant production, in Mediterranean intensive greenhouse systems remain largely unknown.
Traditionally, the soil in SE Spain greenhouses is covered with a sand mulch to maintain soil moisture and reduce diel temperature fluctuations (Pardossi et al., 2004). The sand mulch makes it difficult to add OM because of the cost of pushing sand aside (Valera et al., 2017). Consequently, in many greenhouses in SE Spain, OM is applied every 3-4 years instead of annually (Cesarano et al., 2017). Reduced OM application can increase the requirement for synthetic chemical fertilizers to ensure that crop nutrient requirements are met (Barberis et al., 1995). This can result in excess N being applied which can cause environmental problems (Soto et al., 2015), such as nitrate leaching into groundwater (Gallardo et al., 2006).
Indirectly, low levels of OM in soil can contribute to an increased incidence of plant pathogens (Savary et al., 2012), and a decrease of soil microbial (Wu et al., 2013) and mesofauna abundance and diversity (Battigelli et al., 2004). Soil chemical disinfectants are now banned, which increases the possibility of higher populations of soil-borne plant pathogen pathogens (Stapleton & DeVay, 1986). Therefore, knowledge concerning microbial population dynamics and activity in greenhouse soils is a pressing need, particularly in the Mediterranean basin, given the global significance of this region to feed an increasing global population.
The diversity of soil microbial communities is directly linked to the amount of SOM (Bausenwein et al., 2008). Soil microbial community composition and structure have a key role in soil function (Gupta et al., 2022) and crop production. This is because they are the major drivers of SOM mineralization (Duchicela et al., 2012) This SOM mineralization lead to higher rates of soil respiration (Mbuthia et al., 2015). Microbial communities are also critical for plant health, as they control soil-borne pathogens (Senechkin et al., 2010; van Bruggen et al., 2015), and are also involved in soil responses after disturbance (Lehman et al., 2015). Diverse soil microbial communities may also contribute to alleviating soil salinity and other stressful conditions (Kumar et al., 2020). Finally, many studies show that soil microbial communities are more diverse, and crops are healthier and more productive when OM is applied regularly and added to conventional inorganic fertilization (Bever et al., 2010).
Soil respiration is linked to OM decomposition and depends on environmental conditions, particularly soil temperature and water availability. Soil respiration results from the activity of several biotic components, such as roots, mesofauna, and the soil microbial community, all of which contribute to the overall respiration (Estruch et al., 2020). The interactions between soil organisms are also important drivers of soil respiration as well. For example, high soil respiration is commonly related to high plant photosynthesis and release of root exudates, which can lead to higher microbial diversity and activity (Baldocchi et al., 2006). Soil respiration can be used as a biological indicator of soil quality (Bünemann et al., 2018), reflecting soil metabolic activity (Curiel-Yuste et al., 2007), and it can be indirectly related to crop production (Lamptey et al., 2019). These relationships show the importance of soil respiration, which fluctuates seasonally and differs between agroecosystems (Benbi et al., 2019), and requires frequent measurement to understand its dynamics (Curiel-Yuste et al., 2007).
In this study, we address how three different greenhouse management systems, differing in SOM amendments and synthetic chemical fertilizer application, influence soil microbial community structure, composition, and activity, and how these microbial communities have an effect on crop production in the intensive greenhouse agricultural system of SE Spain. We hypothesized that OM addition will influence microbial community composition, structure, and activity, and that higher OM additions might result in more diverse and active soil microbial communities, which may translate into increased crop production.
MATERIAL AND METHODS
⌅Study area and greenhouse selection
⌅The study was carried out in the province of Almeria, where there are currently more than 32,000 ha of greenhouses. This greenhouse system is the main producer of fresh market tomato (Solanum lycupersicum L.) in Spain. The annual cropped surface is approximately 10,000 ha, and annual production is 890,000 tonnes (MAPA, 2019). In this area, we selected 15 different commercial greenhouses of 1-2 ha, growing tomato, with three different soil management systems, having five different greenhouses per management. The three management systems were: (1) conventional management (CM), with no addition of OM in the previous ten years, and use of synthetic chemical fertilizers. Synthetic chemical fertilizers met crop nutrient requirements, with a total average input of 370 kg N ha-1, 50 kg P ha-1, 680 kg K ha-1, 290 kg Mg ha-1 and 45 kg Ca ha-1 (Papadopoulos 1991). The applied fertilizers were Ca(NO3)2, Mg(NO3)2, KH2PO4, K2SO4 and a combination of micronutrients, including Fe, Cu, B, Mn, Mo and Zn. They were applied in nutrient solution that was applied every 1-4 days through the drip irrigation system; (2) a conventional management with OM addition (CMOM), where there had been at least one addition of OM in the previous three years but where synthetic chemical fertilizers were routinely used (as in CM); and (3) organic management (ORG) with OM addition every year and without synthetic chemical fertilizer addition. The crop growth cycle was from April (seedling transplant) to July (harvest). Organic matter additions were 18,000 kg ha-1 per application (recommended dose) of fresh manure. Typically, the applied manure had 65% dry matter, 2.2% of N and 30% of C, and was a mix of 60% goat, 30% sheep, and 10% poultry. In the ORG management, the manure applied was certified as organic. Measurements and sampling within the greenhouses were conducted from April 2017 to July 2017.
Soil analyses
⌅Immediately prior to harvest, 100 mL of soil volume was sampled with a core sampling tool in each of 10 points randomly distributed in each greenhouse, after removing the sand mulch, to a depth of 10 cm (total soil sampled per greenhouse: 10X 100 mL). Samples in each greenhouse were mixed to produce a combined soil sample of 1 L per greenhouse (15 soil samples, 5 per management, 3 managements). Shovels and all material used for sampling were sterilized between different greenhouse samples with 96% ethanol.
Soil nutrients were determined at the CEBAS-CSIC Ionomics Lab (Murcia, Spain), including total C and N content using a C/N analyzer (LECO Truspec, St. Joseph, MI, USA) and organic C after removal of inorganic carbon with 2 N HCl (Schumacher, 2002); anion phosphate (PO43-) and sulphate (SO42-) concentrations in water extract (1:5 soil:water, w:v) were analyzed by HPLC (Metrohm, HE, Switzerland). Soil nitrate (NO3−) and ammonium (NH4+) were extracted with potassium chloride (2 M KCl) and their contents were determined with an automatic continuous segmented flow analyzer (model SAN++, Skalar Analytical B.V., Breda, The Netherlands). Other elements were determined after acid digestion with an inductively coupled plasma (ICP) emission spectrometer (ICAP 6500 DUO Thermo; Thermo Scientific, Wilmington, DE, USA), pH was measured in an aqueous solution of 1:2.5 (w:v), with a pH-meter (Crison, Spain).
Soil respiration and crop production

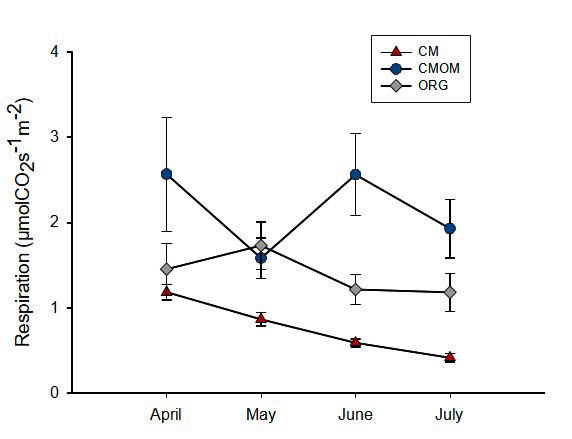

⌅In the soil of every greenhouse, we randomly established six PVC collars 10 cm in diameter to measure soil respiration. Collars were inserted 5 cm into the soil, maintaining the sand mulch above the soil, at mid distance between two adjacent drip emitters and two tomato plants in the same line of drippers/plants. Soil respiration was measured monthly, for four months, during the cropping cycle using a portable infrared gas analyzer (EGM-4) connected to an SRC-1 chamber (PPSystems, Amesbury, MA, USA). For each monthly measurement, measurements in the different greenhouses were made during a period of five consecutive days, being made in three greenhouses, selected randomly, per day. They were made when daily air temperatures were highest, between 12:00 and 16:00 GMT each day. Within this time period, respiration measurements were steady.
For each soil respiration measurement, soil temperature and volumetric soil water content (v:v) were measured next to each soil respiration collar, using a thermocouple and a TDR-300 FieldScout soil moisture meter (Spectrum Technologies, Inc., Aurora, IL, USA), respectively. For each soil respiration measurement, three soil temperature readings and three soil moisture measurements were taken; the mean values were used as covariates for the soil respiration analyses.

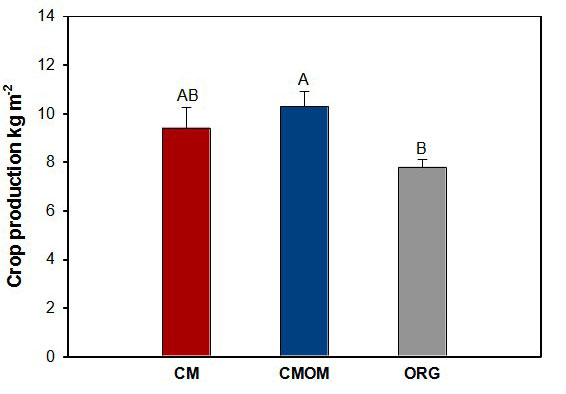

At the end of the cropping season, the grower’s co-operative provided data of total crop production for each greenhouse in the study (Table 1).
ID | Management[1] | Production (kg m-2)[2] |
---|---|---|
CM1 | CM | 9.38 |
CM2 | CM | 8.90 |
CM3 | CM | 9.50 |
CM4 | CM | 12.25 |
CM5 | CM | 7.00 |
CMOM1 | CMOM | 10.88 |
CMOM2 | CMOM | 11.00 |
CMOM3 | CMOM | 9.00 |
CMOM4 | CMOM | 12.00 |
CMOM5 | CMOM | 8.50 |
ORG1 | ORG | 8.50 |
ORG2 | ORG | 8.50 |
ORG3 | ORG | 7.00 |
ORG4 | ORG | 7.50 |
ORG5 | ORG | 7.50 |
DNA extraction and quantitative PCR
⌅DNA was extracted from 250 mg soil samples using the DNeasy Powersoil® Kit (Qiagen, Inc., Venlo, Netherlands), following manufacturers protocol. DNA concentration was estimated using a Qubit Fluorometric Quantification (Thermo Scientific, USA) and samples were stored at -80°C.
Quantitative PCR (qPCR) analyses were performed in soil DNA extracts to determine the abundance of microbial marker genes for bacteria and fungi. The primer pairs used for the qPCR analyses were 515f (5’-GTGYCAGCMGCCGCGGTAA-3’) and 806r (5’-GGACTACNVGGGTWTCTAAT-3’) for prokaryotes (Walters et al., 2015), and ITS1 (5’-TCCGTAGGTGAACCTGCGG-3’ (Gardes & Bruns, 1993) and ITS5.8S (5’-CGCTGCGTTCTTCATCG-3’; Vilgalys & Hester, 1990) for fungi, respectively. Amplifications were performed by using a SYBR® Green (Sigma-Aldrich, USA) based qPCR method in a CFX96 TM Real-Time PCR Detection System (BioRad Laboratories, USA). Calibration curves were prepared in every assay using 10-fold serial dilutions of stock solutions containing the target DNA molecules. The reaction mixture contained 10 µL of 2X PowerUpTM SYBRTM Green Master Mix (Applied Biosystems, USA), 1 µL of each primer (20 µM), 10-100 ng of template DNA and nuclease free water (Ambion Thermofisher) up to 20 µL of final volume. Amplification conditions were: 95°C for 10 min, followed by 35 cycles of 10 s at 95°C, 30 s at 57°C and 30 s at 72°C (for bacteria), or 40 cycles of 15 s at 95°C, 30 s at 53°C and 1 min at 72°C (for fungi), followed by melt curve from 60°C to 95°C at 0.5°C increment. Triplicate reactions were performed for each DNA extract, standard curve, and negative control. PCR efficiency for different assays ranged between 75% and 95% with R2 > 0.9. The specificity of amplified products was verified by melting curves and agarose gel electrophoresis analysis.
Amplicon sequencing and bioinformatics
⌅Amplicon sequencing was performed using Earth Microbiome Project (EMP) standard protocols (Thompson et al., 2017) at the facilities of Genyo (Granada, Spain). PCR was done in triplicate on the V4 region of the 16S rRNA gene using the primer pair 515f-806r and on the ITS1 region with the primer pair ITS1f-ITS2 (Walters et al., 2015). Barcoded PCR products were quantified using a Qubit dsDNA (Thermo Fisher Scientific) instrument and pooled in equal concentrations. The multiplexed DNA library was purified using Agencourt AMPure XP beads (Beckman Coulter). DNA quality and size were checked with a High Sensitivity DNA Assay (Bioanalyzer 2100, Agilent) and sequenced in an Illumina MiSeq sequencing platform using the Illumina reagent kit V3 (600 cycles) generating 300 bp pair-end reads.
Demultiplexed pair-end Illumina reads were processed using QIIME 2 pipeline v.2019.4 (Bolyen et al., 2019). The cutadapt plugin (Martin, 2011) was used to trim primers. Data was denoised with the q2-dada2 plugin (Callahan et al., 2016) which included: performing sequence quality control, truncation of the reads, stitching R1 and R2 reads, generation of Amplicon Sequence Variants (ASV) and screening out potentially chimeric sequences. PCR negative controls, DNA extraction controls and a commercial mock community sample (ZymoBIOMICS Microbial Community Standard, Zymo Research) were also sequenced by following the same procedure. After checking the very weak amplification of the negative and extraction controls and the correct classification at genus level of the 8 bacterial and 2 fungal strains included in the mock sample (data not shown), control samples were excluded from the analysis. In the case of ITS data, and after a round of analysis, we only used the R1 reads as recommended by Pauvert et al. (2019), improving the taxonomic classification of the mock community at genus level in comparison with the merging of R1 and R2 reads. The parameters used for the DADA2 denoising algorithm within the qiime2 pipeline were as follows: for the 16S dataset, --p-trim-left-f 0, --p-trim-left-r 0, --p-trunc-q 2, --p-trunc-len-f 240 and --p-trunc-len-r 200; for the ITS dataset, and --p-trunc-len 0, --p-trim-left 0, --p-trunc-q 8 and --p-max-ee 8.0. The sequenced dataset has been deposited in the NCBI Biosample Dataset PRJNA629769.
Taxonomy was assigned using the QIIME2 q2-feature-classifier Naïve Bayes machine-learning classifier (Bokulich et al., 2018). The databases SILVA v.132 (Quast et al., 2013) and UNITE v8 dynamic (Kõljalg et al., 2005) were used to train the classifiers for 16S and ITS data, respectively. ASVs assigned to chloroplasts and mitochondria (16S data), and eukaryotic non-fungal linages (ITS) were removed, as also ASVs not classified at phylum level. Diversity indices such as α-diversity (observed ASVs and Shannon’s diversity index) and β-diversity (Bray-Curtis and Jaccard index) were estimated using q2-diversity plugin after samples were rarefied (subsampling without replacement).
We performed a predictive functional profiling of bacterial communities using the PICRUSt software (Langille et al., 2013), that predicts the functional gene content based on KEGG database annotation for reference genomes (Kanehisa et al., 2014). We applied the latest version PICRUSt2 (Douglas et al., 2019), following its GitHub Wiki Manual (https://github.com/picrust/picrust2/wiki). These metagenomic predictions are neutral to whether the input sequences are within a taxonomic reference or not, as PICRUSt2 allows the use of ASV sequences as input data instead of ASV taxonomic assignments. ASVs with nearest sequenced taxon index (NSTI) >2 were excluded. Functional predictions were shown as Enzyme Classification numbers (EC numbers) (Kanehisa et al., 2017).
We performed a predictive functional guild analysis of soil fungi ASVs using FUNGuild version v1.0 (Nguyen et al., 2016), a program that parses ASVs into guilds based on taxonomic assignments. We only considered ASVs with either “probable” or “highly probable” confidence, as stated in FUNGuild, which bases guild assignments on a database curated by experts in fungal linages with >13.000 fungal taxa included (https://github.com/UMNFuN/FUNGuild/blob/master/README.md). We noted that many fungal ITS sequences were not assignable to any guild, probably as a consequence of no relative sequenced isolates included yet in the database.
Statistical analysis
⌅The effects of OM management on crop production, soil respiration, soil chemical properties, and abundance of bacteria and fungi (qPCR) were analyzed using linear mixed-effects models (LMM), with management practice as the fixed factor. For respiration, when we had multiple measurements per greenhouse, greenhouse ID was included as a random factor. In LMM of soil respiration, OM management, time and their interaction were included as fixed factors, and the PVC-collar was considered the repeated measurement unit. Soil temperature and soil water content were included as covariates in soil respiration analysis. As their effect was not significant, these covariates were not included in the final respiration analysis. When necessary, we selected a variance function structure to avoid heteroscedasticity. Logarithmic transformations of respiration and qPCR results were also needed to meet normality assumptions. The restricted maximum likelihood estimator (REML) was used to run the models. Post-hoc comparisons were performed using Fischer’s LSD test for each factor. The combined effects of biotic and abiotic factors on respiration were analyzed using a partial least squares regression (PLS) model, where soil chemical properties, and prokaryotic and fungal DNA abundance (qPCR results) were included as predictors and respiration was the dependent variable.
Unless otherwise specified, all analyses were done with R 3.5.2 version (R Core Team®, 2018) using the interface implemented in InfoStat® 2018 statistical software (Di Rienzo et al., 2019). Significance of differences between treatments were set at p<0.05. Results throughout the text, figures, and tables are mean ± 1 SE.
Finally, Calypso software (Zakrzewski et al., 2017) was used to calculate β-diversity indices on normalized 16S rRNA and ITS datasets, to produce multivariate diagrams and to perform statistical tests on the microbiome data, using the ASV matrix and the taxonomic assignments generated by QIIME2 as input data. We then performed analyses of β-diversity using a Kuskal-Wallis test at a 95% confident level and β-diversity using PERMANOVAs and calculated a linear discriminant analysis (LDA) effect size (LEfSe) algorithm (Segata et al., 2011) to identify specific features (ASVs, taxa and predicted functions) in soils with significant associations to OM managements (p<0.05).
