Impact of different water regimes on maize grown at two distinctive pedo-climatic locations in Bosnia and Herzegovina

Experimental sites: location and climate

Field experiments were carried out for two years (2021, 2022) at two locations in BiH: Aleksandrovac (44°58’27.25” N, 17°18’08.43” E) at the Experimental Educational Centre of the University of Banja Luka, and Butmir (43°49’34.0” N, 18°19’19.8” E) at the Experimental Polygon of the University of Sarajevo (Fig. 1). Aleksandrovac is near Banja Luka, in the north-eastern part of the country, a continental lowland with an elevation of about 125 m a.s.l. Butmir is located near Sarajevo, in the central hilly area with an elevation of about 512 m a.s.l.

Figure 1 Position of Bosnia and Herzegovina in Europe (http://www.bosnaonline.org/opce-karte-bosne-i-hercegovine) and location of experimental sites.

The meteorological data, collected for the period (1961-2020) from the Republic Hydrometeorological Institute of Republika Srpska (https://rhmzrs.com/meteorologija/klimatologija/) and the Federal Hydrometeorological Institute (https://www.fhmzbih.gov.ba/latinica/KLIMA/klimaBIH.php), indicated that Aleksandrovac has a moderate continental climate, with average annual precipitation of 1036 mm, whereas Butmir site is characterized by temperate warm and humid climate with annual precipitation of 942 mm. The average annual temperature is higher at Aleksandrovac (11.3 °C) than at Butmir (10.1 °C). At Aleksandrovac, July is the hottest month, with an average temperature of 21.5 °C, and January the coldest, with an average of -0.3°C. The wettest month is June with an average precipitation of 105 mm. At Butmir, the hottest month is July with an average temperature of 19.6 °C while the coldest is January with an average of -0.3 °C. The wettest month is June with 90 mm of average precipitation.

The long-term average values (1961-2020) of air temperature and precipitation are compared with the data observed during the maize growing season (2021, 2022) for Aleksandrovac and Butmir (Fig. 2). With respect to the long-term averages, air temperature during the growing season at both locations was greater than those 2.1 and 2.3 °C in 2021 and 2022, respectively. The total precipitation during the maize growing cycle in 2021 was higher at Butmir (262 mm) than at Aleksandrovac (234 mm) and it was 46% and 58% of the long-term average, respectively. Precipitation was more evenly distributed at Butmir (74, 25, 21, 62, 45 and 35 mm) than at Aleksandrovac (69, 21, 8, 79, 57 and 1 mm) for April, May, June, July, August and September 2021, respectively. In 2022, the total precipitation during the maize growing cycle was higher at Butmir (374 mm) than at Aleksandrovac (360 mm) and it was about 22% and 36% lower than the long-term average. The total amount of precipitation in 2022 at Aleksandrovac and Butmir was almost 35% and 50% higher compared to 2021.

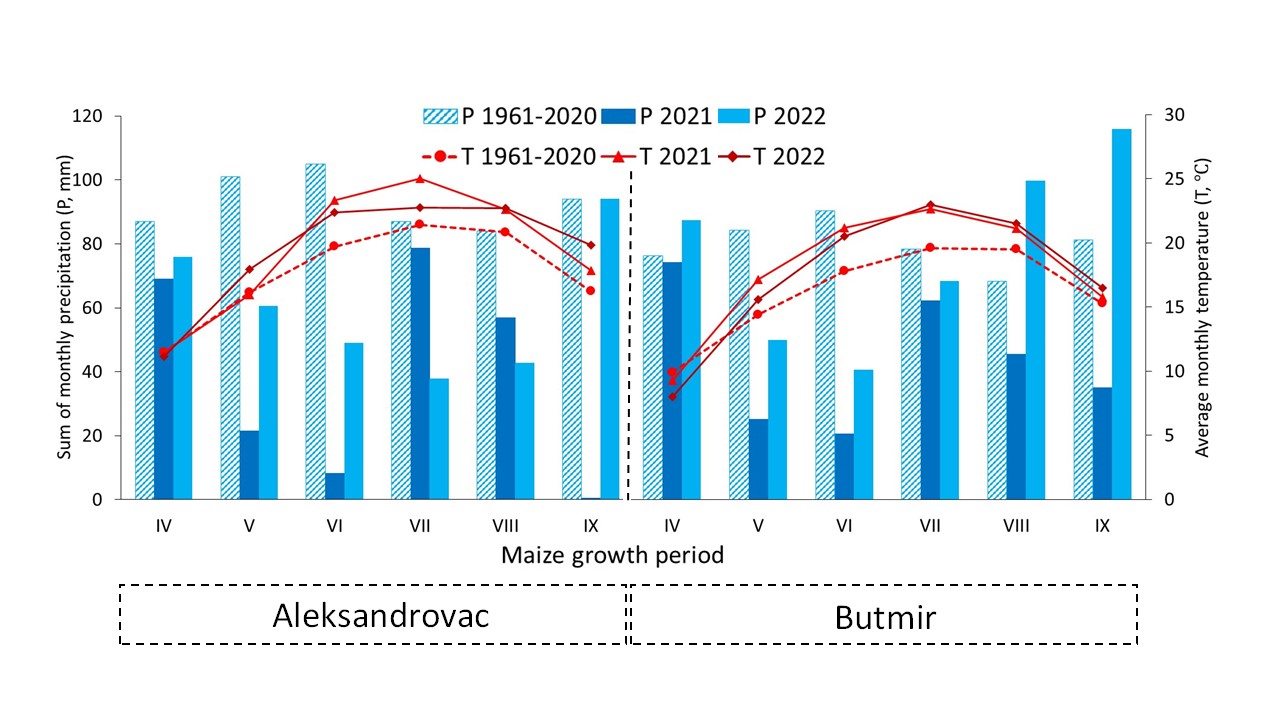

Figure 2 Sum of monthly accumulated precipitation (P) for two maize growing seasons, 2021 (solid dark blue bars), 2022 (solid light blue bars) and the average monthly-accumulated precipitation of the long-time series, 1961-2020 (stripped bars). Monthly average temperature (T) for the maize growing seasons, 2021 (solid red line), 2022 (dashed red line) and monthly average temperature for the long-term series, 1961-2020 (dots line). Values are presented for Aleksandrovac and Butmir experimental locations, BiH.

Experimental locations: soil characteristics

The analysis of the soil physical and chemical characteristics was carried out before the sowing time. Soil profiles were opened to characterize the texture composition and soil water content at field capacity (FC), wilting point (WP), and chemical characteristics (pH, content of organic matter and available nutrients). The gravimetric method was applied for monitoring of the soil moisture content and water balance control. Samples were taken at each plot from a depth of about 30 cm. Total (TAW) and readily (RAW) available water capacity of soil were calculated from the following relation between soil water content at FC and permanent WP:

where

The depletion fraction threshold (p) for no-stress was fixed to 0.55 of TAW for both locations (Allen et al., 1998AllenRG, PereiraLS, RaesD, SmithM, 1998. Crop evapotranspiration: Guidelines for computing crop water requirements. Irrigation. Food and Agriculture Organization of the United Nations, Rome.).

Aleksandrovac site is characterized by deep (>160 cm) Dystric Cambisol mainly of silty-loam texture, according to BiH National Soil type classification (Resulović et al., 2008ResulovićH, ČustovićH, ČengićI, 2008. Sistematika Tla/Zemljišta, Nastanak, Svojstva i Plodnost. Sarajevo: Poljoprivredno-prehrambeni fakultet Univerziteta u Sarajevu.) and the World Reference Base for Soil Resources (IUSS Working Group WRB World Reference Base for Soil Resources, 2022IUSS Working Group WRB World Reference Base for Soil Resources, 2022. International soil classification system for naming soils and creating legends for soil maps, 4th Ed. Vienna, Austria: International Union of Soil Sciences.). The available water content (AWC) over 1.12 m depth was 242 mm (Table 1). The soil has three defined horizons. The first two have a silty loam textural class, while the last one, located at a depth of 64-112 cm, with a clay content of 34.4%, is classified as a silty clay loam textural class (Table 1). In general, it is a moderately acidic soil (pH in H₂O 5.40-5.55) with a very low organic matter content (<2%). The content of easily accessible potassium is high, and the content of phosphorus is low (Table 2).

The area of Butmir is characterized by Fluvial soil type (Resulović et al., 2008ResulovićH, ČustovićH, ČengićI, 2008. Sistematika Tla/Zemljišta, Nastanak, Svojstva i Plodnost. Sarajevo: Poljoprivredno-prehrambeni fakultet Univerziteta u Sarajevu.), with a heavier textural composition (clay content of up to 43.3%) and slightly deeper (up to 120 cm), which is equivalent to a Fluvisol (IUSS Working Group WRB World Reference Base for Soil Resources, 2022IUSS Working Group WRB World Reference Base for Soil Resources, 2022. International soil classification system for naming soils and creating legends for soil maps, 4th Ed. Vienna, Austria: International Union of Soil Sciences.). The soil has four different layers all with clay-loam textural classes and an AWC of about 182 mm for 1.2 m depth (Table 1). At this location, the soil has a slightly acidic pH in H₂O reaction (6.13-6.35). It has average humus content in the surface layer (2.3%), but the content of humus decreases drastically with depth (Table 2). The content of easily accessible phosphorus is low, especially in the second thin layer (30-40 cm). This second soil layer is characterized by high density and low permeability, because of anthropogenic action, i.e., ploughing and tillage by heavy agricultural machines (plow sole) limited to 30 cm depth. The content of easily accessible potassium is medium (Table 2). No skeleton or rock fragments are present in the soil at both locations.

Experimental design and treatments

A randomized block design was adopted at both experimental locations with three replicates to analyse maize response to different water regimes. Three water regimes were applied at both locations: (i) full irrigation (F); (ii) deficit irrigation (D), applying 50% of full irrigation requirements; (iii) rainfed cultivation (R).

The maize (Zea mays L., hybrid BL-43) was cultivated at nine experimental plots (3 replicates per 3 water regimes treatments) with a size per experimental plot of 400 m² (20 m by 20 m) during 2021 and 2022 growing seasons. The distance in row was 20 cm and between rows 70 cm. All measurements were done inside the 5^th row of each plot. At Aleksandrovac, maize was sown on April 22 and 30, emergence took place on May 4 and 10 and harvest was done on September 8 and 15, for 2021 and 2022, respectively. At Butmir, maize was sown on May 9 and 5, emergence took place on May 19 and 17 and harvest was done on October 4 and 5, for 2021 and 2022, respectively.

The maize growing stages were observed directly in the fields. Due to different air temperatures, the sowing was slightly earlier at Aleksandrovac. The total length of all growth stages (initial, crop development, mid-season, late season) during maize growing season at Aleksandrovac was (139, 131, 125 days) in 2021 and (138, 128, 121 days) in 2022 for full, deficit and rainfed water regimes, respectively. At Butmir, the length of growing for F, D and R was respectively 144, 144 and 140 days in 2021 and 147, 146 and 145 days in 2022.

Irrigation and nutrients management

Crop water requirements and irrigation scheduling were managed on a daily basis using an Excel-based irrigation tool (Todorović, 2006TodorovićM, 2006. An excel-based tool for real-time irrigation management at field scale. Int Symp on Water and Land Management for Sustainable Irrigated Agriculture. Adana. pp. 1-11.). The spreadsheet adopts the FAO56 methodology (Allen et al., 1998AllenRG, PereiraLS, RaesD, SmithM, 1998. Crop evapotranspiration: Guidelines for computing crop water requirements. Irrigation. Food and Agriculture Organization of the United Nations, Rome.) to estimate reference evapotranspiration, crop evapotranspiration, soil moisture in the root zone and irrigation requirements. Daily weather variables (temperature and precipitation) were recorded at the weather stations (iMETOS 3.3) located nearby the experimental fields and used in the soil water balance modelling. Reference evapotranspiration was estimated using the FAO Penman-Monteith approach (Allen et al., 1998AllenRG, PereiraLS, RaesD, SmithM, 1998. Crop evapotranspiration: Guidelines for computing crop water requirements. Irrigation. Food and Agriculture Organization of the United Nations, Rome.). Crop evapotranspiration was determined using the single crop coefficient approach as described in Allen et al. (1998AllenRG, PereiraLS, RaesD, SmithM, 1998. Crop evapotranspiration: Guidelines for computing crop water requirements. Irrigation. Food and Agriculture Organization of the United Nations, Rome.). The crop coefficient (K_c) was fixed at 0.4, 1.2 and 0.35 for the initial, mid-season and late season growing stages, respectively. A maximum root depth of 100 cm was considered at both locations, and it was reached around the flowering stage.

In the case of full irrigation treatment, water was applied before the RAW was depleted and the irrigation doses of 50 mm at Aleksandrovac and 30 mm at Butmir were used. Due to the larger volume of irrigation dose and the small discharge of the drip irrigation system, the irrigation of Aleksandrovac was completed in two days. On the first day, the first dose of 25 mm was applied for full irrigation, while on the second day, 25 mm was applied for deficit irrigation and the second part of the water supply for full irrigation.

The deficit irrigation treatments were irrigated on the same dates as the full irrigation treatments but with the half dose of water. In the case of D and R water treatments, a water stress coefficient (K_s) was used, with K_s< 1.0 when soil water depletion in the root zone was greater than p. Then, crop evapotranspiration (ET_c) was adjusted for water stress (ET_c,adj) and computed as:

A drip irrigation system was used and the application efficiency was fixed at 95% (Todorović, 2019TodorovićM, 2019. Crop water requirements and irrigation scheduling. In: Encyclopedia of Water: Science, Technology, and Society 155: 1687-1696. John Wiley & Sons, Inc.10.1002/9781119300762.wsts0204). Irrigation was conducted using 16 mm diameter drip lines, with drippers spaced 10 cm apart. In each plot, 22 drip lines were installed, aligning with the number of maize rows. The drippers delivered water at a rate of 1.06 liters per hour. The spacing between the drip lines matched the distance between maize rows, measuring 0.7 m.

The irrigation was stopped a few weeks before harvesting (kernels’ physiological maturity) at Aleksandrovac, on August 19 (2021) and on August 10 (2022), whereas at Butmir, on September 9 (2021), and on August 28 (2022). At Aleksandrovac, net irrigation supply for F was 430 mm in both years while it was 215 mm for D. At Butmir, net irrigation amounts for F were 360 mm in 2021 and 330 mm in 2022, while they were 50% lower for D.

At the Aleksandrovac site, the basic fertilization program for maize for all water regime treatments was 300 kg ha^-1 of NPK (10:26:26) at tillage (April, 8^th, 2021; April 16^th, 2022) and 200 kg ha^-1 of NPK (15:15:15) at sowing (April, 22^nd, 2021; April 30^th, 2022). The rest of the fertilizer was supplied on two occasions during the maize growing cycle, at six leaf (V6) stage (June 4^th, 2021; June 18^th, 2022), and at fourteen (V14) leaf stage (July 13^th, 2021; July 7^th, 2022), with 50.40 kg of ammonium nitrate (AN) at each occasion. The last two fertilizations were applied by fertigation with an irrigation dose of 8.5 mm per plot area. At the Butmir experimental plot, for all water regime treatments, 625 kg ha^-1 of NPK (7:20:30) fertilizer was applied with the pre-sowing soil preparation (May 3^rd, 2021; April 30^th, 2022). Additionally, 350 kg ha^-1 of NPK 15:15:15 were applied at sowing (May 7^th, 2021; May 5^th, 2022). During the maize growing cycle, fertilization was done at the tenth leaf stage, V10 (July 6^th, 2021; July 11^th, 2022), with an additional quantity of 275 kg ha^-1 of calcium ammonium nitrate with 27% N richness.

Quantification of maize growth yield and its components

At harvest, ten plants from each replicate were randomly selected to determine the following parameters: total dry aboveground biomass (AGB), grain weight per cob (CW), thousand kernels’ weight (TKW), grain yield (GY), harvest index (HI) and yield water use efficiency (YWUE). The dry AGB was presented for the end of the maize growing cycle. The samples were weighed for fresh weight and dried at 70 °C, until they reached a constant weight. The final yield was taken as the grain mass of the number of cobs per plant multiplied by the number of plants per unit area and expressed in kg per hectare. The HI was calculated by dividing the grain dry mass by the aboveground dry biomass. Water use efficiency per unit of GY was determined by dividing the total yield at 14% humidity by the total amount of evapotranspirated water (ET_c accumulated) during the maize growing cycle.

Data analysis

The data were analysed using SPSS statistical package, IBM SPSS Statistics for Windows, version 22 (IBM Corp., Armonk, N.Y., USA). Analysis of variance (ANOVA) was performed to compare water treatments and seasons of the same location. The analyses were performed for AGB, CW, TKW, GY, HI and YWUE for each location, independently. Differences between locations were not statistically compared since nutrient differences were considered important. In addition, the regression procedure was used to perform stepwise multiple regression analysis of independent variables, irrigation and dependent parameters mentioned above. The ANOVA was performed using Fisher’s protected least significance difference (LSD) test at the 95% level of probability. Duncan test was used to identify the means that differ from each other significantly in cases where the ANOVA indicates that there are significant differences between the groups.

Soil water content

The two experimental sites employed different irrigation schedules and doses, with 50 mm per irrigation event (except for first irrigation) at Aleksandrovac and 30 mm at Butmir. At Aleksandrovac, net irrigation supply for full irrigation was 430 mm in both years while it was 215 mm for deficit irrigation. At Butmir, net irrigation amounts for full irrigation were 360 mm in 2021 and 330 mm in 2022, while they were 50% lower for deficit irrigation. The monthly irrigation applied per water regime and the precipitation during the maize growing season are presented in Table 3. The evolution of soil water depletion under different water regimes is shown for both locations and experimental years in Fig. 3.

In the case of full irrigation for both locations and years, soil moisture content was higher than RAW corresponding to the optimum yield threshold. Nevertheless, the irrigation strategy was different. At Aleksandrovac (Fig. 3a), soil moisture content was higher than at Butmir (Fig. 3d) where the soil moisture depletion was close to RAW. In Aleksandrovac, the soil moisture levels remained consistently well above the RAW line (as shown in Fig. 3a and 3g), while in Butmir, the soil moisture levels were closer to the RAW line (as seen in Fig. 3d and 3j).

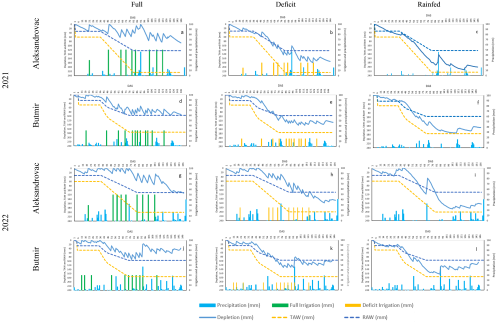

Figure 3 Soil moisture depletion (blue line), total available water (TAW, mm, dashed yellow line), readily available water (RAW, mm, dashed blue line), irrigation (mm, green and yellow bars for full and deficit water regime, respectively) and rainfall (mm, blue bars) for full irrigation, deficit irrigation and rainfed water regimes at Aleksandrovac and Butmir, in 2021 and 2022 maize crop seasons shown in days after sowing (DAS).

For the deficit irrigation treatments, at Aleksandrovac site, the maize crop suffered a slight water stress at 31 days after sowing (DAS) in 2021 (Fig. 3b), and at 83 DAS in 2022 (Fig. 3h) due to the precipitation that was higher in 2022 than in 2021. At Butmir in 2021, the crop was stressed since 71 DAS (Fig. 3e), and in 2022 at 67 DAS (Fig. 3k). Differences in water stress between seasons and locations are attributed to precipitation patterns. At both locations, the maize suffers slight water stress at the flowering stage which becomes moderate later in the season. Nevertheless, in both years, precipitation was greater and more regularly distributed at Butmir than at Aleksandrovac.

In the case of rainfed treatment at Aleksandrovac in 2021, water stress began at 21 DAS and it was intensified throughout the maize cycle. (Fig. 3c). However, in 2022, due to large precipitation at the beginning of the growing season, the first water deficit occurred at 60 DAS (Fig. 3i). At Butmir, in 2021, water deficit was observed at 55 DAS (Fig. 3f), reaching severe stress values at the end of the crop season. In 2022, water deficit started at 48 DAS (Fig. 3l). At both locations and seasons, the crop was water stressed at end of the season.

The differences between locations and seasons were due to different dates of sowing but especially due to different precipitation amounts and their distribution. A heavy rainfall occurred at both locations on mid-July 2021 that substantially improved the crop water status at both locations. At Aleksandrovac, the precipitation was more than two times than at Butmir (69.2 vs. 33.2 mm). Nevertheless, due to the different sowing dates, the precipitation at Butmir was more beneficial than at Aleksandrovac since it happened around flowering and attenuated the effects of water stress. At Aleksandrovac, the precipitation occurred too late, i.e., two weeks after flowering which reduced its positive impact on biomass and yield. During 2022, a higher and more uniformly distributed precipitation during all crop growth season improved crop water status under rainfed at both locations. Again, the amount of precipitation at Butmir was higher than the long-term average.

Cumulative crop evapotranspiration

Crop evapotranspiration (ET_c) was daily estimated and the cumulative values for all water regimes, both locations and years are presented in Table 4. In 2021, cumulative ET_c value of full irrigated treatment was similar for both locations. Nevertheless, in 2022, cumulative ET_c was slightly higher at Butmir than at Aleksandrovac due to differences in meteorological parameters that influence it at two locations.

ET_c rate did not differ at the beginning of the experiment for both locations, water regimes and years. The difference in ET_c between irrigated and rainfed treatments started after the first irrigation date, around mid-May at Aleksandrovac and at the end of May at Butmir. However, limited water availability affected daily evapotranspiration rate at Butmir at 71, 75 and 54, 56 DAS (silking and 12 leaf’s stage, respectively) for D and R treatments in 2021 and 2022 seasons, respectively. At Aleksandrovac, ET_c was affected by water stress at 22, 29 and 51, 57 DAS (3/4 leaf’s stage and silking stage, respectively) for D and R treatments in 2021 and 2022 seasons, respectively. The difference in accumulated ET_c was observed between the tasselling and silking stage for all water regimes.

Dry above-ground biomass, cob weight, thousand kernels’ weight, grain yield, harvest index and yield water use efficiency

The total dry AGB, CW, TKW, GY and HI were affected by water regime at Aleksandrovac site (Table 5). This was particularly found for GY between all water regimes. However, no difference between water regimes was found for YWUE at this location. At Butmir site, all the yield-related variables, except HI, were significantly affected by rainfed conditions (Table 5). The effect of the year was significant for AGB and TKW at Aleksandrovac, and for AGB, CW, TKW and HI in Butmir. No difference in GY and YWUE efficiency have shown between years at both locations.

In general, the average values of AGB, CW, TKW and GY were higher at Butmir than at Aleksandrovac (Table 6). At Aleksandrovac, a difference between water regimes was found for GY and CW. No difference between F and D water regimes was found for AGB and HI, whereas no difference between all water regimes was found for YWUE. At Butmir, a difference between water regimes was found for AGB. No difference between F and D water regimes was found for GY and TKW, whereas no difference between all water regimes was found for HI. YWUE differed between D and R water regimes.

Effect of climate on soil water content and maize crop growth

According to the data presented in Fig. 2, irregular precipitation patterns and a shortage of rainfall at both locations during the maize growth seasons of 2021 and 2022 were observed when compared to the historical long-term average. The precipitation in 2022 was almost double compared to 2021. However, its positive impact on water deficit treatments was higher at Butmir than at Aleksandrovac due to a more regular rainfall regime which support the soil moisture and nitrogen content in the root zone. The monthly average air temperatures were higher from 1.2 up to 3.6 °C compared to long-term data for both years and locations. In 2022 the temperatures were higher than in 2021, considered very warm - extremely above normal- weather conditions. The high temperatures and the water deficit affected maize growth and yield, similarly in different locations (Sah et al., 2020SahRP, ChakrabortyM, PrasadK, PanditM, TuduVK, ChakravartyMK, et al., 2020. Impact of water deficit stress in maize: Phenology and yield components. Sci Rep10: 2944. 10.1038/s41598-020-59689-7; Monteleone et al., 2022MonteleoneB, BorzíI, BonaccorsoB, MartinaM, 2022. Developing stage-specific drought vulnerability curves for maize: The case study of the Po River Basin. Agr Water Manag269: 107713. 10.1016/j.agwat.2022.107713; Sheoran et al., 2022SheoranS, KaurY, KumarS, ShuklaS, RakshitS, KumarR, 2022. Recent advances for drought stress tolerance in maize (Zea mays L.): Present status and future prospects. Front Plant Sci13(872566): 1580. 10.3389/fpls.2022.872566), as well as in all the study region (Stricevic et al., 2018StricevicR, StojakovicN, Vujadinovic-MandicM, TodorovicM, 2018. Impact of climate change on yield, irrigation requirements and water productivity of maize cultivated under the moderate continental climate of Bosnia and Herzegovina. J Agr Sci156(5): 618-627. 10.1017/S0021859617000557, 2021StricevicR, Vujadinovic MandicM, DjurovicN, LipovacA, 2021. Application of two measures of adaptation to climate change for assessment on the yield of wheat, corn and sunflower by the Aquacrop model. Zemljište i Biljka70(1): 41-59. 10.5937/ZemBilj2101041S).

Water stress of the D and R treatments occurred much earlier at Aleksandrovac than at Butmir due to different sowing dates, precipitation patterns and irrigation schedules. The period of water stress at Aleksandrovac started around the tasseling and influenced maize development and yield more than at Butmir. Zhang et al. (2019ZhangG, ShenD, MingB, XieR, JinX, LiuC, et al., 2019. Using irrigation intervals to optimize water-use efficiency and maize yield in Xinjiang, Northwest China. Crop J7(3): 322-334. 10.1016/j.cj.2018.10.008) found that increasing the frequency of irrigation events (keeping the volume constant) there was an improvement in crop yield. Butmir applied a higher-frequency lower-dose irrigation schedule compared to Aleksandrovac, that can explain the higher yield.

At Butmir, as a result of soil characteristics, especially its depth and the presence of a highly compacted layer or plow sole at a depth of 30 to 40 cm, the use of water in the complete soil profile, as well as the capillary rise of water was limited, i.e., slowed down. During the germination and early root growth periods maize plants had enough water and nutrients for growth. During the root development the lack of water affected the weak development of the roots for non-irrigated plants, which reflected the growth of maize under rainfed conditions. In such conditions, maize under F and D water regimes had the possibility of faster initial development and of ensuring sufficient strength for partial penetration through this compacted soil layer. However, maize under R water regime in the initial period of 2021 did not receive a sufficient amount of precipitation as in 2022 and slowed growth as well as restrained the mass of roots in the surface layer of the soil up to 30 cm. It has already been found that biomass accumulation and morphological traits in plants are influenced by soil texture and evapotranspiration, closely related to crop growth and yield productivity (Katerji et al., 2010KaterjiN, MastrorilliM, CherniHE, 2010. Effects of corn deficit irrigation and soil properties on water use efficiency. A 25-year analysis of a mediterranean environment using the STICS model. Eur J Agron32(2): 177-185. 10.1016/j.eja.2009.11.001; Monteleone et al., 2022MonteleoneB, BorzíI, BonaccorsoB, MartinaM, 2022. Developing stage-specific drought vulnerability curves for maize: The case study of the Po River Basin. Agr Water Manag269: 107713. 10.1016/j.agwat.2022.107713).

Crop evapotranspiration under different water regimes

Irrigation started when the RAW was depleted, on May 10 and 17, 2021, and on May 18 and 18, 2022, at Aleksandrovac and Butmir, respectively. Maize under rainfed conditions presented water stress already in the initial growth stage (May), reducing the evapotranspiration rate at both locations, especially at Aleksandrovac. At the initial stage, ET_c was mainly related to soil evaporation since the crop coverage was rather poor and soil evaporation was the main component of total ET_c (Allen et al., 1998AllenRG, PereiraLS, RaesD, SmithM, 1998. Crop evapotranspiration: Guidelines for computing crop water requirements. Irrigation. Food and Agriculture Organization of the United Nations, Rome.). Total accumulated evapotranspiration increased with raising water use in the experiment, and for F and D water regimes had a similar value as shown in previous studies in the region (Vučetić, 2011VučetićV, 2011. Modelling of maize production in Croatia: Present and future climate. J Agr Sci149(2): 145-157. 10.1017/S0021859610000808; Pejić et al., 2020PejićB, MačkićK, BajićI, SikoraV, SimićD, Jančić-TovjaninM, et al., 2020. Calculation of maize evapotranspiration using evaporation and reference evapotranspiration methods. Zemljište i Biljka69(2): 15-25. 10.5937/ZemBilj2002015P; Stricevic et al., 2021StricevicR, Vujadinovic MandicM, DjurovicN, LipovacA, 2021. Application of two measures of adaptation to climate change for assessment on the yield of wheat, corn and sunflower by the Aquacrop model. Zemljište i Biljka70(1): 41-59. 10.5937/ZemBilj2101041S). However, with optimal use of precipitation and water reserves in the soil, maize crop reached evapotranspiration from 545 to 578 mm in the maize growing period, while in other studies in the region, ET_c is reported between 472 and 570 mm.

In temperate climate conditions, it is difficult to achieve a defined deficit water regime, due to precipitation events that occur during all crop growth period. In such climate conditions, irrigation is often only an additional measure (supplemental irrigation). Deficit irrigation means that maize received approximately less irrigation water as previously defined, but due to soil water storage and precipitation, total ET_c does not follow % of recommended water amount for the deficit irrigation regime. It should be noted that the deficit water regimes have higher precipitation use efficiency in comparison with the full water regime.

Water stress at both locations affected maize crop evapotranspiration as shown in the accumulated ET_c at the end of the maize growing period which is in line with results obtained in other studies (Vučetić, 2011VučetićV, 2011. Modelling of maize production in Croatia: Present and future climate. J Agr Sci149(2): 145-157. 10.1017/S0021859610000808; Djaman et al., 2018DjamanK, O’NeillM, OwenCK, SmealD, KoudaheK, WestM, et al., 2018. Crop evapotranspiration, irrigation water requirement and water productivity of maize from meteorological data under semiarid climate. Water10(4): 405. 10.3390/w10040405; Pejić et al., 2020PejićB, MačkićK, BajićI, SikoraV, SimićD, Jančić-TovjaninM, et al., 2020. Calculation of maize evapotranspiration using evaporation and reference evapotranspiration methods. Zemljište i Biljka69(2): 15-25. 10.5937/ZemBilj2002015P). In particular, water stress that occurred before and during tasseling and reproductive stage affected crop growth (Djaman et al., 2013DjamanK, IrmakS, RathjeWR, MartinDL, EisenhauerDE, 2013. Maize evapotranspiration, yield production functions, biomass, grain yield, harvest index, and yield response factors under full and limited irrigation. T ASABE56(2): 373-393. 10.13031/2013.42676; Kresović et al., 2016KresovićB, TapanarovaA, TomićZ, ŽivotićL, VujovićD, SredojevićZ, et al., 2016. Grain yield and water use efficiency of maize as influenced by different irrigation regimes through sprinkler irrigation under temperate climate. Agr Water Manag169: 34-43. 10.1016/j.agwat.2016.01.023).

Total biomass and grain yield under different water regimes

In future climate conditions, maize growth and development could be more affected by drought and heat stress (Lizaso et al., 2018LizasoJI, Ruiz-RamosM, RodríguezL, Gabaldon-LealC, OliveiraJA, LoriteIJ, et al., 2018. Impact of High temperatures in maize: Phenology and yield components. Field Crops Res216: 129-140. 10.1016/j.fcr.2017.11.013; Li et al., 2022LiT, ZhangXP, LiuQ, LiuJ, ChenYQ, SuiP, 2022. Yield penalty of maize (Zea mays L.) under heat stress in different growth stages: A review. J Integr Agr21(9): 2465-2476. 10.1016/j.jia.2022.07.013). Water availability is a crucial factor that affects maize production. In this study, water deficit treatments significantly reduced biomass accumulation, grain CW, TKW and GY as it was already shown in the literature (Abeledo et al., 2020AbeledoLG, SavinR, SlaferGA, 2020. Maize senescence under contrasting source-sink ratios during the grain filling period. Environ Exp Bot180: 104263. 10.1016/j.envexpbot.2020.104263; Sah et al., 2020SahRP, ChakrabortyM, PrasadK, PanditM, TuduVK, ChakravartyMK, et al., 2020. Impact of water deficit stress in maize: Phenology and yield components. Sci Rep10: 2944. 10.1038/s41598-020-59689-7; Monteleone et al., 2022MonteleoneB, BorzíI, BonaccorsoB, MartinaM, 2022. Developing stage-specific drought vulnerability curves for maize: The case study of the Po River Basin. Agr Water Manag269: 107713. 10.1016/j.agwat.2022.107713; Sheoran et al., 2022SheoranS, KaurY, KumarS, ShuklaS, RakshitS, KumarR, 2022. Recent advances for drought stress tolerance in maize (Zea mays L.): Present status and future prospects. Front Plant Sci13(872566): 1580. 10.3389/fpls.2022.872566).

Water deficit accompanied with high temperature and low air humidity at flowering was observed at Aleksandrovac for all treatments which strongly impacted the biomass and yield. Maize growth for this hybrid at Aleksandrovac location showed lower biomass accumulation, cob weight and GY compared to an average year (GY=13,300 kg ha^-1 were reported in other works: http://www.poljinstrs.org/sr-YU/zavodzakukuruz/zk-domaci-hibrid-bl-43.html). The GY at Butmir was in average 31.64, 64.51 and 12.80% higher compared to Aleksandrovac for F, D and R water regimes, respectively. It can be attributed to higher nutrient inputs and a more regular precipitation pattern which reduces N leaching from the root zone. Extremely high temperatures at the critical stage of maize development such as flowering affected the final yield, as observed in other studies worldwide (Paredes et al., 2014ParedesP, de Melo-AbreuJP, AlvesI, PereiraLS, 2014. Assessing the performance of the FAO AquaCrop model to estimate maize yields and water use under full and deficit irrigation with focus on model parameterization. Agr Water Manag144: 81-97. 10.1016/j.agwat.2014.06.002; Hütsch & Schubert, 2017HütschBW, SchubertS, 2017. Chapter Two - Harvest index of maize (Zea mays L.): Are there possibilities for improvement?Adv Agron146: 37-82. 10.1016/bs.agron.2017.07.004; Sah et al., 2020SahRP, ChakrabortyM, PrasadK, PanditM, TuduVK, ChakravartyMK, et al., 2020. Impact of water deficit stress in maize: Phenology and yield components. Sci Rep10: 2944. 10.1038/s41598-020-59689-7). Moreover, pedoclimatic and management differences, such as different soil characteristics (Tolk & Evett, 2012TolkJA, EvettSR, 2012. Lower limits of crop water use in three soil textural classes. Soil Sci Soc Am J76(2): 607-616. 10.2136/sssaj2011.0248), local climatic conditions (https://www.fhmzbih.gov.ba/latinica/KLIMA/klimaBIH.php), as well as the amount of applied fertilizer (higher in Butmir) could attributed to the final yield difference between locations.

The final yield under F and D water regimes at Butmir location reflected the optimal use of water and nutrient resources under these pedo-climatic conditions. The highest yield at Butmir could be explained by the use of more assimilates for grain production at maturity (Abeledo et al., 2020AbeledoLG, SavinR, SlaferGA, 2020. Maize senescence under contrasting source-sink ratios during the grain filling period. Environ Exp Bot180: 104263. 10.1016/j.envexpbot.2020.104263). The ability of hybrids to use efficiently precipitation and nutrients is very important, especially after the silking stage. This also could help to increase the kernel number per plant, enhance a biomass allocation to reproductive sinks and improve GY (Wang et al., 2011WangT, MaX, LiY, BaiD, LiuC, LiuZ, et al., 2011. Changes in yield and yield components of single-cross maize hybrids released in China between 1964 and 2001. Crop Sci51(2): 512-525. 10.2135/cropsci2010.06.0383; He et al., 2017HeJ, WenR, TianS, SuY, HeX, SuY, et al., 2017. Effects of drought stress and re-watering on growth and yield of different maize varieties at tasseling stage. Agr Sci Technol18(7): 1145-1151.). Maize can be tolerant during the vegetative growth stage while the greatest impact on crop growth may be due to soil moisture and nutrients deficit accompanied by high temperature during the flowering period and grain filling stages (He et al., 2017HeJ, WenR, TianS, SuY, HeX, SuY, et al., 2017. Effects of drought stress and re-watering on growth and yield of different maize varieties at tasseling stage. Agr Sci Technol18(7): 1145-1151.; Lizaso et al., 2018LizasoJI, Ruiz-RamosM, RodríguezL, Gabaldon-LealC, OliveiraJA, LoriteIJ, et al., 2018. Impact of High temperatures in maize: Phenology and yield components. Field Crops Res216: 129-140. 10.1016/j.fcr.2017.11.013; Monteleone et al., 2022MonteleoneB, BorzíI, BonaccorsoB, MartinaM, 2022. Developing stage-specific drought vulnerability curves for maize: The case study of the Po River Basin. Agr Water Manag269: 107713. 10.1016/j.agwat.2022.107713; Sheoran et al., 2022SheoranS, KaurY, KumarS, ShuklaS, RakshitS, KumarR, 2022. Recent advances for drought stress tolerance in maize (Zea mays L.): Present status and future prospects. Front Plant Sci13(872566): 1580. 10.3389/fpls.2022.872566; Wang et al., 2022WangZ, SunW, LiuX, LiY, CollinsB, UllahN, et al., 2022. Analysis on heat characteristics for summer maize cropping in a semi-arid region. Agronomy12(6): 1435. 10.3390/agronomy12061435).

Yield water use efficiency and harvest index at two distinctive pedo-climatic locations

Maize is a C4 crop and higher values of YWUE compared to C3 crops were expected due to the higher potential to capture radiation, water, N and CO₂. The values of YWUE reported in this study agree with those reported in the literature for similar pedo-climatic conditions (Pejić et al., 2011PejićB, MaheshwariB, SeremesićS, StričevićR, Pacureanu-JoitaM, RajićM, et al., 2011. Water-yield relations of maize (Zea mays L) in temperate climatic conditions. Maydica56(4): 315-321.; Rodić Trifunović et al., 2015Rodić TrifunovićS, StričevićR, ĐurovićN, 2015. Water use efficiency of irrigated and rainfed crops of great importance in Serbia. Agro-Know J15(3): 243. 10.7251/AGRSR1403231T), i.e. in a range of values (1.7-2.7 kg m³). These values confirm that YWUE for maize grown under water deficit could be as high as in fully irrigated plants. The lower YWUE for all water regimes in Aleksandrovac and R conditions in Butmir (1.7-1.9) kg m³ compared to those observed in the region (Pejić et al., 2011PejićB, MaheshwariB, SeremesićS, StričevićR, Pacureanu-JoitaM, RajićM, et al., 2011. Water-yield relations of maize (Zea mays L) in temperate climatic conditions. Maydica56(4): 315-321.) could be connected to the extreme drought under rainfed conditions in Butmir and drought accompanied by high temperature during the experimental seasons in Aleksandrovac. The authors suggested that according to the studies from 1976-2006, good water use efficiency was mostly achieved under irrigation conditions, where the values range in the largest number, over 2.5 kg m^-3, while under conditions of natural water supply, it was observed greater variation (from 1.4 to 2.5 kg m^-3). The total GY of maize was improved with irrigation, although the reduced (limited) water application especially for D water regime at Butmir showed higher YWUE (2.7 kg m³). This can be attributed to the soil spatial variability, which at some plots affected the soil moisture availability. It was more evident in deeper soil layers where the plant was able to explore it. For instance, high values of YWUE over 3 kg m^-3 were found in other studies in the region (Rodić Trifunović et al., 2015Rodić TrifunovićS, StričevićR, ĐurovićN, 2015. Water use efficiency of irrigated and rainfed crops of great importance in Serbia. Agro-Know J15(3): 243. 10.7251/AGRSR1403231T) and worldwide (Djaman et al., 2013DjamanK, IrmakS, RathjeWR, MartinDL, EisenhauerDE, 2013. Maize evapotranspiration, yield production functions, biomass, grain yield, harvest index, and yield response factors under full and limited irrigation. T ASABE56(2): 373-393. 10.13031/2013.42676, 2018DjamanK, O’NeillM, OwenCK, SmealD, KoudaheK, WestM, et al., 2018. Crop evapotranspiration, irrigation water requirement and water productivity of maize from meteorological data under semiarid climate. Water10(4): 405. 10.3390/w10040405).

This study was performed at two distinctive pedo-climatic locations, where the degree and duration of water and temperature stress during different crop growth periods played an important role in YWUE. Therefore, specific weather conditions, agronomic management (nutrient inputs) and soil hydraulic characteristics may be a reason for YWUE difference between locations. Katerji & Mastrorilli (2009KaterjiN, MastrorilliM, 2009. The effect of soil texture on the water use efficiency of irrigated crops: Results of a multi-year experiment carried out in the Mediterranean Region. Eur J Agron30(2): 95-100. 10.1016/j.eja.2008.07.009) found that soil texture might have a potential effect on YWUE. Although YWUE may increase in limited water conditions, careful water management and a suitable soil texture should be considered for improving YWUE and final yield (Tolk & Evett, 2012TolkJA, EvettSR, 2012. Lower limits of crop water use in three soil textural classes. Soil Sci Soc Am J76(2): 607-616. 10.2136/sssaj2011.0248).

A close positive correlation between dry matter accumulation and GY has been already reported in the literature for maize production (Paredes et al., 2014ParedesP, de Melo-AbreuJP, AlvesI, PereiraLS, 2014. Assessing the performance of the FAO AquaCrop model to estimate maize yields and water use under full and deficit irrigation with focus on model parameterization. Agr Water Manag144: 81-97. 10.1016/j.agwat.2014.06.002; Abeledo et al., 2020AbeledoLG, SavinR, SlaferGA, 2020. Maize senescence under contrasting source-sink ratios during the grain filling period. Environ Exp Bot180: 104263. 10.1016/j.envexpbot.2020.104263). HI increases when the crop allocates more assimilates to grain and less to the rest of the biomass which could be influenced by water regimes (Unkovich et al., 2010UnkovichM, BaldockJ, ForbesM, 2010. Chapter 5 - Variability in harvest index of grain crops and potential significance for carbon accounting: Examples from Australian agriculture. Adv Agron105: 173-219. 10.1016/S0065-2113(10)05005-4). The values found in our study in general were similar to those reported in the literature for well irrigated maize (0.5). However, for rainfed conditions at Aleksandrovac, a smaller value of HI was found (0.4). The advancement or delay of flowering due to the different irrigation treatments may have caused high temperatures to affect plants of one irrigation treatment more than the other. As the HI can vary due to environmental changes, higher HI for 2022 (0.6) compared to 2021 (0.4) at Butmir could be a result of more biomass accumulation related to grain mass accumulation, which could be due to the difference in precipitation between the years. Maize grown under deficit irrigation experienced water stress and in this condition the plant should allocate a greater portion of their resources to maintain basic physiological functions and survival rather than to the development of the grain. Therefore, maize HI was influenced by the temperature, the amount of precipitation and their seasonal distribution, as well as by the water availability during the crop's most sensitive growth period (Unkovich et al., 2010UnkovichM, BaldockJ, ForbesM, 2010. Chapter 5 - Variability in harvest index of grain crops and potential significance for carbon accounting: Examples from Australian agriculture. Adv Agron105: 173-219. 10.1016/S0065-2113(10)05005-4; Ion et al., 2015IonV, DicuG, DumbravaM, TemocicoG, AlecuIN, BasaAG, et al., 2015. Harvest index at maize in different growing conditions. Rom Biotechnol Lett20(6): 10951-10960. 10.1016/j.aaspro.2015.08.036; Hütsch & Schubert, 2017HütschBW, SchubertS, 2017. Chapter Two - Harvest index of maize (Zea mays L.): Are there possibilities for improvement?Adv Agron146: 37-82. 10.1016/bs.agron.2017.07.004).

Conclusions

This study represents a first attempt to demonstrate the importance of experimental findings related to maize growth under different water regimes at two distinctive pedo-climatic locations in Bosnia and Herzegovina. In as much as a local hybrid (BL-43) resistant to drought is tested, the benefits and requirements of maize irrigation were confirmed, along with a need for appropriate nutrient management. In both locations, the effect of the irrigation water regime was statistically significant in maize GY, confirming the beneficial impact of irrigation in temperate climate zones such as that of BiH. A lower yield for this hybrid was found at Aleksandrovac compared to Butmir, which might be explained by extreme drought and temperature stress that occurred during the most sensitive period of growth and by limited fertilizers’ inputs. The effect of multiple abiotic stresses such as increased temperature and water stress on maize crop response should be discriminated to keep the GY stable under changing climatic conditions (decrease and variability of precipitation and increase of air temperature). A deeper understanding of pedo-climatic characteristics and crop parameters is essential to properly address the irrigation scheduling and nitrogen inputs in the areas characterized by temperate climate and non-homogeneous soils. It is particularly important to evaluate the potential of maize hybrids under different water and nitrogen inputs under slight to moderate water stress conditions. In this context, the present research on a local hybrid can support further selection of drought stress tolerant hybrids for different pedo-climatic conditions of Bosnia and Herzegovina.
