Abstract Energy crops cultivation is expected to further increase, which represents an opportunity to establish synergies able to enhance key environmental components (i.e. soil). To reach this benefits crop management is crucial and should be properly assessed. The aim of this work is to provide an insight on the effects of sewage sludge compost (SSC) on soil properties, when this material is applied as basal dressing for the cultivation of a Mediterranean energy crop (Cynara cardunculus L.). A 3-years trial (2008/2011) was conducted in Alicante (Southeastern Spain), testing four SSC application rates (0, 30, 50 and 70 t/ha) on a heavy textured Anthrosol. The addition of SSC enhanced soil fertility, primarily increasing organic carbon (Cox), Kjeldahl nitrogen (Nk), available P (PBurriel), CuDTPA and ZnDTPA levels. Comparatively with the control (0 t/ha), 30, 50 and 70 t/ha treatments induced a rise of 11%, 19% and 25% in Nk (Control=1.11 g/kg) and PBurriel (Control=79 mg/kg), while for Cox (Control=11.8 g/kg) was 14%, 21% and 30%. However, these variables apparently did not significantly decrease throughout the experiment, which suggests that the organic matter added was under a stabilization process, favoured by the poor physical properties of the soil. Other elements (NaNH4Ac, KNH4Ac, MnDTPA) were accumulated within the soil as time passed by, as a result of soil status, Mediterranean environmental conditions and crop management. The use of SSC as organic fertilizer represents an effective option to optimize cynara cultivation systems while improving soil quality through enhanced long-lasting organic matter pools. Additional key words: sewage sludge compost; sustainability; cardoon; wastewater treatment by-products; organic amendment; energy crop management; soil protection. Abbreviations used: CaCO3eq (equivalent calcium carbonate); Cox (oxidable organic carbon); EC (electrical conductivity); EU (European Union); IVIA (Valencian Institute of Agricultural Research); Nk (Kjeldahl nitrogen); PBurriel (available P for the plant extracted with the Burriel-Hernando method); SOM (soil organic matter); SS (sewage sludge); SSC (sewage sludge compost); XDTPA (element extracted with diethylenetriaminepentaacetic acid, DTPA); XNH4Ac (element extracted with ammonium acetate; NH4Ac). Citation: Lag-Brotons, A. J.; Gómez, I.; Navarro-Pedreño, J. (2015). Sewage sludge use in bioenergy production. A case study of its effects on soil properties under Cynara cardunculus L. cultivation. Spanish Journal of Agricultural Research, Volume 13, Issue 1, e11-001, 14 pages. http://dx.doi.org/10.5424/sjar/2015131-6145. Received: 24 Apr 2014. Accepted: 16 Jan 2015 http://dx.doi.org/10.5424/sjar/2015131-6145 Copyright © 2015 INIA. This is an open access article distributed under the Creative Commons Attribution License (CC by 3.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. Funding: This research was supported by the Spanish Ministry of Innovation and Science through a research fellowship (AP2007–01641) and by Miguel Hernández University as hosting institution. Competing interests: The authors have declared that no competing interests exist. Correspondence should be addressed to Alfonso J. Lag-Brotons: alag@umh.es |
|
CONTENTS |
Energy crops cultivation can potentially improve key ecosystem components, such as the soil, through synergies implemented by sustainable management criteria. Concerns about energy security and environmental threats (i.e. CO2 effect on climate change) have led to strategies oriented towards sustainability, as the Directive 2009/08/EC, which established legally binding targets within the European Union (EU) for 2020 in order to reach a 20% share of renewable energy on the final energy consumption. Within the renewable energy pool, energy obtained from biomass is expected to increase considerably, being partially fulfilled by dedicated energy crops grown in abandoned or marginal lands (Bentsen & Felby, 2012). Energy crops cultivation aims to maximize biomass feedstock obtained per unit of area, minimize production inputs, and avoid land competition with edible crops. Complementary to these traits, several environmental co-benefits can be achieved through energy crops cultivation, such as the protection of soil, the increase in the terrestrial carbon sinks and reservoirs and the reduction of greenhouse gases emissions (Sims et al., 2006). In order to achieve these environmental benefits key ecosystem components, as the soil, should be considered within energy crops management. Soil quality is regarded as an essential indicator of the sustainability of the agro-systems (Muller, 2009) and is related with the quality and the quantity of soil organic matter (SOM) (Karlen et al., 2001). In Mediterranean regions, SOM stocks are low or very low (Albaladejo et al., 2013), thus being prone to soil degradation (Loveland & Webb, 2003) and, consequently, vulnerable versus desertification processes. Moreover, it is expected that climate change will aggravate the conditions of Mediterranean environments, mainly due to an increase in the frequency of extreme events (i.e. droughts) and due to the rise of temperature (IPCC, 2007), which will likely induce a decrease of SOM content. Therefore, the enhancement of SOM levels is advisable, especially in Mediterranean countries, and has been recognized as an efficient option to tackle soil degradation (Gobin et al., 2011). The implementation of this option within the context of energy crops cultivation turns out in the application of organic amendments to the soil, which partially fulfils crop nutritional requirements and improves soil quality.
Composted sewage sludge is a suitable material to be applied as an organic amendment to energy crops systems due to its beneficial effects in the soil-plant system. Sewage sludge (SS) is an organic by-product derived from the treatment of urban wastewater, whose production has increased considerably in the recent years as a result of higher population and stringent water quality standards (Fytili & Zabaniotou, 2008). Whilst its composition is dependent on wastewater treatment processes, in general terms, is characterized by high levels of organic matter, organic nitrogen, P, Fe and Zn (Fytili & Zabaniotou, 2008). Precisely for these characteristics, when SS is applied as an amendment, it enhances soil fertility and SOM levels, as well as potentially contributes to the short-term carbon sequestration (Soriano-Disla et al., 2010). Consequently, the preferred end use of SS in the EU is found in the agricultural sector, applying to the lands more than 30% of the total production (>10·106 t on dry basis) (Mahmoud et al., 2012). Regarding energy crops trials, it has been successfully applied as organic fertilizer, enhancing the quantity and the quality of the biomass produced (Mahmoud et al., 2012; Mañas et al., 2013), thus appearing as an interesting organic fertilizer to complement or even replace the inorganic fertilization usually applied to energy crops (Quaye & Volk, 2013). However, there are some drawbacks to take into consideration on SS land application, as the presence of heavy metals (Smith, 2009) and toxic elements for the plant (Noble & Roberts, 2004). An efficient option to minimize these undesirable effects is composting, which reduces heavy metal availability and diminish the presence of plant pathogens and organic toxicants (Barker & Bryson, 2002; Noble & Roberts, 2004). As observed for SS, when sewage sludge compost (SSC) is applied to the soil, fertility and plant growth are enhanced (Casado-Vela et al., 2006; Larchevêque et al., 2006; Song & Ju Lee, 2010). However, SS and SSC differ significantly in a crucial trait: the nature of the organic matter. Uncomposted SS presents greater proportion of labile organic matter (Blagodatskaya & Kuzyakov, 2008) while in its composted form has greater proportion of humic-like substances which are resistant to biodegradation, thus remaining for a comparatively longer period within the soil (Pérez Lomas et al., 2010), slowly releasing nutrients as mineralization occurs (Gil et al., 2011). It should be considered that land application of SSC is particularly effective in Mediterranean areas due to the improvement of soil physical properties (García-Orenes et al., 2005) and SOM levels for a comparatively longer period, which contributes to cope with soil salinization and erosion (Tejada et al., 2006). Irrespective of SS form, the use of these waste materials results in inputs costs savings when compared with exclusively inorganic-based fertilization (Song & Ju Lee, 2010). Thereby, if the aim pursued with the use of organic residues is the improvement of the soil-plant system in a sustained and sustainable way, SSC appears to be more appropriate than SS applications for Mediterranean environments.
Agro-system dedicated to the production of bioenergy is an old concept that has gained importance in the recent decade. Just to mention the example of the species used in this experiment, the research on Cynara cardunculus L. (cynara) as a Mediterranean energy crop for the production of biomass started in the 1980’s (Fernández et al., 2006). Nowadays, the bibliography available is extensive, covering the production, the quality and the thermal behavior of cynara biomass (Monti et al., 2008; Angelini et al., 2009), as well as many other aspects of its industrial applications (Fernández et al., 2006). However, the effects of organic fertilization in cynara’s cultivation systems are still uncertain. Inorganic fertilization has been tested, mostly based on N-fertilization treatments (Grammelis et al., 2008), even though K-fertilization treatments (Solano et al., 2010) and N-P-K fertilization treatments (Ierna et al., 2012; Mauromicale et al., 2014) have been also described. Concerning organic fertilization, Mañas et al. (2013) evaluated the effects of SS, while Lag-Brotons et al. (2014a) tested the effects of SSC, being both studies limited to the first year of cynara cultivation. Additionally, Lag-Brotons et al. (2014b) reported the effects of cynara’s productivity in a three-year trial. From the aforementioned studies, just Lag-Brotons et al. (2014a) reported soil data on the effects of fertilization treatments. Data describing the effects of cynara’s fertilization treatments on soil properties beyond the first year of cultivation are needed in order to allow growers to evaluate the suitability of SSC use as organic amendment.
Motivated by the previous considerations, the main aims of this study were: i) to ascertain the effects of SSC on soil properties and; ii) the determination of the optimum SSC application dose while considering crop management effects on soil status.
Site description

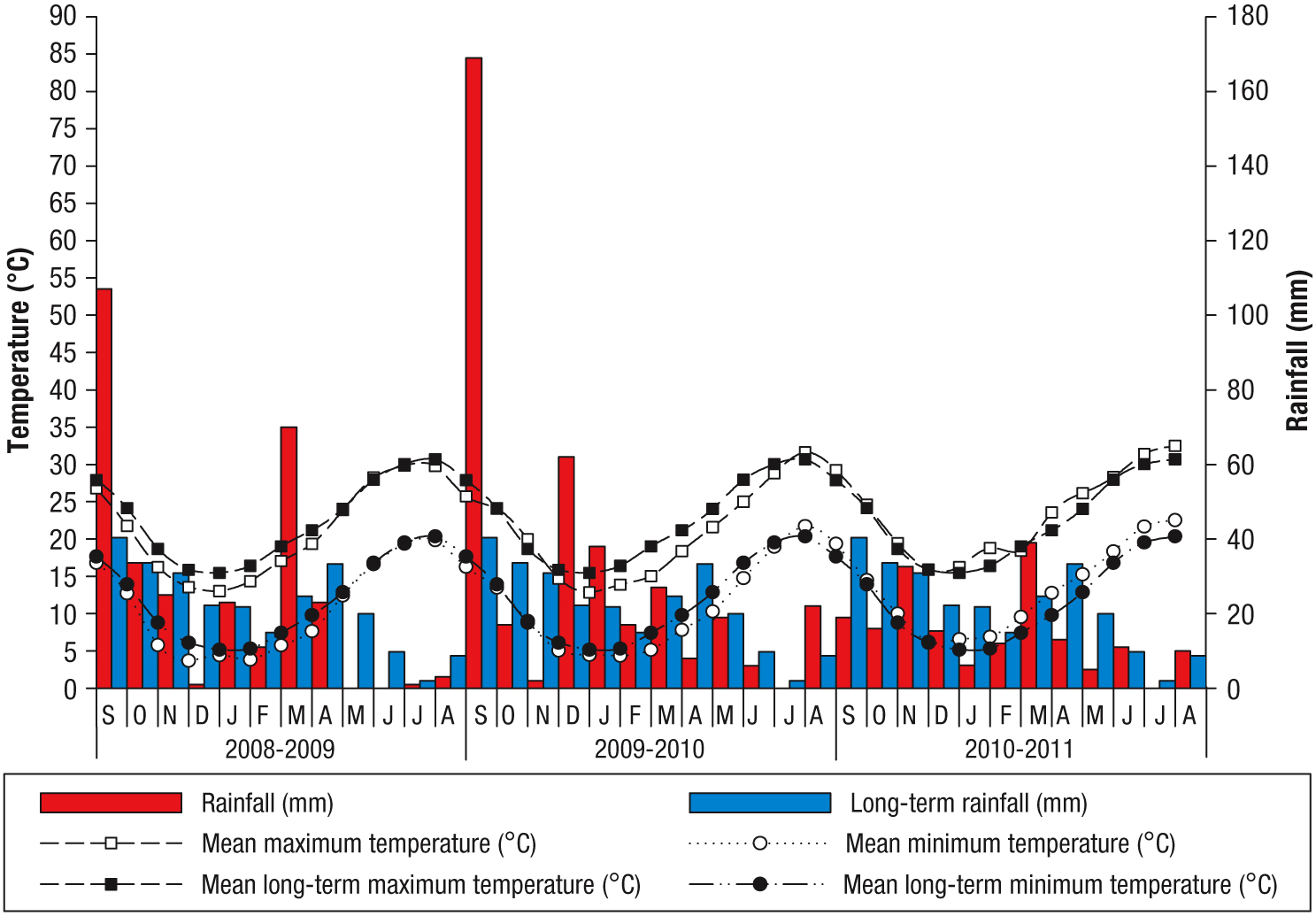

A 3-year field experiment (2008-2011) was conducted in Alicante (38° 13’ N, 0º 42’, 98 m a.s.l.), South-East Spain. The soil was a heavy textured Anthrosol (Table 1), which had been used for the production of artichoke (Cynara cardunculus L. var. scolymus) and ornamental flowers. The local climate of the region is semiarid-Mediterranean with mild winters and hot rainless summers. On the 1999-2013 series (long-term), recorded near the experimental field (38° 14’ N, 0° 41’, 98 m a.s.l.) at an agro-meteorological station of the Valencian Institute of Agricultural Research (IVIA), mean annual temperature and accumulated precipitation were 12°C and 262 mm, respectively. Rainfall, daily maximum and minimum air temperature during the experiment were recorded at the previously mentioned IVIA station and are shown in Fig. 1.
|
|
Experimental materials

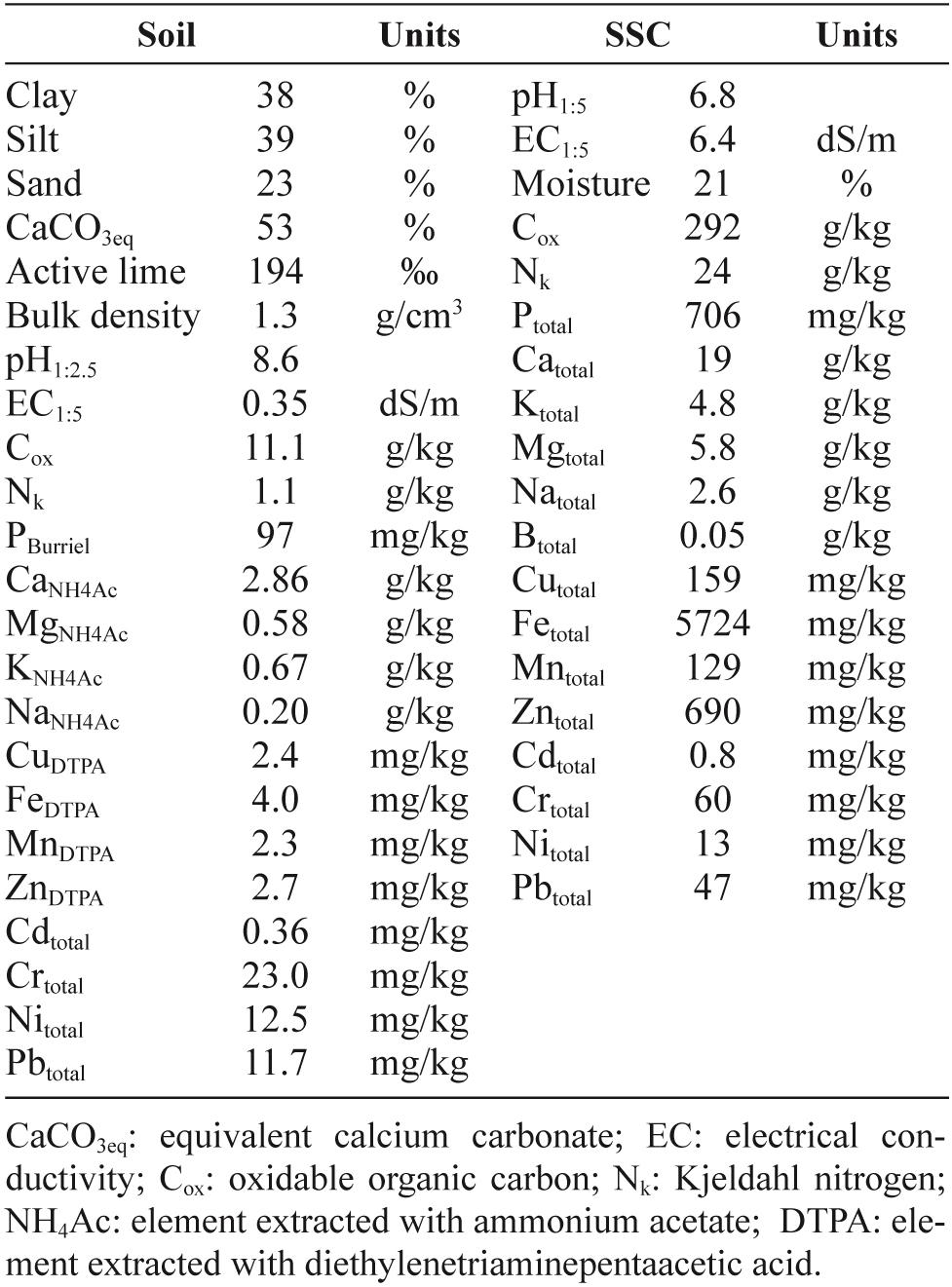

he SSC was obtained from the municipal wastewater treatment plant of Aspe, Alicante (Spain). The compost consisted of SS mixed with sawdust and straw as co-composting agents in an approximate proportion of 4:3:1 (v/v). Compost samples were analyzed under the recommended standards in Spanish Royal Decree 824/2005, in its annex VI (BOE, 2005). The characteristics of SSC are shown in Table 1. Irrigation water consisted in a mixture of good quality water (inter-basin transfer water of Tajo-Segura) and medium quality water (secondary treatment water from Algoros wastewater treatment plant) and presented the following characteristics: EC, 1.8 dS/m; pH, 7.9; Nk, <5 mg/L; chemical oxygen demand, 34 mg O2/L; biochemical oxygen demand5, 9 mg O2/L; Cl–, 301 mg/L; NO3–, 7 mg/L; HCO3–, 177 mg/L; NH4+, 8.1 mg/L; B, 0.7 mg/L; Ca2+, 53 mg/L; K+, 17 mg/L; Mg+2, 49 mg/L; Na+, 190 mg/L. Cynara seeds (Cynara cardunculus L. var. altilis DC - cultivated cardoon) were commercially obtained.
Experimental set-up
In a completely randomized block experimental design with three replications at similar locations, four SSC application rates were assessed. Each plot was split into four subplots (9.6 m2 each), corresponding to the different SSC treatments. Compost was applied as an organic amendment that substituted the inorganic basal dressing normally done before plant establishment. The SSC treatments were designed to enhance soil organic carbon, avoid excessive N-fertilization and not surpass heavy metals application limits of the Spanish Royal Decree 1310/1990 (BOE, 1990), which for soils with pH>7 are (mg/kg of dry matter): Cd=3; Cu=210; Ni=112; Pb=300; Zn-450; Cr=150. The following application rates, expressed in t SSC/ha, were tested: 0 (T0), 30 (T1), 50 (T2) and 70 (T3). It was assumed that 15% of SSC organic N-content would be released (Gil et al., 2011; López-López et al., 2012). Consequently, the corresponding N-fertilization rates of SSC treatments were 0, 85, 142 and 200 kg-N/m2. Compost treatments were similar to the typical SSC dosage applied on field experiments (Casado-Vela et al., 2006; Larchevêque et al., 2006; De Andrés et al., 2007). The incorporation of SSC into the soil was done by ploughing to a depth of 30 cm two weeks prior transplanting (year 2008/2009). Twelve cynara seedlings per SSC treatment were transplanted into the field on October 31 2008 (48 seedlings per plot), in a 1.0 × 0.8 m format (12,000 plants/ha). Irrigation was carried out between November and June, maintaining the total amount of water available for the plant (rainfall + irrigation) at 760 mm/year, approximately. Every year 50-80-100 kg/ha of N-P2O5-K2O were applied along with irrigation water in order to restore nutrients extracted by the crop.
Data collection
Soil samplings were carried out every four months, starting two weeks after the incorporation of SSC to the soil and finishing on July 2011 (9 samplings). From each subplot, four soil samples were randomly taken (16 samples per plot) after removing vegetable material from the soil surface. Soil samples were collected up to 15 cm depth, air-dried at room temperature and sieved to pass through a 2 mm mesh. Then, they were stored in polyethylene bags and maintained at constant temperature (≈ 15°C) until further analysis. Soil pH and EC determinations were carried out in soil/deionised water suspension of 1:2.5 and 1:5 (w/v) respectively (MAPA, 1986). Oxidable organic carbon (Cox) was determined by the Walkey Black method (Nelson & Sommer, 1996) while nitrogen contained in the organic fraction of soil (Nk) was analyzed by the Kjeldahl method (Bremner, 1965). Available phosphorous (PBurriel) was determined using the Burriel-Hernando method (Díez, 1982). Concerning the available elements for the plant, Ca, K, Mg, and Na were extracted with ammonium acetate extract (NH4Ac) while micronutrients (Cu, Fe, Mn and Zn) were extracted with diethylenetriaminepentaacetic acid (DTPA) (Lindsay & Norvell, 1978). In these soil extracts, CaNH4Ac, MgNH4Ac and DTPA-extracted micronutrients were measured by ion absorption spectrometry, while NaNH4Ac and KNH4Ac were measured by ion emission spectrometry.
Data analysis
The main aim of data analysis was to ascertain the effects of SSC applications on soil properties (SSC effects). In addition, the evolution of soil variables throughout the experimental period (time effects) was considered. Studied factors (SSC, time and their interaction) were assessed by using a two-way Analysis of Variance (ANOVA) (p<0.05). Whenever a variable was demeed as significant, means were separated by using Duncan’s range test (p<0.05). In addition, Pearson correlations (p<0.05) were calculated between soil variables in order to further explain the effects observed throughout time. Soil data were log10-transformed prior to ANOVA and Pearson’s correlation analysis in order to meet normality. Mean values, standard deviations and standard errors of untransformed data are reported. Statistical analyses were calculated by using SPSS software (v 21.0; Armonk, NY; IBM Corp).
Significant differences (p<0.05) due to the effect of SSC treatments and time were observed, while the interaction of these factors resulted non-significant (Table 2). To a lesser or greater extent, the totality of soil variables varied with time. Similarly, SSC treatments affected most of studied variables, with the exception of CaNH4Ac, KNH4Ac and NaNH4Ac (Table 2).

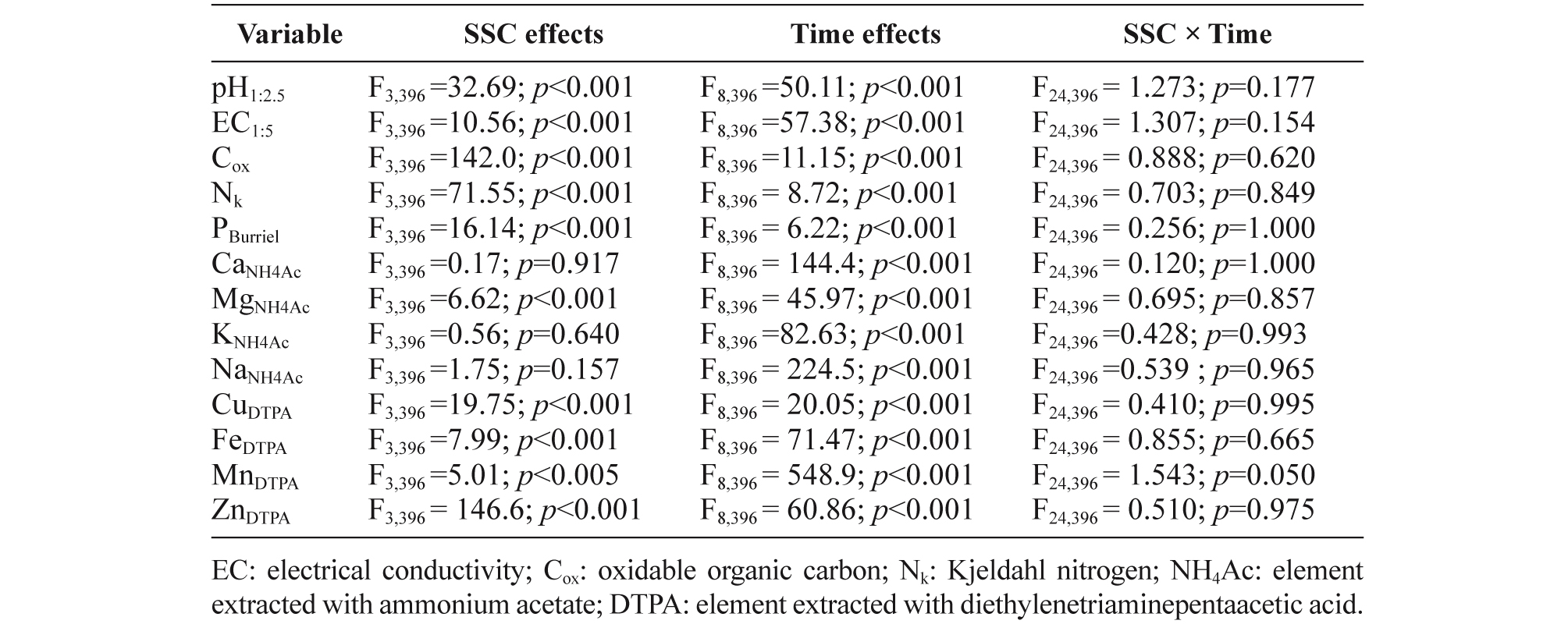

Table 2. Two-way ANOVA F-test statistics for differences caused by sewage sludge compost (SSC) and time on soil properties

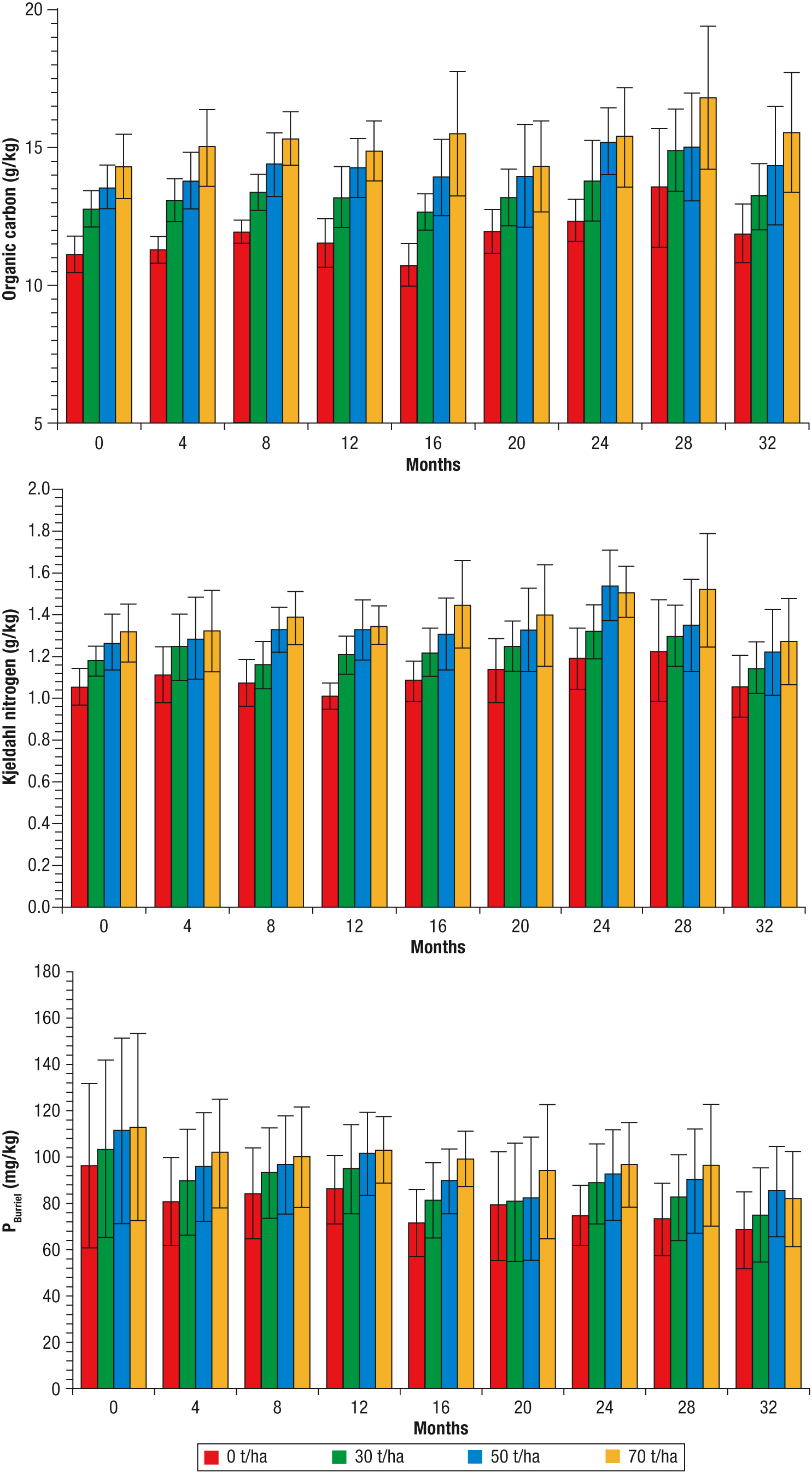

Concerning Cox, Nk and PBurriel concentration, both SSC treatments influenced the levels of these elements (Table 2). However, while the increasing trend due to SSC treatments was fairly observable, especially for Cox and Nk (Table 3, Fig. 2), the trend due to the pass of time was not so evident (Fig. 2). In fact, it was observed a scarce increase when the Cox and Nk levels at 24-28 months were compared with the previous soil samplings (data not shown). Whilst significant, the deviations from the mean (Fig. 2) suggested that it was a minor effect, thus being SSC treatments the primary effect. The increment observed in the concentration of Nk and PBurriel regarding control value (T0) of T1,T2, andT3 soil samples was 11%, 19% and 25%, respectively, while that of Cox was 14%, 21% and 30%, respectively.

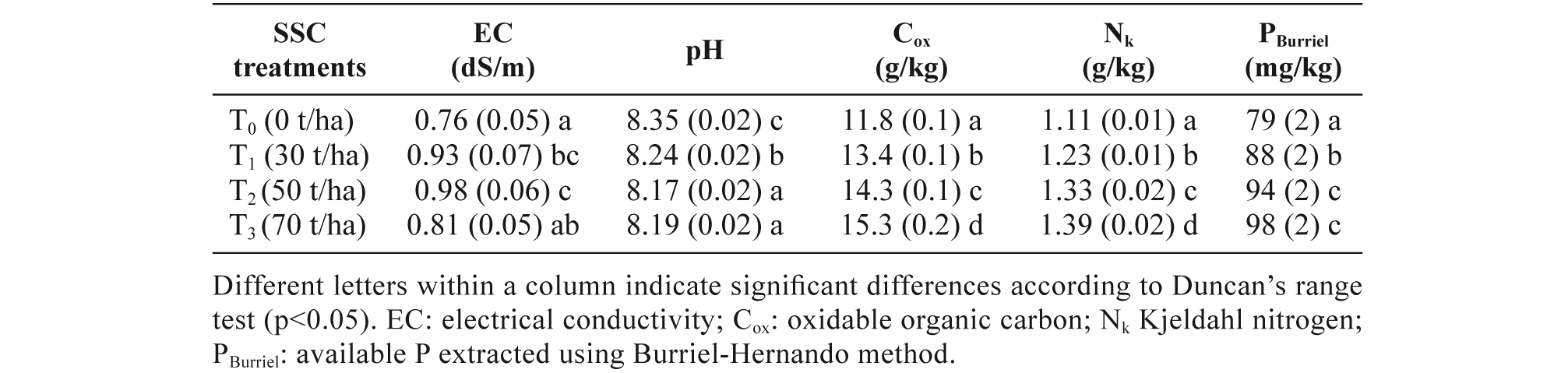

Table 3. Physicochemical properties of studied soil as affected by sewage sludge compost (SSC) treatments. The mean value and the standard error (between brackets) throughout the 3-years of experiment are shown (n=108).
|
|

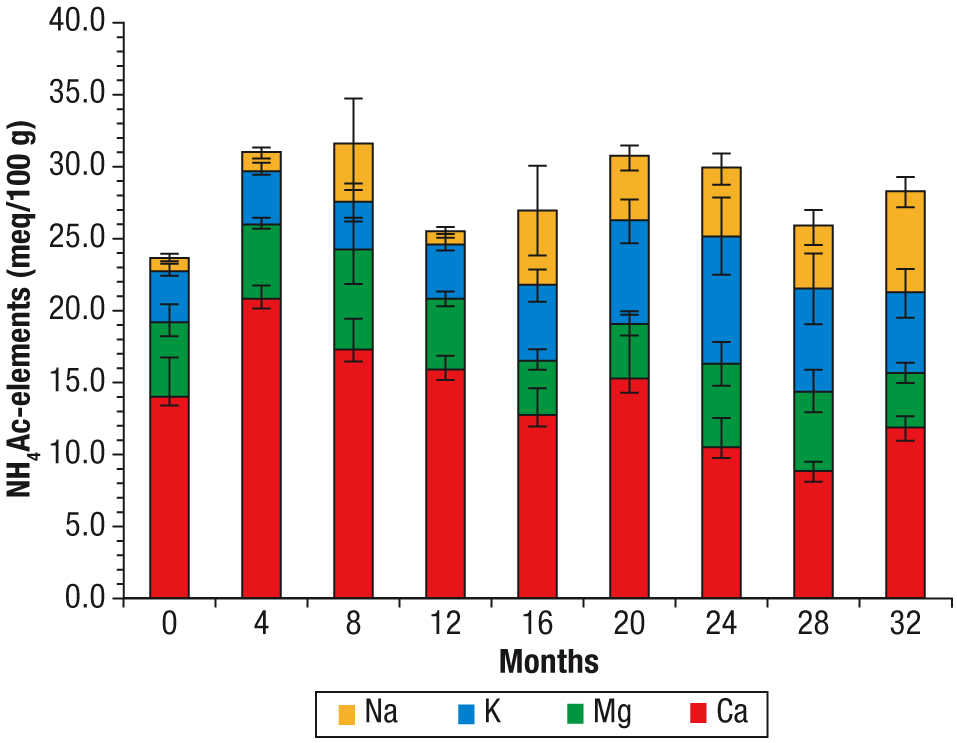

Regarding ammonium acetate–extracted elements (CaNH4Ac, MgNH4Ac, KNH4Ac and NaNH4Ac), the influence of time was determining while SSC treatments effects were marginal, except for MgNH4Ac (Table 2). Whilst MgNH4Ac concentration was slightly affected by SSC treatments, CaNH4Ac, KNH4Ac and NaNH4Ac were not affected by the application of composted materials (Tables 2 and 4). Concerning time effects, none of these elements showed a clear trend, yet the concentration of NaNH4Ac and KNH4Ac, comparatively with the beginning of the experiment, apparently tend to increase (Fig. 3). The concentration of KNH4Ac started at 0.7 g/kg (0 months), then increased up to a maximum of 1.7 g/kg (24 months), to finally end at a concentration of 1.1 g/kg. Similarly to KNH4Ac, the concentration of NaNH4Ac remained stable (approximately 0.2 g/kg) during the first year of cultivation (12 months). Then increased up to 1.1 g/kg and stayed at that value until the last sampling, when it increased up to 1.6 g/kg. In order to further explore the variations observed throughout time, the mean value irrespective of SSC treatment for each element within each soil sampling was calculated and represented in Fig. 4. As can be observed, CaNH4Ac was the element which, in general terms, contributed to a greater extent to these cations pool. In addition, MgNH4Ac decreased while KNH4Ac and NaNH4Ac increased their share to the general pool.

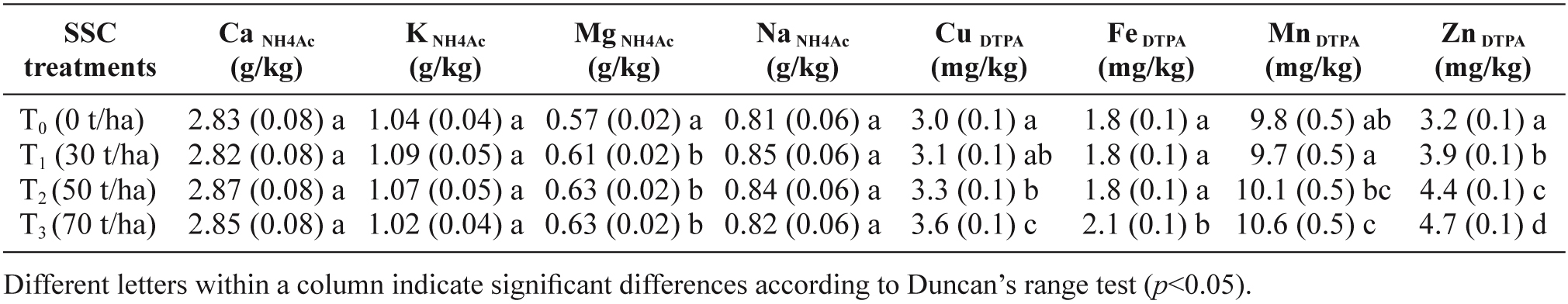

Table 4. Concentration of the available elements extracted with ammonium acetate (CaNH4Ac, MgNH4Ac, KNH4Ac and NaNH4Ac) and diethylenetriaminepentaacetic acid (CuDTPA, FeDTPA, MnDTPA and ZnDTPA) in the studied soil as affected by sewage sludge compost (SSC) treatments. The mean value and the standard error (between brackets) throughout the 3-years of experiment are shown (n=108)
|

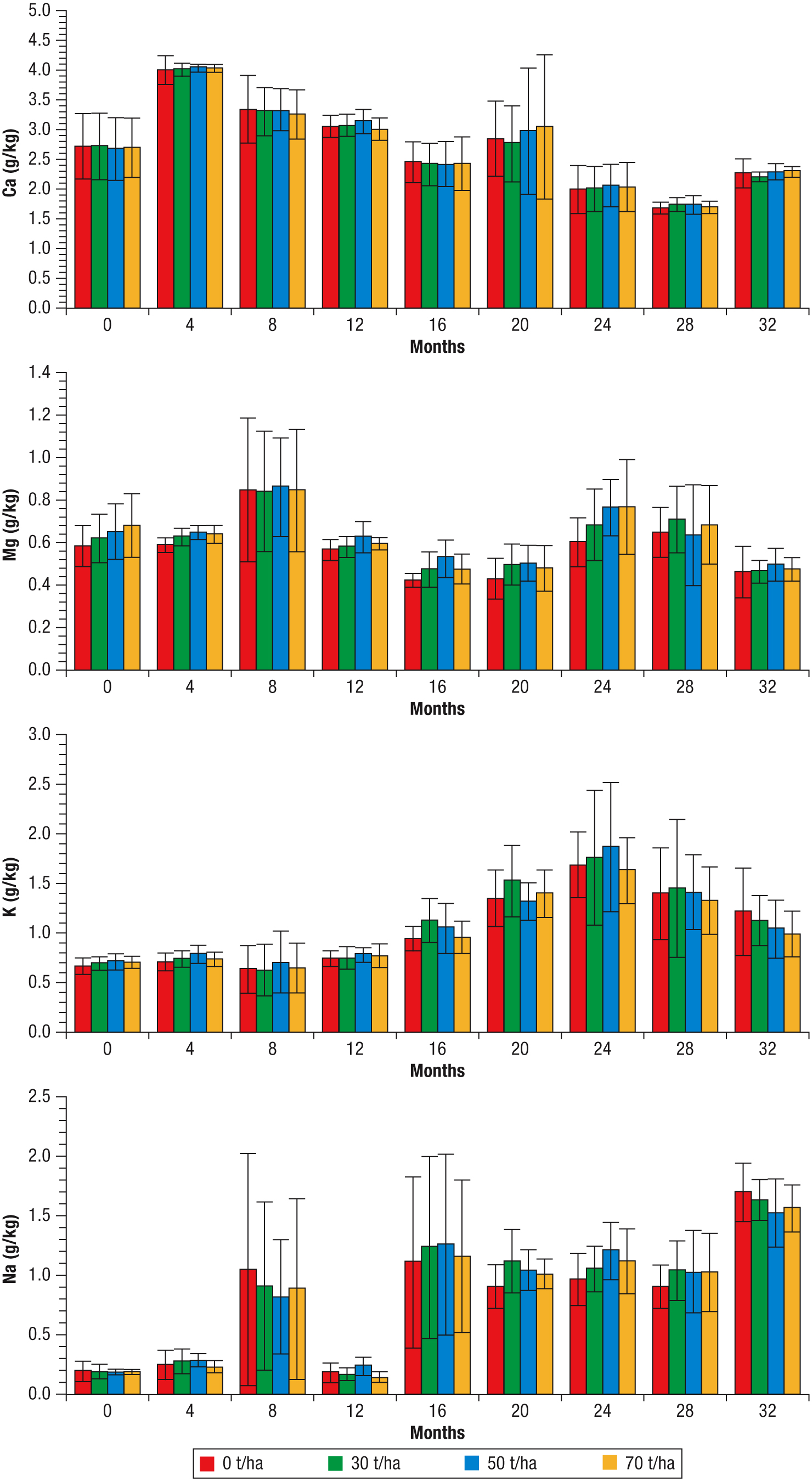

Figure 3. Ammonium acetate extracted elements (Ca, K, Mg and Na) soil concentration throughout the experimental period. Each bar colour indicates the sewage sludge compost treatment used. Mean values and standard deviation are shown (n=4). |
|
|

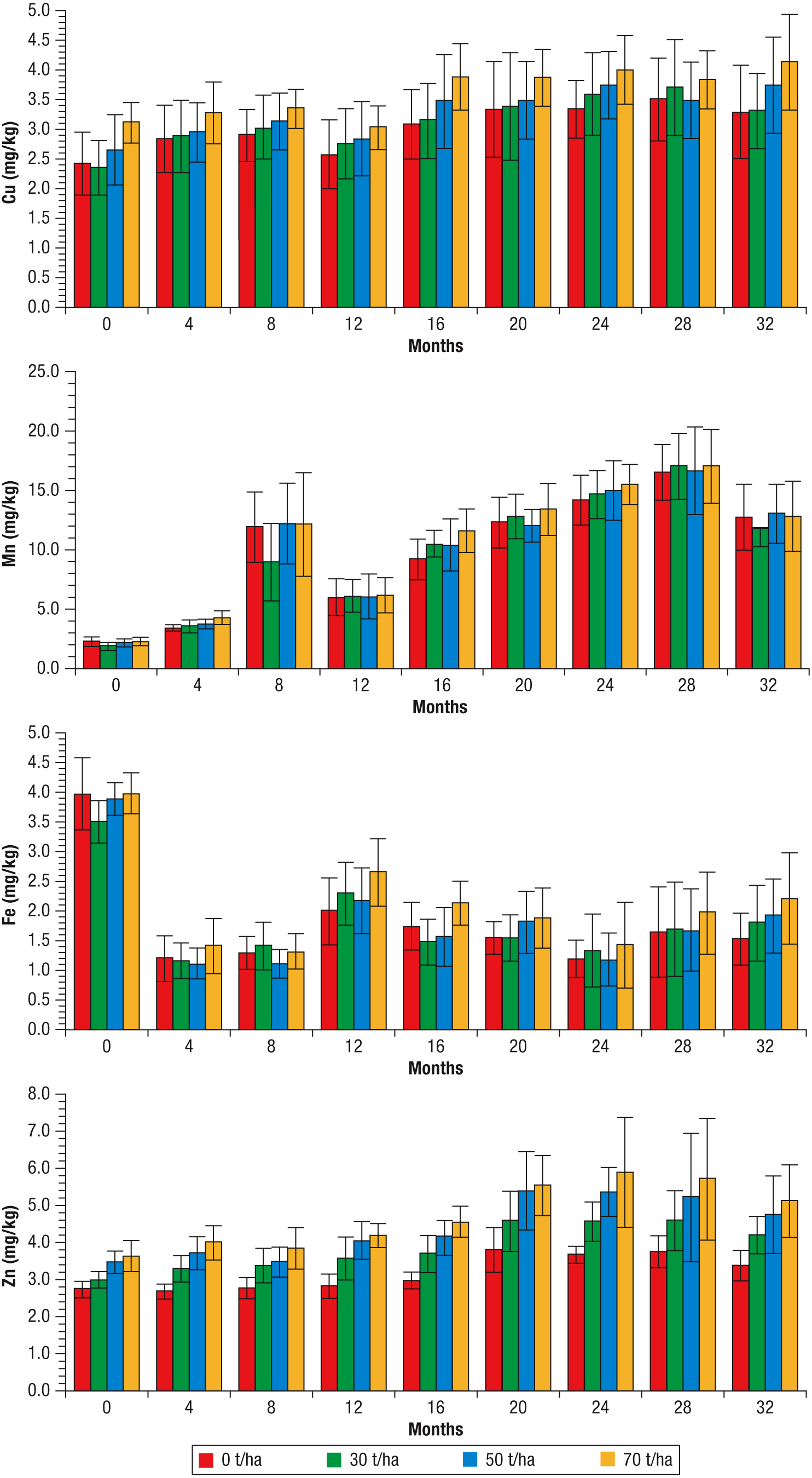

Micronutrients concentration increased as a result of SSC treatments (Table 4). The element that SSC treatments affected to a greater extent was ZnDTPA (Table 2), whose concentration in T3 was increased by 50% regarding control. The rest of the micronutrients (CuDTPA, FeDTPA, MnDTPA) were also affected, being the differences evident between T0 and T3 samples. Regarding time effects, MnDTPA and ZnDTPA concentration increased, FeDTPA concentration decreased and CuDTPA concentration remained fairly stable (Fig. 5). The concentration of ZnDTPA increased as time passed by, especially from the sampling corresponding to 20 months onwards (Fig. 5). Comparatively with ZnDTPA, the increase in the availability of MnDTPA due to time effects was far more evident (Table 2), as its concentration constantly increased from the start of the trial up to the 8th sampling (28 months) (Fig. 5). On average basis irrespective of SSC treatments, MnDTPA concentration started at 2.2 mg/kg and ended at 12.6 mg/kg. Concerning FeDTPA, it started at a concentration of 4 mg/kg, reaching a final concentration of 1.8 mg/kg (Fig. 5). It should be noted that the drastic reduction in FeDTPA availability from 0-4 months could be motivated by the abundance carbonates present in the studied soil (See Table 1).
|
|

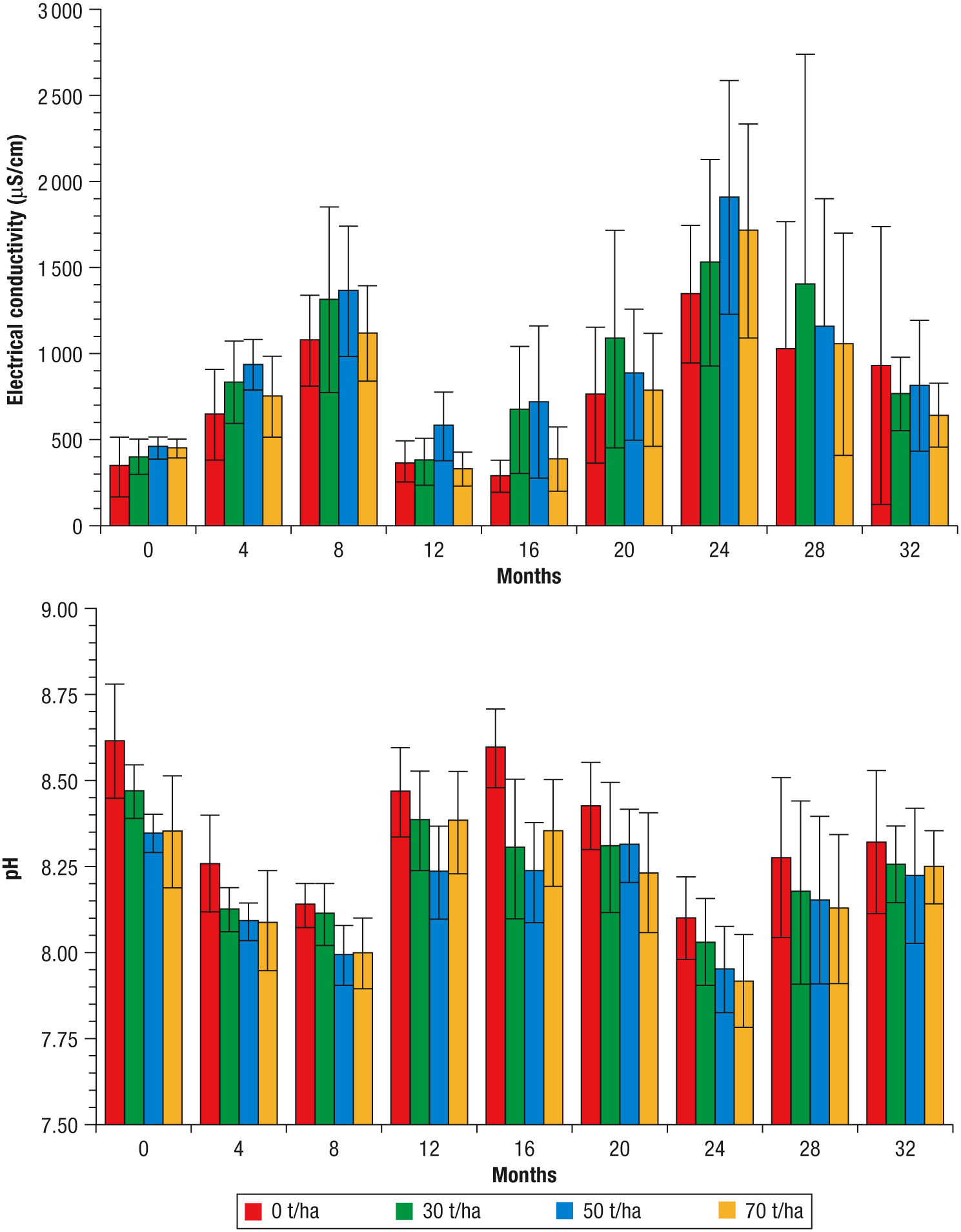

The application of SSC treatments slightly decreased soil pH, yet did not clearly influence soil EC (Table 3). Generally, it could be expected that higher application rates of composted materials, thus enhanced salt loading, would lead to higher EC. However, this trend was not observed (See Table 3). Hence, if EC variations throughout time (Fig. 6) are considered, it could be assumed that time was the main driving factor regarding EC dynamics. This asseveration could be extended to pH dynamics also, as wider variations were observed for time rather than for SSC treatments. In order to ascertain the causes underlying EC variation and considering that EC values are related to the presence of salts in the soil solution, Pearson correlations between EC and the sum of cations (Ca, K, Mg and Na), as well as between EC and the sum of cations with greater solubility among those analyzed (K, Mg and Na) were calculated. The results indicated a stronger significant correlation between EC and the more soluble cations (n=432; r=0.697; p<0.01) in comparison with the correlation between all the elements extracted with ammonium acetate and the EC values (n=432; r=0.573; p<0.01).
|
|
The effects observed throughout the experimental period could be reasonably assumed to be related with crop management and with the Mediterranean traits of the experimental plots soil. It was observed that soil EC and the concentration of CaNH4Ac, KNH4Ac, MgNH4Ac, NaNH4Ac and MnDTPA were mainly driven by time effects. In addition, the EC trend appeared to be linked with the variation in the concentration of K, Mg and Na. Generally, Mediterranean soils tend to present clayey texture, thus high water holding capacity, and low structural stability, which in many cases indicates low water infiltrability (Torrent, 2005). Considering that these features are likely to be present in the soil of the experimental plots (See Table 1), saturation conditions and impeded drainage might have occurred. If so, soil aeration would have been limited and soil conditions would have favored the reduction of Mn to the divalent form, which is more soluble (El-Jaoual & Cox, 1998), leading to the sustained increase in MnDTPA concentration that was observed. Similarly, the probable reasons underlying the accumulation of NaNH4Ac, a readily soluble element, close to soil surface were the combination of poor drainage and high evapotranspiration conditions, which are common factors of occurrence in arid and semi-arid regions (Sakadevan & Nguyen, 2010). In the present experiment, both Na and K, were primarily incorporated through irrigation water applied, being the accumulation of these elements a likely source that contributed to modify soil EC. Another fact indicative of the poor physical properties of the studied soil is the scarce variation observed in Cox and Nk levels. Considering that organic substrates added to the soil are biologically degraded (Vargas-García & Suárez-Estrella, 2008), those soil properties related to the organic fraction, such as Cox and Nk, are normally expected to decrease over time (Larchevêque et al., 2006), yet they remained fairly constant. The mineralization of SOM is dependent on the nature of the organic materials (Gil et al., 2011) but as well is strongly conditioned by environmental factors (Pérez Lomas et al., 2010). The climate conditions and soil characteristics of the experiment could have favoured organic matter stabilization (Pérez Lomas et al., 2010), by means of physical protection (decomposers impeded gas exchange and access to organic substrates) (Van Veen & Kuikman, 1990) and chemical protection (sorption and complexation interactions, enhanced by multivalents cations and clayey texture) (Jastrow et al., 2007). Hence, physicochemical protection can be contemplated as one of the main driving processes regarding Cox and Nk dynamics in the present experiment. All the previous considerations could justify that time effects were mainly driven by soil quality (i.e. structure) according to the management (i.e. irrigation water quality) carried out.
The effects induced by SSC on soil properties were similar to those reported by several authors under Mediterranean conditions. Whilst limited to one year of duration, Lag-Brotons et al. (2014a) obtained practically the same results (decrease of pH and increase in Cox, Nk, PBurriel, Cu, Fe, Mn and Zn concentration) using a SSC of the same origin as that of this work. Similarly, in a 2.5 years field experiment, Lachervêque et al. (2006) reported an improvement of soil fertility (increase of SOM, N, P, Mg, K, Cu and Zn) as a result of SSC application, even though most of the effects declined to control level at the end of the study. Casado-Vela et al. (2006), additionally to the decrease of pH and the enhancement of soil fertility (SOM, Nk, P, Cu, Fe and Zn), reported an improvement of soil bulk density and microbial biomass in a 3-year trial as a consequence of the application of SSC to a semi-arid soil. The enhancement of soil fertility is caused directly by nutrients supplied by SSC and indirectly by the promotion of nutrient retention in the soil matrix (De Lucia et al., 2013). In addition, the use of SSC as soil conditioner has been also reported to improve soil physical properties, both in non-salinized and salinized soils (García-Orenes et al., 2005; Tejada et al., 2006). As a result of the role of SSC as soil improver, the growth of a wide variety of crops has been enhanced (Casado-Vela et al., 2006; Larchevêque et al., 2006; De Andrés et al., 2007; Song & Ju Lee, 2010; De Lucia et al., 2013), among which cynara is included (Mañas et al., 2013; Lag-Brotons et al., 2014a). In fact, under the conditions described in the present study, cynara’s productivity was enhanced, improving biomass and seeds yield in approximately 40% and 68% (T0 versus T3 plants) (Lag-Brotons et al., 2014b).
In the present work the beneficial effects of SSC applications were dependent on the rate used, being the optimum range comprised within 30 and 50 t SSC/ha. Considering that sewage sludge application, either treated (i.e. composted) or not, raises environmental concerns related to the presence of heavy metals (Smith, 2009), the amount should be optimized in order to apply the minimum quantity required to achieve beneficial effects. In this sense, certain soil properties (i.e. pH and PBurriel) were not different in T2 and T3 samples, while most of them differed when T1 and T2 were compared. Therefore, in order to minimize the amount of heavy metals incorporated into the soil, an application dose of 50 t SSC/ha (T2) was considered as preferable.
In Mediterranean agro-systems, the use of organic by-products, such as SSC, represents an economic feasible and environmentally desirable option for energy crops cultivation. Several studies have addressed the use of organic materials as amendments for energy crops cultivation (Mahmoud et al., 2012; Mañas et al., 2013; Quaye & Volk, 2013; Lag-Brotons et al., 2014a), indicating a growing interest towards the production of bioenergy under integrated management. Inorganic fertilizers are substantially responsible for the major part of carbon emissions, as well as account for a great share of the economic and energy costs (Dufour et al., 2013). Therefore, the use of SSC could reduce the dependency on inorganic fertilizer while at the same time contribute to decrease greenhouse gases emissions (De Lucia et al., 2013). Additionally, SSC is a processed by-product of wastewater treatment, whose supply is guaranteed in the long-term and with potentially lesser cost (Song & Ju Lee, 2010). Furthermore, plants grown on SSC amended soils which are devoted to bioenergy production minimize toxicity risk to the food chain as are dedicated to non-edible uses. The aspect possibly of the outmost importance regarding SSC use in Mediterranean areas is the potential protection against common Mediterranean soil degradation factors by enhancing soil organic carbon. Aguilera et al. (2013) indicated that soil organic carbon is highly sensitive to changes in management under Mediterranean conditions, increasing its content under proper management practices (Aguilera et al., 2013). Within this last aspect, the selection of the crop species exerts an important role. As an example, cynara is a plant species which has been acknowledged as an effective protective agent against erosion, as it soon develops in autum, practically covering the whole soil surface for extended periods (Grammelis et al., 2008). In addition, its perennial life cycle, which can last longer than 10 years (Angelini et al., 2009), minimizes soil disturbation, as no tillage is applied during its cultivation, and favours the enhancement of SOM pool (Mauromicale et al., 2014). Consequently, the cultivation of cynara encompassed by the application of stabilized organic matter sources, as SSC, is a management strategy which tends to maintain and preserve soil quality.
As final conclusions, the soil status was improved by the application of SSC as basal dressing in Cynara cardunculus L. cultivation for energy production. The optimum dose, according to effects induced on soil fertility, was comprised between 50 (T2) and 70 (T3) t SSC/ha, yet T2 was considered preferable in order to minimize heavy metals loading. The concentration of the elements related to the organic fraction of soils (Cox, Nk, PBurriel) was enhanced, regarding control values, by compost amendments (T1-11%, T2-19% and T3-25% for Nk and PBurriel, and T1-14%, T2-21% and T3-30% for Cox), but, apparently, did not decrease as time passed by. This behaviour indicated that the organic matter added to the soil through SSC amendment was under stabilization rather than mineralization processes. The poor physical properties of the experimental soil probably favoured this dynamic, as well as contributed to the progressive rise of Na and Mn concentration. Typical effects of SSC amendment were also induced, such as micronutrients (CuDTPA, FeDTPA, MnDTPA, ZnDTPA) increase and pH decreases. Thereby, the incorporation of SSC as basal dressing for cynara cultivation represents fertilization savings and a feasible option to effectively improve SOM levels, thus potentially enhancing soil quality and preventing its degradation.
Alfonso Jose Lag-Brotons gratefully acknowledges the Spanish Ministry of Innovation and Science for a research fellowship (AP2007-01641). The former author also acknowledges the collaboration and support of Algoros farmers, especially Pedro Valero. The authors also acknowledge the technical assistance of the Agrochemistry and Environment Department laboratory staff.
| ○ | Aguilera E, Lassaleta L, Gattinger A, Gimeno BS, 2013. Managing soil carbon for climate change mitigation and adaptation in Mediterranean cropping systems: A meta-analysis. Agr Ecosyst Environ 168: 25-36. http://dx.doi.org/10.1016/j.agee.2013.02.003 |
| ○ | Albaladejo J, Ortiz R, Garcia-Franco N, Ruiz A, Almagro M, Garcia J, Martínez-Mena M, 2013. Land use and climate change impacts on soil organic carbon stocks in semi-arid Spain. J Soil Sediment 13: 265-277. http://dx.doi.org/10.1007/s11368-012-0617-7 |
| ○ | Angelini LG, Ceccarini L, Di Nasso NN, Bonari E, 2009. Long-term evaluation of biomass production and quality of two cardoon (Cynara cardunculus L.) cultivars for energy use. Biomass Bioenerg 33: 810-816. http://dx.doi.org/10.1016/j.biombioe.2008.12.004 |
| ○ | Barker AV, Bryson G, 2002. Bioremediation of heavy metals and organic toxicants by composting. The Scientific World Journal 2: 407-420. http://dx.doi.org/10.1100/tsw.2002.91 |
| ○ | Bentsen NS, Felby C, 2012. Biomass for energy in the European Union - A review of bioenergy resource assessment. Biotechnol Biofuel 5: 25. http://dx.doi.org/10.1186/1754-6834-5-25 |
| ○ | Blagodatskaya E, Kuzyakov Y, 2008. Mechanism of real and apparent priming effects and their dependence on soil microbial biomass and community structure: a critical review. Biol Fertil Soil 45: 115-131. http://dx.doi.org/10.1007/s00374-008-0334-y |
| ○ | Bremner J, 1965. Total nitrogen. In: Methods of soil analysis. Part 2. (Black C, ed.). Am Soc Agron, Madison, WI, USA. |
| ○ | BOE, 1990. Royal Decree 1310/1990, of 1 November, regulating sewage sludge use in the agricultural sector. Boletín Oficial del Estado No. 262, 01/10/1990. |
| ○ | BOE, 2005. Royal Decree 824/2005, of 19 July, about fertilisers products. Boletín Oficial del Estado No. 171, 19/07/2005. |
| ○ | Casado-Vela J, Sellés S, Navarro J, Bustamante MA, Mataix J, Guerrero C, Gómez I, 2006. Evaluation of composted sewage sludge as nutritional source for horticultural soils. Waste Manage 26: 946-952. http://dx.doi.org/10.1016/j.wasman.2005.07.016 |
| ○ | De Andrés F, Walter I, Tenorio JL, 2007. Revegetation of abandoned agricultural land amended with biosolids. Sci Total Environ 378: 81-83. http://dx.doi.org/10.1016/j.scitotenv.2007.01.017 |
| ○ | De Lucia B, Cristiano G, Vecchietti L, Bruno L, 2013. Effect of different rates of composted organic amendment on urban soil properties, growth and nutrient status of three Mediterranean native hedge species. Urban For Urban Green 12: 537-545. http://dx.doi.org/10.1016/j.ufug.2013.07.008 |
| ○ | Díez J, 1982. Consideraciones sobre la utilización de la técnica extractiva de Burriel-Hernando para la evaluación de fósforo asimilable en suelos. An Edafol Agrobiol 41: 1345-1353. |
| ○ | Dufour J, Arsuaga J, Moreno J, Torrealba H, Camacho J, 2013. Comparative life cycle assessment of biodiesel production from cardoon (Cynara cardunculus) and rapeseed oil obtained under Spanish conditions. Energ Fuel 27: 5280-5286. |
| ○ | El-Jaoual T, Cox DA, 1998. Manganese toxicity in plants. J Plant Nutr 21(2): 353-386. http://dx.doi.org/10.1080/01904169809365409 |
| ○ | Fernández J, Curt MD, Aguado PL, 2006. Industrial applications of Cynara cardunculus L. for energy and other uses. Ind Crops Prod 24: 222-229. http://dx.doi.org/10.1016/j.indcrop.2006.06.010 |
| ○ | Fytili D, Zabaniotou A, 2008. Utilization of sewage sludge in EU application of old and new methods-A review. Renew Sustain Energ Rev 12: 116-140. http://dx.doi.org/10.1016/j.rser.2006.05.014 |
| ○ | García-Orenes F, Guerrero C, Mataix-Solera J, Navarro-Pedreño J, Gómez I, Mataix-Beneyto J, 2005. Factors controlling the aggregate stability and bulk density in two different degraded soils amended with biosolids. Soil Till Res 82: 65-76. http://dx.doi.org/10.1016/j.still.2004.06.004 |
| ○ | Gil MV, Carballo MT, Calvo LF, 2011. Modelling N mineralization from bovine manure and sewage sludge composts. Bioresour Technol 102: 863-871. http://dx.doi.org/10.1016/j.biortech.2010.09.010 |
| ○ | Gobin A, Campling P, Janssen L, Desmet N, van Delden H, Hurkens J, Lavelle P, Berman S, 2011. Soil organic matter management across the EU-best practices, constraints and trade-offs. Final report for the European Comission´s DG Environment, September 2011. |
| ○ | Grammelis P, Malliopoulou A, Basinas P, Danalatos NG, 2008. Cultivation and characterization of Cynara cardunculus for solid biofuels production in the Mediterranean region. Int J Mol Sci 9: 1241-1258. http://dx.doi.org/10.3390/ijms9071241 |
| ○ | Ierna A, Mauro RP, Mauromicale G, 2012. Biomass, grain and energy yield in Cynara cardunculus L. as affected by fertilization, genotype and harvest time. Biomass Bioenerg 36: 404-410. http://dx.doi.org/10.1016/j.biombioe.2011.11.013 |
| ○ | IPCC, 2007. Climate change 2007: Synthesis report. Contribution of Working Groups I, II and III to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change, Geneva, Switzerland. |
| ○ | Jastrow JD, Amonette JE, Bailey VL, 2007. Mechanism controlling soil carbon turnover and their potential application for enhancing carbon sequestration. Clim Chang 80: 5-23. http://dx.doi.org/10.1007/s10584-006-9178-3 |
| ○ | Karlen DL, Andrews SS, Doran JW, 2001. Soil quality: current concepts and applications. Adv Agron 74: 1-40. http://dx.doi.org/10.1016/S0065-2113(01)74029-1 |
| ○ | Lag-Brotons A, Gómez I, Navarro-Pedreño J, Bartual-Martos J, 2014a. Effects of sewage sludge compost on Cynara cardunculus L. cultivation in a Mediterranean soil. Compost Sci Util 22: 1-7. http://dx.doi.org/10.1080/1065657X.2013.870945 |
| ○ | Lag-Brotons A, Gómez I, Navarro-Pedreño J, Mayoral AM, Curt MD, 2014b. Sewage sludge compost use in bioenergy production e a case study on the effects on Cynara cardunculus L energy crop. J Clean Prod 79: 32-40. http://dx.doi.org/10.1016/j.jclepro.2014.05.021 |
| ○ | Larchevêque M, Ballini C, Korboulewsky N, Montés N, 2006. The use of compost in afforestation of Mediterranean areas: Effects on soil properties and young tree seedlings. Sci Total Environ 369: 220-230. http://dx.doi.org/10.1016/j.scitotenv.2006.04.017 |
| ○ | Lindsay WL, Norvell WA, 1978. Development of a DTPA soil test for zinc, iron, manganese and copper. Soil Sci Soc Am J 42: 421-428. http://dx.doi.org/10.2136/sssaj1978.03615995004200030009x |
| ○ | López-López G, Lobo MC, Negre A, Colombàs M, Rovira JM, Martorell A, Reolid C, Sastre-Conde I, 2012. Impact of fertilisation practices on soil respiration, as measured by the metabolic index of short-term nitrogen input behaviour. J Environ Manag 113: 517-526. http://dx.doi.org/10.1016/j.jenvman.2012.03.010 |
| ○ | Loveland P, Webb J, 2003. Is there a critical level of organic matter in soils of temperate regions: a review. Soil Till Res 70: 1-18. http://dx.doi.org/10.1016/S0167-1987(02)00139-3 |
| ○ | Mahmoud FS, Santanen A, Stoddard FL, Mäkelä P, 2012. Feedstock quality and growth of bioenergy crops fertilized with sewage sludge. Chemosphere 89: 1211-1217. http://dx.doi.org/10.1016/j.chemosphere.2012.07.031 |
| ○ | Mañas P, Castro E, De las Heras J, 2013. Application of treated wastewater and digested sewage sludge to obtain biomass from Cynara cardunculus L. J Clean Prod 67: 72-78. |
| ○ | MAPA, 1986. Métodos oficiales de análisis. Parte III. Ministerio de Agricultura, Pesca y Alimentación, Madrid. |
| ○ | Mauromicale G, Sortino O, Pesce GR, Agnello M, Mauro RP, 2014. Suitability of cultivated and wild cardoon as a sustainable bioenergy crop for low input cultivation in low quality Mediterranean soils. Ind Crop Prod 57: 82-89. http://dx.doi.org/10.1016/j.indcrop.2014.03.013 |
| ○ | Monti A, Virgilio ND, Venturi G, 2008. Mineral composition and ash content of six major energy crops. Biomass Bioenerg 32: 216-223. http://dx.doi.org/10.1016/j.biombioe.2007.09.012 |
| ○ | Muller A, 2009. Sustainable agriculture and the production of biomass for energy use. Clim Chang 94: 319-331. http://dx.doi.org/10.1007/s10584-008-9501-2 |
| ○ | Nelson DW, Sommer LE, 1996. Total carbon, organic carbon, and organic matter. In: Methods of Soil Analysis. Part 2, 2nd ed. (Page et al., eds). Am Soc Agron, Madison, WI, USA. Agronomy 9: 961-1010. |
| ○ | Noble R, Roberts S, 2004. Eradication of plant pathogens and nematodes during composting: a review. Plant Pathol 53: 548-568. http://dx.doi.org/10.1111/j.0032-0862.2004.01059.x |
| ○ | Pérez Lomas AL, Delgado G, Párraga J, Delgado R, Almendros G, Aranda V, 2010. Evolution of organic matter fractions after application of co-compost of sewage sludge with pruning waste to four Mediterranean agricultural soils. A soil microcosm experiment. Waste Manage 30: 1957-1965. http://dx.doi.org/10.1016/j.wasman.2010.04.030 |
| ○ | Quaye AK, Volk TA, 2013. Biomass production and soil nutrients in organic and inorganic fertilized willow biomass production systems. Biomass Bioenerg 57: 113-115. http://dx.doi.org/10.1016/j.biombioe.2013.08.002 |
| ○ | Sakadevan K, Nguyen M, 2010. Extend, impact and response to soil and water salinity in arid and semiarid regions. Adv Agron 109: 56-70. http://dx.doi.org/10.1016/B978-0-12-385040-9.00002-5 |
| ○ | Sims RH, Hastings A, Schlamadinger B, Taylor G, Smith P, 2006. Energy crops: current status and future prospects. Glob Chang Biol 12: 2054-2076. http://dx.doi.org/10.1111/j.1365-2486.2006.01163.x |
| ○ | Smith S, 2009. A critical review of the bioavailability and impacts of heavy metals in municipal solid waste composts compared to sewage sludge. Environ Intern 35: 142-156. http://dx.doi.org/10.1016/j.envint.2008.06.009 |
| ○ | Solano ML, Manazanedo E, Concheso R, Curt MD, Sanz M, Fernández J, 2010. Potassium fertilisation and the thermal behaviour of Cynara cardunculus L. Biomass Bioenerg 34: 1487-1494. http://dx.doi.org/10.1016/j.biombioe.2010.04.025 |
| ○ | Song U, Ju Lee E, 2010. Environmental and economical assessment of sewage sludge compost application on soil and plants in a landfill. Resour Conserv Recycl 54: 1109-1116. http://dx.doi.org/10.1016/j.resconrec.2010.03.005 |
| ○ | Soriano-Disla JM, Navarro-Pedreño J, Gómez I, 2010. Contribution of sewage sludge application to the short-term carbon sequestration across a wide range of agricultural soils. Environ Earth Sci 61: 1613-1619. http://dx.doi.org/10.1007/s12665-010-0474-x |
| ○ | Tejada M, Garcia C, Gonzalez J, Hernández MT, 2006. Use of organic amendment as a strategy for saline soil remediation: Influence on the physical, chemical and biological properties of soil. Soil Biol Biochem 38: 1413-1421. http://dx.doi.org/10.1016/j.soilbio.2005.10.017 |
| ○ | Torrent J, 2005. Mediterranean soils. In: Encyclopedia of soils (Hillel D, ed.) Elsevier, pp: 418-427. |
| ○ | Van Veen JA, Kuikman PJ, 1990. Soil structural aspects of decomposition of organic matter by micro-organisms. Biogeochem 11: 213-233. http://dx.doi.org/10.1007/BF00004497 |
| ○ | Vargas-García MC, Suárez-Estrella F, 2008. Effect of compost on biological properties of the soil. In: Composting. (Moreno-Cascos J, & Moral-Herrero J, eds), Mundi-Prensa, Madrid, pp: 329-350. |
