IntroductionTop

The Mediterranean basin is an important producer of sheep and goat’s milk that is traditionally almost exclusively destined for the elaboration of dairy products, in particular cheese. Many of these products are elaborated according to stipulations concerning the protected designation of origin (PDO), the protected geographical indication (PGI), or traditional specialties guaranteed, internationally recognised, with high milk quality standards, especially in the case of products made from raw milk (Scintu & Piredda, 2007).

The quality of sheep and goat’s milk has increased significantly in recent years, especially with regard to hygiene. In this sense, the establishment of Community legislation concerning the hygiene of foodstuffs of animal origin intended for human consumption (OJ, 2004) and the introduction of a payment system based on the quality of the milk from these species (Pirisi et al., 2007) have decisively contributed to milk quality improvement.

The Spanish dairy sheep and goats sectors have become far more productive in the last decades thanks to greater specialisation and improved production facilities. Although the number of livestock farms has been significantly reduced, the production of goat’s milk has remained stable, while the production of sheep milk has increased considerably (MAGRAMA, 2013). In this context, the use of antimicrobials to treat and prevent infectious diseases in small dairy ruminants is a widespread practice that, if guidelines of good practices are not obeyed (IDF, 2013), can result in the contamination of the milk supply.

Antimicrobials should be applied under veterinary prescription using authorized products and respecting the dose, the routes of administration and withdrawal periods recommended by the manufacturers. However, the availability of drugs registered for the use in lactating dairy sheep and goats is quite limited, which conditions the off-label use of some antibiotics by veterinarians. Adequate withdrawal periods in milk from these species in off-label treatments are unknown in many cases which, therefore, increases the risk of residues of these substances in milk (Pengov & Kirbis, 2009).

The control of the presence of residues of veterinary agents in animal products for human consumption above maximum residue limits (MRLs) established by legislation (OJ, 2010) is mandatory in countries of the European Union (OJ, 2004). Antibiotic residues in milk and dairy products pose a risk to the health of consumers as they can cause allergic reactions in individuals sensitive to certain groups of antimicrobials, as well as generate antimicrobial resistance (Sanders et al., 2011). Also, they are problematic for dairies as they can interfere in the fermentation processes required for the manufacture of certain milk products such as cheese and yoghurt (Berruga et al., 2011).

For screening antibiotic residues in the milk supply, there are currently various analytical methods commercially available (ISO/IDF, 2010). Choosing a test depends on the control stage (farms, dairies, or laboratories) and also on the antibiotics applied to treat infectious diseases of dairy animals. Of all the screening methods available, microbial inhibitor tests using Geobacillus stearothermophilus var. calidolactis stand out due to their common use in control laboratories and rapid receptor tests for being widely used in farms and dairies given their swiftness of response.

Regarding sheep and goat’s milk, Spanish regulation (BOE, 2011) establishes the control of the presence of antibiotic residues prior to the loading of milk into the tanker, if a risk for the consumer is suspected, using methods that detect at least beta-lactam drugs. In dairies, the control of the presence of beta-lactam residues must be carried out in all the tankers containing raw milk. Similarly, at control laboratories the use of screening tests able to detect at least beta-lactam drugs at MRL equivalent antibiotic concentration is also legally required. Whenever a non-compliant result is obtained, the milk sample should be re-tested applying another test with a similar detection profile and a different analytical basis.

Mastitis is undoubtedly the infectious disease most frequently treated with antibiotics in dairy livestock. Thus, mastitis treatments are applied in the lactation- and dry-off periods, being the main cause of the presence of antibiotic residues in cow milk (Fabre et al., 1995). In ovine and caprine species, there are no studies on the causes of antibiotic residues in milk. However, Gonzalo et al. (2010) detected a significant effect of some mastitis-related aspects such as elevated somatic cell counts (SCCs) in milk, and the use of the dry-off therapy on the occurrence of antibiotic residues in sheep milk, especially when antibiotics are administered in a discontinued manner.

In dairy sheep and goats, mastitis is treated by veterinarians during lactation as well as in dry-off therapy, using primarily beta-lactam drugs, while macrolides constitute the second most important group of antimicrobials applied (Berruga et al., 2008). Therefore, substances belonging to these two antibiotic families are the most probable residues in raw milk from these species. Other substances such as tetracyclines and quinolones are less commonly used in mastitis treatments; however, they are usually employed in other respiratory, digestive and reproductive diseases requiring antibiotic therapy in small ruminants. Therefore, in order to carry out effective screening of raw milk from sheep and goats, it would be desirable to have analytical methods available to detect the most frequent drugs currently used in veterinary medicine.

For this reason, the objective of this study was to evaluate an analytical strategy based on the use of different commercially screening methods routinely employed in Spain to detect antibiotic substances most commonly applied in a simple and economic manner.

Material and methodsTop

Results and discussionTop

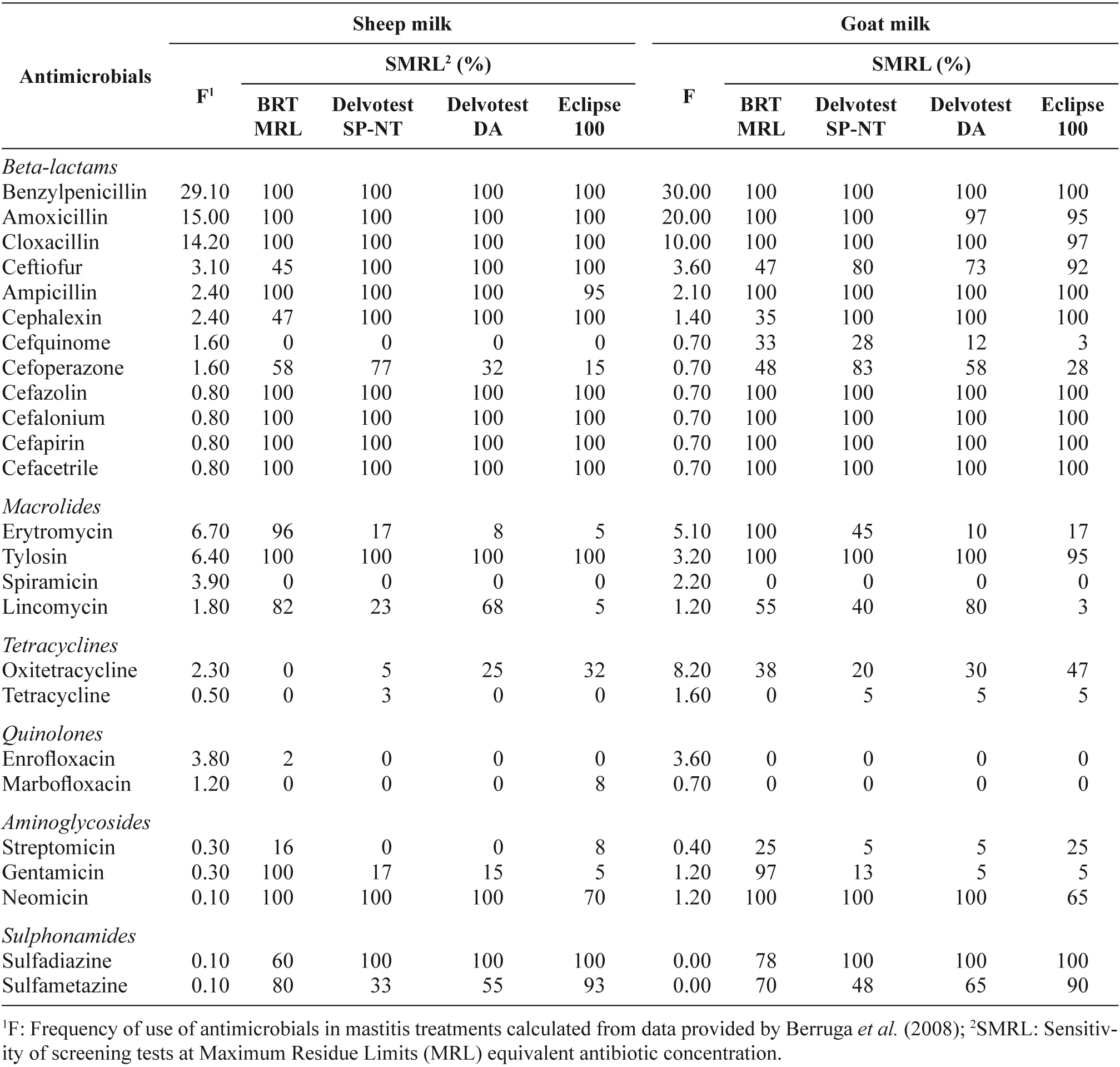

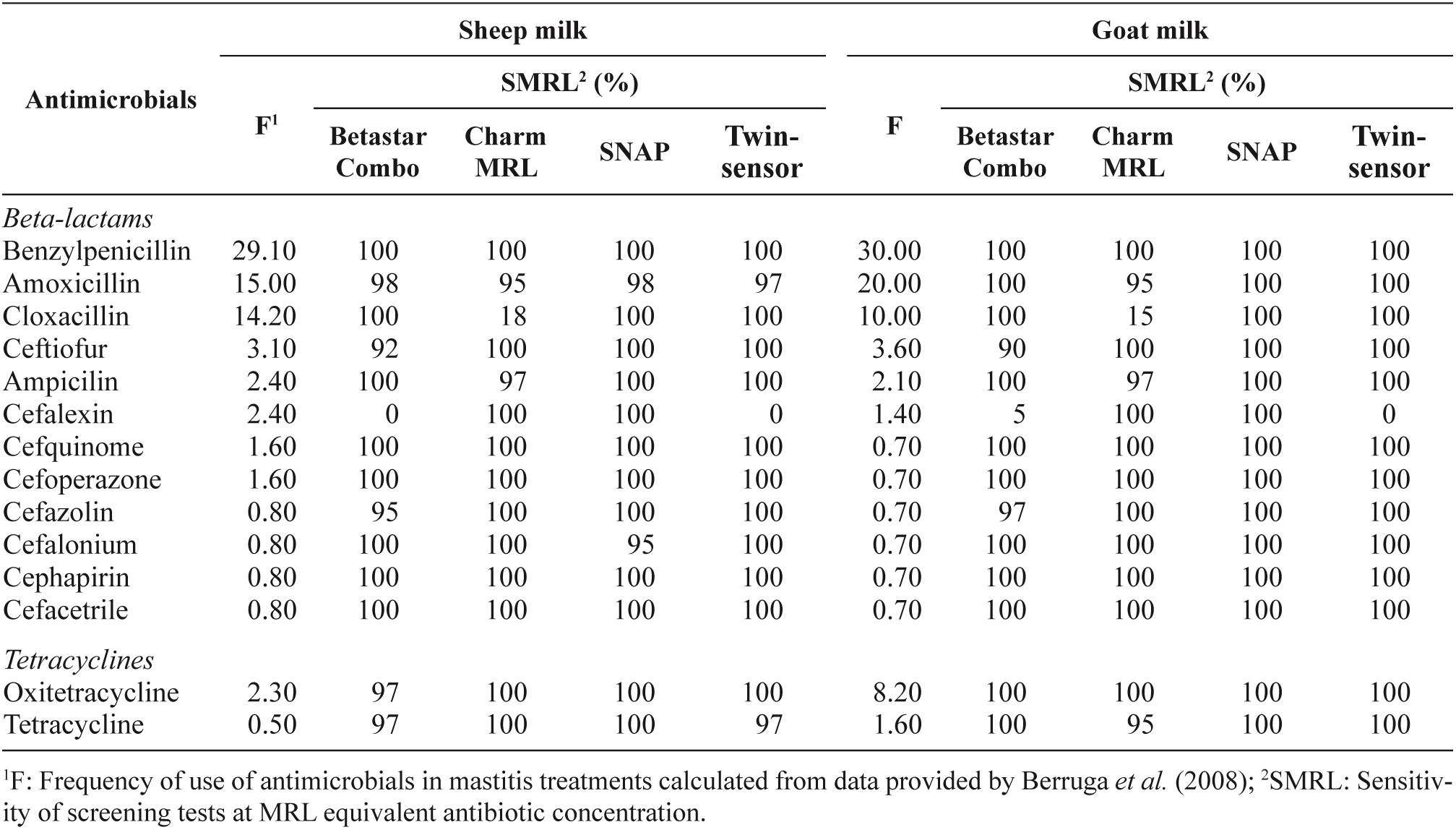

Table 1 summarizes the frequency of use of antibiotics most commonly applied in the mastitis treatments of dairy sheep and goats, and the microbial test sensitivity for each antibiotic substance. Information related to rapid receptor tests is presented in Table 2.

As shown in Table 1, although microbial screening tests have the same analytical basis they display different sensitivities for the detection of antibiotics. Thus, for example, molecules such as benzylpenicillin, cefalonium or tylosin are detected by all microbial inhibitor tests (sensitivity ≥ 95%), while there are molecules that are only detected by some methods and not by others. Thus, for example, the BRT MRL test has lower specificity for ceftiofur and cephalexin than the Delvotest MCS SP-NT, Delvotest MCS DA and Eclipse 100 tests; however, it is the only microbial test able to detect erythromycin and gentamicin at MRL equivalent concentration in sheep and goat’s milk.

Similar results were reached with the receptor-binding assays studied. Of all the beta-lactams and tetracyclines used in dairy sheep and goats, some molecules, for instance, ampicillin, benzylpenicillin and cefoperazone, among others, are detected by all the rapid receptor tests considered (Table 2). On the contrary, there are substances that are only detected by some tests and not by others, as, for example cloxacillin, which is detected by the Betastar Combo, SNAP and Twinsensor^BT tests but only to a very low extent by the Charm MRL BLTET test.

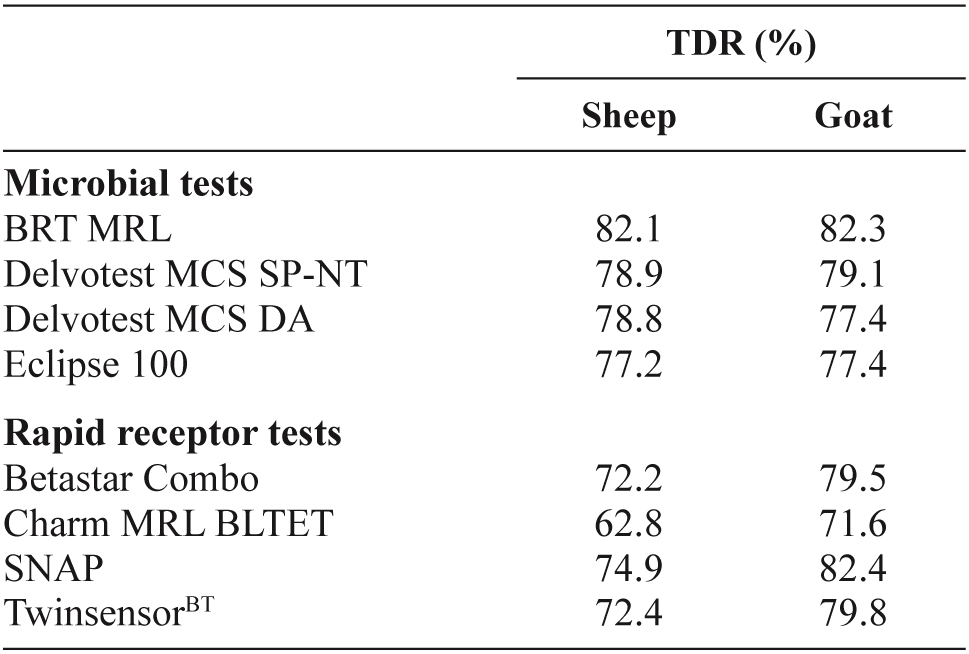

Using Eq. [1] presented in the Materials and Methods section, the total detection rate for each screening test (TDR_t) was calculated and summarized in Table 3. It should be noted that SNAP Betalactam and SNAP Tetracycline tests are considered here as a combined test able to detect beta-lactams and tetracyclines simultaneously.

As shown in Table 3, of the four microbial inhibitor tests to detect antibiotics in milk, the BRT MRL test has the highest total detection rate (sheep: 82.1%; goats: 82.3%) compared with the Delvotest MCS SP-NT, Delvotest MCS DA and Eclipse 100 tests. In this respect it should be mentioned that the BRT MRL test uses Mueller Hinton as culture medium and black brilliant as redox indicator unlike the other three tests containing Plate count agar and bromocresol purple as acid-base indicator. These differences could be related to the greater sensitivity towards some antimicrobial substances belonging to families other than beta-lactams.

Concerning the rapid receptor tests evaluated, the SNAP test presented a higher total detection rate than the Betastar Combo, Charm MRL BLTET, and Twinsensor^BT tests (Table 3) due to its greater sensitivity to cephalexin, while the Charm MRL BLTET test displayed the lowest total detection rate given its low sensitivity towards cloxacillin. It should be noted that the receptor-binding assays used in this study are designed for the specific detection of beta-lactams and tetracyclines and therefore, drugs belonging to other groups of antibiotics cannot be detected by these tests; which explains the relatively low detection percentages obtained (sheep: 62.8-74.9%; goats: 71.6-82.4%) with this test type when all antimicrobials are considered. Therefore, from a food safety point of view, the application of one test only seems insufficient as an appreciable percentage of antibiotic residues remains undetected and could thus reach the consumer.

When comparing the total detection rates achieved in sheep milk with microbial and rapid receptor screening tests, respectively, through the Mann-Wilcoxon contrast test, significant differences between the two types of assays were found (W=16.0, p=0.030), i.e. a broader spectrum of detection was achieved with microbial screening tests (77.2-82.1 vs 62.8-74.9%, respectively). This is due to the fact that mastitis therapy in sheep makes an appreciable use of macrolides using substances such as erythromycin (6.7%), tylosin (6.4%) and lincomycin (1.8%), some of which are detected by the microbial screening tests assessed but not by the rapid receptor tests. However, the application of the Mann-Wilcoxon test to compare the total detection ranges obtained in both groups of the screening tests in goat’s milk did not show significant differences (W=0.3806, p=0.7166), indicating that they could be used interchangeably with similar levels of detection. For this reason, when a rapid response is required (i.e. the control of antibiotic residues in farms and dairies), the use of a receptor-binding assay would be appropriate, while in case of a large number of milk samples to be checked, the use of the microbial test would be recommendable and also more economical.

Concerning the simultaneous use of two screening methods trying to improve the percentage of total detection of antibiotics in sheep and goat’s milk, the results obtained for the different combinations possible are presented in Tables 4 and 5.

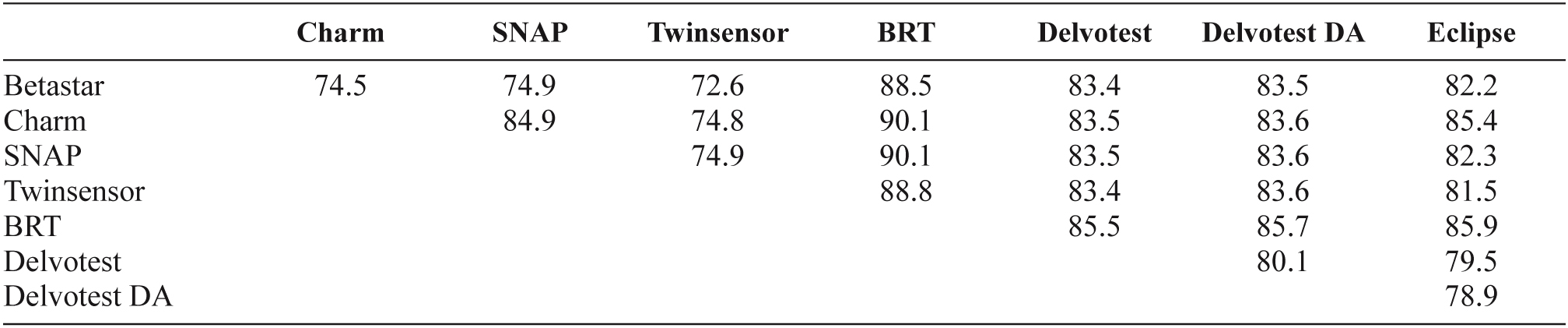

As shown in Table 4, the simultaneous use of two microbiological screening methods in sheep milk made the detection of a range between 78.9 and 85.9% of the molecules considered possible, presenting no statistically significant differences with respect to that obtained with the use of a single screening test belonging to this group (W=20.5, p=0.087). Similarly, the combination of two rapid screening tests based on the use of specific receptors neither increased the detection range of antibiotics in sheep milk (W=20.0, p=0.1056) with respect to the use of a single test. Therefore, it can be concluded that the simultaneous use of two methods having the same analytical basis does not improve the detection of antibiotic substances commonly used in dairy ovines.

On the other hand, the combination of two methods with a different analytical basis, i.e. a microbial test together with a receptor-binding test, resulted in a broader detection spectrum (81.5-90.1%) which was statistically significant with respect to that obtained with a single microbial or a rapid test (W=15.6812, p=0.0005) allowing, therefore, a more efficient control of antibiotic residues in sheep milk.

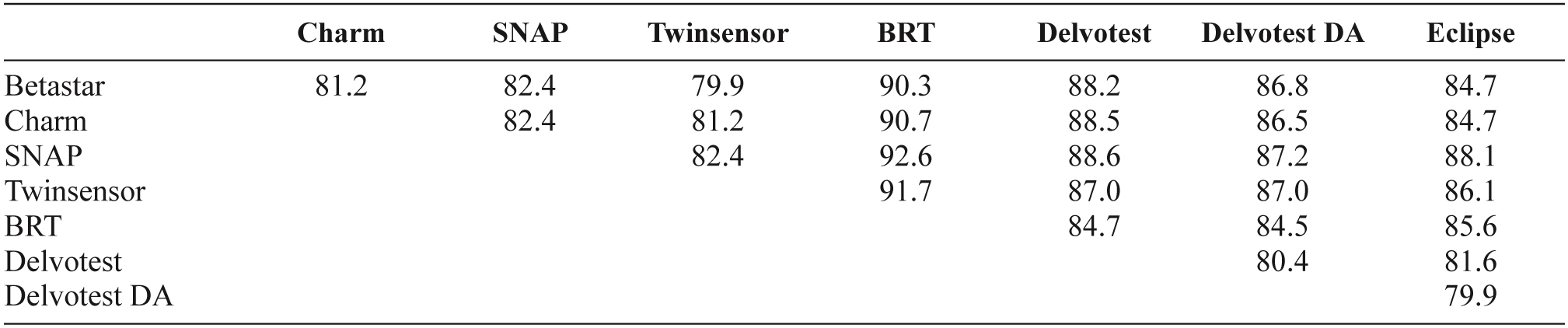

In goat’s milk, the simultaneous use of two microbial screening tests (Table 5) does not lead to an improvement of the total detection ranges in comparison to the use of a single test (W=21.0, p=0.069) leaving a percentage of undetected residues ranging from 14.4 to 20.1%. Similarly, when applying the Mann-Wilcoxon test to compare the total detection rates obtained by the application of a single rapid receptor test (Table 3) with those calculated when two receptor-binding assays were used simultaneously (Table 5), significant differences were not found (W=21.0, p=0.069). Therefore, a combination of two rapid receptor tests does not increase the detection range, and a percentage of undetected substances between 17.6 and 20.1% remains.

On the contrary, when the detection ranges achieved through the simultaneous use of receptor-binding assays and microbial inhibitor tests are calculated (84.7 to 92.6%), it can be observed that the total detection rates are higher than those calculated when using only a rapid receptor test (ranging between 71.6 and 82.4%, W=93.0, p=0.001) or only a microbial method (77.4 and 82.3%, W=96.0, p=0.0004). Hence, the application of two screening tests with a different analytical basis leads to a significant improvement in milk safety as a greater percentage of the potential antibiotic residues in milk is detected.

DiscussionTop

In general, microbial screening tests using G. stearothermophilus present a high sensitivity for the detection of beta-lactam antibiotics in sheep as well as goat’s milk. Thus, the detection rates for this group of antimicrobials are higher than those obtained for families other than beta-lactams, especially for drugs belonging to the tetracycline and quinolone groups that were not detected at safety levels by any of the microbial tests considered. These results were in agreement with those obtained by other authors in milk from these species several years ago (Althaus et al., 2003; Molina et al., 2003; Montero et al., 2005; Sierra et al., 2009a,b), although it is noteworthy that some drugs such as neomycin, tylosin and sulfadimethoxine can be more easily detected by the new versions of microbial test commercially available (Beltrán et al., 2015).

The rapid receptor tests considered in this study were designed for the specific detection of beta-lactam and tetracycline residues in milk presenting detection capabilities equal to or below the MRLs for most beta-lactams and tetracyclines employed by veterinarians (Beltrán et al., 2013, 2014a,b) and, consequently, higher detection rates for these antibiotics in milk are obtained.

It should be kept in mind that Spanish legislation (BOE, 2011) currently centers the analytical strategy for the control of the presence of antibiotics in sheep and goat’s milk mainly on the detection of beta-lactams. Therefore, the effectiveness of the analytical strategy currently applied in the sector for screening antibiotics in raw milk from sheep and goats, allows achieving elevated detection ranges, above 90% in most cases, both in dairy sheep (microbial tests: 92.8-97.4%, rapid tests: 82.9-99.6%) and goats (microbial tests: 94.9-98.1%, rapid tests: 86.6-100%), respectively, owing to the higher sensitivity of these screening tests for beta-lactam drugs.

In the case of cow milk, Spanish legislation (BOE, 2007) centers the control of the presence of beta-lactam and tetracycline residues on obligatory checks of all tankers used by the dairy industry for the presence of beta-lactams. In the case of tetracyclines, these checks are obligatory in one out of five tankers, assuring, however, that all routes are checked on a monthly basis.

If the specific detection of tetracycline residues were included as a requirement for screening antibiotics in sheep and goat’s milk, the effectiveness of the analytical strategy would decline slightly for sheep (microbial tests: 89.6-94.5%, rapid tests: 83.4-99.6%) and goat’s milk (microbial tests: 87.3-89.3%, rapid tests: 88.2-100%), respectively, because, although the receptor-binding assays are able to detect oxitetracycline and tetracycline at their respective MRLs, microbial screening tests are less sensitive to these substances at safety levels and, therefore, the total detection rate is reduced.

When considering all the substances potentially present in milk as residues, the decline in the effectiveness of the current analytical strategy is more pronounced, obtaining a percentage of undetected residues ranging from 9.9 to 18.5% for sheep, and from 7.4 to 15.3% for goats, respectively, mainly due to drugs belonging to the quinolone and macrolide families as the screening tests present a lower sensitivity towards these substances. Thus, the periodical implementation of screening tests more sensitive to these substances would be convenient to increase the detection spectrum and, logically, minimize the risks stemming from the presence of these residues in milk. Thus, for example the application of the Bacillus subtilis bioassay would complement antibiotic coverage achieved by microbial inhibitor tests using G. stearothermophilus, detecting substances such as erythromycin, enrofloxacin and spiramycin at concentrations much closer to their respective MRLs (Nagel et al., 2012). Also, the periodic use of specific rapid methods for the detection of aminoglycosides and quinolones could be an alternative to increase the detection spectrum.

In conclusion, the simultaneous use of two screening tests with a different analytical basis allows achieving a broader coverage of the antimicrobials used to treat and prevent mastitis in dairy sheep and goats which pose the greatest risk of appearing in milk. However, taking in to account that antibiotic agents such as quinolones, macrolides or aminoglycosides are not detected by the screening tests assessed and are also used to treat mastitis or another respiratory, reproductive or digestive diseases, the improvement of the analytical strategy through the periodical implementation of screening tests able to detect these substances at safety levels, would be recommended. Besides establishing a suitable control strategy, it should not be forgotten that the application of a code of good dairy farming practices concerning the use of veterinary drugs should be adhered to in order to avoid the presence of residues in milk and dairy products
