Insurance design and contract conditions

During the design of an insurance product, insurance companies usually have to set some contractual conditions to avoid asymmetric information problems, but additional circumstances need to be taken into account in the case of hydrological drought. Each of these contractual conditions (C1 to C10) are explained below and summarized in Table 1.

Farmers can typically manage water stocks by either selling them to a neighbor or redistributing them between crops. We analyzed the implications of these two possibilities. The option of selling water to a fellow farmer could cause severe moral hazard, because a farmer who buys insurance will have an incentive to sell the water to a non-insured farmer and claim an indemnity. Thus, one condition for farmers to be eligible for insurance should be that the irrigation system infrastructure prohibits or monitors these transactions by some control mechanism, such as water meters.

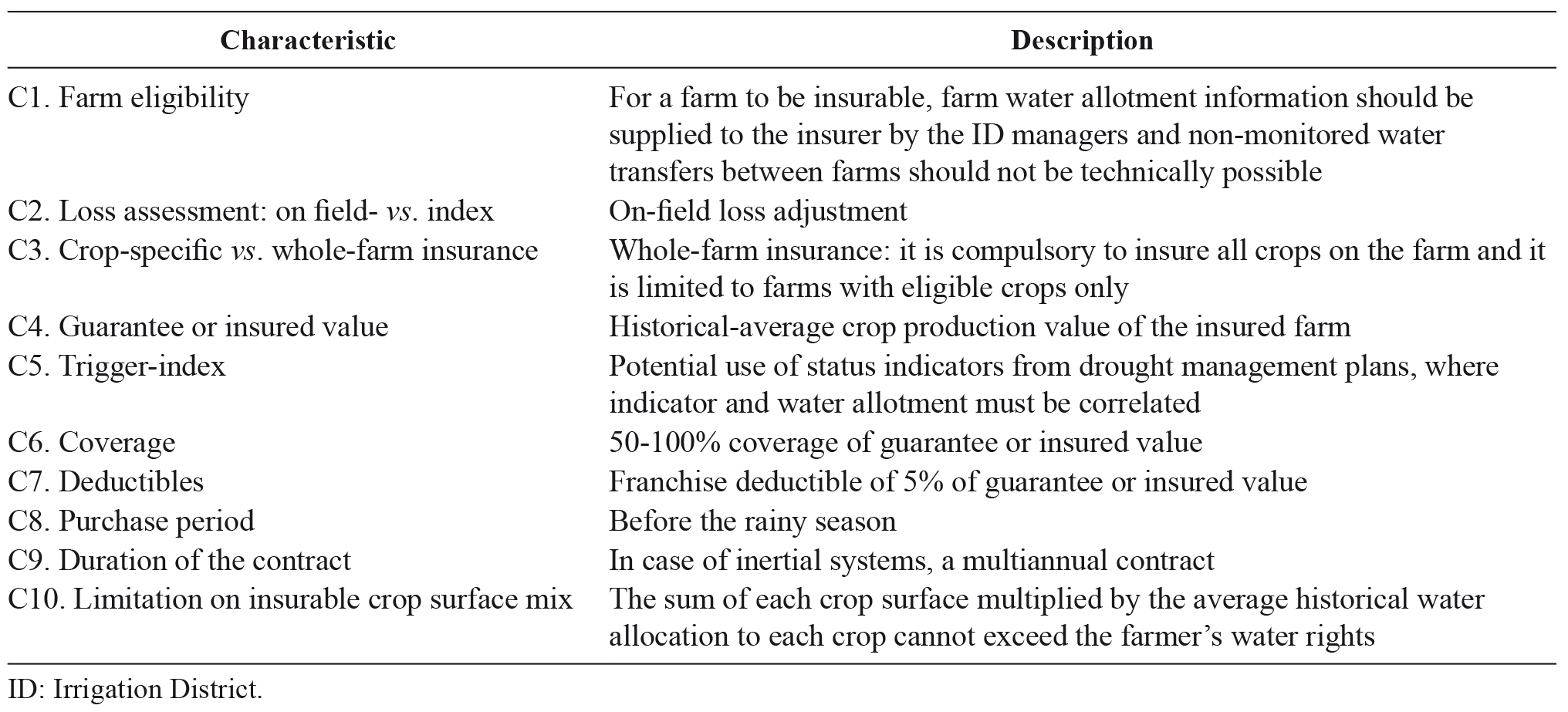

In any case, irrigation districts should inform insurance companies of the water supplied to all farmers (C1). If this is not possible, only index insurance (which depends on an index value rather than actual farm yields) would be viable. This is why many authors have proposed index insurance against drought in irrigated agriculture[3]. Index insurance has a lot of potential because it avoids moral hazard and adverse selection problems. Under non-homogeneous farming conditions, however, it can fail due to low correlation between the index and actual farm losses, which results in a high ‘basis risk’. Bielza et al. (2012) have shown that indexes are not closely correlated to the relevant risks in some areas of Spain. This is why we propose a combination of an index-based and traditional insurance scheme, where an index value triggers the right to file a claim, but indemnities are calculated from actual farm losses directly observed during on-field loss assessments (C2). Therefore, in the proposed methodology, the use of the drought index differs from index insurances where the indemnity or compensation amount is directly estimated from the index value. In our case the index just determines if there is a drought but not its intensity. On-field loss assessment has the additional advantage that it is deeply rooted in Spain and in general in the Mediterranean European countries despite the fact that it increases administrative costs significantly (Hyde & Vercammen, 1997; Wright, 2014). Thus farmers and Spanish insurance companies are used to it.

Regarding water redistribution between crops, in the case of water shortage, economists would expect farmers to allocate all the available water to certain crops and not to others in such a way that they minimize economic losses. If insurance was crop-specific, this behavior would lead to adverse selection (i.e., farmers might insure only crops that typically receive less water) and moral hazard (i.e., reallocating all water to non-insured crops). This means that crop-specific insurance with traditional on-field loss assessment is not an option for hydrological drought. It is only viable for farms that grow only one crop. Otherwise all crops on a farm should be insured. Given that whole-farm insurance has been shown to be more efficient than the sum of crop-specific insurance (Bielza & Garrido, 2009), the insurance premium rates should be personalized according to the percentage of each eligible crop present on the farm. This implies, however, that a farm can only be insured when it grows only insurable crops (i.e., crops whose drought risk can be calculated by the insurer) (C3). This constraint could potentially discourage farmers from trying new crops within their rotation, as an adaptation to climate change.

The insurance product’s guarantee should be the farm production value, calculated as the weighted average of crop production value. This is obtained from all available past crop yields multiplied by a fixed crop price; therefore, it will not cover price or market risks. Premium rates will depend on the historical variability of farm yields due to a shortage of irrigation water (C4).

Loss adjusters should single out the loss caused by drought from the losses caused by other factors. However, this might not always be evident. To increase the certainty that a loss is caused by drought, insurance indemnities would be linked to a drought index that acts as a trigger in years of water shortage (C5). Only when the indicator value falls below a trigger value (specifically chosen to correspond to a drought situation for each farmer or ID) are farmers entitled to file a claim to the insurance company. The insurance company will then send an independent expert to evaluate the losses and establish an indemnity if applicable (this step differentiates our insurance scheme from strictly index-based schemes, which do not involve a loss adjustment process). Combined, the drought index and on-field loss adjustment reduce moral hazard associated with insured farmers attributing losses to water shortages when losses are due to other reasons.

Another advantage of establishing this drought index (with a trigger value) is that it assures the scheme is compliant with EU legislation and with the World Trade Organization (WTO, 1995) green box condition for subsidies to crop insurance. Specifically, the 2006 EU Regulation (EU, 2006) has one necessary condition for state subsidies to agricultural insurance to be exempt from the notification requirement: the climatic event causing a loss should be attributable to a natural disaster and must be formally recognized as such by public authorities. Similarly, the 2009 Regulation of the EU Common Agricultural Policy (CAP) (EU, 2009) allows EU CAP funds to be used for crop/animal/plant insurance; however, that insurance “shall only be available where the occurrence of an adverse climatic event or the outbreak of an animal or plant disease or pest infestation has been formally recognized as such by the competent authority of the Member State concerned. Member States may, where appropriate, establish in advance criteria on the basis of which such formal recognition shall be deemed to be granted”. One criterion that could be established to officially categorize a drought as a natural disaster is that a public drought index reaches a specific trigger value. Therefore a valid drought index should be public, easy to understand, transparent and impossible to manipulate.

Other contract conditions attempt to avoid potential problems of moral hazard or adverse selection. This is the case for enforcing a deductible. We suggest that the insurance contract should at least include a small franchise deductible[4] equaling for example 5% of the insured amount (C7). This means that losses will only be considered when they are higher than 5% of the insured amount. The reason is that it is not worthwhile to claim losses under that level for either the insurance company, which has to incur the cost of the loss assessment for a relatively small loss, or the farmer, who according to the Spanish insurance regulation has to keep not less than a 5% sample surface unharvested to allow for loss adjustment (BOE, 1996).

Given that hydrological drought can usually be foreseen at the time spring-planted crops are sown, farmers might buy insurance only when a drought is expected, generating adverse selection. For this reason, the purchase period for insurance should be before the rainy (or snowfall) season (C8). In some areas with a large reservoir capacity, hydrological drought can be foreseen months before the start of the rainy season (inertial systems). This encourages farmers to buy insurance only when a dry season is expected. To avoid this risk, we proposed offering farmers a multiannual contract whereby they would be committed to buy insurance for a certain number of years, and the premium would be modified every year according to the yearly farm crop surface distribution (C9). Additionally, to avoid that a farmer purposely shifts his crop mix towards crops that are both more valuable and water demanding in order to increase the probability and value of an indemnity, the maximum insurable surface of each crop must be limited by farmer water rights (C10). It must not be feasible to insure a crop surface mix that multiplied by the crops historical average water allocation is above the water rights of the farmer.

Finally, another situation specific to hydrological drought insurance is the possibility of a farmer who, having bought insurance at the beginning of the crop season (fall time) for a specified planted crop acreage, faces at spring time a drought that is more severe than expected. Often, the farmer still has the option, during the spring, to plant different crops to minimize their losses. In this case, the farmer will have to inform the insurance company of changes in crop surface areas (and therefore, the insurance premium should be rectified in this second period), and indemnities will have to be paid based on the success or failure of the new crop surface areas. This is not a fair solution, especially if the new surface areas are dominated by fallow land where the farmer would not receive any compensation. In this point the prevented planting program used in the USA could be applied if there is forecasted an extremely severe drought that could prevent crop success.

Calculation of pure premium rates

The estimation of pure (actuarially fair) hydrological drought insurance premiums involves two main steps: (i) quantifying the risk associated with irrigation water allocations received by farmers, and (ii) quantifying the impact of water allocations on farmers’ revenue or income.

Pérez & Gómez (2014) quantify the risk associated with irrigation water allocation by taking an approach similar to index insurance. They estimate water delivered to farmers from two stochastic variables (water stored in reservoirs and annual runoff), which is then combined with decision rules used by reservoir water authorities. In practice, however, these rules are not always followed. In the future, however, water allocation rules should be strictly adhered to if insurance is to be feasible. Quiroga et al. (2011) used the Water Availability and Policy Analysis (WAPA) model to simulate the joint operation of all reservoirs in a basin to satisfy a set of demands. We propose to simply quantify the risk associated with irrigation water allocation directly from historical values of water allocation to each crop, which are annually reported by the IDs to the river basin hydrographic confederations. These water allocation data can be used for risk calculation only if they have not been distorted to get insurance payments.

Impact of water allocation on farmers’ revenue during a shortage is often quantified using stochastic models that relate crop yields —and indirectly, farm revenue— to different variables, including irrigation water allocation. For example, Quiroga et al. (2011) have statistically estimated a crop production function for maize yield response to various bio-physical and socio-economic explanatory variables. Pérez & Gómez (2012, 2014) used agronomic production functions for ligneous trees that are based on the percentage of evaporation satisfied.

One challenge to modeling the impact of hydrological drought on crop yields is data. Quiroga et al. (2011) use provincial data to calibrate their model. From our point of view, a province, which includes land belonging to different irrigation districts or different watersheds, is too large and heterogeneous a surface area. Smaller-scale data should be used to properly estimate the impact of irrigation water on crop yields. Agronomic production functions, such as those used by Pérez & Gómez (2012, 2014), are potentially a good alternative but they are not always easy to find for a particular site. When unavailable, production functions from other regions have been modified to fit yields characteristic of the case study area (assuring that they maintain their elasticity and marginal productivity properties). But it has not been verified that yield response to water is the same across regions. Moreover, we have observed that these models have sometimes been calibrated only for a specific range of water allocations and are not suitable for out-of-sample values.

We proposed an alternative method, which is the use of a crop growth simulation model. Only aggregate (provincial) yield data are available in Spain, so crop production is calculated from a set of daily climatic and irrigation parameters used as input to the FAO’s AquaCrop model (Heng et al., 2009; Hsiao et al., 2009; Raes et al., 2009; Steduto et al., 2009). AquaCrop was chosen because yields depend not only on the water they receive, but also precipitation and local conditions, such as weather, soil, crop variety and agronomic techniques.

Yields simulated with AquaCrop take into consideration only differences in water application and weather variability, whereas actual yields obtained by farmers may have suffered from other eventualities like disease or pests. We therefore calculated insurance premiums from actual yields provided by the ID in order to validate the yields and premiums calculated using AquaCrop. We also conditioned the indemnities on the existence of a drought episode, as identified by a drought indicator, to limit yield variability to that caused by hydrological drought.

Pure premium rates were calculated for individual crops and also for an average farm, with the same crop distribution as that typically observed in the ID (referred to as ID/whole-farm insurance). ID/whole-farm insurance pure premiums are calculated according to Eq. [1]:

With

and

where PR is the premium rate (as a percentage), is the farm’s average crop revenue (ha^–1), n is the number of years, _t is the insured value of a farm’s crop production (ha^–1) in year t, r_t is the farm’s actual average crop revenue (ha^–1) in year t, FD is the franchise deductible, i_t is the drought index in year t, I_Tr is the drought index trigger level, C is the coverage level, k is the number of crops on the farm, P_cῩ_c is the average crop price for crop c in the studied time series, S_ct is the surface area of crop c in year t, _c is the average yield for crop c, y_ct is the actual yield for crop c in year t. If a significant trend was observed for yields, we detrended it before taking the average to isolate natural variability in yield from technology-driven changes in yield.

When the farm only has one crop, crop-specific insurance is possible, and premiums are also calculated according to Eq. [1], where k=1, _c × Ῡ_c, and r_t = P_c × y_ct

Commercial premiums

Commercial premiums are calculated by increasing pure or actuarially fair premiums through multiplication by a number of factors to account for uncertainty about the estimated indemnity, administrative and operating (A&O) expenses, loss-adjustment costs, and profit for the insurance company (Agroseguro, 2003; Smith & Watts, 2009). Based on data from a wide review of agricultural insurance systems in several European countries, Bielza et al. (2008) suggested that the ratio of the pure premium to the commercial premium is approximately 70%[5]. According to Agroseguro (2003), the commercial premium equals the pure premium multiplied by 1.406. Given these two values are almost equal, we multiplied our pure premiums by 1.4 to obtain commercial premiums.

For comparison purposes, actual commercial premiums charged by insurance companies in the study area have been obtained from Agroseguro (2013). However, these ‘real’ commercial premiums are for multi-risk crop insurance, covering irrigated crops against all natural hazards whose effects are verifiable and measurable (such as hail, fire, wildlife or excess rainfall), but not drought.

Application to the Santaella Irrigation District (Genil-Cabra, Guadalquivir)

Our case-study is the Santaella ID(ColectividaddeSantaella), located in the Guadalquivir River Basin in the Andalusian province of Córdoba (southern Spain). This ID is a part of the Genil-Cabra Irrigation System (Zona Regable del Genil Cabra). This system is fed mainly by the Iznájar and the Cordobilla dams through the Genil-Cabra channel, which has a mean flow rate of 40 m³/s. Water supplied by the channel is mostly used for irrigation; only 1% of it is allocated to industrial uses. The Genil-Cabra Irrigation System is managed as part of the larger General Guadalquivir River Basin System (GGRBS), between which water exchanges take place according to needs. There is no irrigation from underground water in Santaella ID.

Indexes with the desirable characteristics for index insurance (being public, easy to understand, transparent and impossible to manipulate) have been used in recent years to officially indicate different drought levels in all of the Spanish river basins. They are called Indices de Estado (status indicators) and were published by the river basin hydrographic confederations in the 2007 special plans of action in drought warning and potential drought situations (EC, 2007; Estrela & Vargas, 2012). These plans of action define the “status indicators”, which are calculated from reservoir stock levels, inflows and, in some cases, also from groundwater levels. The plans also establish thresholds defining the system’s drought status (normal, watch, warning and emergency). These indicators and thresholds are often taken into account by ID water managers when they determine water allotments. So, these indicators can be used as a trigger index, provided that they are positively correlated with the water allotments given to farmers.

In our study area, April is the month that best represents the upcoming irrigation season (CHG, 2007), so the GGRBS April Status Indicator (ASI) is a potential candidate to be used as a trigger index i_t for our insurance scheme. This indicator is based on GGRBS water reservoir stocks at the end of April and is used by water management authorities to determine water allocations. Even though the status indicators have shown a good correlation with water allocations in other Spanish river basins (e.g., Bardenas in the Ebro River Basin), we found that the correlation was surprisingly low for Genil-Cabra. We chose it anyway because it is the indicator that behaves better among other available indicators (we also tried the Standardized Precipitation Index, water inflows, and different combinations of water inflows with previous year stocks in the GGRBS reservoir system and in the Iznajar-Cordobilla reservoirs). Moreover, we have certainty that when it indicates a drought, water allocations suffer cuts (to a greater or lesser extent) because water authorities use it as a reference to determine annual allocations. The ASI takes values between 0 (no water available in reservoirs) and 1 (full water availability). For ASI below 0.5 the water authorities consider the system in warning status and water allocations may be cut back. Therefore, we set the trigger level at =0.5. Thus, whenever ASI is below 0.5, the status for the crop season is considered to be drought.

The selected coverage level is 100%; this enables us to capture the whole risk in the premium. However, the more common 70% coverage is also used to compare our calculated commercial premiums (for drought) with real commercial premiums for an existing multi-risk insurance product.

The crop season in Santaella ID starts in November with the sowing of winter cereals. The rainy season occurs from October to April. Therefore the insurance purchase period could be October-November at the latest, to prevent adverse selection. Looking at the correlation coefficient between the ASI and the previous year’s October Status Indicator (cc=0.8, p=0.00), we can deduce that this case-study represents an inertial system, thus requiring a multiannual contract.

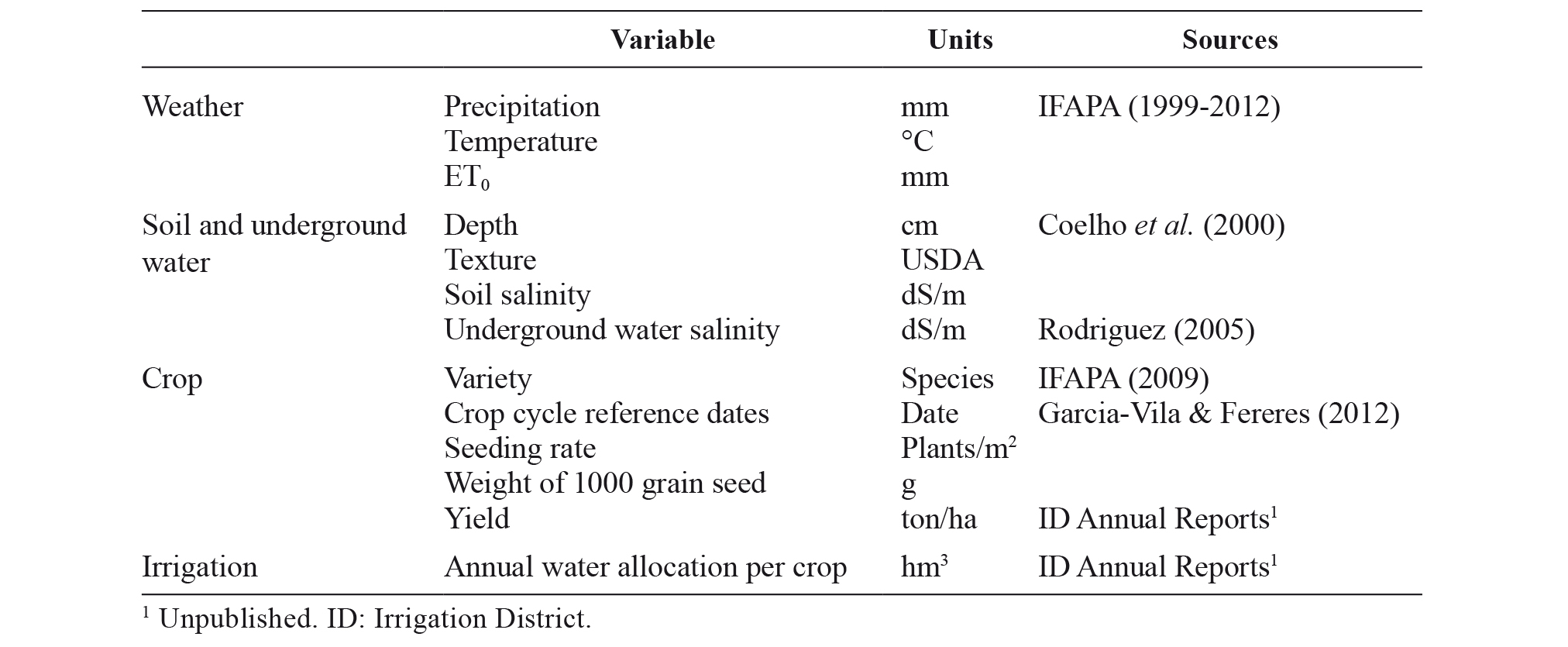

We analyzed crops with the largest irrigated surface area in Santaella ID: wheat, maize, sunflower, cotton, and olive tree (IFAPA, 2009). The main agronomic parameters needed to define yield simulations in AquaCrop are: the most common crop varieties, crop life-cycle reference dates, and planting density. All of these parameters were obtained from García-Vila & Fereres (2012) for all crops, except wheat, which were not available. Wheat was simulated using AquaCrop’s default parameters. The simulated sunflower yields were too high with respect to actual yields, so fertilization was adjusted to 50% of potential need. In fact, there is a tendency to under-fertilize sunflowers with NPK in the south of Spain, partly because of the crop’s capacity to absorb residual fertilizers from deep soil layers (Urbano, 2010). Another issue possibly influencing under-fertilization of sunflower in the region is that the crop has lower water use efficiency (WUE) than maize. At the same time, sunflower is not very sensitive to water scarcity; its WUE is more adaptive in response to available moisture (Green & Read, 1983). Therefore, it is one of the first crops to suffer water constraints in favor of more profitable crops.

Olive tree is one of the most important crops in the Genil-Cabra ID (36.6% of total crop area in 2012). In view of its importance, and because AquaCrop is unable to simulate ligneous crops, a crop production function was used instead. In this function, final yield depends solely on the annual amount of water received by the tree, taking into account both rainfall and irrigation. The following explicit production function was validated for the neighboring province of Jaén with a R² =0.72 (Pastor et al., 2002).

where Y is the yield (kg/ha) and x is the amount of water applied to the tree via rainfall and irrigation (mm).

Weather variables collected for AquaCrop simulations included precipitation, potential evapotranspiration (ET_O), and temperature from 1999 to 2012. These data were sourced from the Agriculture and Fisheries Research and Training Institute, of the Andalusian Regional Government Department of Agriculture, Fisheries and the Environment.

Soil characteristics such as type, depth and underground water salinity were also included in AquaCrop simulations. Average soil type was taken from Coelho et al. (2000); it is classified – according to the FAO classification system (FitzPatrick, 1980) – as sandy loam Typic Xerofluvent (USDA, 1975) or Eutric Fluvisol soil. It imposes clear constraints on root growth at depths of 3 m. Irrigation water salinity was calibrated according to Rodriguez (2005), who found an average salinity close to 2 dS/m in the Santaella ID.

Irrigation water is supplied to the Santaella ID by a modern pressurized irrigation-delivery system, which allows farmers to irrigate on demand with variable frequency, rate and duration. Sprinkler irrigation accounts for 60% of the area; the remaining 40% is under drip irrigation. Yields were simulated for each water application method, and subsequently weighted according to the area under each irrigation method. Data regarding irrigation was sourced from the Santaella ID annual reports, which record the annual amount of water allocated to each crop and the amount of water employed monthly throughout the whole district. These data were used to estimate the distribution of actual irrigation events for each season and each crop, taking into account different crop calendars. Irrigation records cover the 2000-12 period, excluding the year 2009, when no reports were published by the ID. Figure 1 shows the annual volume of water applied in the entire ID in each irrigation season (from April to September), and the average volume of water applied per hectare on the secondary axis. All parameters and variables used to calibrate AquaCrop for the Santaella ID’s agronomic and climatic conditions are summarized in Table 2.

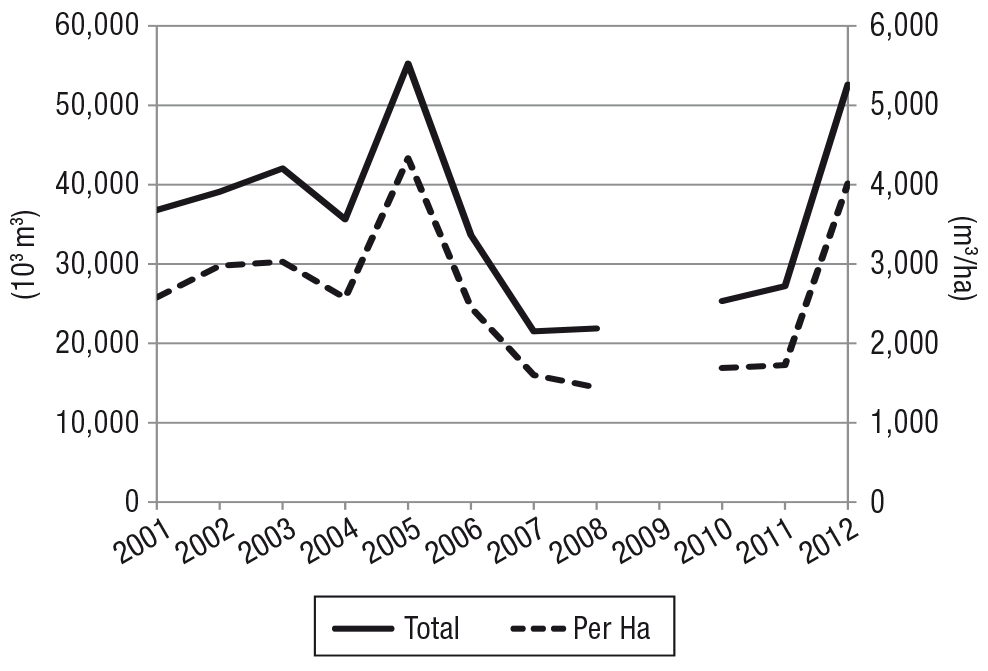

Figure 1. Santaella ID total irrigation water application.

Yield simulations

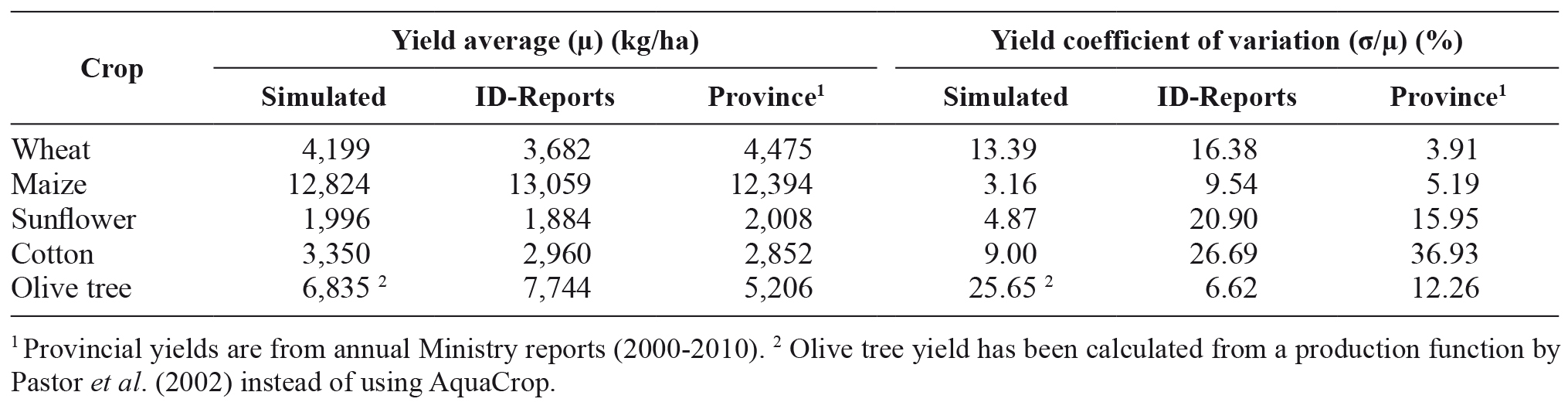

AquaCrop simulations were carried out for the period 2000-01 to 2011-12, except for the 2008-09 season because irrigation data were not available for it. Table 3 shows average yields (ha^–1) and coefficients of variation (CV) for simulated vs actual crop data (as reported by the ID), along with provincial yields for reference purposes. Average simulated yields are slightly higher than reported yields (except for maize) but are very close on the whole to both reported and provincial yields. The difference is due to the difficulty of calibrating AquaCrop without on-field agronomic data. Specifically, it might be due to an overestimation of the irrigation system efficiency.

Analysis of the CV shows that simulated yields are consistently less variable than reported yields, except for olive trees. A possible explanation for this lower variation in Aquacrop simulated yields is that actual yields depend on more factors, such as surface use changes (including soil quality changes) and a number of perils other than drought. Figure 2 shows the influence of surface area on per hectare yields. When maize area increases, its average yield decreases and vice versa. Other crops did not show this effect, suggesting that better quality soils are always assigned to maize. While there is a high correlation between simulated and actual reported wheat yields, the correlation of sunflower and cotton is much lower. Actual reported sunflower yields (ha^–1) decreased sizably in the 2004-07 period, which is consistent with a shrinkage in sunflower surface area, thereby suggesting that poorer quality soils were assigned to this crop. Cotton followed a particular trend, reflected in surface area and in reported yields, as a consequence of the 2005 changes in CAP subsidies (introduction of the single payment scheme), which decreased its profitability notably. Maize yields are relatively constant, although its area is constantly shifting. This is explained by the preference for allocating the best soil and consistent water to this crop.

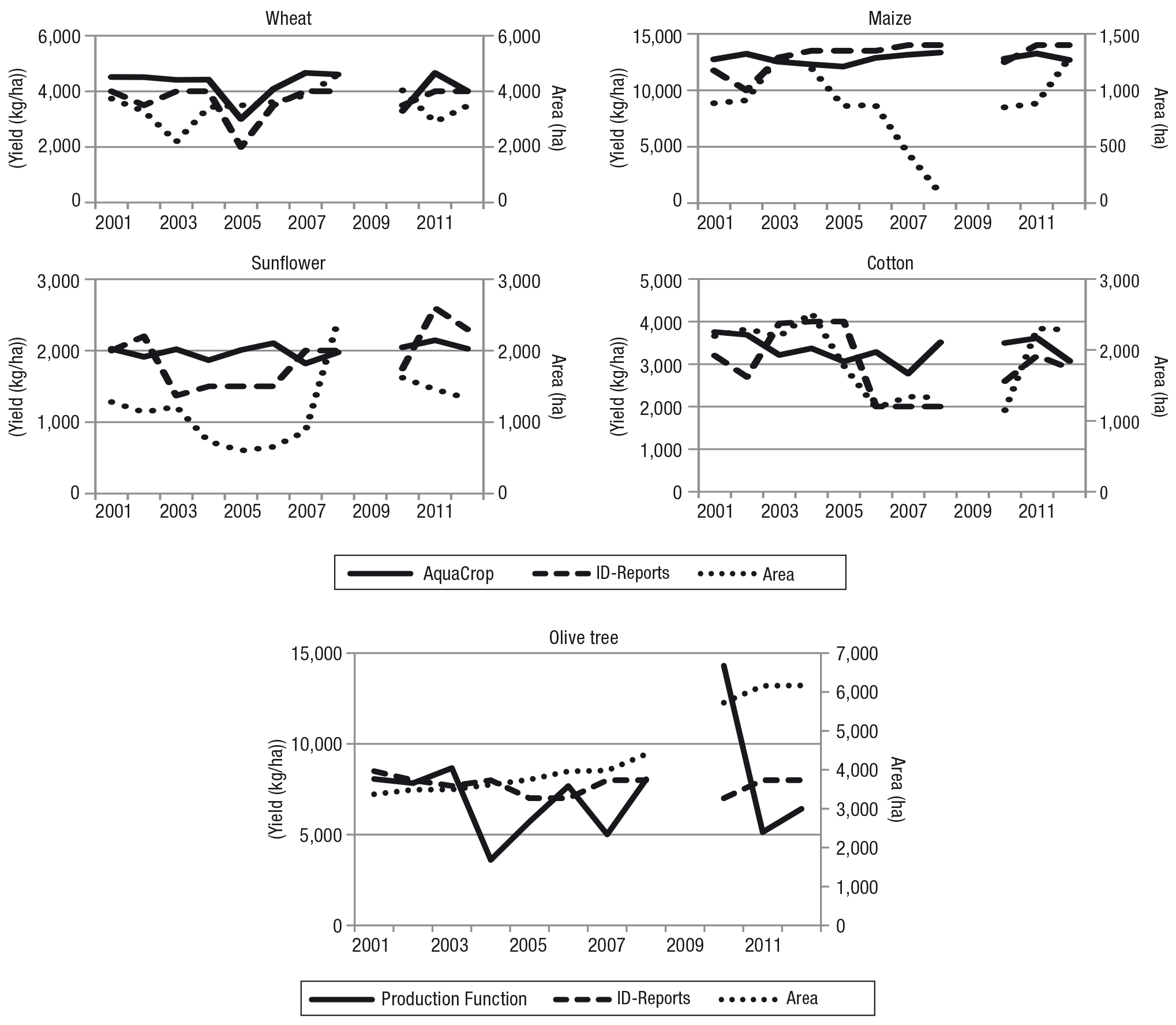

Figure 2. Actual vs simulated yields (kg/ha), and actual district-wide crop area (ha).

Correlation coefficients between simulated and reported yields, between yields and the drought index, between the drought index and water allocation, and between water allocation and surface areas are shown in Table S1 [online supplement].

Pure premium rates

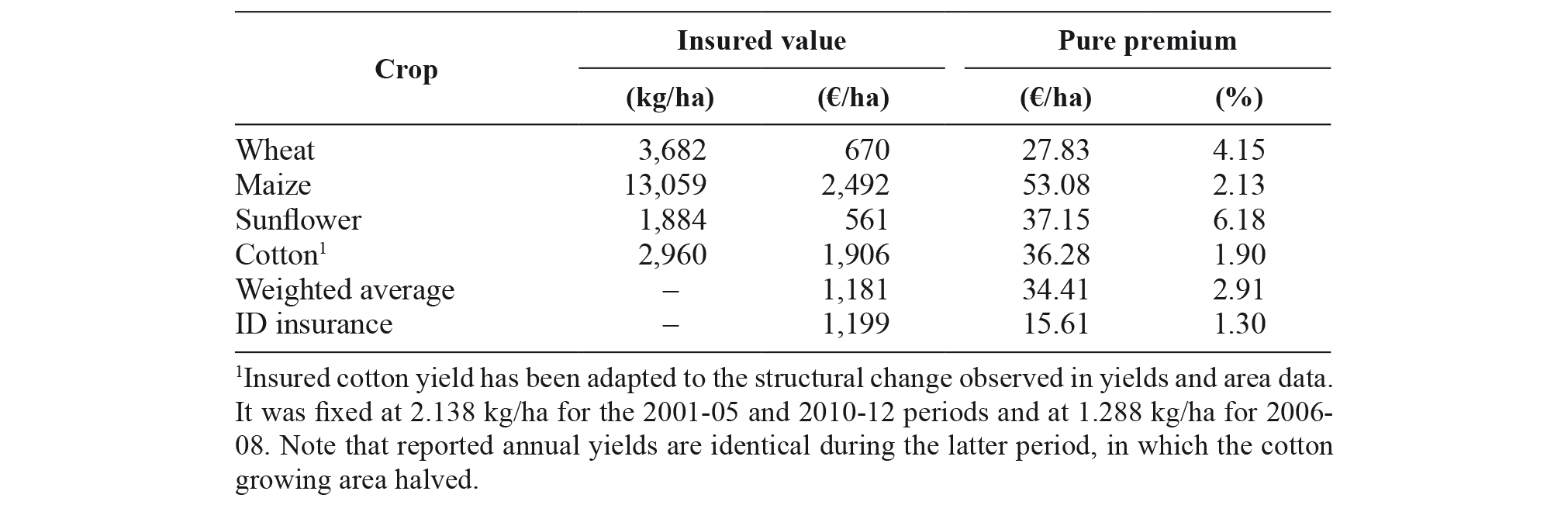

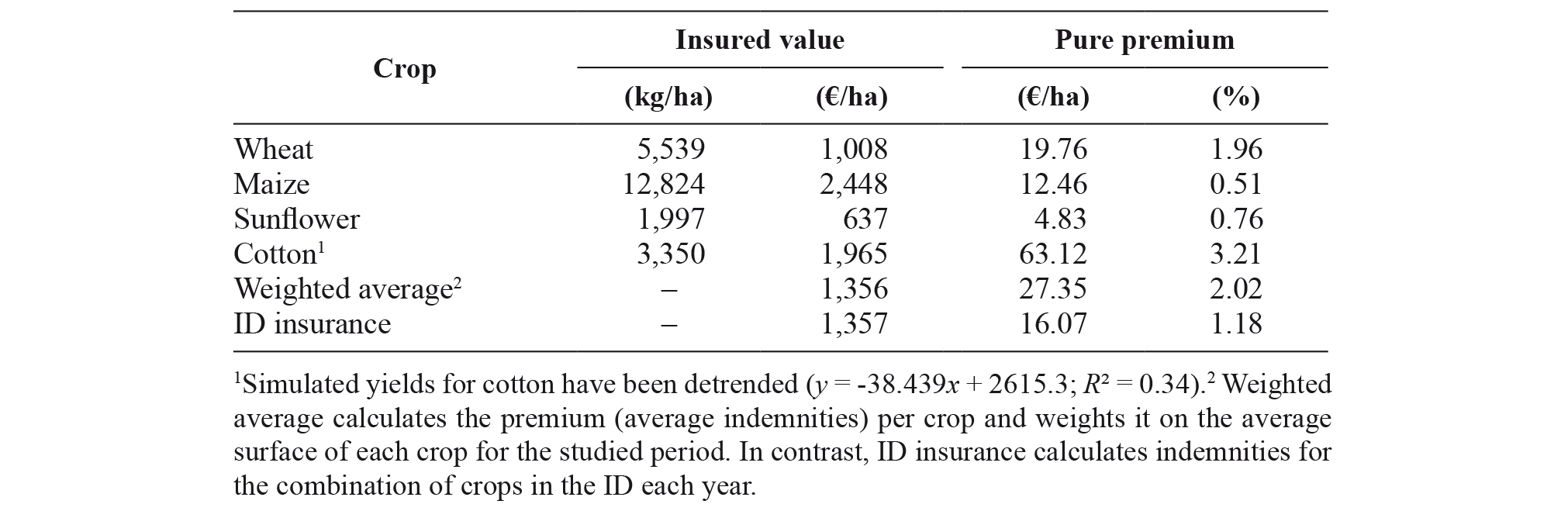

The pure (actuarially fair) premiums, calculated for various arable crops on a representative Santaella ID farm, assuming a 100% coverage level, are reported in Table 4 (which uses AquaCrop yields) and Table 5 (which uses actual reported yields). Both tables show the guaranteed yield (in kg/ha and €/ha), the premium amounts (in €/ha), and the premium rates (as a percentage of the guaranteed yield).

Comparing the premiums calculated from AquaCrop and ID reported yields, we found that AquaCrop premiums were smaller than ID-Report premiums, except for cotton. Another result from this comparison is that the ID premium was smaller than the premium for the area-weighted average of crop-specific insurance, due to risk management done by farmers. Farmers maximize their net income by shifting their crops’ acreage distribution according to water availability, an effect that disappears when only average surfaces were considered.

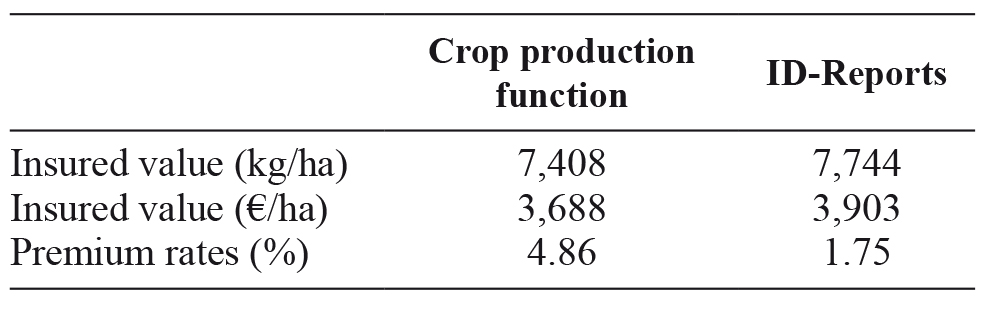

Olive tree has been excluded from the ID/whole-farm insurance because, as Figure 2 and Table 3 show, yields simulated using the production function differ significantly from the actual yields taken from ID reports. Therefore, the comparison of olive’s simulated yields (by means of the production function) with AquaCrop yields could be misleading. Table 6 shows the guaranteed yields and premium rates for the crop-specific olive insurance, which were calculated from the production function and from reported yields. Premium rates were much higher using the production function than reported yields, which we expected due to the higher variability of production function yields (Table 3). Recall that the olive tree production function was calculated for the neighboring province of Jaen, which does not have the same agronomic conditions as the Santaella ID. The production function also only takes into account the total annual water received by the tree, instead of daily climatic variables such as temperature, rain and evapotranspiration, which have a crucial influence over yields. Hence the use of this production function generates inaccurate estimates of yields and consequently of insurance premiums.

Commercial premiums and comparison with 2013 actual multi-risk commercial premiums

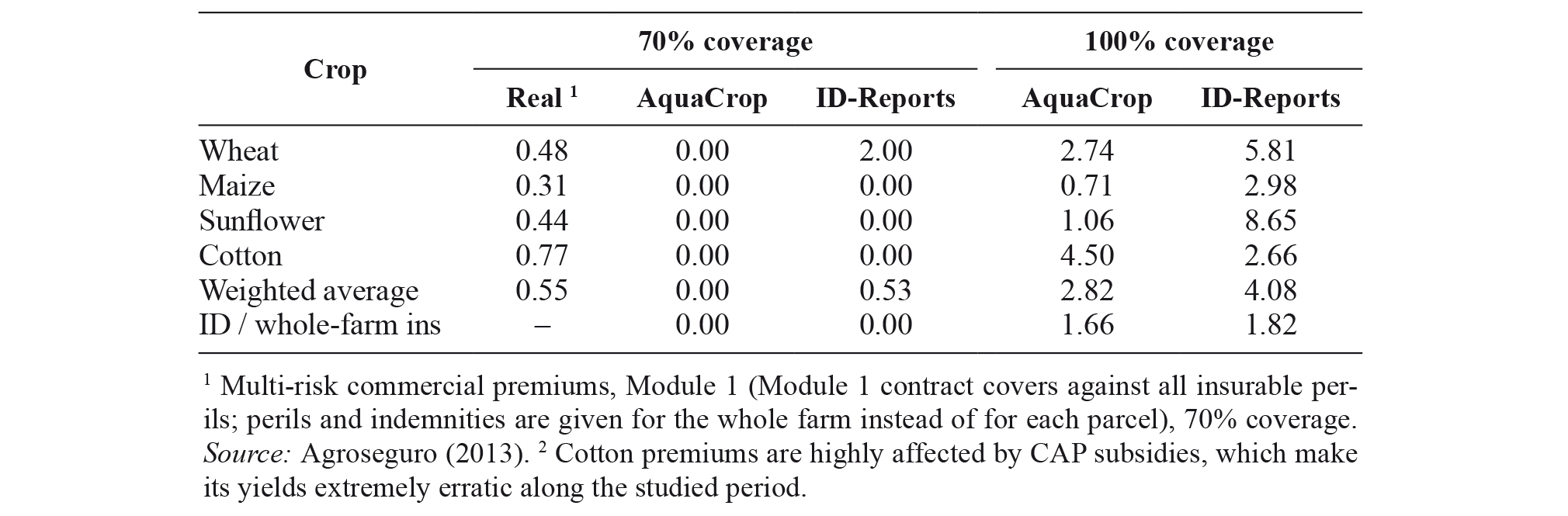

Commercial premiums for ID/whole-farm insurance calculated from AquaCrop yields and from reported yields are shown in Table 7, against Agroseguro multirisk commercial premiums (hereafter ‘real’ premiums). As Agroseguro insurance covers only 70% of the guaranteed yield, ‘AquaCrop’ premiums and ‘ID-Report’ premiums have also been calculated for a 70% coverage level. The premium rates are expressed as a percentage of guaranteed yield, rather than in €/ha for the purpose of comparison, given that guaranteed yield is not equal for all three premium types.

At 70% coverage, commercial premiums based on ‘AquaCrop’ and ‘ID-Report’ are zero for most crops. Only wheat yields from ID-Report suffered losses above 30% of the average yield (once in eleven years). Given that most premium rates for 70% coverage are equal to 0, they are also shown for 100% coverage (i.e., no deductible) in the right-hand columns of Table 7.

Comparing the 70% coverage commercial premium rates, we found that ‘real’ premiums were higher than AquaCrop premiums, the only exception was cotton (see footnote to the Table 5). This is expected because ‘real’ premiums provide coverage for more risks than ‘AquaCrop’. ‘ID-Report’ premiums theoretically provide coverage for the same risks as the real premiums (possibly for even more risks, such as pests and diseases). Nonetheless, they were smaller (e.g., for maize, sunflower and cotton), perhaps because real premiums were calculated for the entire region where, in all probability, yields were more erratic due to a wider range of agronomic conditions. Looking at the commercial premium rates with 100% coverage, we found that ID-Report premiums were always higher than AquaCrop premiums, because the former reflect many other causes of yield variability, not just drought.
