Study area

Azarbaijan region is located in the northwest of Iran and covers a vast area of the country with three provinces, including East Azarbaijan, West Azarbayjan and Ardabil. Mean precipitation across Azarbaijan region during the last 50 years was about 310 mm per year and fluctuates from 288 mm at the East Azarbaijan to 341 mm at the West Azarbayjan that was provided by Iran Meteorological Organization (http://www.irimo.ir/farsi/amar/map/index.asp). These provinces are located at 36^o-40^o N latitude. Agriculture plays the major role in the regional economy. Azarbaijan region is one of the main production areas of Iran with about 694,000 ha of wheat-cultivated area (MAJ, 2009).

Effects of climate change

Model validation

Field experiment data under Azarbaijan climate were used for validating the crop model. The experiment was conducted as a randomized complete block design at research station of Tabriz Agriculture College in East Azarbaijan province in 2010 year (Ahmadinezhad et al., 2013). Experimental treatments were different levels of organic and chemical fertilizers of nitrogen at seven levels. Alvand cultivar of wheat was cultivated and the effects of treatments were investigated on the growth properties. Grain yield, biological yield, leaf number and harvest index were simulated by the model and compared to the observed data. The simulation model options were set according to weather, soil and treatments that employed in the experiment.

The coincidence between observed and simulated values was measured by root mean-squared error (RMSE) (Eq. [1]), while root mean deviation (RMD) (Eq. [2]) was calculated to evaluate systematic bias of the model. Modeling efficiency (ME) (Eq. [3]) was considered as tool to evaluate model performance with regard to mean of observed data (Nash & Sutcliffe, 1970). Another criterion to test the difference between measured and simulated data was the comparison of linear regression against the 1:1 line. Under best simulation, the simulated and observed data should be the same so its regression equation is y=x (1:1 line). Comparison of fitted regression equation between simulated and observed data (Simulated = a + b × Observed) against the 1:1 line (Simulated = Observed) was tested by t-test. If a=0 and b=1, the null hypothesis is acceptable so this means that the difference between simulated and observed data is not significant.

where P and O are predicted and observed data, respectively, is the mean of observed data and n is the number of observations. The RMSE illustrates the model’s prediction error by heavily weighting high error, whilst the RMD uses same weights for all errors, which tends to smooth out discrepancies between simulated and observed data. The ME indicates the efficiency of the model and it can have positive or negative values (Bannayan & Hoogenboom, 2008; Huang et al., 2009).

Effects of technology improvement

Technology improvement was largely responsible for the achieved yield increases of crops especially wheat, during the past decades in the studied region. Therefore, it is necessary to consider the effects of technology development for estimating the yield change in future conditions. In this study, we supposed all measures and inputs related to crop management as technology development (such as pesticides, fertilizers, irrigation, modern varieties and machinery) which will result in yield rise. Technology development was divided into two main components, one is the raising yield potential (f_T,P) and the other is the declining of the gap between actual and potential yields (f_T,G) (Ewert et al., 2005). In order to evaluate the technology improvement effects on yield changes of wheat in the future, historical yield trend of wheat was calculated based on data provided by the Iranian Ministry of Agriculture. Yield trends were calculated by fitting liner regression through the observed data for each province in a 29-years period from 1983 to 2011. We assumed that the historical yield trend was a time series which should not have included seasonal component, so we adjusted data to remove seasonal component effect. Therefore, we used adjusted data to fit yield trend. To obtain the adjusted data, we used the decomposition method to separate the time series into linear trend and seasonal components, as well as error, and provide adjusted data by removing the effect of seasonal component. Minitab vers. 16 software was applied to obtain the adjusted data.

where Y_e is the estimated wheat yield at a particular year t; r_y is the annual rate of yield change and a is an empirical parameter; a and r_y parameters were estimated by fitted linear regression between adjusted yield and time for each region. The accuracy of the fitted regression was tested by Mean Absolute Percentage Error (MAPE). MAPE expresses accuracy as a percentage (Yaffee & McGee, 2000).

where Y_a equals the actual value, Y_e equals the fitted value and n equals the number of observations. The smaller values of MAPE indicate a better fit of the model. Relative yield change (Y_r) between years was calculated according to Ewert et al. (2005) as:

where Y_e was calculated using the Eq. [4]. The baseline in our study was 2010-2011. Thus, wheat yield change as affected by technology improvement in future time (compared to baseline P_t0) was obtained from relative yield change at baseline and a factor that considers the impacts of technology on potential yield and yield gap (Ewert et al., 2005):

where P_t,T is the future yield of wheat as affected by technology improvement, Y_r(t₀) is relative yield change in baseline year, Y_r,a is annual increase of relative yield change with reference to the baseline and is calculated from: Y_r(t₀)-1. According to Nassiri & Koocheki (2010), the present wheat yield in Iran is about 50% of potential yield, so, the value 0.5 indicates the current yield as a relative share of potential yield. This value is 0.8 for European countries, as reported by Ewert et al. (2005). The values of f_T,P and f_T,G for different scenarios were obtained from Ewert et al. (2005) (Table 1).

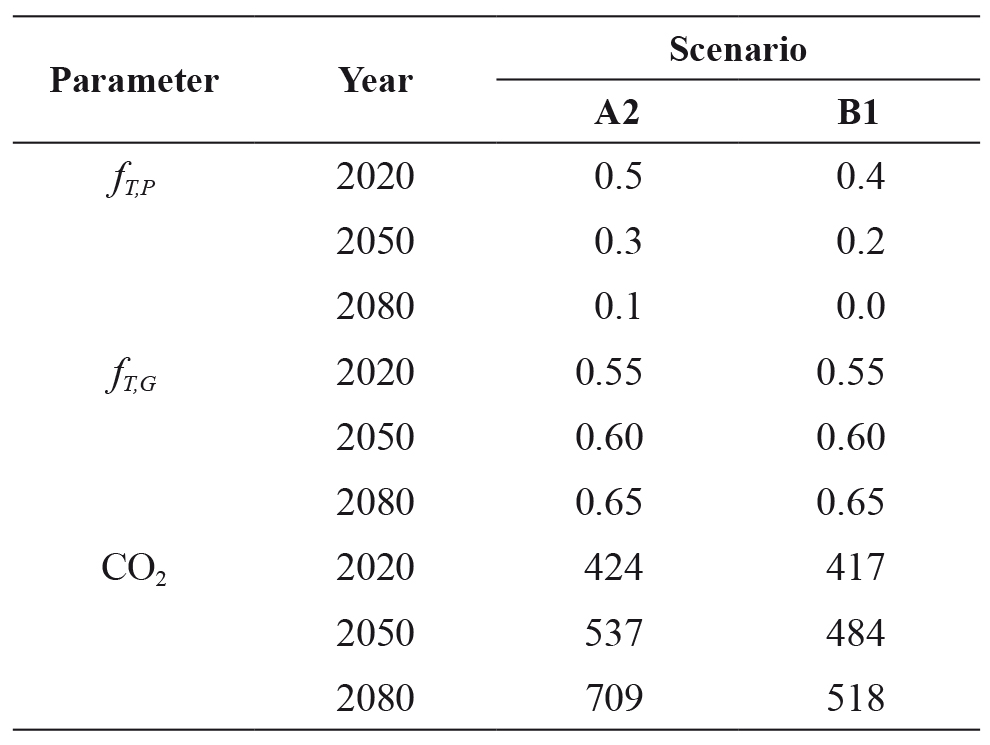

Table 1. Values of f_T,P and f_T,G for calculating the technology improvement effects and projected increasing of CO2 concentration (ppm) on yield change of wheat under different scenarios of Intergovernmental Panel on Climate Change (IPCC) and time periods (Ewert et al., 2005).

Effects of CO₂ enrichment

CO₂ effect on wheat yield was calculated based on future CO₂ concentration by IMAGE model (IMAGE-Team, 2001) (Table 1). According to the results of Koocheki & Nassiri (2008), average yield change of wheat is 0.05% per unit increase in CO₂ concentration (in ppm) suggesting that rising CO₂ concentration from current (350 ppm) to e.g. 550 and 700 ppm would increase wheat yield by 10.3% and 19.5%, respectively. To evaluate the CO₂ enrichment impact on change of wheat yield, the relative yield change as affected by rising CO₂ levels was calculated using the following equation (Ewert et al., 2005):

where P_t,co is the future yield of wheat as affected by CO₂ concentration, f_co,r is the relative yield change per unit change in CO₂ concentration (f_co,r = 0.05%) and ∆C_t-t0 is the difference between future and current CO₂ concentration.

Integrated effects

Precise estimation of wheat yield in future needs to integrate the effects of all components (climate change, elevated CO₂ and technology improvement). For this purpose, according to Ewert et al. (2005), the integrated effects of all components were calculated by:

where P_tis the future yield as affected by all components and P_t,cl is the relative yield change as affected by climate change compared to the baseline year.

Evaluation of climate and crop model

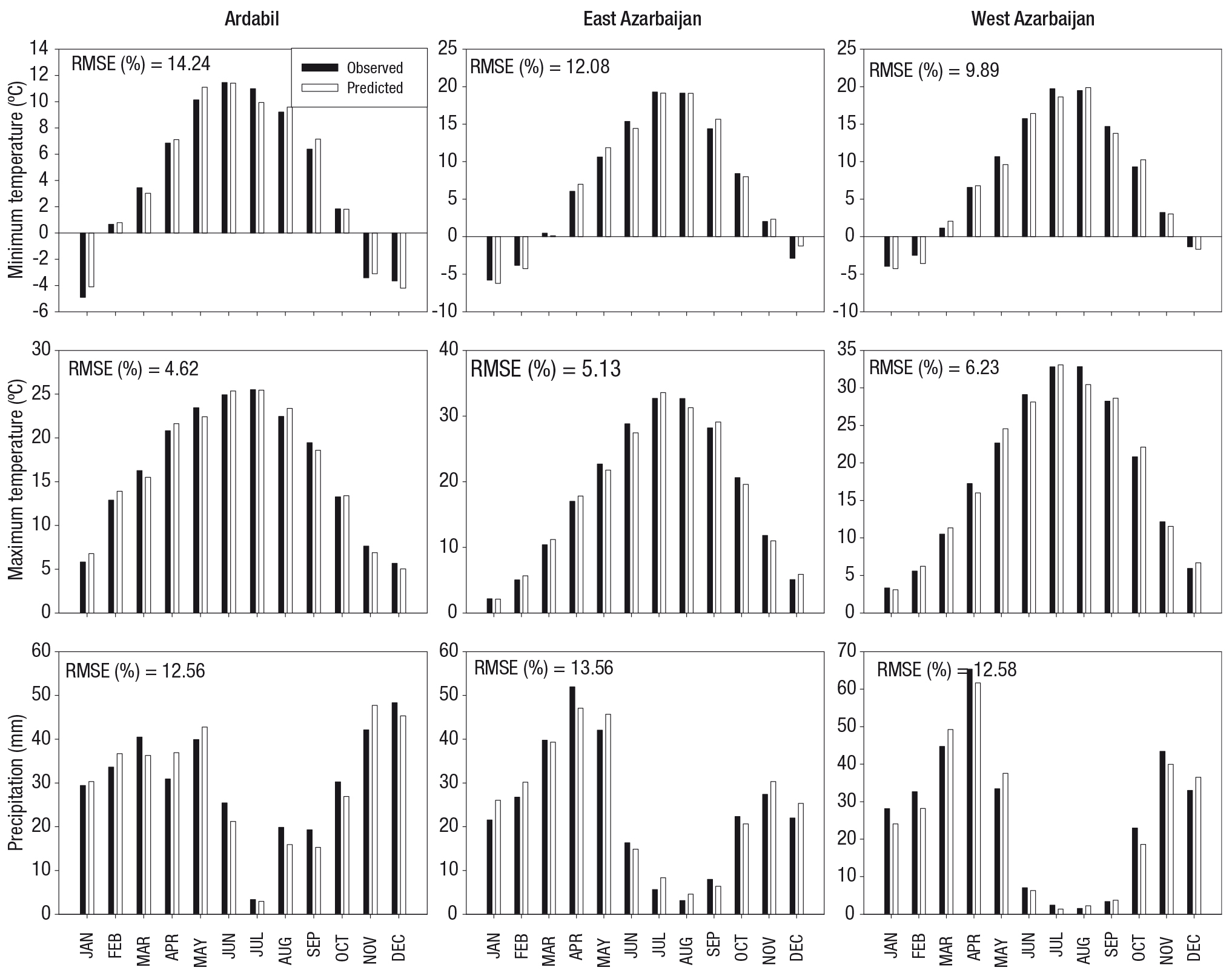

The precise estimate of weather parameters such as maximum and minimum temperatures and precipitation in the baseline period may show accuracy of down scaling models in climate change researches (Viglizzo et al., 1997). Weather prediction results indicated higher accuracy projection of maximum temperatures than minimum temperatures and precipitation across all regions (Fig. 1). The results of RMSE showed that all the predictions and observations of minimum temperatures were closely matched, so that the RMSE values were less than 20%. The accuracy of precipitation prediction for East Azarbaijan (with more value of RMSE) was lower compared to other regions. The highest and lowest exactitude for predicting of weather parameters were obtained by maximum temperature and precipitation in Ardabil region, respectively (Fig. 1).

Evaluation of crop model showed an adequate accuracy of model to simulate the biological and seed yield, harvest index and leaf number of wheat. All the predictions of biological and seed yield, harvest index and leaf number showed that RMSE values were lower than 10.0%. Simulated biological and seed yield, harvest index and leaf number had little differences with observed values, so that they were ±2.87%, ±5.02%, ±5.52% and ±6.08% of the observed data, respectively. The model results illustrated a high accuracy for simulating the biological and seed yield compared to harvest index and leaf number based on lower values of RMSE and RMD and higher values of ME (Table 2). In general, the model accurately predicted all the traits.

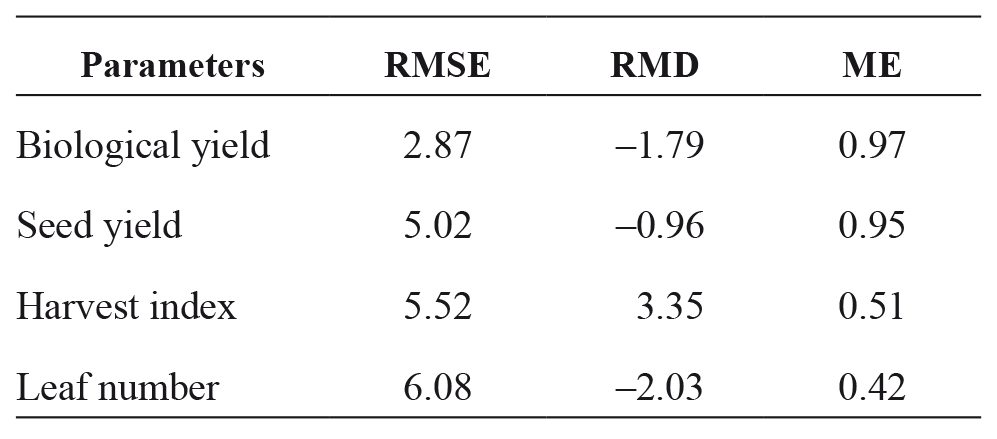

Table 2. Comparison of simulated and observed values of seed and biological yield, harvest index and leaf number by root mean-squared error (RMSE), root mean deviation (RMD) and modeling efficiency (ME).

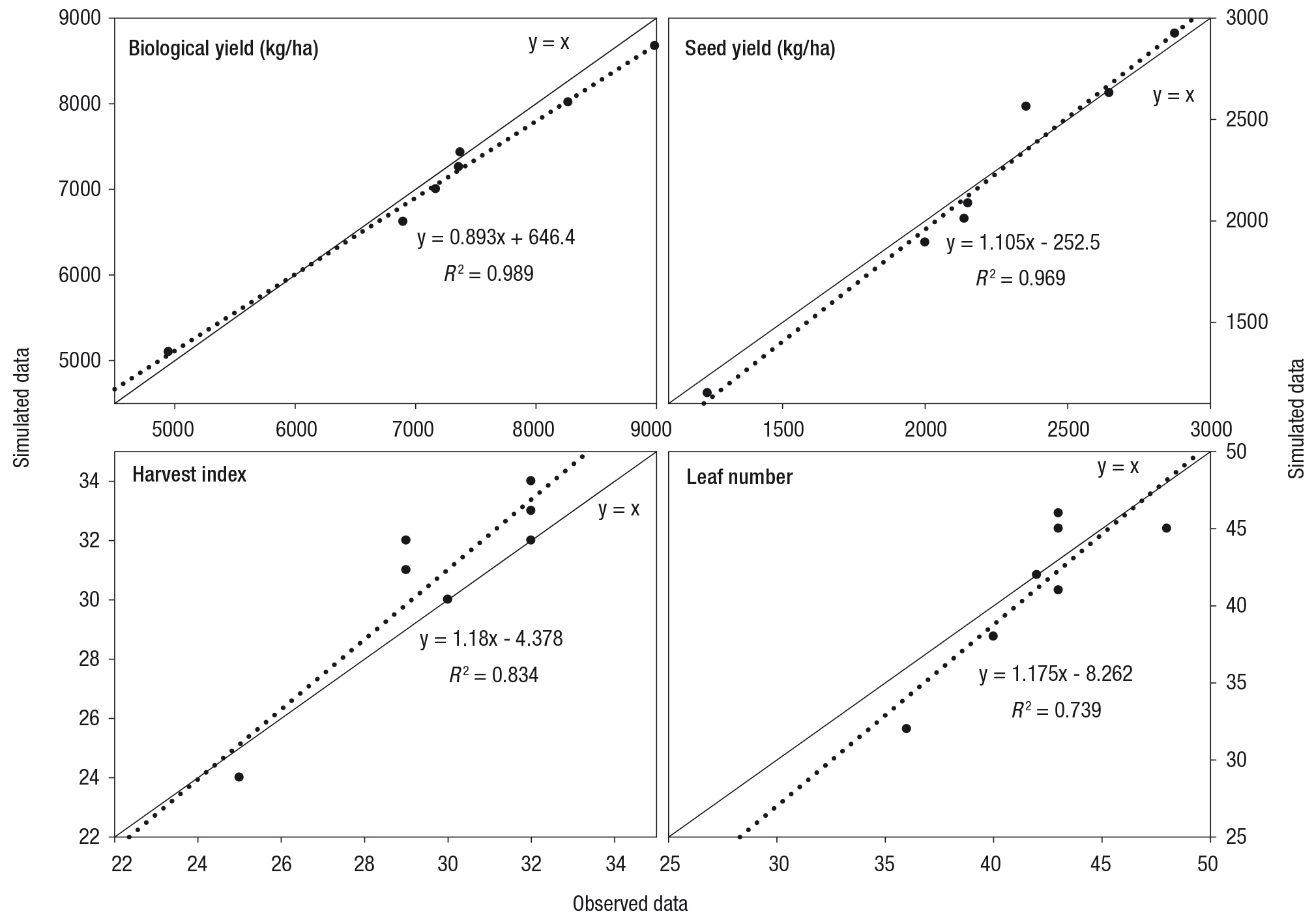

The t-test was carried out to compare the slop and intercept of the 1:1 line against the fitted linear regression between observed and simulated data. The results indicated that there was no statistically significant difference in slope and intercept between the lines for all traits (Table 3, Fig. 2). High correlation was obtained between observed and simulated values of biological and seed yield (R²> 0.95), harvest index (R² = 0.83) and leaf number of wheat (R² = 0.73) (Table 3, Fig. 2).

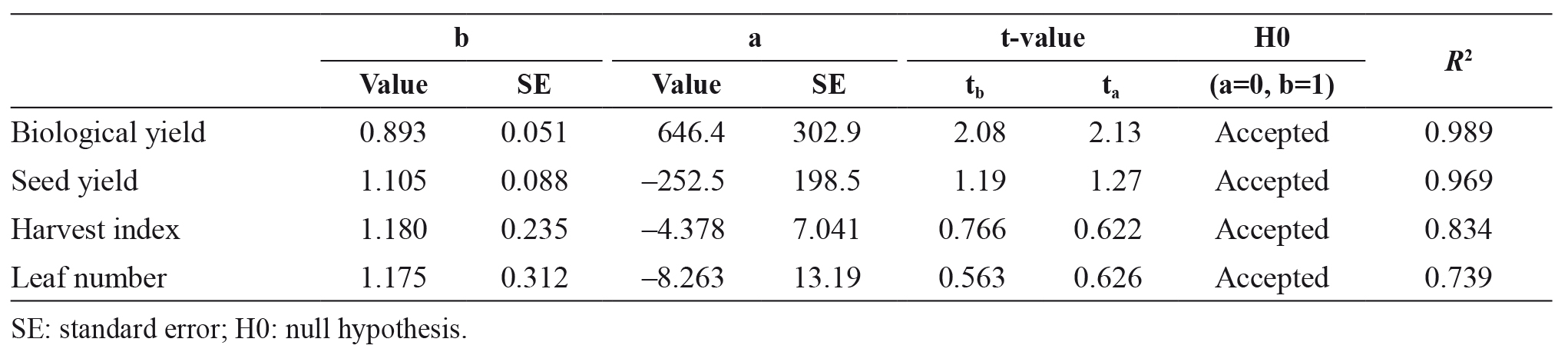

Table 3. Results of the t-test for comparing the slop (b) and intercept (a) of the 1:1 line against the fitted linear regression between observed and simulated data (Simulated = a + b × Observed).

Effect of technology improvement

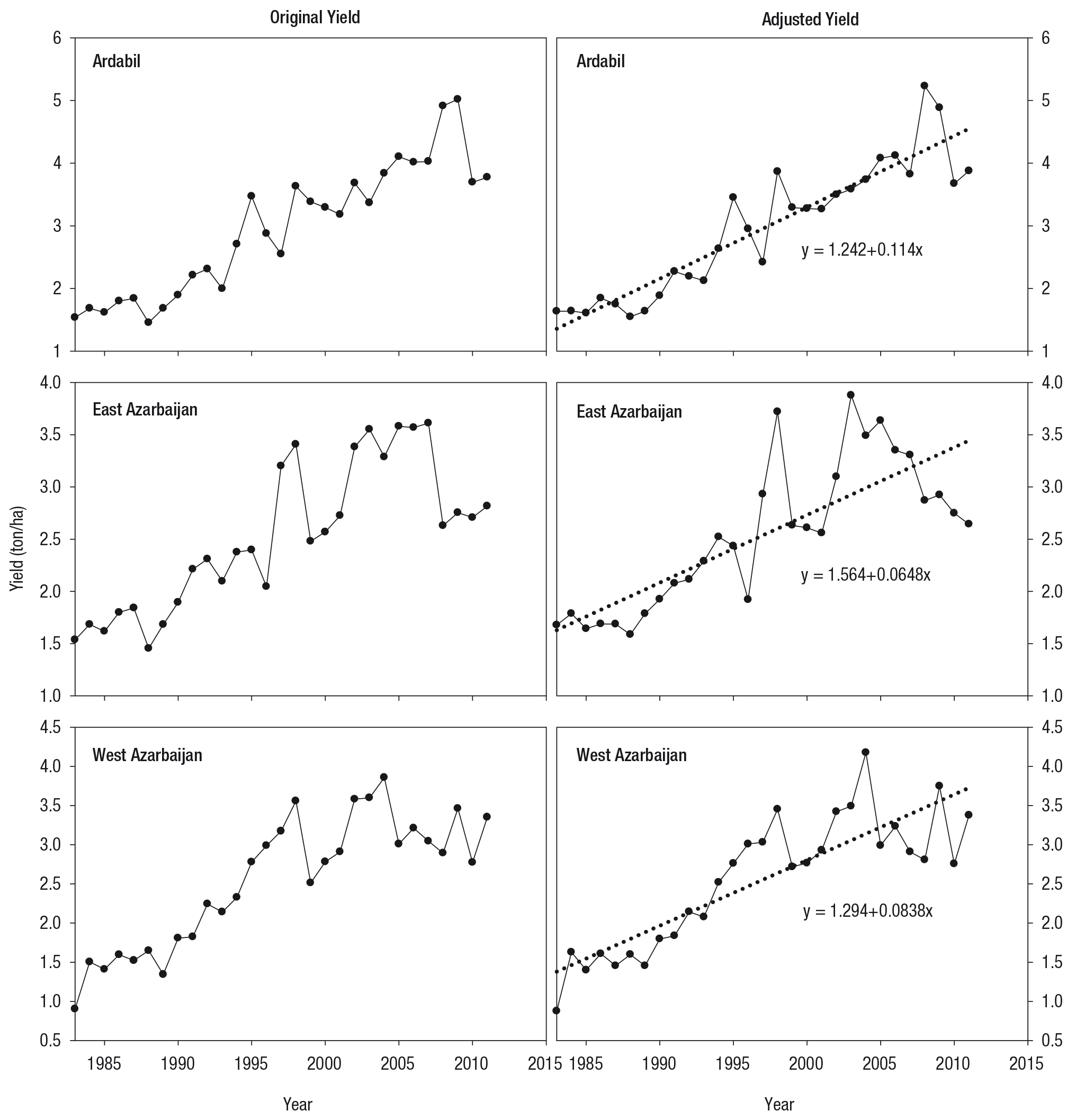

Figure 3 shows the historical yield trend of wheat (as original data) and adjusted data in various provinces. Wheat yield in different regions increased during time from 1983 to 2011 due to development of technology. Yield increase trend was calculated by the linear regression and its slope indicated annual rate of yield increase. For Ardabil province, the annual rate of increase in wheat yield was higher than other regions based on the higher value of regression slope that was 0.114 (Table 4). The slope of the fitted regression between adjusted yield and time for East and West Azarbaijan were 0.065 and 0.084, respectively; it means that increasing of yield per year were 65 and 84 kg, respectively.

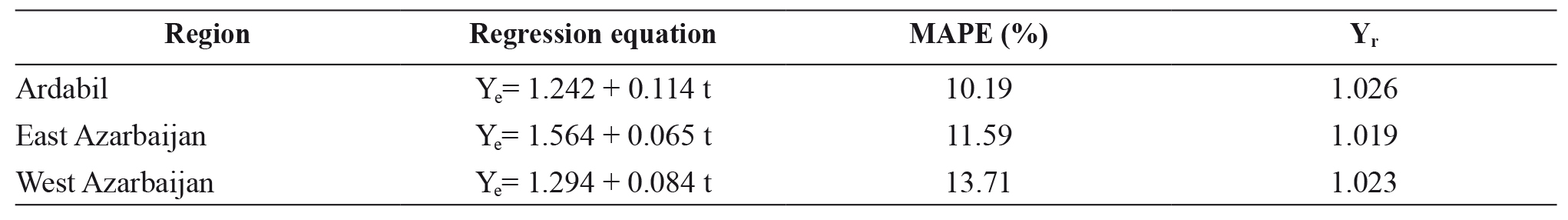

Table 4. Regression equation between adjusted wheat yield (Y_e, as dependent variable) and time (t, as independent variable), values of mean absolute percentage error (MAPE) and relative yield change (Y_r) for various provinces of Azarbaijan region.

The highest value of relative yield change (Y_r), 1.026, was observed in Ardabil province (Table 4). Because the value of MAPE in Ardabil region (10.19%) was smaller than in other regions, it can be concluded that the regression model fitted wheat yield with more accuracy in Ardabil compared to others.

Table 5 shows that the effect of technology improvement on yield was positive and ranged between 2% (East and West Azarbaijan, SRES-B1, 2080) and 39% (Ardabil, SRES-A2, 2080) depending on the region, time and scenario compared to the baseline year. Some physiologists reported that there are opportunities for any yield improvements of crops by increasing potential yield and reducing the yield gap (Evans, 1997; Austin, 1999; Reynolds et al., 1999; Lobell et al., 2009; Battenfield et al., 2013). Improving light capture and light and nitrogen use efficiency can increase potential yield (Loomis & Amthor, 1999; Borlaug, 2000). Biotechnology achievements and improved pest management by using tolerant plants to biotic and abiotic stresses and resistant plants against pests and disease may result in reduction of gap yield between actual and potential yield (Borlaug, 2000; Miflin, 2000). These approaches are considered as next positive effect of technology improvement on agriculture production for future conditions. Ewert et al. (2005) estimated wheat yield as affected by technology development under different scenarios in future conditions and reported increasing crop yields ranging from 20% to 134%. Yield change under SRES-A2 was higher than SRES-B1 because of higher values of f_T,P and f_T,G under SRES-A2 (Table 1). The results showed that Ardabil region was more affected by the technology development compared to the other provinces in both scenarios and all times (Table 5). Technology development showed higher impact on wheat yield than climate change and CO₂ enrichment (Table 5).

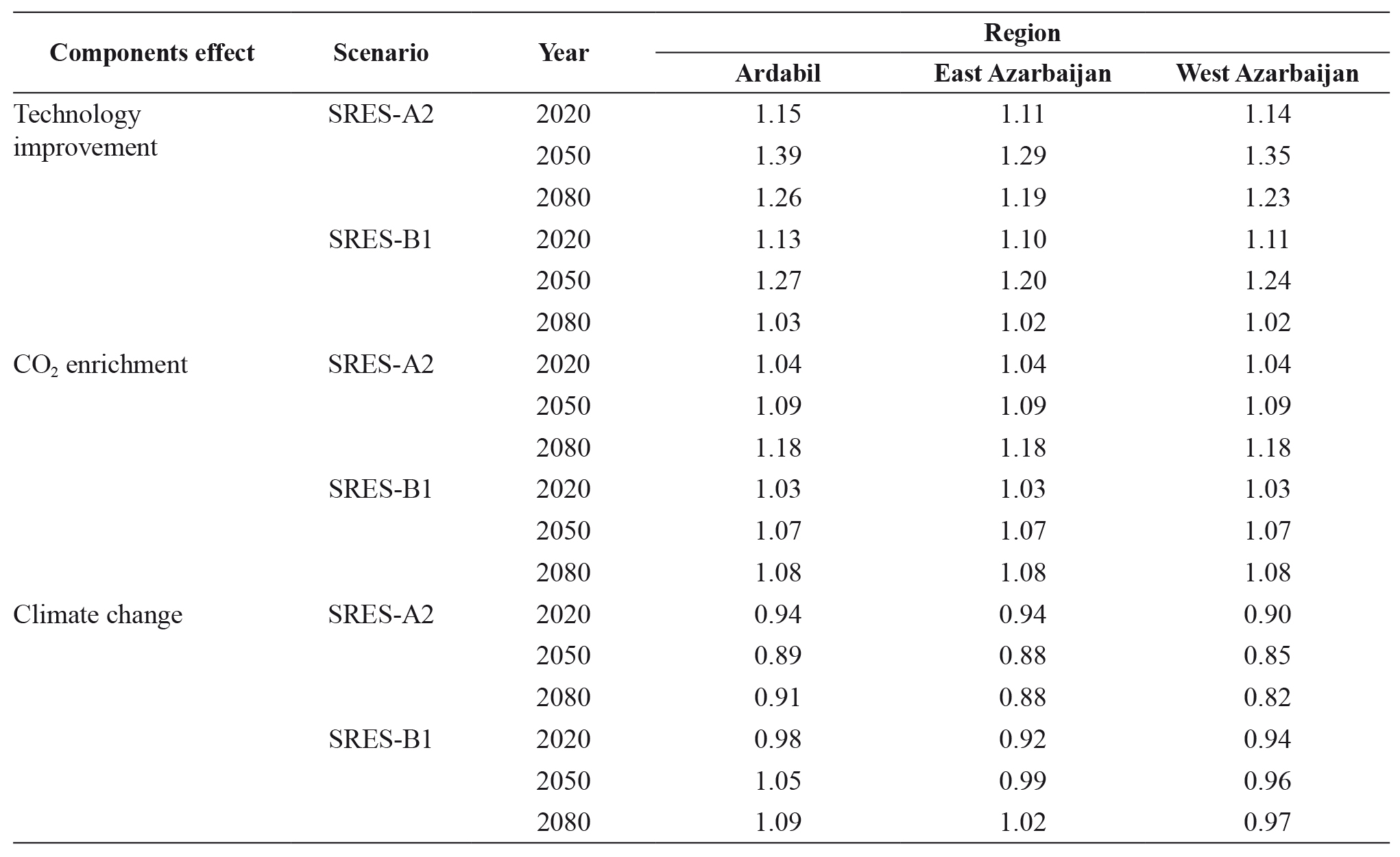

Table 5. The effects of technology improvement, CO2 enrichment and climate change on yield change of wheat under different scenarios of Intergovernmental Panel on Climate Change (IPCC) and time periods (compared to the baseline, 2011) for different provinces of Azarbaijan region.

Effect of CO₂ enrichment

Increasing CO₂ concentration in future conditions caused to improve wheat yield in both scenarios and all times (Table 5). The effect of CO₂ concentration on wheat yield was similar for all regions. This might be due to this fact that changing CO₂ concentration is global, not regional. Increasing yield under SRES-A2 was more than SRES-B1 in all times, because increase in CO₂ concentration under SRES-B1 was less than that for SRES-A2 in future. The highest yield change as affected by CO₂ was under SRES-A2 in 2080 (18%) and the lowest rate was obtained under SRES-B1 in 2020 year (3%) in comparison with the baseline (Table 5). Elevated CO₂ concentration stimulates the rate of photosynthesis and cause higher biomass and economic yield of crops (de Costa et al., 2006; Bannayan & Hoogenboom, 2008; Bannayan et al., 2009). Amthor (2001) mentioned that elevated CO₂ concentration could affect many crops production especially C₃ plants by increasing photosynthesis rate and reducing photorespiration. In addition, higher CO₂ concentration reduces stomata conductance of leaves that caused to improving water use efficiency (Lawlor & Mitchell, 1991). Thus, positive impacts of CO₂ enrichment on crops yield may be due to increase in photosynthesis system and water use efficiency (which is very important under semiarid conditions) or both of them (Amthor, 2001). However, Tubiello & Ewert (2002) think that there are some factors which negate or limit the fertilization influence of CO₂,including the effect of soil quality, and the presence of additional inputs such as nitrogen or tropospheric ozone.

Effect of climate change

In most cases, simulation of wheat yield under climate change showed that climate change had adverse effects on yield (Table 5). Values less than one indicate that wheat yield decreased in comparison with the baseline year and values greater than one mean that climate change led to increase in yield. Climate change affected yield that ranged from -18% to +9% depending on the region, time and scenario (Table 5). Climate change could affect crops productivity not only by increasing temperature but also by altering the rainfall amounts and pattern. SRES-A2 had more adverse effects on yield than SRES-B1, so that SRES-A2 decreased wheat yield under all regions and times. This is mainly because SRES-B1 is based on achieving global solutions, clean and environmental friendly technologies and interest in food quality and environmental issues but SRES-A2 is based on less concern for rapid economic development and environmental issues (Nakicenovic et al., 2000). Therefore, severity of climate change in SRES-B1 is less than SRES-A2. Positive effects of climate change were observed under SRES-B1 in Ardabil and East Azarbaijan (Table 5). Under SRES-B1, climate change not only had no adverse effect but also increased the yield of wheat in 2050 and 2080 years for Ardabil and 2080 year for East Azarbaijan. West Azarbaijan province was more affected by climate change than others were. The highest reduction of yield, 18%, was obtained for West Azarbaijan region under SRES-A2 in 2080 year and the highest increase in yield, 9%, was gained for Ardabil region under SRES-A2 compared to the baseline year (Table 5).

Integrated effects

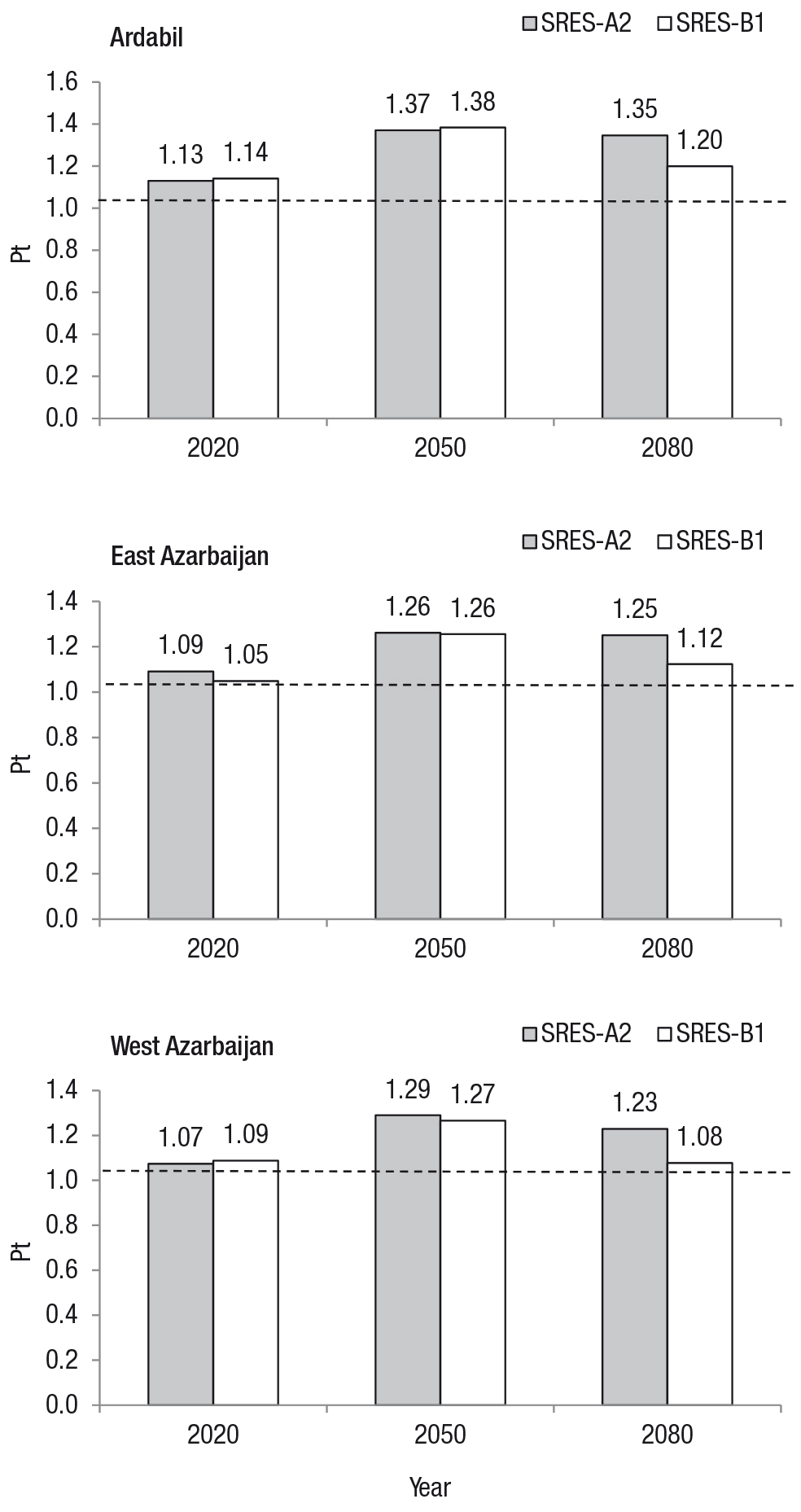

Figure 4 shows that considering the integrated effects of all components including climate change, CO₂ concentration and technology on wheat yield could be an effective approach for future management of agro-ecosystems. In all regions, integrated effects of factors led to produce higher yields in comparison with the baseline year under both scenarios and all future times. Projection for Ardabil province showed higher change of yield than two other provinces. Estimation of yield change as affected by integrated effects showed a positive effect of integrated components and increased wheat yield that ranged from 5% to 38% across all provinces, scenarios and times.

The highest yield of wheat was simulated for Ardabil region under SRES-B1 in 2050 year and the lowest value was achieved for East Azarbaijan under SRES-B1 in 2020 year as increase of 5% compared to the baseline (Fig. 4). It seems that higher adverse effect of climate change on yield (8% reduction) and less increase (10%) in yield as affected by technology improvement were the main reasons of yield drop in East Azarbaijan (Table 5). In general, integrated components had more effect on wheat yield in 2050 year compared to 2020 and 2080 years. Eyshi Rezaie & Bannayan (2012) performed an evaluation of future climate effects on wheat yield in the northeast of Iran. They reported sharp reduction in yield under future conditions but they did not consider the effects of technology and increasing of CO₂ concentration. The simulation results of Ewert et al. (2005) illustrated that wheat yield will be increased as affected by integrated factors of climate change, CO₂ and technology in future. They estimated that technology improvement and elevated CO₂ could increase wheat yield in future conditions but climate change might decrease wheat yield. Their results were coincident with our findings and indicated that wheat yield will be in the future more affected by technology development in European conditions than in Iran.

In summary, our simulation results indicate that climate change, technology improvement and increasing CO₂ concentration could change wheat yield in future conditions. However, focus on integration of these components, especially on technology development, has not yet sufficiently considered. According to our results, it could be concluded that wheat yield was less affected by climate change in Ardabil, and yield change was more affected in West Azarbaijan than in other regions. After integrating all evaluated components, Ardabil region showed the highest yield change and, among other components, had the maximum yield change through technology improvement. In general, SRES-A2 showed higher change of wheat yield across all components, regions and times than SRES-B1, because SRES-A2 is known as an economic scenario less concern for rapid economic development. Effects of increasing CO₂ concentration and technology improvement on yield were positive, but in most cases the impact of climate change was negative causing a reduced wheat yield. However, the integrated effect of the three components on wheat yield was beneficial. In essence, our results illustrated increasing wheat production in future conditions as affected by simultaneous impacts of climate change, CO₂ and technology. Although it should be emphasized that projection of yield change was optimistic and did not consider the adverse impacts of biotic and abiotic stresses, pests and pollutants such as ozone in future conditions.
