Cation exchange capacity (CEC) is an important soil property because it influences the ability of soil to retain essential nutrients; also, it protects soil from acidification and groundwater from cation contamination. CEC results from the presence of a variety of negatively charged mineral and organic surfaces. Because water vapour adsorption is a measure of specific surface area in soils (Quirk, 1955; Newman, 1983), CEC and hygroscopic moisture (HM) are closely related in soil populations with similar types and proportions of negative surfaces involved in cation exchange processes. For instance, coefficients a and b in the regression equation CEC = a + bHM, where CEC is expressed in cmol_c/kg and HM in g water/kg soil, were found to be 2 cmol_c/kg and 0.544 cmol_c/g water, respectively, in smectitic soils, and 1 cmol_c/kg and 0.454 cmol_c/g water, respectively, in kaolinitic soils of New Zealand (Churchman & Burke, 1991).

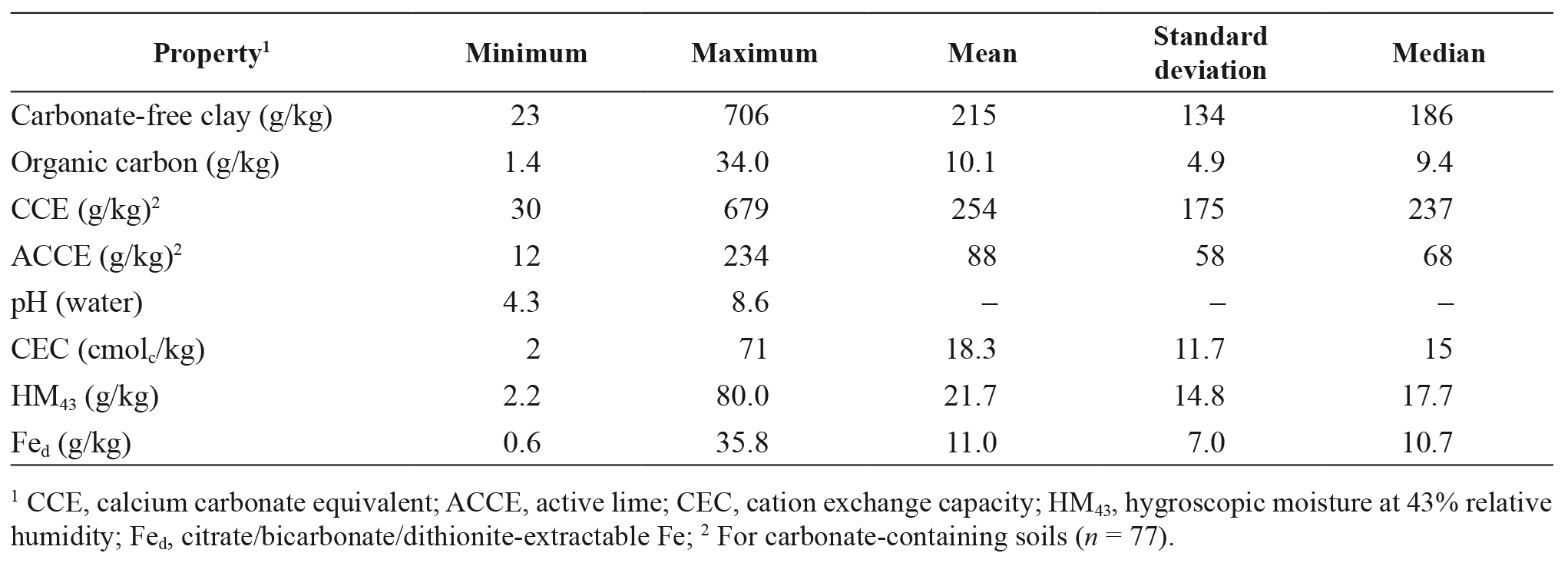

The aim of this work was to explore whether CEC could be accurately predicted from HM in western European agricultural soils ranging widely in physical, chemical and mineralogical properties. For this purpose, we used a total of 243 soil samples from different agricultural areas of Western Europe. Most of the samples (204) were obtained from regions with a Mediterranean climate mainly in Portugal and Spain, and the others (39) from regions under a temperate humid climate in France, Germany, Great Britain, Italy and The Netherlands. The studied soils belonged to the Alfisol, Entisol, Inceptisol, Mollisol, Ultisol and Vertisol orders in Soil Taxonomy (Soil Survey Staff, 1999). No saline, sodic or gypsiferous soils, or soils with organic carbon (OC) contents higher than 35 g/kg were included. Soil samples were air-dried, grounded to < 2 mm and stored for several weeks to more than 30 years before analysis. Soils had a wide variation range in carbonate-free clay content, OC, calcium carbonate equivalent (CCE), active lime (ACCE), pH, cation exchange capacity (CEC) and Fe oxides content (Table 1).

Each soil sample was leached with 1 M ammonium acetate (pH 7), isopropanol and 1 M NaCl (pH 7). CEC was determined by distillation of NH₄⁺ in the final leachate with a Hoskins apparatus. The value of HM at an equilibrium air relative humidity (RH) of 43% (HM₄₃) was adopted in this study because, in practice, a RH level of 43% can be readily reached in the atmosphere of a closed space (e.g., a desiccator) in equilibrium with a saturated potassium carbonate solution at temperatures over a wide range —its temperature independence makes potassium carbonate superior to other salts— and corresponds to a coverage of about 1.7 layers of water (Churchman et al., 1991).

In the present study an alternative procedure to determine HM was adopted: for each sample HM was determined at different RHs over the 30–50% RH range and then HM₄₃ was estimated from the fitted regression line. For the HM measurement at each RH, 4–6 g of soil placed in a weighing bottle were equilibrated with the air in a 200 dm³ cupboard fitted with a small fan to reduce the time of equilibration to about 1 day. The RH in the cupboard was measured with a MicroLite Temperature/RH Data Logger (fourtec – Fourier Technologies, USA) and only when the RH for the 24 hours preceding weighing of the soil oscillated by less than 2% in absolute value the HM measurement was deemed to be acceptable. In passing, it should be mentioned that, in practice, HM₄₃ can also be estimated from the HM value at x RH by using the equation:

where HM₄₃ and HM_x are the HM values at a relative humidity of 43% and x, respectively. This equation was derived from the results for 49 soils studied elsewhere (Sánchez-Alcalá et al., 2014) and is valid for the 30–50% RH range.

Figure 1 testifies to the strong correlation between CEC and HM₄₃ (R² = 0.962). The standard deviation was 2.30 cmol_c/kg (i.e., 95% of all observations should fall within ± 4.6 cmol_c/kg from the regression line).

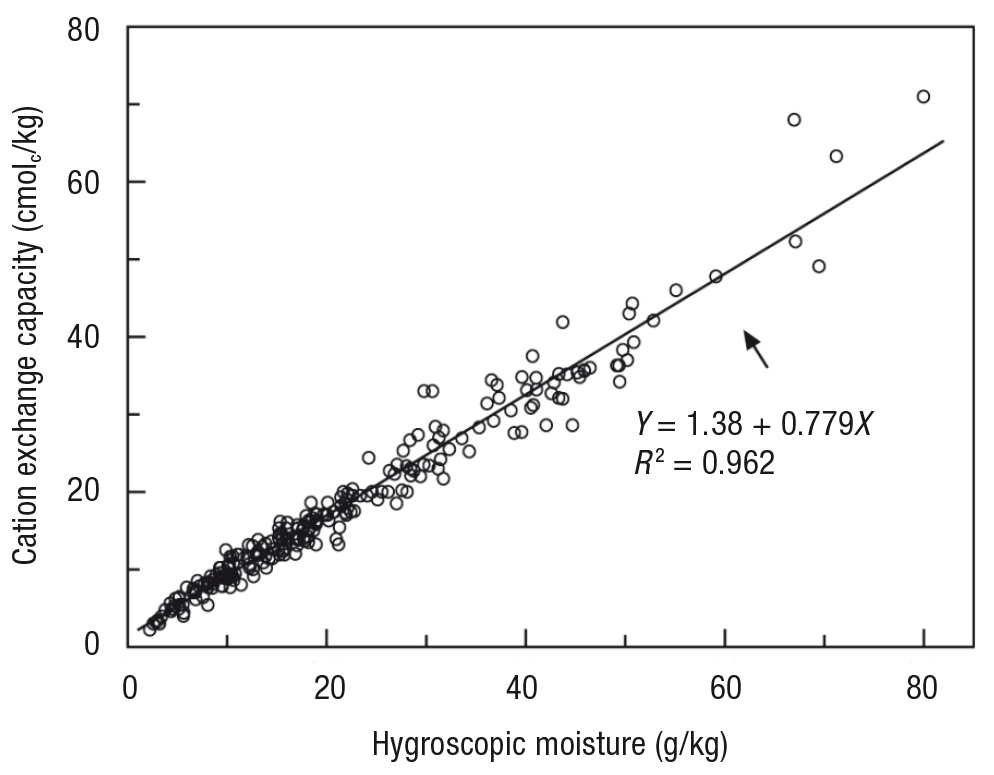

Figure 1. Cation exchange capacity as a function of hygroscopic moisture in equilibrium with a relative humidity of 43%.

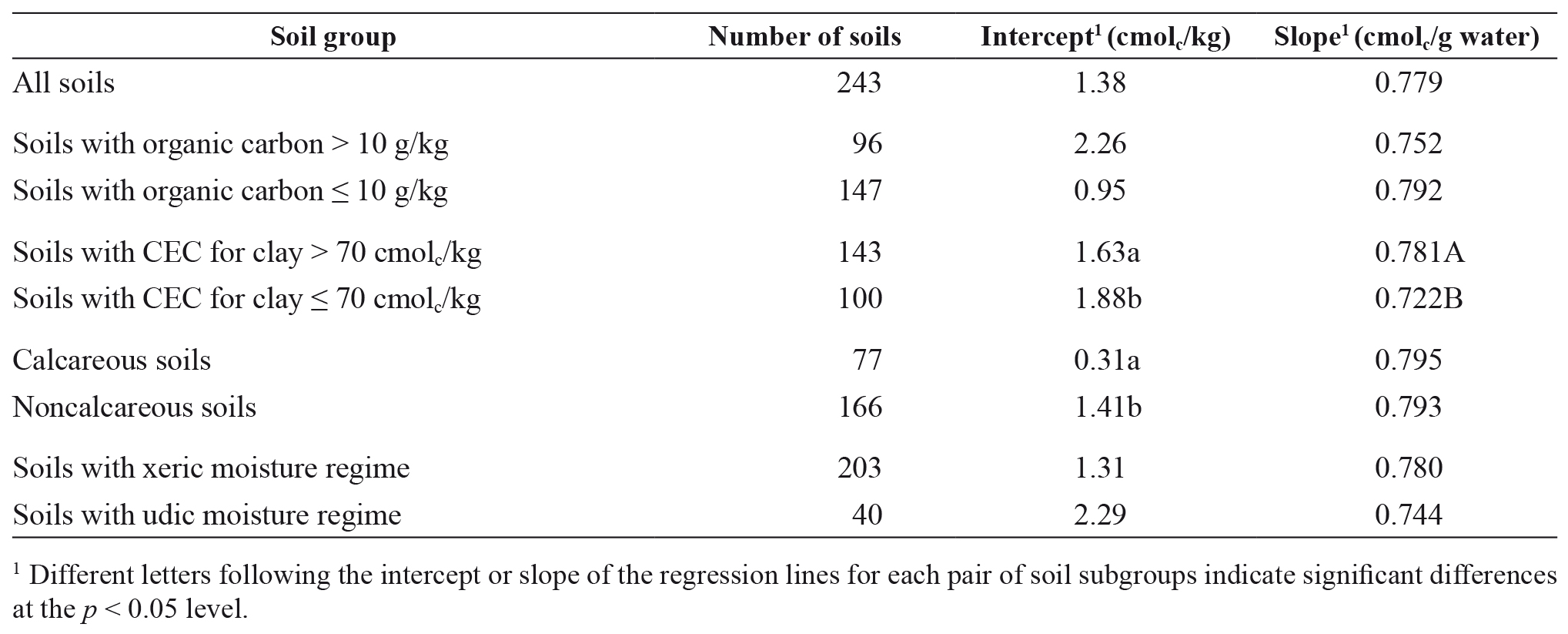

Table 2 shows the intercept and slope of the CEC–HM₄₃ regression lines corresponding to the four pairs of soil subgroups obtained by classifying the soils according to OC content (above or below 10 g/kg), CEC for the clay fraction (above or below 70 cmol_c/kg), presence of carbonate, and moisture regime (xeric or udic; Soil Survey Staff, 1999). Significantly (p < 0.05) different intercepts were found between calcareous and noncalcareous soils, and significantly (p < 0.05) different intercepts and slopes between soil groups differing in CEC for the clay fraction. Linear slopes also differed significantly in soils with high CEC values (> 70 cmol_c/kg)in their clay fraction as compared to the other soils. This was likely due to the higher smectite contents in soils with high CEC values. Unlike them, soils from temperate areas have illite as their most common silicate clay, which has lower surface charge density and presence of internal surfaces accessible to hydrated cations. The two slopes, however, differed by less than 8% in all instances.

Finally, as expected from the high CEC of the organic soil components, the explained variance in soil CEC increases significantly (p < 0.05) (although slightly), if OC is introduced as a new variable in the equation:

with R² = 0.963 and a standard deviation of 2.26 cmol_c/kg.

In summary, the regression equation of Figure 1 affords the simple, robust, inexpensive prediction of soil CEC even if precise information about the soil components influencing CEC is lacking. This performs better than the modest predictive ability of other variables, even when used in combination in a multiple regression model (see, for example, Manrique et al., 1991).
