IntroductionTop

Agriculture implies high levels of production risks and many variables must be considered to take decisions. In order to define management strategies and development programmes, an adequate knowledge about variables most directly affecting production is essential. Understanding the behaviour of variables is difficult due to the complexity of relationships and to the amount of factors involved. Citrus production becomes a special challenge due to the significant spatial and temporal variability present in orchards.

In citrus orchards, production is primarily defined by the amount and size of fruits. Production can be affected by both endogenous and exogenous factors. Endogenous factors are, for instance, genetic characteristics of species or varieties, and physiological issues. Among the exogenous factors, environmental and crop conditions, especially irrigation and fertilisation, are highlighted (Agustí, 2000, 2003). Production is also determined by trees’ age, and their reaching a commercial production volume (> 50 kg/tree) at adult age (> 7 years after transplant) (Orduz-Rodríguez et al., 2007).

Citrus trees’ development is possible between 10°C and 40°C and optimised between 24°C and 32°C. Fruit size and final set depend, among other factors, on the availability of carbohydrates for developing flowers. Thermal influence is very limited in the range of 22°C to 30°C. However, if leaf temperature rises above 32°C, the CO2 assimilation rate decreases. Thermal influence on growth and competition between vegetative and reproductive developments, emphasise problems from a limitation in the CO2 fixation, such as the alternation of productivity between seasons, reducing fruits’ size, and final fruits set (Agustí, 2003).

Maximum and average temperatures, reference evapotranspiration, wind speed, and relative humidity, are the meteorological variables with the greatest influence on fresh dough and equatorial diameter of fruits. In citrus orchards growing at temperate climates, autumn rains improve the fruits’ final size and juice content, and reduce the concentration of sugars and free acids. Total annual rainfall between 900 mm and 1200 mm is enough to ensure fruit development. On the other hand, drought periods (even if short) tend to reduce the fruit size. When lower values or dry seasons occur, complementary irrigation is needed (Agustí, 2000, 2003). Irrigation absence mainly affects the fruit size, although the effect of this absence also depends on the phenological state (González-Altozano & Castel, 2003; García Petello & Castel, 2004; Gasque et al., 2010).

Many variables must be considered prior to making decisions about planting the framework. Tree vigour and growth habitat, as influenced by variety and rootstock, are important, and site quality in terms of climate, soil characteristics, and water availability must be considered. In general, higher density plantings that rapidly develop into a hedgerow appear to be advantageous, especially at the beginning of trees’ production life. However, vigorous combinations with more spreading growth habits should be planted with wider spacing (Tucker et al., 1994; Medina-Urrutia et al., 2004).

Machine Learning (ML) is a branch of artificial intelligence that provides methods with the ability to learn from or to make predictions on data. These methods build a model from example inputs in order to make predictions or to take decisions (Mitchell, 1997). ML does not make any assumptions about the right structure of the data model, allowing the construction of complex non-linear models. There are many different paradigms in ML: lazy methods such as K-Nearest Neighbours (KNN) (Altman, 1992) methods, based on tree construction, as, for instance, C4.5 (Quinlan, 1993) or Neural or Bayesian networks (Mitchell, 1997). All of them have been successfully used in many different domains. For instance, neural networks have been successfully used to predict maximum dry density and unconfined compressive strength of cement-stabilised soil (Das et al., 2011), or to detect structural damage (Alavi et al., 2016a,b).

In particular, some of these methods have been applied for comprehensive agricultural planning in precision farming (PF) (Arango et al., 2015). PF techniques provide a complete knowledge about spatial variability and the different characteristics of a specific area, helping to define more efficient and rational crop management plans in relation to a more localised use of fertilisers and agrochemicals (Yu et al., 2010; Fernandez Quintanilla et al., 2011).

Among the huge number of issues related to PF, pest prediction is a task where different ML techniques have been successfully applied. In particular, Bayesian techniques have been adopted (Tripathy et al., 2011; Pérez-Ariza et al., 2012). On the other hand, support vector machines are also extensively used (Wang & Ma, 2011).

When the variable to predict is continuous, ML methods more commonly used are CART (Breiman, 2001), M5 (Quinlan, 1992), M5-Prime (Wang & Witten, 1997), KNN (Altman, 1992), or support vector regression (SVR, see Basak et al., 2007).

The model tree technique (see, for example, Frank et al., 1998, or Samadi et al., 2014) is based on combining decision trees with linear regression functions at the leaves. There are several techniques to predict numeric values instead of just a label. Standard regression imposes a linear relation on data; hence, it is not quite powerful. On the other hand, other paradigms not based on constructing a tree (such as Neural Networks, SVR or lazy classifiers) can be quite powerful, but their interpretability is low.

Regarding model tree techniques, the strategy to construct the tree is similar for all of them (El Gibreeb & Aksoy, 2015). The main differences among the methods are the splitting criteria, the pruning rules, and the mechanism to estimate the leaf value. CART uses variance as the splitting criteria, while M5 uses standard deviation reduction (SDR). In addition, the estimated value for a leaf is constant in CART. In contrast, M5 approximates the leaf values by linear regression models. In addition, it is able to improve predictions by introducing a smoothing procedure (Quinlan, 1992). Furthermore, trees generated with M5 are smaller than those generated with CART. Thus, M5 outperforms CART in accuracy and simplicity (Uysal & Altay, 1999). M5-Prime is an improvement over M5 that can deal with missing values and enumerated attributes (Wang & Witten, 1997) and has been used, for instance, to predict streamflow (Onyari & Ilunga, 2013), to model sediment yield (Goyal, 2014), to estimate the maximum scour depth at breakwaters (Pourzangbar et al., 2017) and to predict the compressive strength of high performance concrete (Behnood et al., 2017).

González-Sánchez et al. (2014) compared the predictive accuracy of ML and linear regression techniques for crop yield prediction in ten crop datasets. Multiple linear regression, M5-Prime model trees, Perceptron Multilayer Neural Networks, SVR, and KNN methods, were ranked. M5-Prime and KNN techniques obtained the lowest errors and the highest average correlation factors. M5-Prime, which achieves the largest number of crop yield models with the lowest errors, was considered a very suitable tool for massive crop yield prediction in agricultural planning. In addition, it is more interpretable than KNN. Other approaches combine partial least square models and spectral imaging technology (Ye et al., 2007).

As production-predictive tasks require the learned model to predict a numeric value associated with a variable rather than the class the example belongs to, model regression trees are proposed. Hence, this work checks the effectiveness of ML techniques in order to determine the affecting variables and classify citrus orchards according to production. In particular, the predictive mechanism established in this work to characterise the variables involved, and to identify the most important factors affecting citrus production, is based on the M5-Prime method.

Material and methodsTop

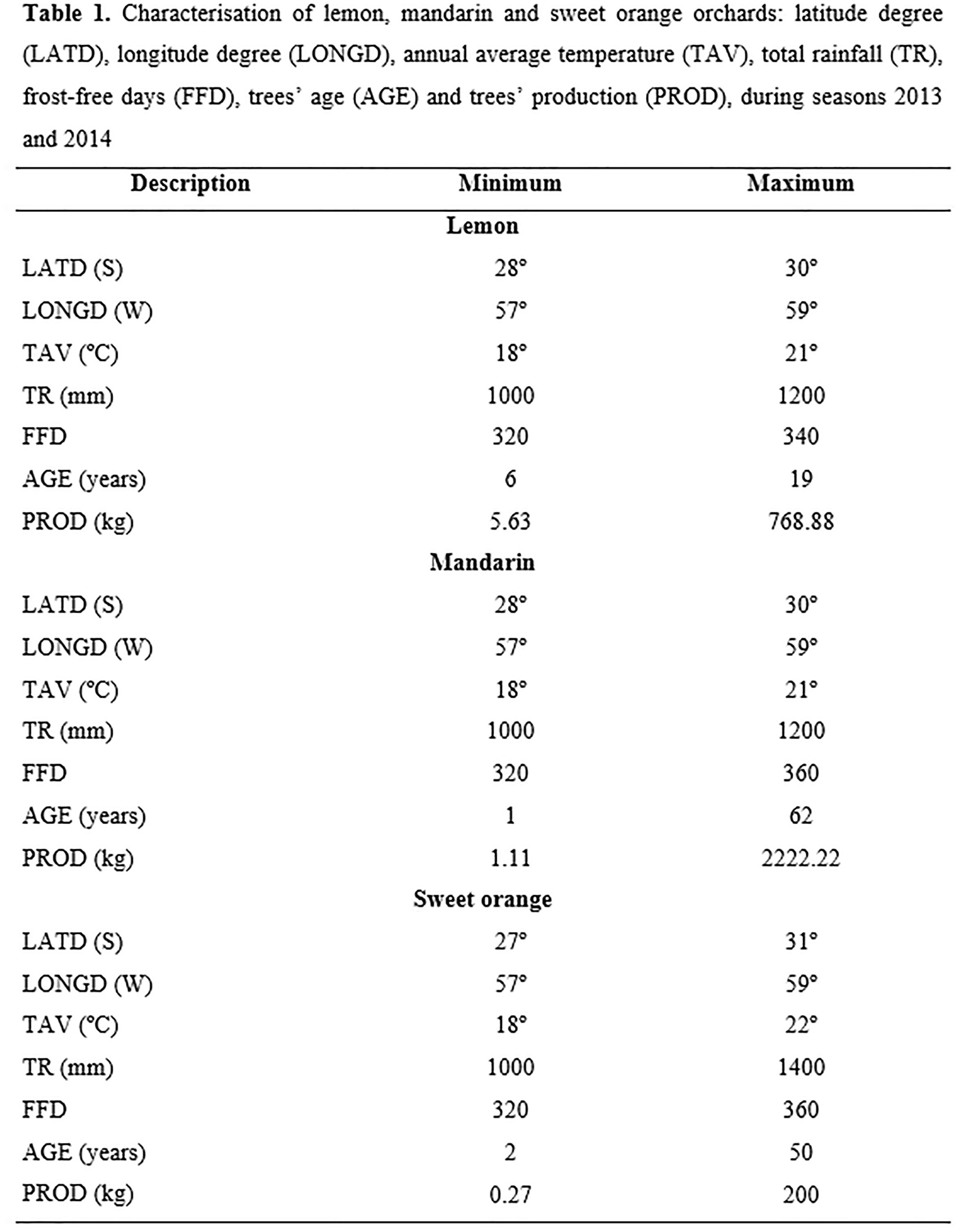

The studies have been conducted during seasons 2013 and 2014, with field information from 964 Citrus orchards in the province of Corrientes, Argentina, located at latitudes 57°W to 59°W, and longitudes 27°S to 31°S. Orchard tree canopies belong to several varieties of three species: lemon (Citrus limon Burman), mandarin (Citrus reticulata Blanco), and sweet orange (Citrus sinensis Osbeck), over diverse rootstocks.

Every orchard was characterised by the following variables: global position (latitude and longitude degrees, minutes and seconds); annual minimum and maximum average temperatures (ºC), annual total rainfall (mm) and annual total frost-free days defined from the corresponding isolines at orchards’ location; environment, species, variety, age of trees, planting framework (between rows’ distance, m; within rows’ distance, m), presence or absence of irrigation (binary) and production by tree (kg/tree).

Lemon was present in 94 orchards (9.6%), placed at 28°S to 30°S and 57°W to 59°W, in Mesopotamic Park and savanna environments, with annual average temperatures between 18°C and 21°C, total annual rainfall between 1000 mm and 1200 mm, and 320 to 340 frost free days in the year. Two varieties of lemon were found in the studied orchards: 'Eureka' (71% of orchards) and 'Genova' (26% of orchards). In addition, 3% of orchard varieties could not be identified (Unknown). Only 26.5% of the orchards were under irrigation, with similar percentages in all varieties. The characteristics of these orchards are presented in Table 1.

Mandarin was present in 364 orchards (37.6%), placed at 28°S to 30°S and 57°W to 59°W, with annual average temperatures between 18°C and 21°C, total annual rainfall between 1000 mm and 1200 mm and 320 to 360 frost free days in the year, in mesopotamic park and savanna environments (however, 'Clemenules', 'Murcott', 'Criolla', 'Nova', 'Dancy' and 'Okitsu' varieties appeared in all locations; W Murcott is present only at 59°W, 29°S in mesopotamic park environment and the others only at 57°W, 30°S in savanna environment). Twelve varieties of mandarin were found in the studied orchards: 'Murcott' (24% of orchards), 'Ellendale' (20%), 'Okitsu' (15%), 'Nova' (12%), 'Dancy' (8%), 'Clemenules' (6%), 'Criolla' (5%), 'Encore' (3%), 'Ortanique' (2%), 'Malvacio' (1%), 'Montenegrina' (1%) and 'W Murcott' (1%). In 1% of orchards, the variety could not be identified (Unknown). Irrigation was present in 45% of orchards, with higher percentages in 'Montenegrina', 'W Murcott', 'Clemenules', 'Nova' and 'Murcott'. Table 1 presents a description of these orchards.

Orange was present in 509 orchards (52.8%), placed at 28°S to 30°S and 57°W to 59°W, in mesopotamic park and savanna environments, with annual average temperatures between 18°C and 22°C, total annual rainfall between 1000 mm and 1400 mm, and 320 to 360 frost free days in the year. Fourteen varieties of orange were found in the studied orchards: Valencia late (50% of orchards), Salustiana (8%), Valencia seedless (7%), Washington navel (7%), Delta seedless (5%), Valencia frost (4%), Criolla (3%), Lane late (2%), Navel late (2%), Navelina (2%), Robertson navel (1%), Newhall (0.2%), Hamlin (0.2%) and Westin (0.2%). In 7% of the orchards, the variety could not be identified (Unknown). Irrigation was present in 42.4% of the orchards, with higher percentages in Salustiana, Midknight, Navelina, Robertson Navel, and Newhall. Description of these orchards is presented in Table 1.

Statistical analysis

Graphic and analytical descriptive statistical tools were used, and Pearson correlation coefficients (R) calculated, in order to define and characterise the relationships between all variables and production by tree. Principal component analysis (PCA) and Biplot graphics were performed to reduce dimension in a way that allows for examining data in a less dimensional space. PCA builds artificial axes (principal components) with maximum variability, enabling scatter plots of observations and/or variables with optimum properties for the interpretation of the underlying variability and co-variability. In Biplots, observations and variables can be visualised in the same space, and possible associations between variables and observations can be identified (Di Rienzo et al., 2015). These analyses were performed with InfoStat 2015 (Di Rienzo et al., 2015).

Learning approach

Based on endogenous (species, varieties, age of trees) and exogenous factors (global position, annual minimum and maximum average temperatures, total rainfall and total frost-free days, environment, planting framework and irrigation) (Agustí, 2003), citrus production was predicted via regression trees, which have been demonstrated as suitable methods to crop yield prediction.

M5-Prime is a learner which constructs regression trees producing a classification, based on piece-wise linear functions (Wang & Witten, 1997). To do that, the space is partitioned into a set of regions. Further, the predicted value is fitted within each region using a linear model. The way this method works is the following: Assuming a training set with examples, each one defined by its value on a set of attributes (discrete or continuous) and a continuous target, the method constructs a model that relates the target values of the training examples to the values of the variables defining the example. This model can then be easily applied to predict the target variable: in the first phase, the decision tree (see, for example, the ones in Fig.s 2, 4, and 6) is used to classify the example into one of the groups; then, the linear equation associated with the particular group the example has been classified into, is used to predict the target variable (see Tables 2, 4, and 6 for examples of these equations).

M5-Prime selects the split that maximises the expected error reduction. Once the tree is constructed, a multivariate linear model is computed for the examples at each tree node with standard regression techniques and using only attributes that are referenced by tests or linear models somewhere in the sub-tree under this node. The main characteristics of this method are:

1. Regression tree construction:

a) Splitting criterion: Maximise SDR

T being the set of examples (orchards in this case) that reaches the node and T1, T2, … the subsets resulting from the node split according to the chosen attribute.

b) Stopping criterion: Standard deviation below a given threshold (small enough) in all nodes.

c) Pruning: Heuristic estimation of absolute error of linear regression models.

with n being the number of examples that reach the node and ? the number of parameters that represent the class value at that node. Pruning greedily removes terms from linear regression models to minimise the estimated error.

d) Smoothing is used to compensate discontinuities between the adjacent linear models at the leaves of the pruned tree. The smoothing process uses first the leaf model to compute the predicted value, and then it filters that value along the path back to the root, combining it with the value predicted by the linear model for that node. The modified prediction p’ is computed by

with n being the number of examples at the smoothed node, k a constant, q and r are respectively the predictions passed to the studied node from below and the value predicted by the model at the studied node. Basically, this process propagates the effect of incorporating the ancestor models into the leaves.

2. The value at each leaf is estimated using a linear regression function.

3. At each node, it uses only a subset of the attributes occurring in the sub-tree.

The experiments were conducted using the RWeka Package, using the M5-Prime function with the standard configuration, i.e., with pruning, smoothing, and with 4 being the minimum number of examples per node. Bootstrap resampling was used, that involves taking random samples from the dataset (with re-selection) to evaluate the model. In aggregate, the results reduce the effects of random selection. The experiments performed here were repeated 100 times. The models were trained with the original variables described at the beginning of the section. In addition, no feature reduction or extraction was applied since M5-Prime automatically selects the most relevant variables when building the decision trees.

The accuracy of this method was studied in terms of root mean square error (RMSE), correlation coefficient (R) and the relative mean absolute error (MAE). RMSE measures the difference between the real and the estimated value and MAE compares the average of the differences between the real and the estimated values to the average of the estimated values (Han & Kamber, 2006).

Results and discussionTop

Lemon

The R coefficients calculated indicate that production by tree is significantly associated in a positive way with trees’ age (R=0.64; p<0.0001) and longitude (R=0.48; p<0.0001); and in a negative way with rainfall (R=-0.77; p<0.0001).

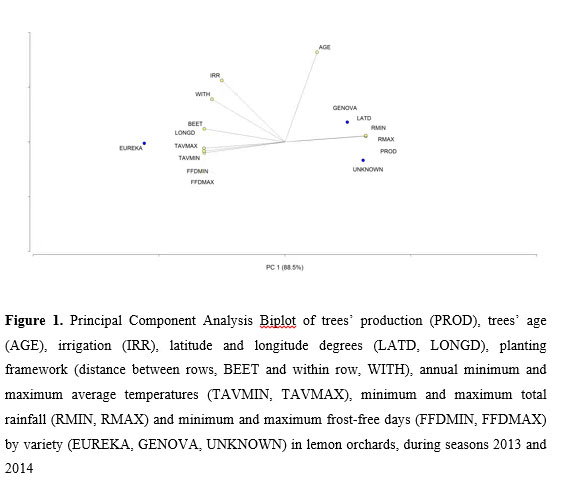

In Fig. 1, PCA Biplot associations between variables and observations can be identified. Angles between variable vectors and principal components indicate that the principal axis (containing 88.5% of variability) separates the different orchards by production by tree. On the right are more productive orchards, mostly belonging to Genova and Unknown varieties, with higher ages, latitudes, rainfall values and no irrigation. On the left are less productive orchards, primarily belonging to 'Eureka' variety, with higher longitudes, frost-free days, and within and between rows distance. Although orchards’ locations present small variations, PCA results indicate variability in production associated to latitude and longitude.

Figure 1. Principal Component Analysis Biplot of trees' production (PROD), trees' age (AGE), irrigation (IRR), latitude and longitude degrrres (LATD, LONGD), plantig framework (distance between rows, BEET and within row, WITH), annual minimum and maximum average temperatures (TAVMIN, TAVMAX), minimum and maximum total rainfall (RMIN, RMAX) and minimum and maximum frost-free days (FFDMIN, FFMAX) by variety (EUREKA, GENOVA, UKNOWN) in lemon orchards, during seasons 2013 and 2014.

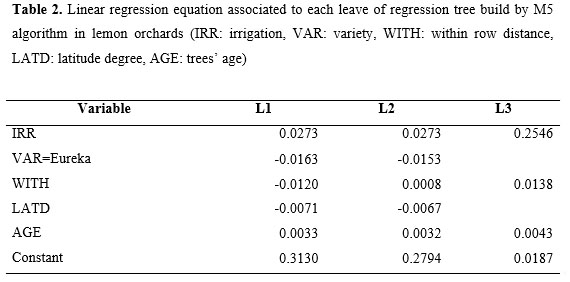

Fig. 2 shows the regression tree obtained by M5-Prime algorithm and Table 2 presents the linear regression equation associated to each leaf. According to that, the best variable to classify lemon production is the trees’ age. Thus, orchards could be classified into three groups: L1, with trees’ age of 9 years or below, the lowest production and high variability; L2, with trees’ age between 9 and 21 years, an intermediate production and the highest variation; and L3, with trees’ age over 21 years, the most homogeneous group with the maximum production by tree. Table 3 presents descriptive statistics of production by group.

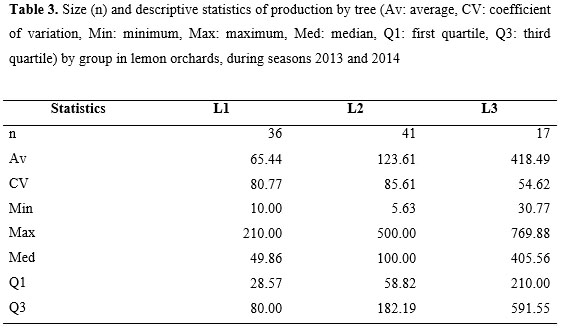

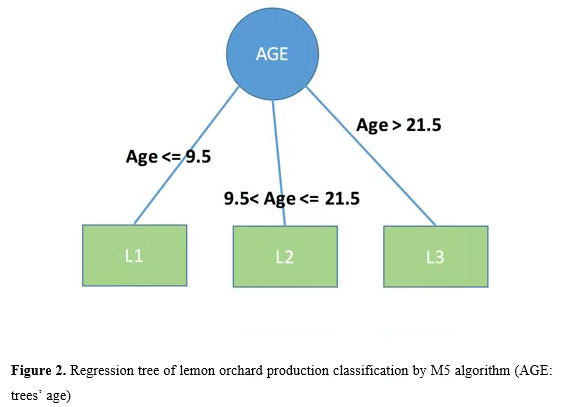

Figure 2. Regression tree of lemon orchard production classification by M5 algorithm (AGE: trees’ age)

Results obtained by all techniques related age with production by tree. However, in Biplot, other variables showed smaller angles with production, indicating stronger association. On the other hand, M5-Prime allows for grouping orchards according to production by tree and highlights age as the best classification variable.

In addition, M5-Prime defines groups primarily based on trees’ age. Minimum and maximum temperatures, despite being below optimum values (Agustí, 2003), did not differ between orchards. According to Orduz-Rodríguez et al. (2007), orchards with trees’ age below 9 years (L1), can be defined as pre-productive ones, with production of just over the minimum of 50 kg/tree. Orchards with trees between 9 and 21 years old (L2) (that are in a productive stage) almost doubled the production by tree.

Differences between L1 and L2 were mainly based on differences of weights associated to within rows (see Table 2), probably due to the effects of slightly strong planting in trees at the beginning of production life (trees’ ages between 6 and 19 years), agreeing with Tucker et al. (1994) and Medina-Urrutia et al. (2004) (average distances L1: 6.33 m × 4.31 m; L2: 6.63 m × 4.05 m).

Orchards with tree age of over 21 years (L3), with the weakest planting framework, showed the largest production by tree. In this group, the main factor affecting production was irrigation. This can be deduced from the value of the corresponding coefficient in regression tree and from the fact that 76% of orchards in this group are irrigated. On the other hand, L1 and L2 orchards (< 25%) indicated that this practice is necessary and improves yield, according to Agustí (2000, 2003), González-Altozano & Castel (2003), García Petello & Castel (2004), and Gasque et al. (2010).

Differences in regression coefficients with L3 were mostly based on the inclusion of the 'Eureka' variety and latitude degree coefficients. In addition, the weight of irrigation, distance within rows and constant coefficients also influence these differences. Note that latitude and variety (specifically 'Eureka') are not relevant variables for trees with age over 21 years.

Mandarin

According to R coefficients, production by tree is significantly associated, in a positive way, with distance between rows (R=0.12; p<0.0274) and within rows (R=0.16; p<0.0023). However, coefficient values indicate a weak association.

Fig. 3 presents PCA Biplot, and associations between variables and observations could be identified. PCA and two coordinates Biplot showed that a principal axis (containing 64.9% of variability) separated the different orchards by location, climatic conditions and varieties, but it was not associated with production by tree. The second axis (conserving 15.6% of variability), separated orchards by productivity. On top were more productive orchards without irrigation, with older trees and higher planting frameworks.

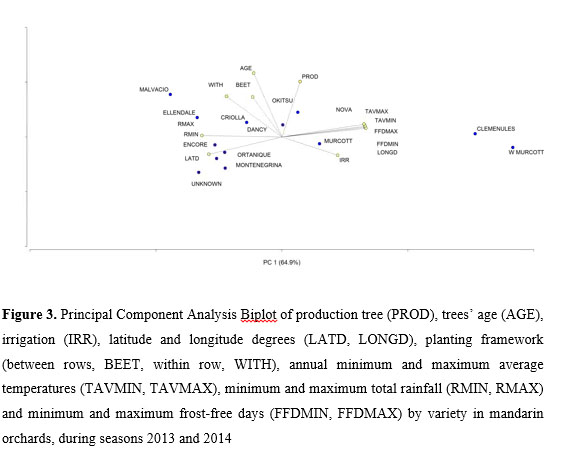

Figure 3. Principal Component Analysis Biplot of production tree (PROD), trees’ age (AGE), irrigation (IRR), latitude and longitude degrees (LATD, LONGD), planting framework (between rows, BEET, within row, WITH), annual minimum and maximum average temperatures (TAVMIN, TAVMAX), minimum and maximum total rainfall (RMIN, RMAX) and minimum and maximum frost-free days (FFDMIN, FFDMAX) by variety in mandarin orchards, during seasons 2013 and 2014

Results obtained from M5-Prime indicate that tree age was the most informative variable to classify mandarin production, followed by irrigation, between and within rows distances as shown in Fig. 4 and Table 4. Although orchards’ locations present small variations, PCA results indicate variability in production associated to latitude and longitude.

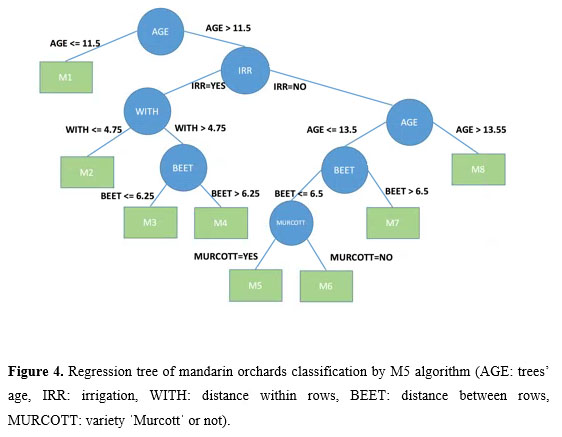

Figure 4. Regression tree of mandarin orchards classification by M5 algorithm (AGE: treesf age, IRR: irrigation, WITH: distance within rows, BEET: distance between rows, MURCOTT: variety .Murcott. or not).

M5-Prime classified mandarin orchards into eight groups. For instance, M1, with tree age of 11.5 years or below, comprised the largest number of orchards, with one of the smallest productions by tree and high variation. The most relevant variable for the other seven groups associated to orchards older than 11.5 years, was irrigation. Descriptive statistics of production by group are presented in Table 5.

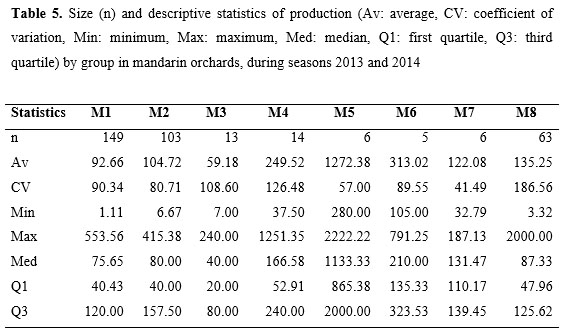

In mandarin orchards, not all techniques related age with production by tree. Age and production were non-significantly associated according to R coefficient (R=0.08; p=0.1314). However, the fact that simple correlation coefficients associate a variable with another without considering other variables must be taken into account.

PCA and Biplot indicated a high association of production by tree with age, irrigation, within and between rows, and matching with the variables selected by M5-Prime.

Orchards were classified into eight groups by M5-Prime, seven of them associated to the orchards over 11.5-year-old M1 group. Orchards with trees’ age under 11.5 years could be considered at the beginning of the commercial production (according to Orduz-Rodríguez et al., 2007, criterion). Finally, 75% of orchards were over 7 years.

For the orchards whose trees’ ages were greater than 11.5 years, irrigation was an important characteristic. Groups M2, M3, and M4 present irrigation, but their productions were below higher, indicating that annual rainfall between 1000 and 1200 mm could be enough for citrus growth and production (Agustí, 2000, 2003). M2 group was associated to orchards with distance within rows of below 4.75 m. M3 and M4 with distances within rows of over 4.75m also differed on the distance between rows. Orchards in M4 presented the maximum production by tree followed by M2. From the viewpoint of the framework, these results were contrary to Tucker et al. (1994) and Medina-Urrutia et al. (2004).

Age was again an important variable for the groups with no irrigation, being 13.5 years the split point for age. For the groups associated to ages below 13.5 years (M5, M6 and M7), the distance between rows was relevant. The most productive orchards belonging to M5 and M6 groups presented ages of below 13.5 years and distance between rows of below 6.5 m. These results strongly agree with the results of Tucker et al. (1994) and Medina-Urrutia et al. (2004) of higher density advantages at the beginning of the trees’ production life. Note that the variety was also relevant for those orchards with trees’ age between 11.5 and 13.5 years and with distances between rows of below 6.5 m.

Sweet orange

Production by tree was significantly associated, in a positive way, with age (R=0.14; p=0.0013), and in a negative way with minimum and maximum rainfall (R=-0.10; p=0.02; R=-0.10; p=0.02, respectively); however, coefficients values indicate weak association.

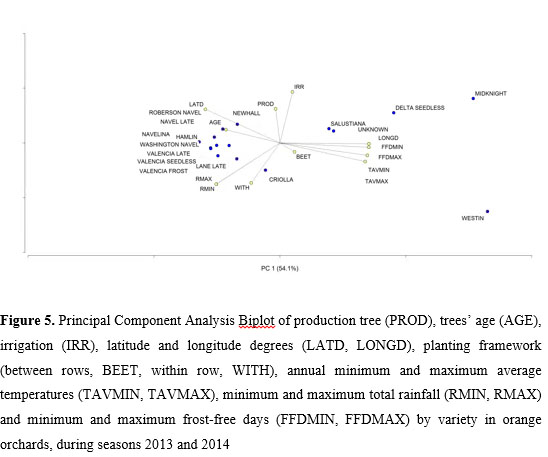

Orange PCA Biplot is shown in Fig. 5, where the associations between variables and observations can be identified. PCA and two coordinates Biplot show that a principal axis (containing 54.1% of variability) separates the different orchards by location, climatic conditions and varieties, but is not associated with production by tree. The second axis (conserving 20.4% of variability) separates orchards by productivity. On top are more productive orchards with irrigation, older trees, and higher between-rows distance.

Figure 5. Principal Component Analysis Biplot of production tree (PROD), trees’ age (AGE), irrigation (IRR), latitude and longitude degrees (LATD, LONGD), planting framework (between rows, BEET, within row, WITH), annual minimum and maximum average temperatures (TAVMIN, TAVMAX), minimum and maximum total rainfall (RMIN, RMAX) and minimum and maximum frost-free days (FFDMIN, FFDMAX) by variety in orange orchards, during seasons 2013 and 2014.

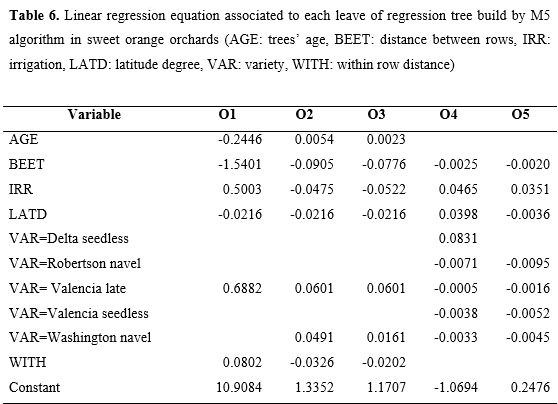

According to Fig. 6 Table 6, M5-Prime model indicates that age was again the most relevant variable for predicting sweet orange production. Between and within-rows distances were also relevant variables for this species.

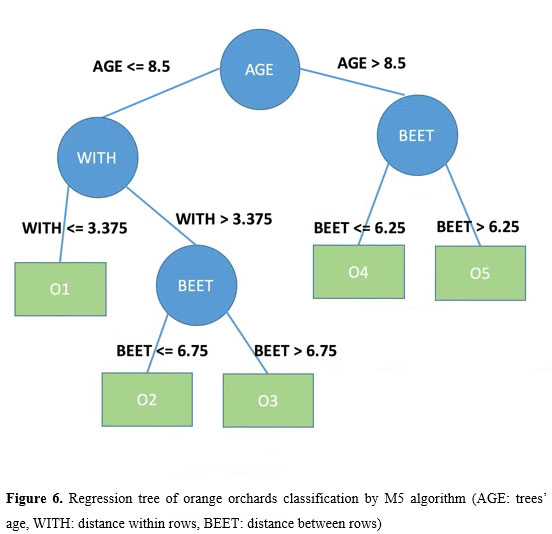

Figure 6. Regression tree of orange orchards classification by M5 algorithm (AGE: trees’ age, WITH: distance within rows, BEET: distance between rows)

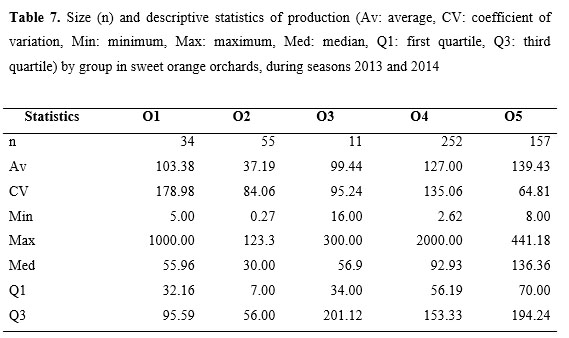

M5-Prime classifies orchards into five groups. O1, O2, and O3 are groups with tree age below 8.5 years, with the lowest values of production, and the other groups are over this age. Descriptive statistics of production by groups are presented in Table 7.

Not all techniques related age with production by tree. The R coefficients between production and age and rainfall were significant, but low values indicate a weak association. PCA and Biplot indicate a high association of production by tree with irrigation and longitude. Production was related in a negative way with rain, within and between rows. Nevertheless, age appears as a variable, weakly related with production. Only within and between rows’ distance matched with the variables selected by M5-Prime.

Groups O1, O2, and O3, with tree age of 8.5 years or below (that can be considered by Orduz-Rodríguez et al. (2007)´s criterion as initiating the commercial production), exhibit the lowest productions. Group O1, associated to orchards with distance within rows of below 3.375m, presented the higher production in this set indicating the advantages of stronger density planting in younger orchards, agreeing with Tucker et al. (1994) and Medina Urrutia et al. (2004). Groups O2 and O3 differed on the distance between rows (for O2 was less or equal than 6.75 m and over this value for O3). These results disagree with the criterion that strongly planting framework is associated with more productive orchards, perhaps due to the higher influence of distance within rows over distance between rows (Tucker et al., 1994; Medina-Urrutia et al., 2004). Finally, the production for oldest trees (>8.5 years), considered commercial production orchards, depended on the distance between rows, being the split point of 6.25 m.

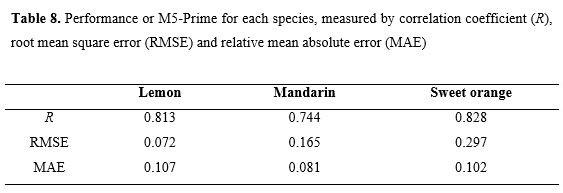

Table 8 shows the performance metrics associated to M5-Prime. The highest R was reached when M5-Prime predicts Sweet Orange production (0.828), followed by lemon prediction (0.813). Finally, the worst R is obtained for predicting mandarin production. All these values were good enough, compared to the values obtained in González-Sánchez et al. (2014), for yield prediction. Regarding RMSE, the highest error was obtained when the production was predicted for sweet orange (0.297), whereas the lemon prediction was the most accurate (0.072). MAE lowest values were obtained when production was predicted for mandarin (0.081), obtaining values around 0.10 for lemon and sweet orange production. These values were similar to those obtained in González-Sánchez et al. (2014). Both RMSE and MAE were computed as the average, obtained over the 100 repetitions of the bootstrapping process.

Thus, M5-Prime is demonstrated as appropriate to classify citrus orchards and allows for defining more informative, i.e., more relevant, variables affecting tree production. For all the studied species, the most informative variable is tree age; in mandarin and orange orchards, age is followed by between and within rows distances; irrigation also affects mandarin production.
